Quantum Machinery Group (Made in Italy)

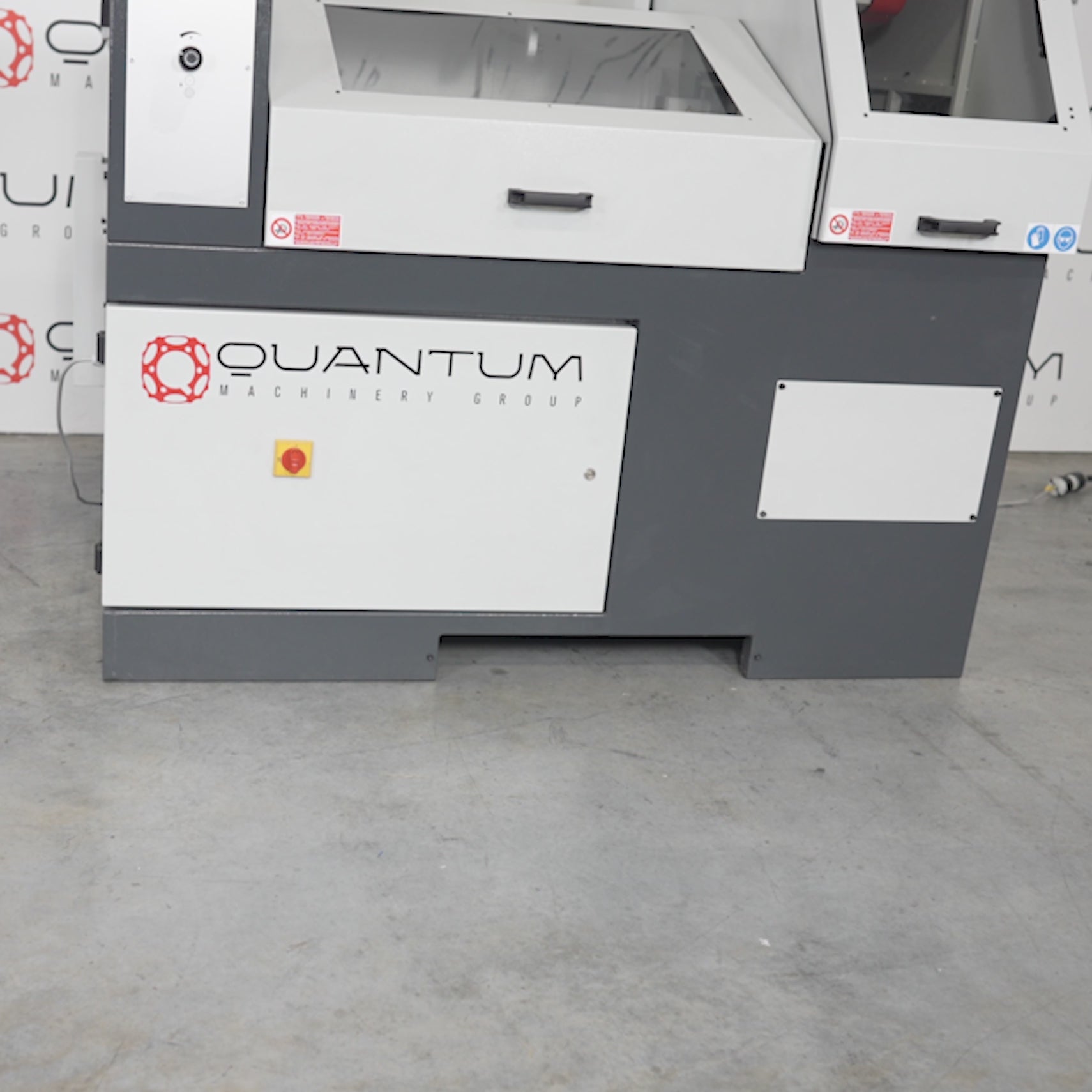

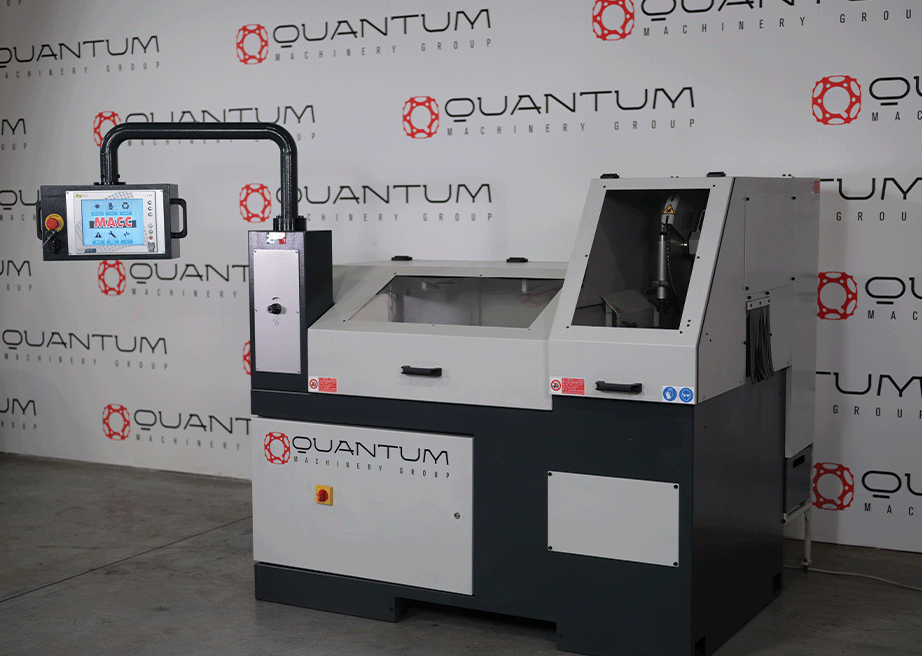

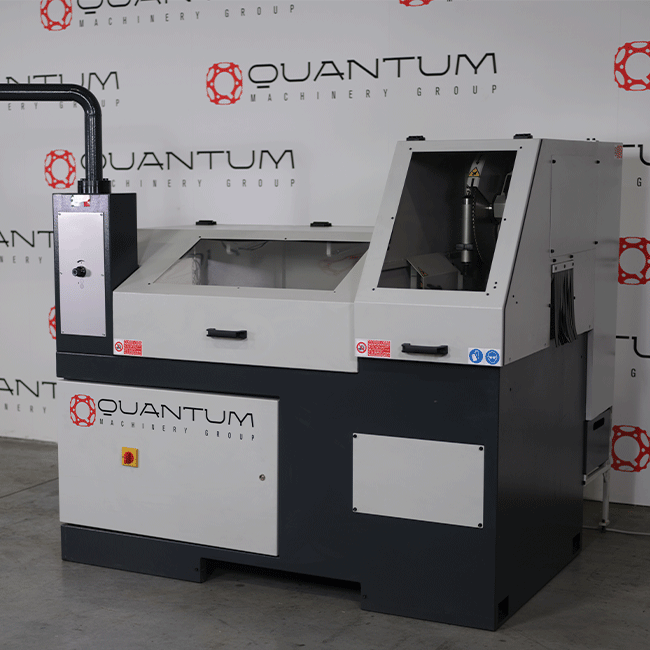

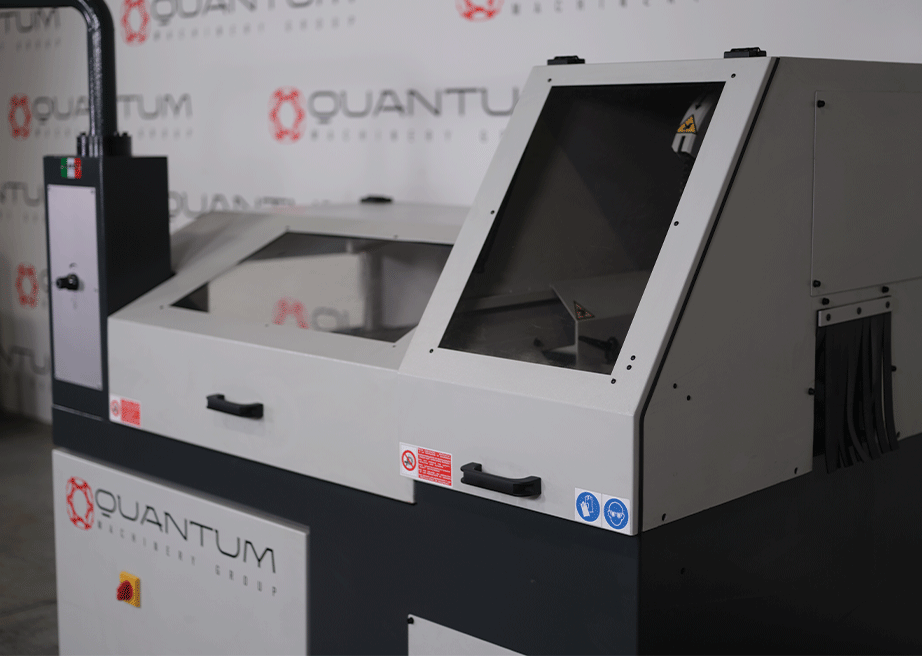

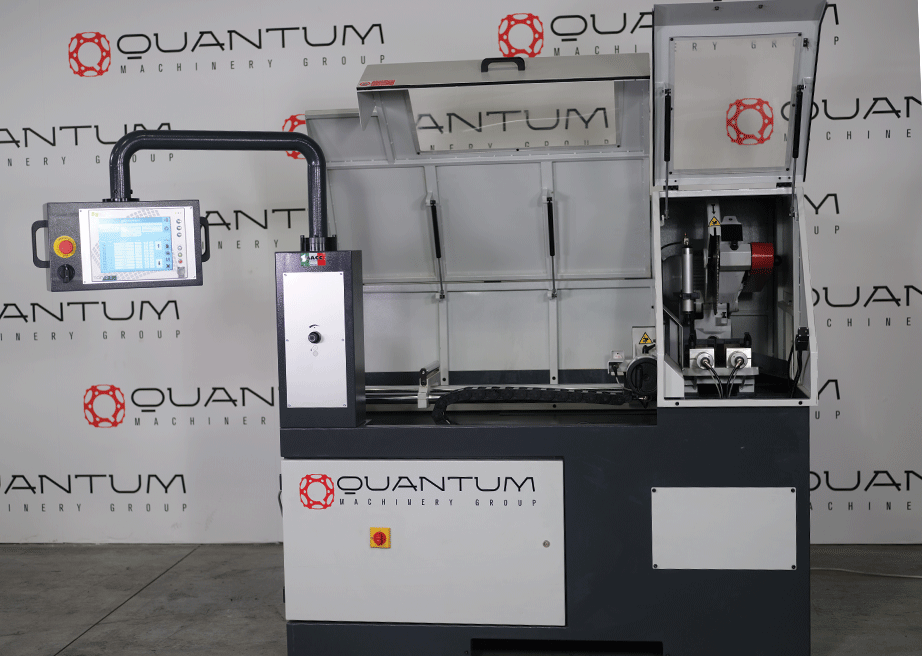

TA 400-A: 15.75" Fully-Automatic Non-Ferrous, Aluminum Cutting Saw (5-1/2" Round Tube Capacity)

Product SKU: TA 400-A (220 Volt / 3 Phase / 60Hz)
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$24,835
$29,807
Voltage Options
  • Description

FULLY-AUTOMATIC OPERATION:
Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:

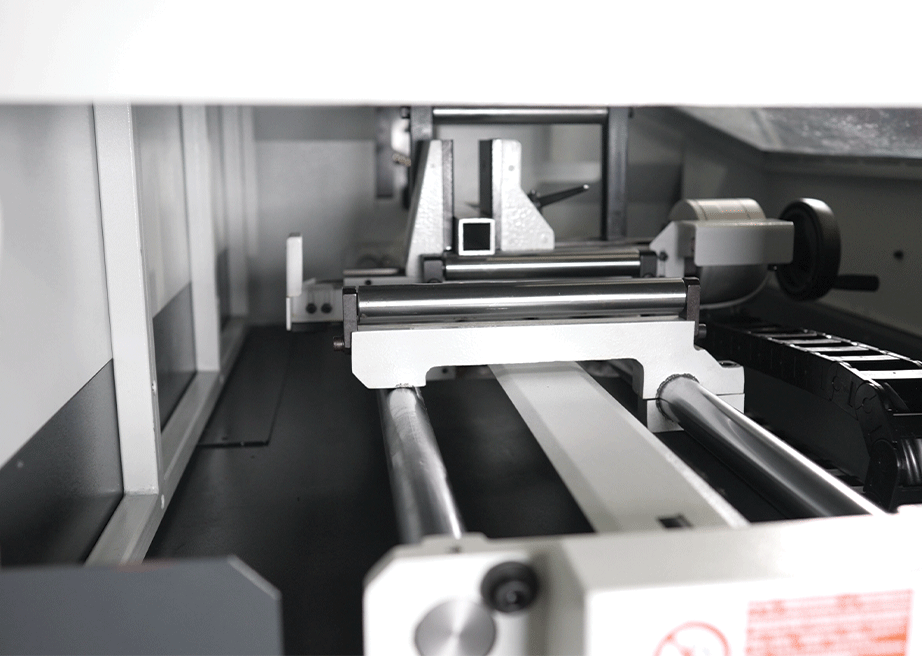

1. Material feeds in and fixed vice locks.
3. The blade rotation and coolant delivery start.
4. Head descends to the set cut.
5. Stroke returns to the set measurement.
6. Head returns and blade rotation and coolant delivery stop.
7. Vice opens.

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 5.5"

Square Tube

  • Straight Cut: 4.25"

Solid Round

  • Straight Cut: 2.25"

Rectangular Tube

  • Straight Cut: 3.9"H x 7"W

TECHNICAL DATA & FEATURES:

  • Automatic circular saw for cutting solid or profiles of aluminium or light alloys.

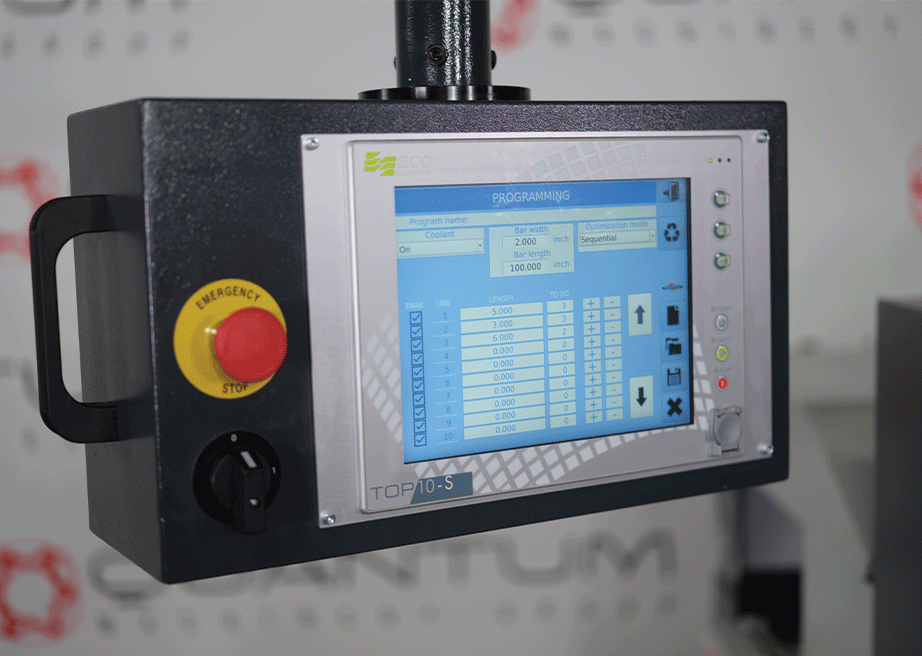

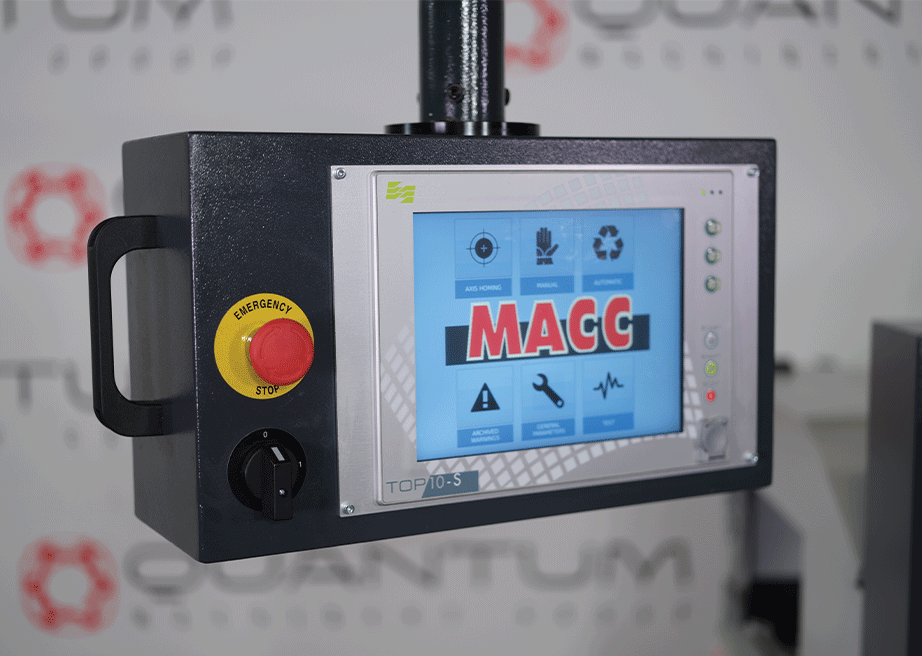

  • supplied with 39 programs, each of them with 50 steps for a total of 1950 cutting positions with relevant piece-counter.
  • Blade holder shaft on bearings.

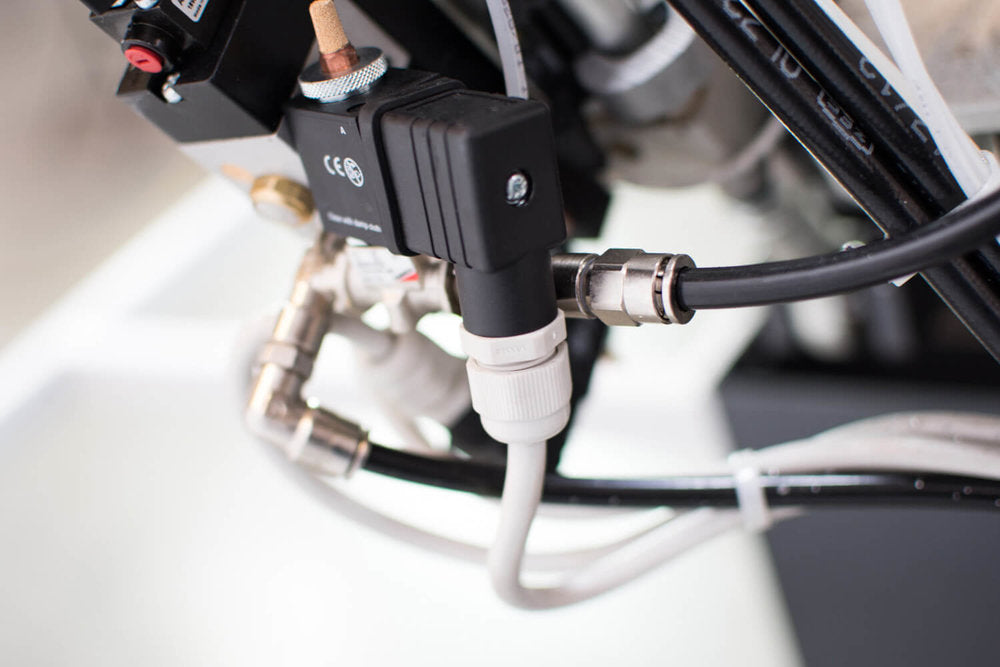

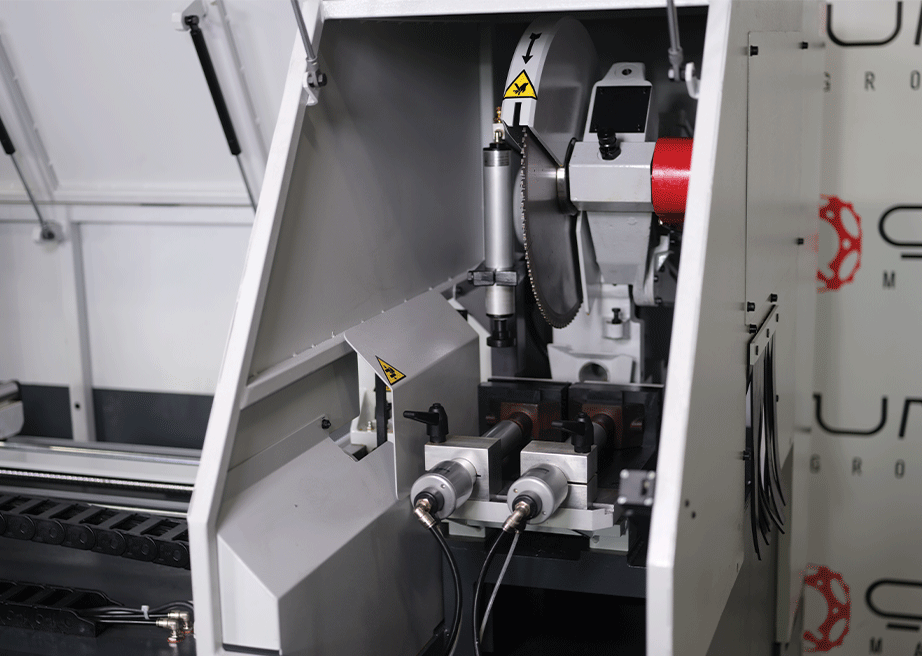

  • Two pneumatic vices.

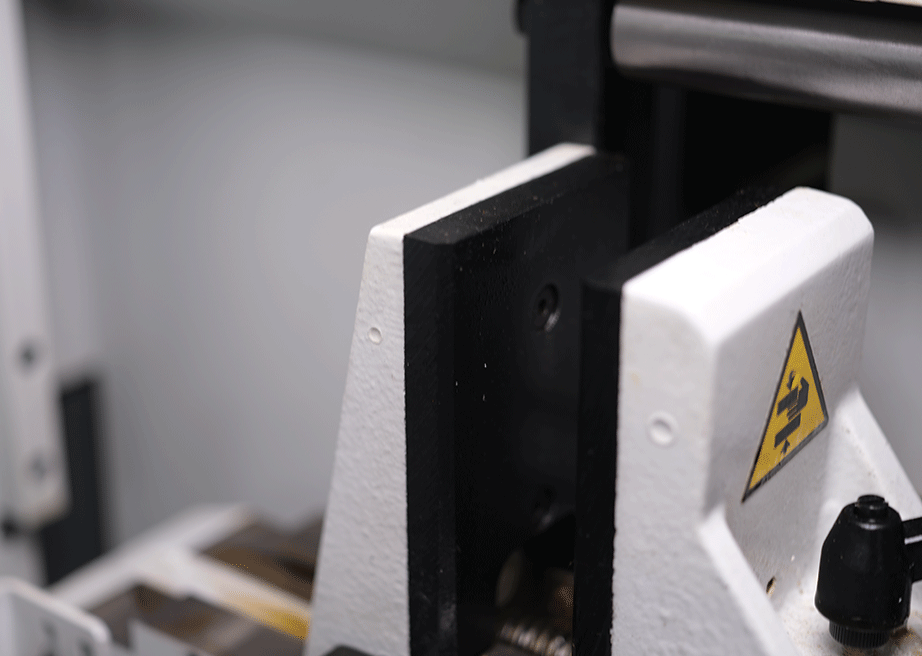

  • Teflon jaws to fix the piece.

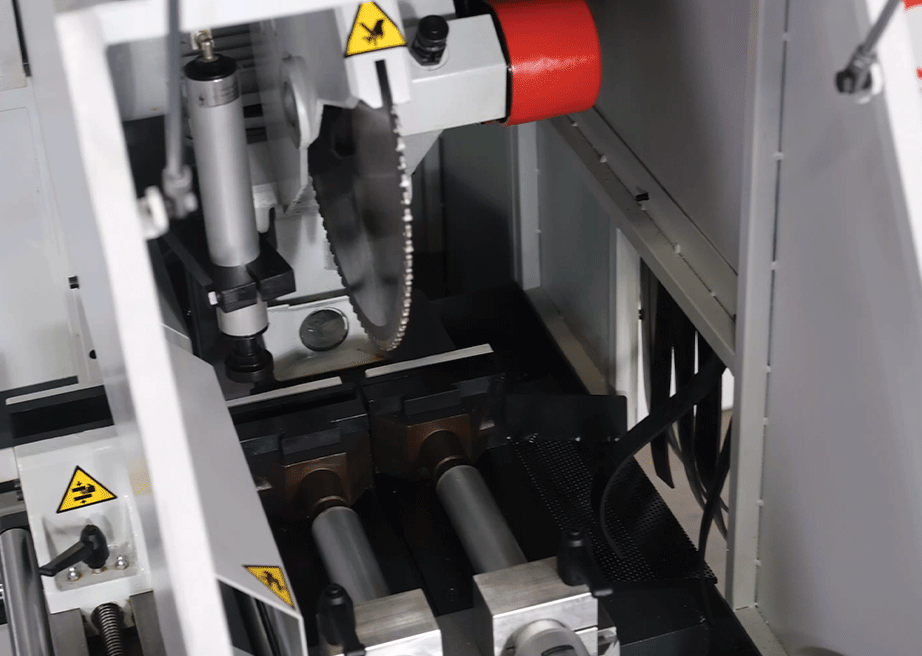

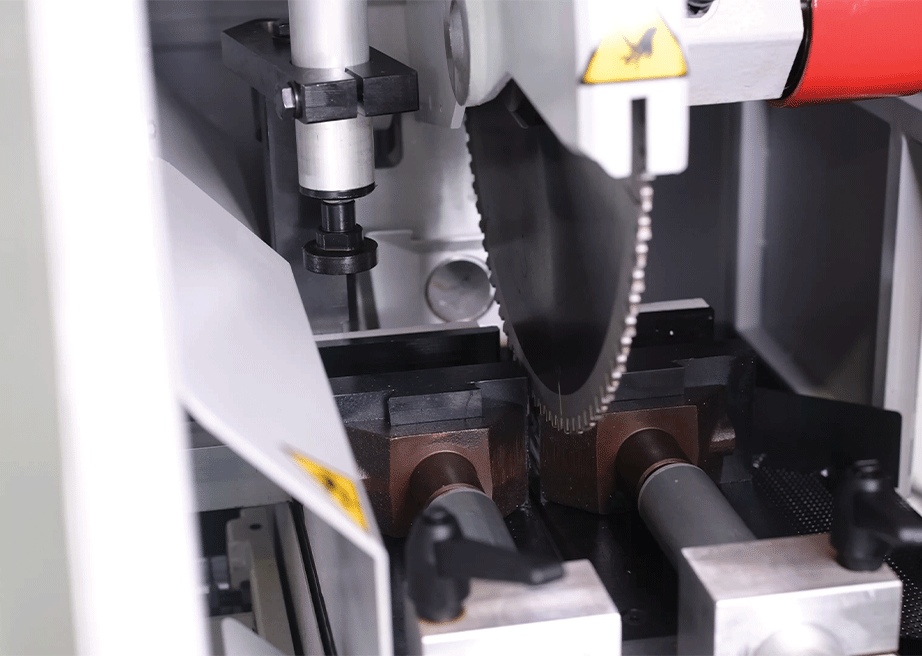

  • Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
  • Maximum Vice Opening: 7” (180 mm)
  • Machine Weight: 1,125 lbs. (510 kg.)
  • Blade Speed: 3,000 R.P.M.
  • Overall Dimensions: 5'-6"H x 12'-5"W x 5'-3"L or 67”H x 150”W x 63”L or 1,700mm H x 3,800 mm W x 1,600 mm L

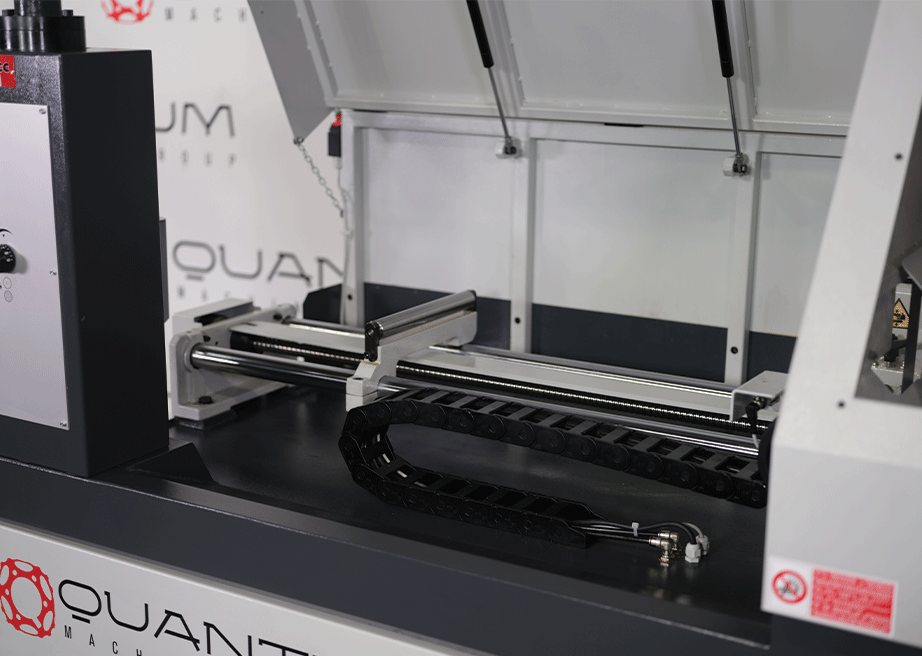

  • This Saw Includes: the Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Bore Carbide Tip

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
