Quantum Machinery Group (Made in Italy)

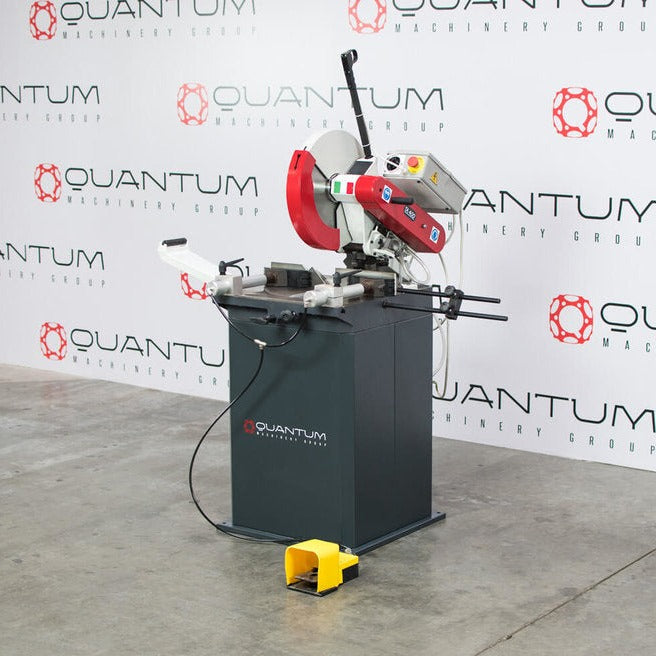

TA 400: 15.75" Manual Non-Ferrous, Aluminum Cutting Saw (5-1/2" Round Tube Capacity)

Product SKU: TA 400 (220 Volt / 3 Phase / 60Hz)
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$7,244
$8,693
Voltage Options
  • Description

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 5.5"
  • 45° Left Cut: 5"
  • 45° Right Cut: 5"

Square Tube

  • Straight Cut: 4.25"
  • 45° Left Cut: 3.9"
  • 45° Right Cut: 3.9"

Solid Round

  • Straight Cut: 2.25"
  • 45° Left Cut: 2.25"
  • 45° Right Cut: 2.25"

Rectangular Tube

  • Straight Cut: 3.9"H x 7"W
  • 45° Left Cut: 3.9"H x 5.9"W
  • 45° Right Cut: 3.9"H x 5.9"W

TECHNICAL DATA & FEATURES:

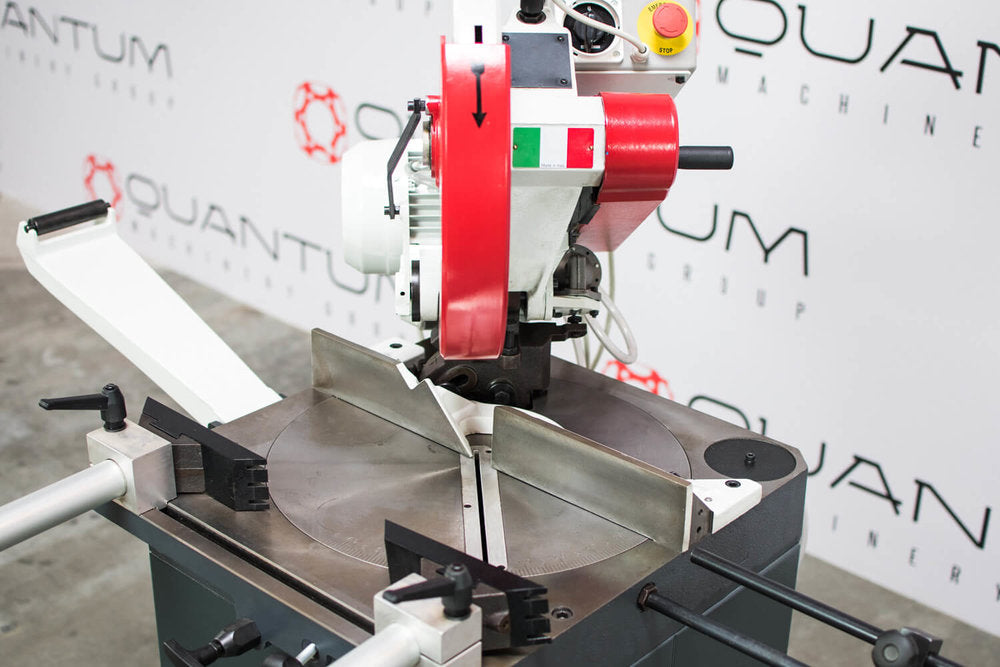

  • Movable Cutting Head: From 45° Left up to 45° Right and Inclinable head up to 45° left.
  • Manual circular saw for aluminium.
  • 24V low voltage installation with hold-to-run head control handle.
  • Locking pin ensuring fast positioning of the head.
  • Blade holder shaft on bearings.
  • Movable bed assembled on spheres.

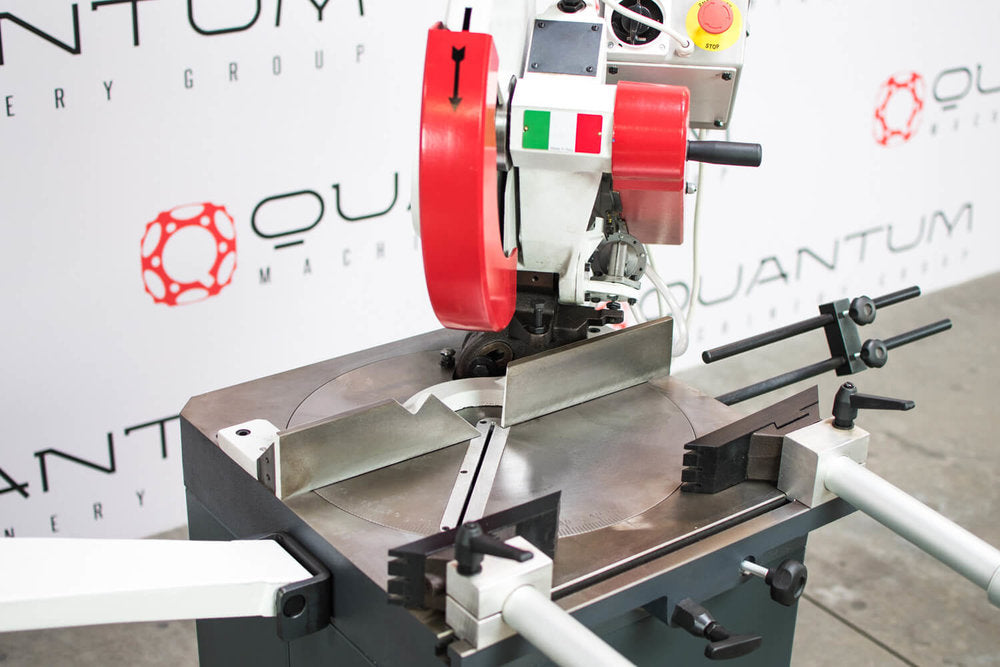

  • Two manual vices and Teflon jaws for material clamping.

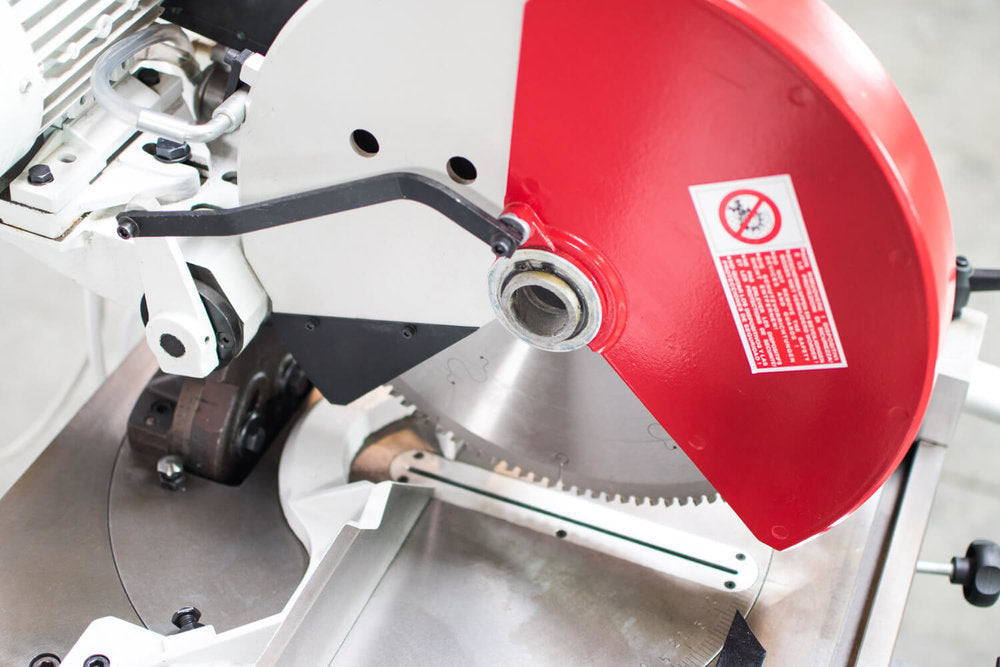

  • Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
  • Maximum Vice Opening: 7” (180 mm)
  • Machine Weight: 350 lbs. (160 kg.)
  • Blade Speed: 3,000 R.P.M.
  • Overall Dimensions: 3'H x 5'W x 3'-3"L or 36”H x 59”W x 40”L or 900 mm H x 1,500 mm W x 1,000mm L
  • Available In 220V / 3PH or 480V / 3PH.
  • This Saw Includes: Steel Pedestal/Stand, Pedal Controlled Pneumatic Vice, Rapid Stop on Motor, Instruction Manual, Service Tools & 1 Bore Carbide Tip Blade.

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
