Quantum Machinery Group (Made in Italy)

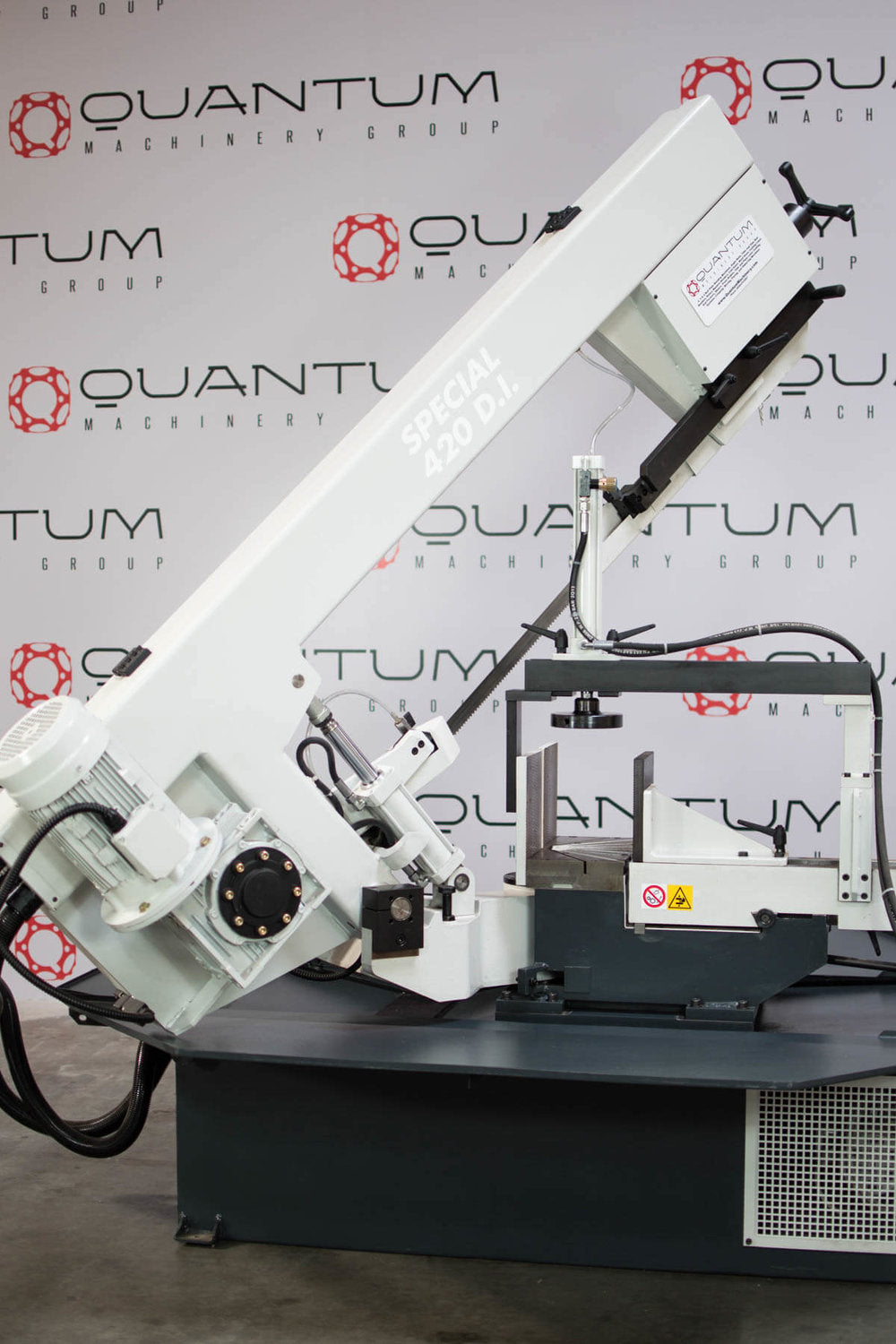

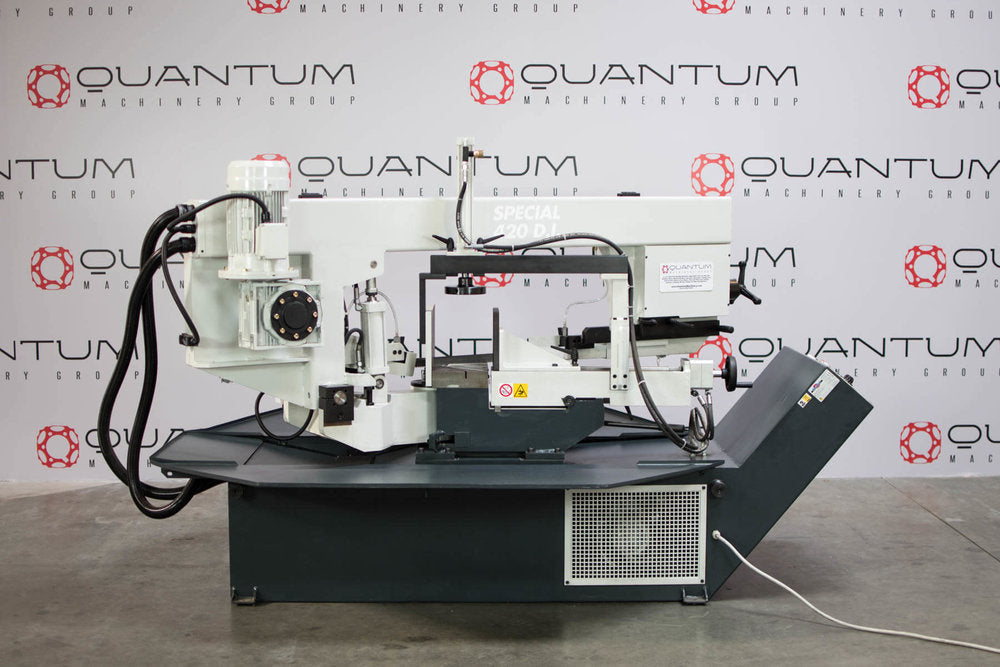

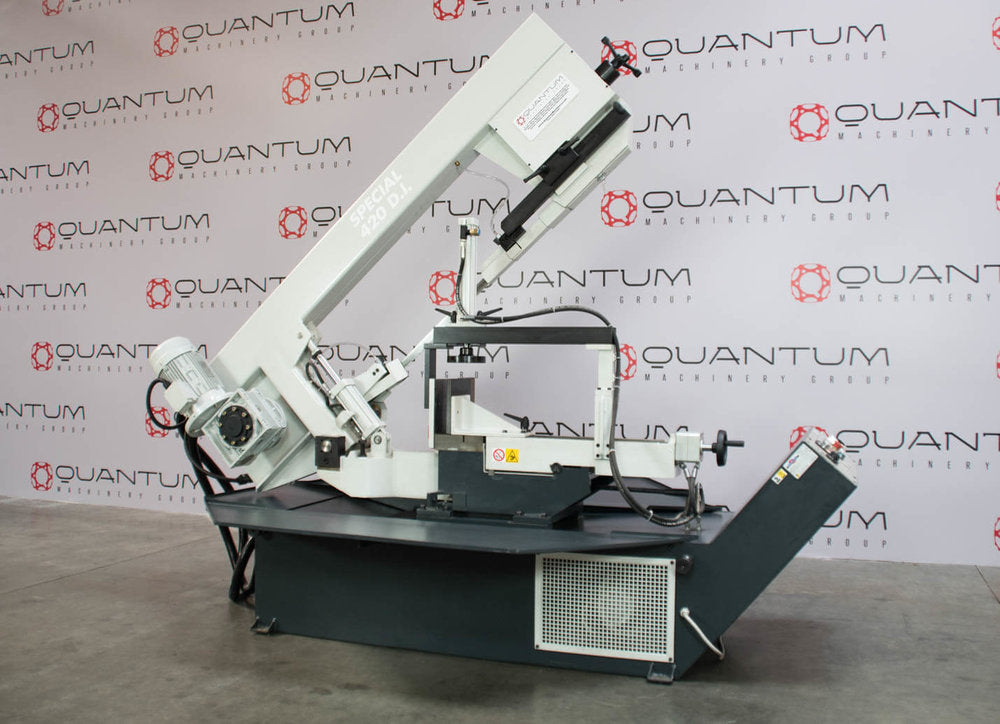

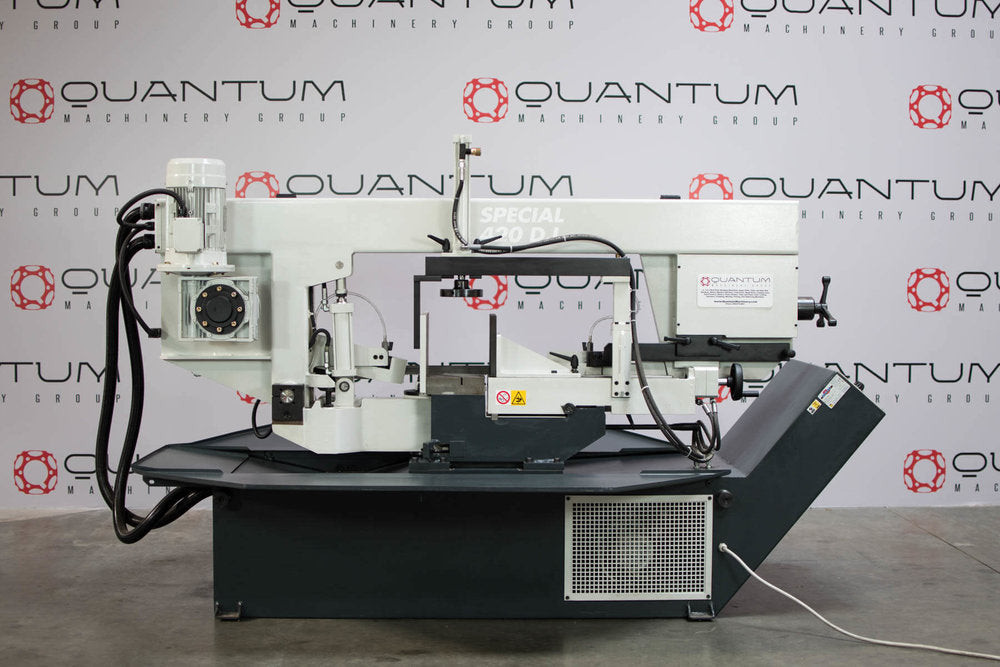

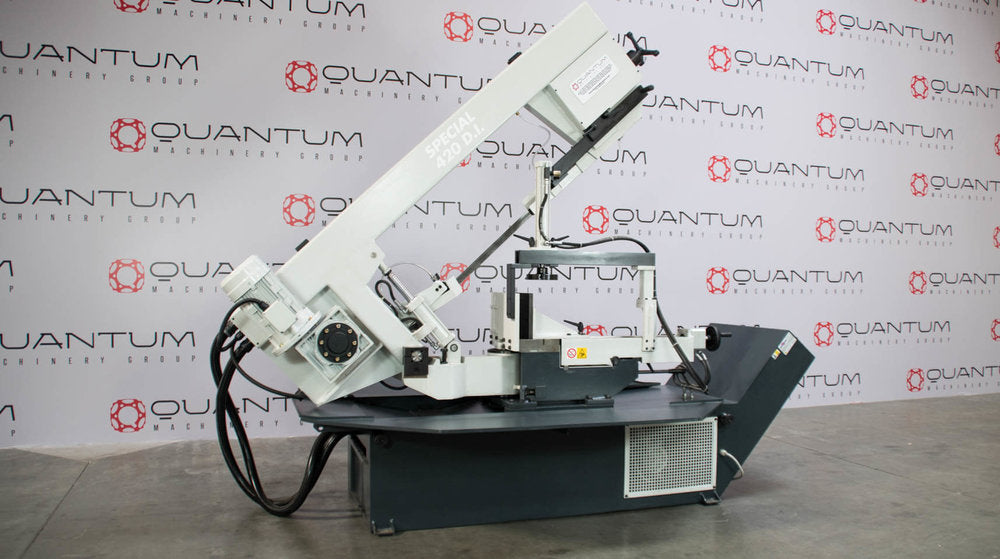

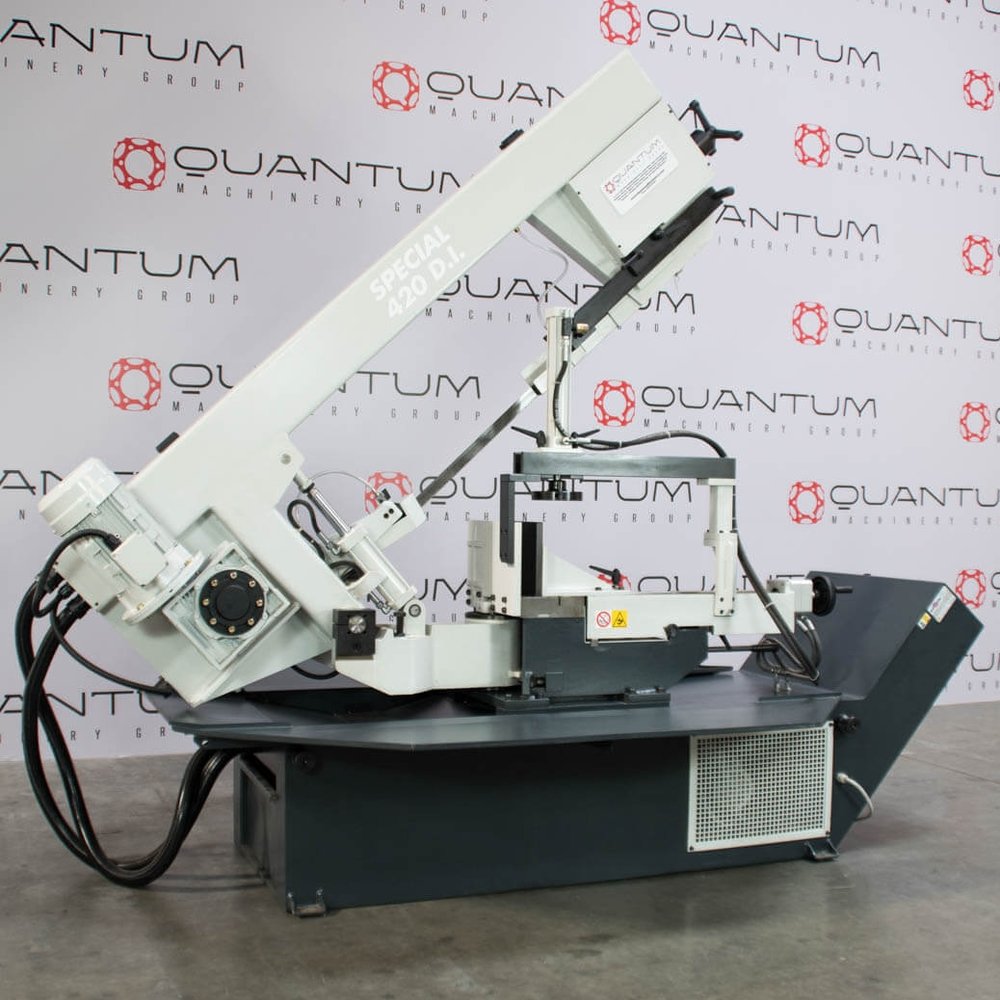

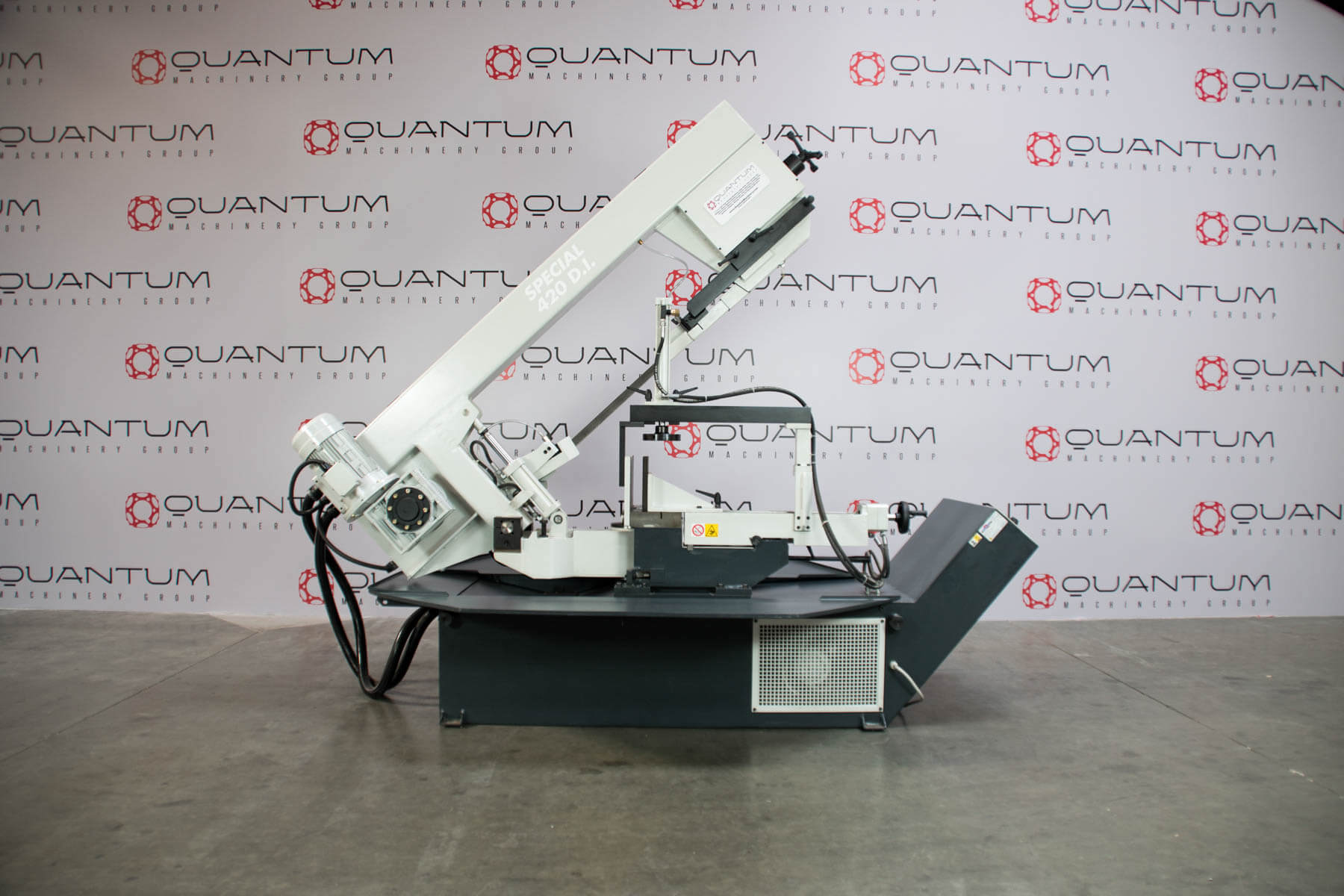

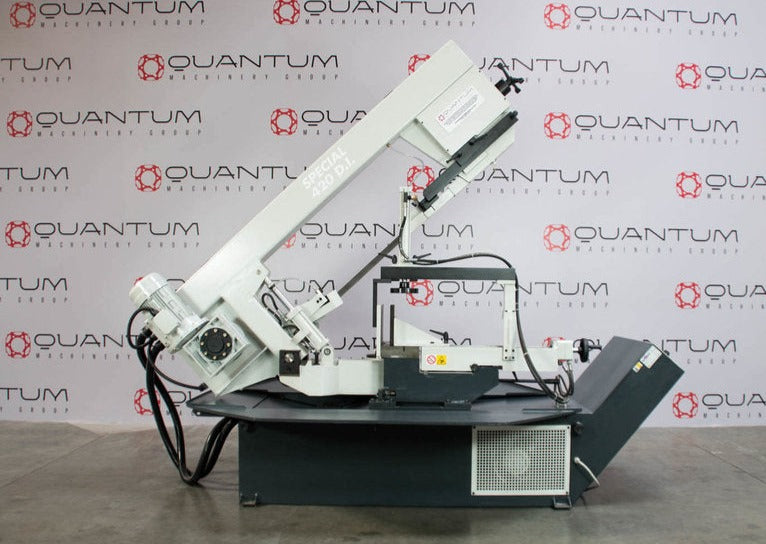

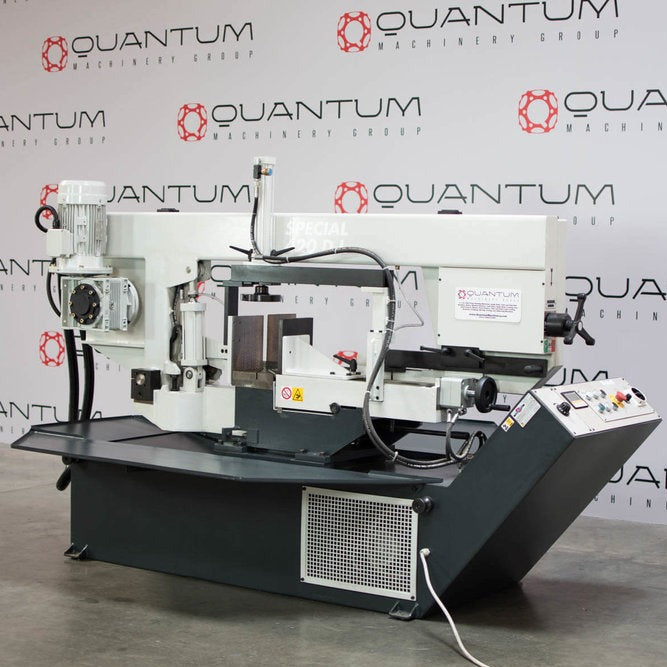

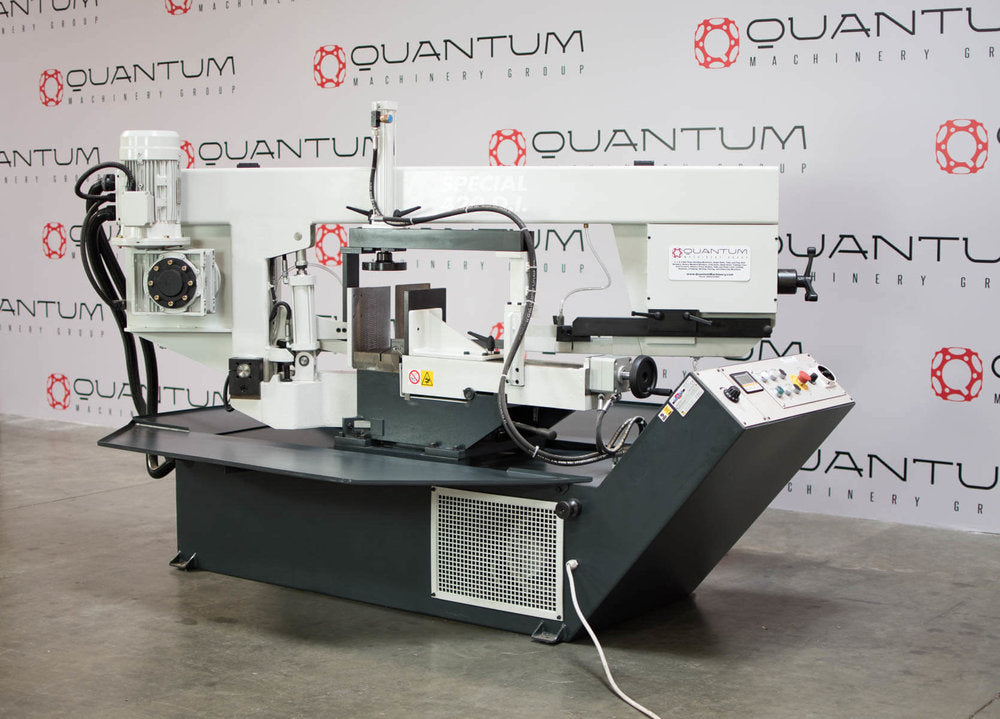

S 420 DI: Semi-Automatic Band Saw with Variable Speed Inverter (15-5/8" Round Tube Capacity)

Product SKU: S 420 DI (220 Volt / 3 Phase / 60Hz)
Available:
Only 2 items in stock
2 items in stock
In stock
Out of stock
Back in stock
$24,016
$28,860
Voltage Options
  • Description

SEMI-AUTOMATIC OPERATION:
Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 15.6"
  • 45° Left Cut: 15.6"
  • 60° Left Cut: 10.1"
  • 45° Right Cut: 15.6"
  • 60° Right Cut: 11"

Square Tube

  • Straight Cut: 15.6"
  • 45° Left Cut: 14.9"
  • 60° Left Cut: 10.1"
  • 45° Right Cut: 14.9"
  • 60° Right Cut: 11"

Solid Round

  • Straight Cut: 5.9"
  • 45° Left Cut: 5.9"
  • 60° Left Cut: 5.9"
  • 45° Right Cut: 5.9"
  • 60° Right Cut: 5.9"

Rectangular Tube

  • Straight Cut: 15.6"H x 21.6"W
  • 45° Left Cut: 11.75"H x 16.1"W
  • 60° Left Cut: 15.6"H x 9"W
  • 45° Right Cut: 11.75"H x 16.5"W
  • 60° Right Cut: 15.6"H x 11"W

TECHNICAL DATA & FEATURES:

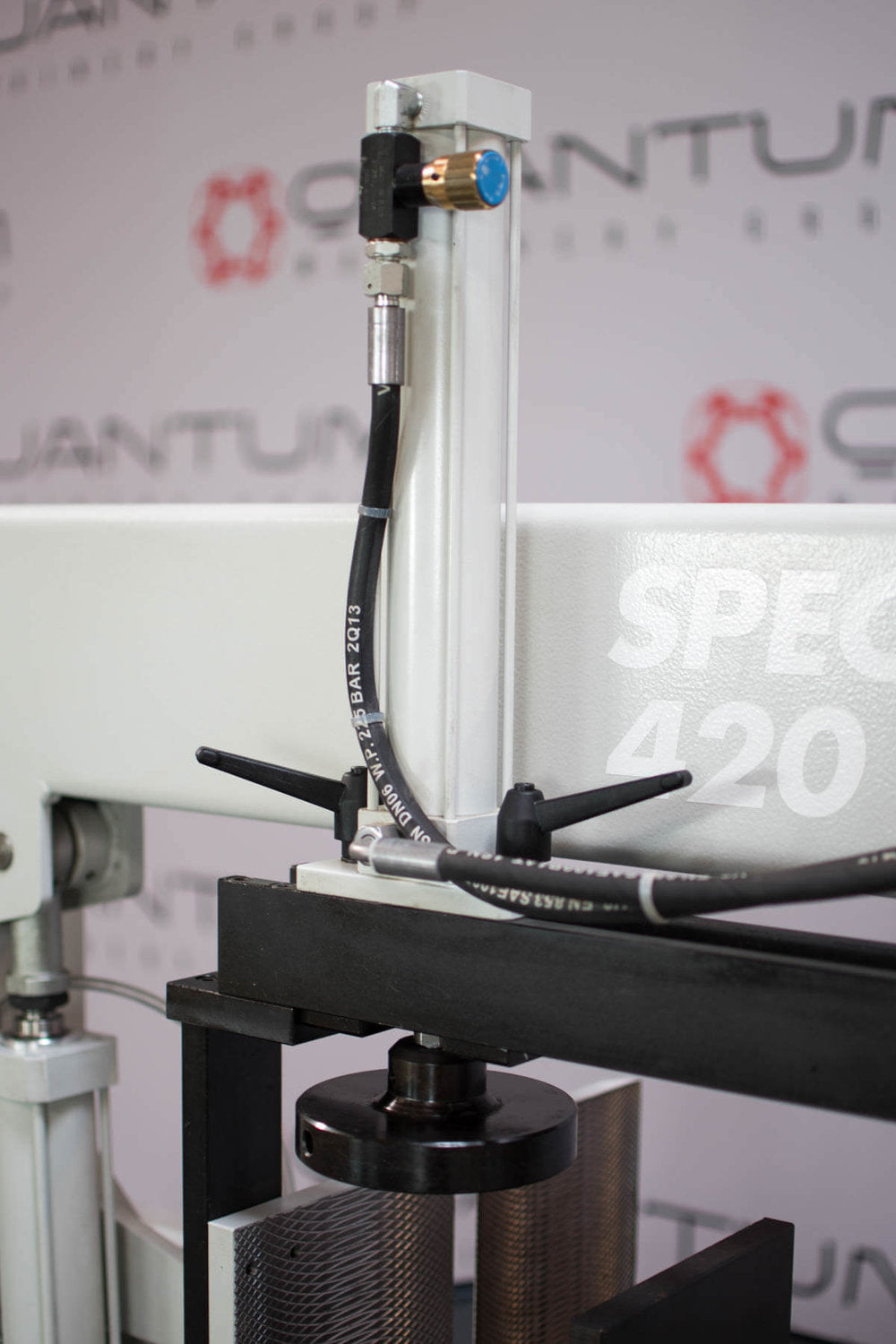

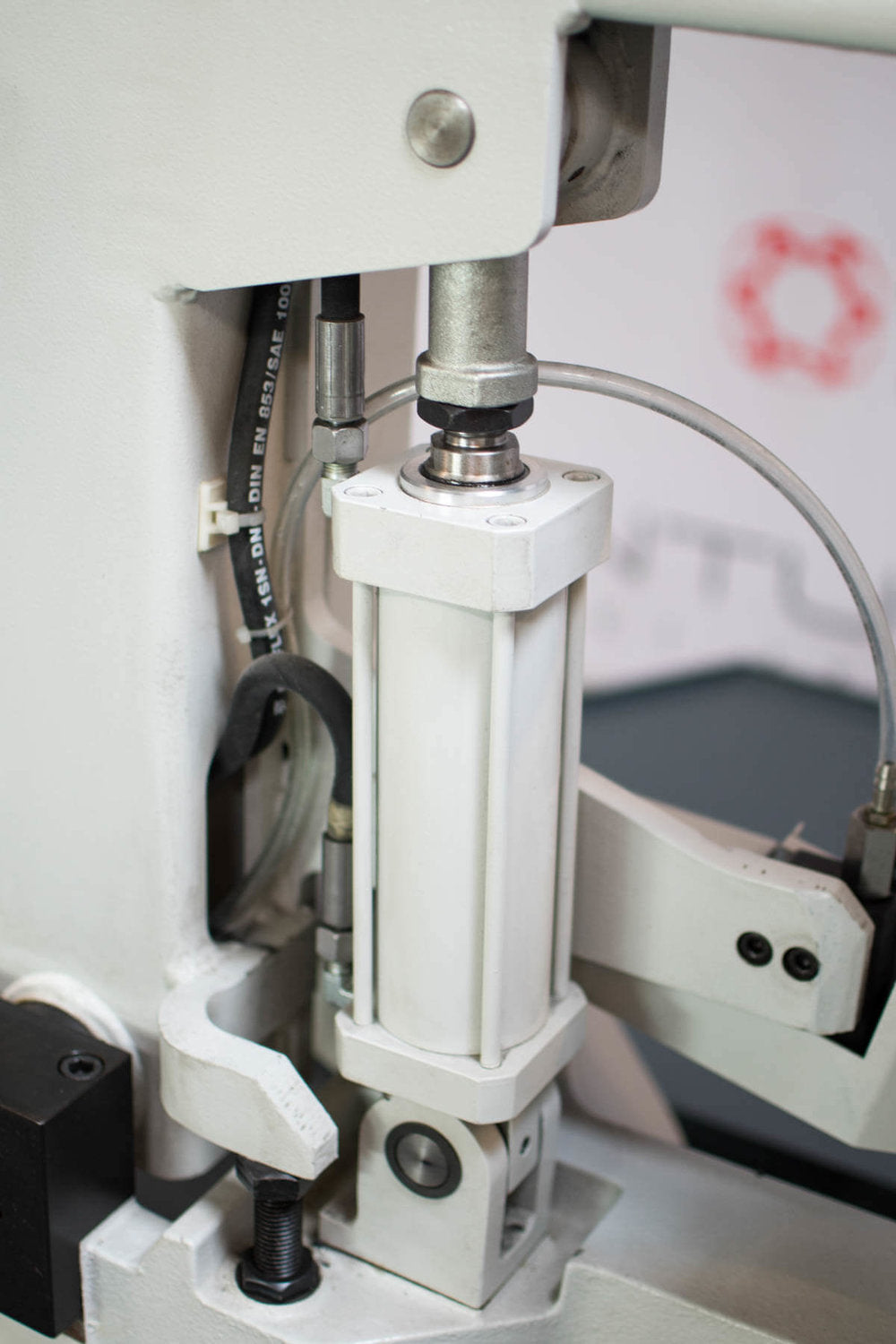

  • Includes: Variable Speed Inverter, Vertical Hydraulic Clamp and Laser for Saw Cut.
  • Appropriately dimensioned flywheels.
  • Strong blade guides with tight stress-raiser bearings and adjustable widia tips.
  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation.
  • Safety device on the flywheel casing and on the blade.
  • Adjustable stop for cuts of the same size.
  • Blade cleaning device with brush.

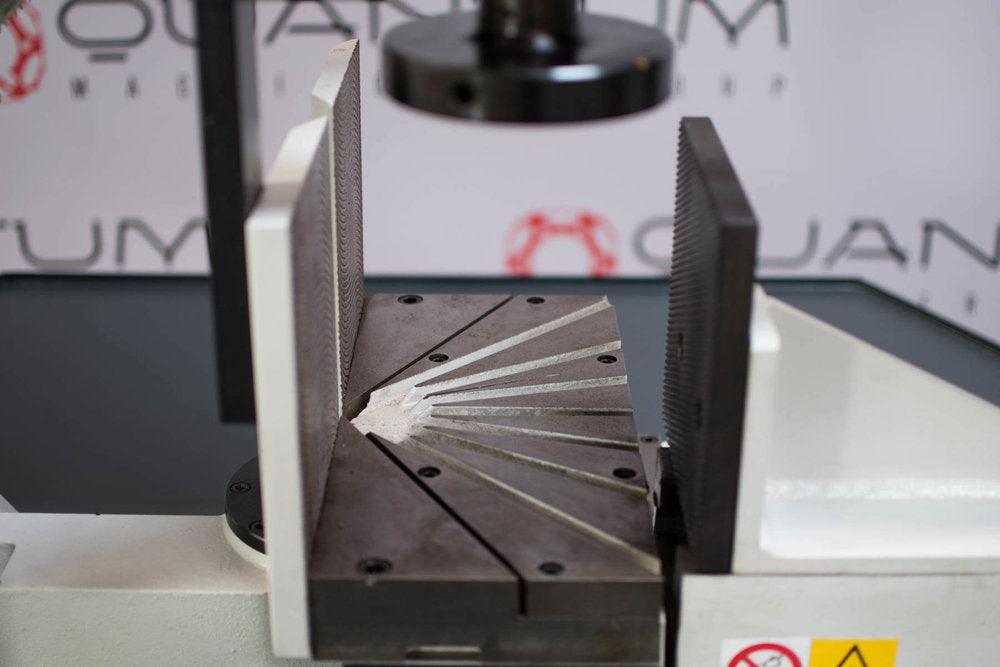

  • Vice Jaws Height: 7.87" (200 mm)
  • Vice Jaws Length: 7.28" (185 mm)
  • Bed Height: 30" (760 mm)
  • Cutting Thickness: .059" (1.5 mm)
  • Cutting Range: 60° Left up to 60° Right.
  • Blade Size: 4,610 x 34 x 1.1mm

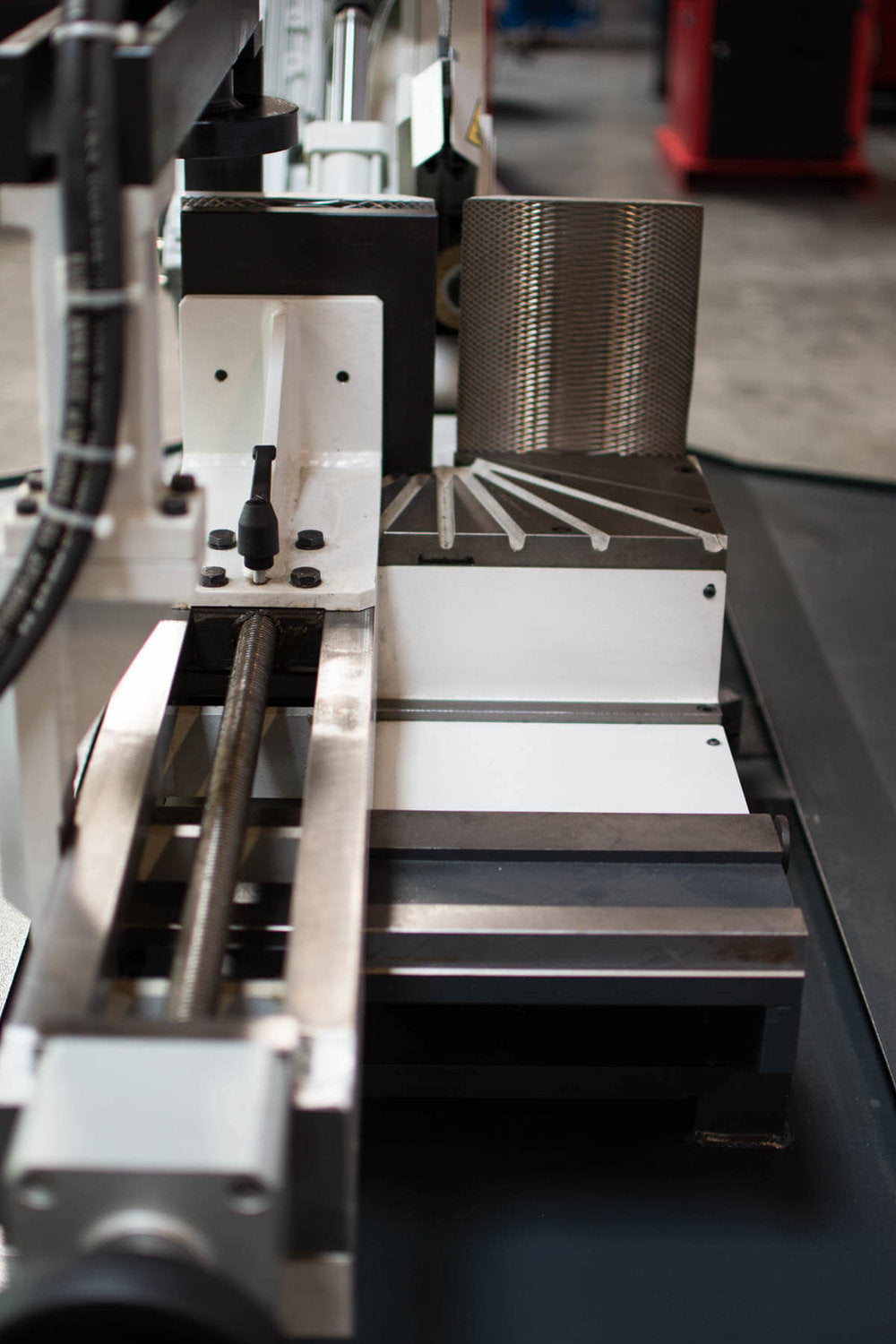

  • Maximum Vice Opening: 22" (559 mm)
  • Machine Weight: 1,850 lbs. (839 kg.)
  • 2 Speeds: 37-75 Feet per Minute
  • Motor Hydraulic Gearcase: 0.37 kW
  • Electropump for Band Cooling: 0.09 kW
  • Overall Dimensions (without Bar Stop): 7'-5”H x 2'-3”W x 9'-3”L or 90”H x 28”W x 112”L or 2,286 mm H x 711 mm W x 2,845 mm L
  • Overall Dimensions (with Bar Stop): 7'-5”H x 5'-6”W x 9'-3”L or 90”H x 68”W x 112”L or 2,286 mm H x 1,727 mm W x 2,845 mm L
  • This Saw also Includes: Instruction Manual, Service Tools & 1 Band Saw Blade.


Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
