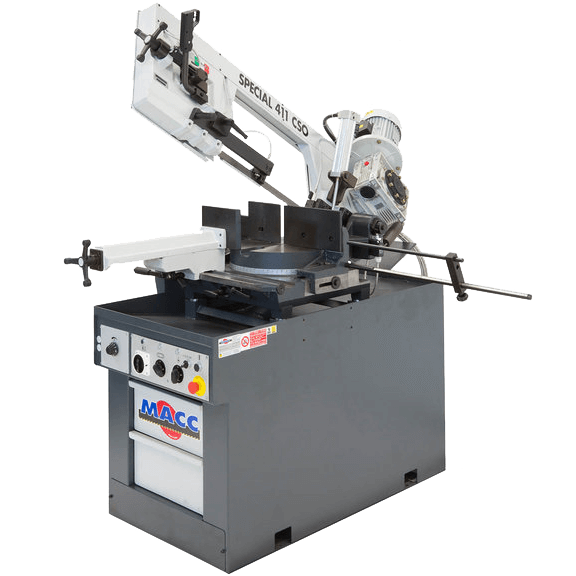

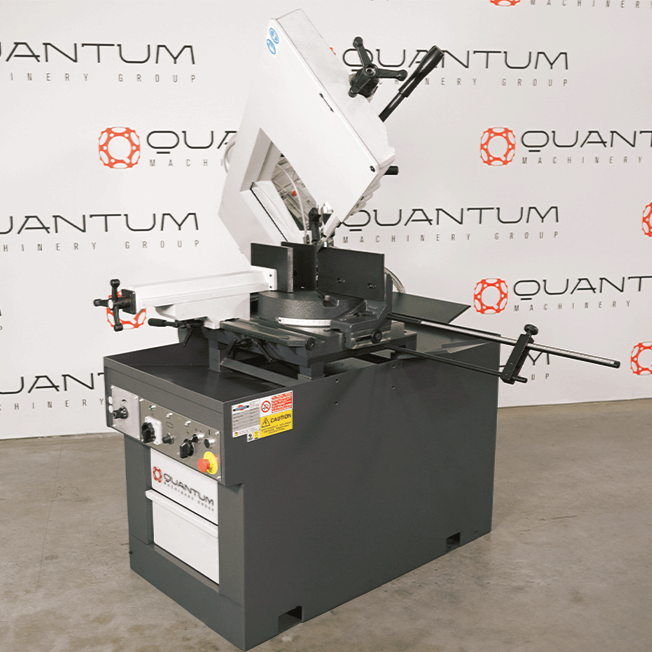

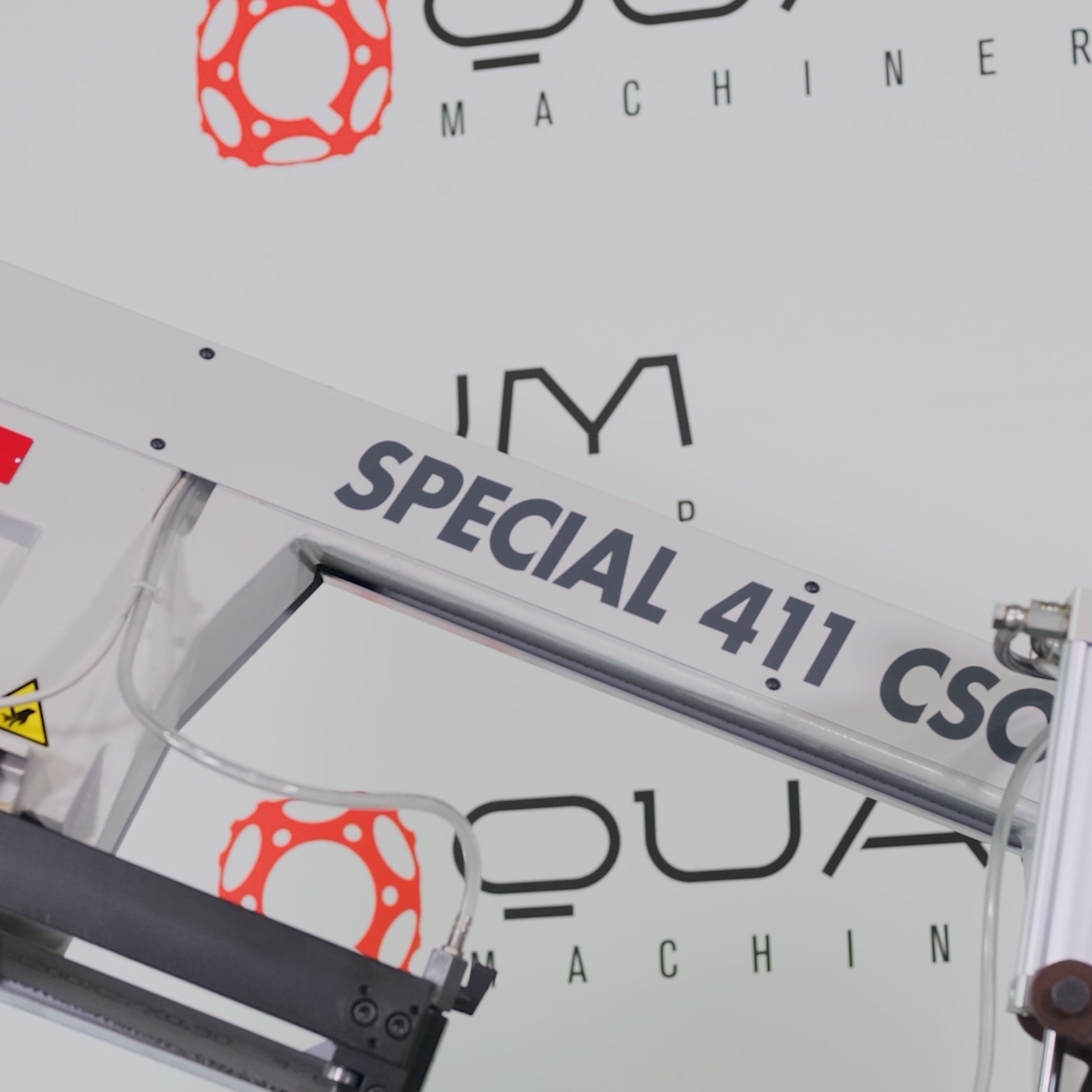

S 411 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (11-3/4" Round Tube Capacity)

Name: S 411 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (11-3/4" Round Tube Capacity)
Brand: Quantum Machinery Group (Made in Italy)
SKU: S 411 CSO (220 Volt / 3 Phase / 60Hz)
Price: 12701.0 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: S 411 CSO (220 Volt / 3 Phase / 60Hz)

$12,701

~~$16,535~~

Description
Reviews

MAXIMUM CUTTING CAPACITIES:

Round Tube

Straight Cut: 11.75"
45° Right Cut: 9.4"
45° Left Cut: 7"
60° Right Cut: 5.5"

Square Tube

Straight Cut: 11"
45° Right Cut: 8.6"
45° Left Cut: 6.25"
60° Right Cut: 5.5"

Rectangular Tube

Straight Cut: 7.9"H x 15.75"W
45° Right Cut: 5"H x 9.4"W
45° Left Cut: 4.25"H x 7"W
60° Right Cut: 5.5"H x 5.5"W

TECHNICAL DATA & FEATURES:

Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure and Head Return are manually operated.
Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
Vertical rotation on bolt with adjustable tapered bearings without backlash.
High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw.
Appropriately dimensioned flywheels.
Strong band guides with tight stress-raiser bearings and adjustable widia tips
Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
Vice with a device for quick approach.
Wide rotating material support table.
Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
Hydraulic cylinder for controlled descent.
Removable chip collection tray.
From 45° Left-Angled Cut up to 60° Right-Angled Cut.
Adjustable stop for cuts of the same size.
24 V low tension plant.
0,06 kW power-driver pump for band cooling.

Cutting Thickness: .047" (1.2 mm)
Cutting Range: 45° left to 60° Right.
Blade Size: 3,200 x 27 x 0.9 mm
Maximum Vice Opening: 15.75" (400 mm)
Machine Weight: 1,170 lbs. (530 kg)
2 Speeds: 38 - 77' per Minute
This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
Overall Dimensions (without Bar Stop): 6'-6"H x 5'-2"W x 6'L or 79”H x 26”W x 72”L or 2,006 mm H x 660 mm W x 1,829 mm L
Overall Dimensions (with Bar Stop): 6'-6"H x 4'-3"W x 6'L or 79”H x 52”W x 72”L or 2,006 mm H x 1,321 mm W x 1,829 mm L
Additionally, this Saw Includes: 1 Blade, Variable Speed Inverter, Pedal Controlled Pneumatic Vice, Digital Angle Reader and the Entry/Exit Side Support Brackets.
Electrical Options Available: 220 Volt / 3 Phase or 480 Volt / 3 Phase
