All in stock saws ship out within 1 to 3 Business days
MAXIMUM CUTTING CAPACITIES:
Round Tube:
- Straight Cut: 11-3/4” or 11.75”
- 45° Left Cut: 7” or 7”
- 45° Right Cut: 8-3/4” or 8.75”
- 60° Left Cut: 5-1/2” or 5.5”
- 60° Right Cut: 5-1/2” or 5.5”
Square Tube:
- Straight Cut: 11” or 11”
- 45° Left Cut: 6-1/4” or 6.25”
- 45° Right Cut: 8-1/4” or 8.25”
- 60° Left Cut: 5-1/2” or 5.5”
- 60° Right Cut: 5-1/2” or 5.5”
Solid Round:
- Straight Cut: 5-3/4" or 5.75"
- 45° Left Cut: 5-3/4" or 5.75"
- 45° Right Cut: 5-3/4" or 5.75"
- 60° Left Cut: 5-3/4" or 5.75"
- 60° Right Cut: 5-3/4" or 5.75"
Rectangular Tube:
- Straight Cut: 11”H x 11-3/4”W or 11”H x 11.75”W
- 45° Left Cut: 4-1/4”H x 7”W or 4.25”H x 7”W
- 45° Right Cut: 5”H x 8-3/4”W or 5”H x 8.75”W
- 60° Left Cut: 5-1/2”H x 5-1/2”W or 5.5”H x 5.5"W
- 60° Right Cut: 5-1/2”H x 5-1/2”W or 5.5”H x 5.5”W
TECHNICAL DATA & FEATURES:
-

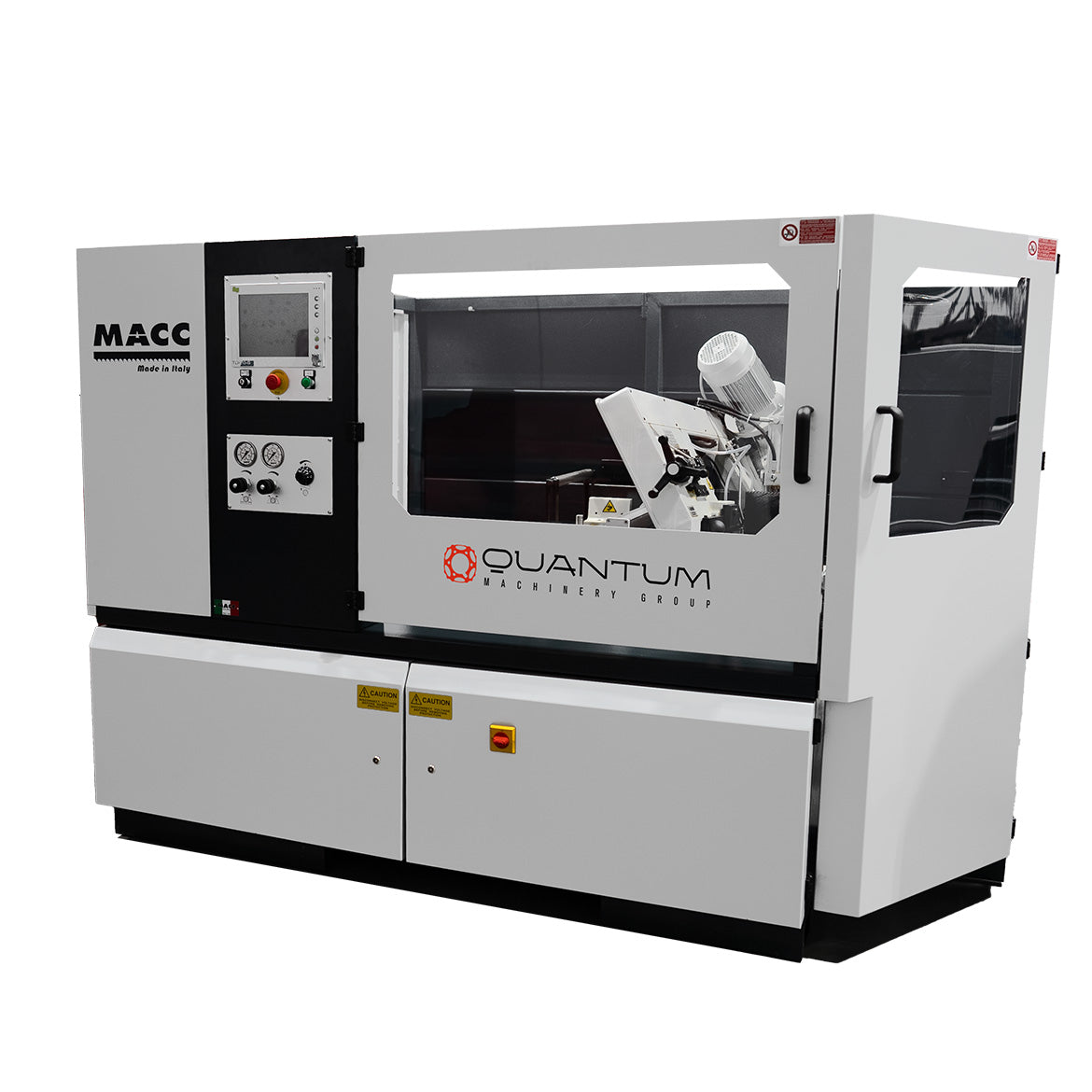

- Fully automatic CNC hydraulic bandsaw for programmable angle cuts from 45° left to 60° right, compliant with CE safety standards
- 10” touchscreen interface for complete control and automated bar optimization
- Brushless motor-driven feed carriage with recirculating ball screw – unlimited feed length
- Tilting blade descent on pivot with adjustable conical bearings for precision and stability
- Oversized flywheels ensure smooth blade rotation and accurate tracking
- Comprehensive safety devices installed on all machine access points
- Hydraulic control unit with adjustable cutting pressure
- Independent clamp pressure regulation for material stability during cutting
- Manual blade tensioning via handwheel for fast setup
- Bimetal bandsaw blade: 3200 x 27 x 0.9 mm (126” x 1-1/16” x 0.035”)
- Cutting thickness: 1.4 mm (0.055”)
- Material feed stroke: 1,000 mm (39-3/8”)
- Hydraulic motor power: 0.75 kW (1.01 hp)
- Coolant pump power: 0.09 kW (0.12 hp)
- Semi-automatic cutting option available for manual control flexibility
- Blade speed control: Inverter-driven from 0 to 90 m/min (0 to 295 ft/min)
- Machine Weight: 1410 kg (3,108 lbs)
Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
