Quantum Machinery Group (Made in Italy)

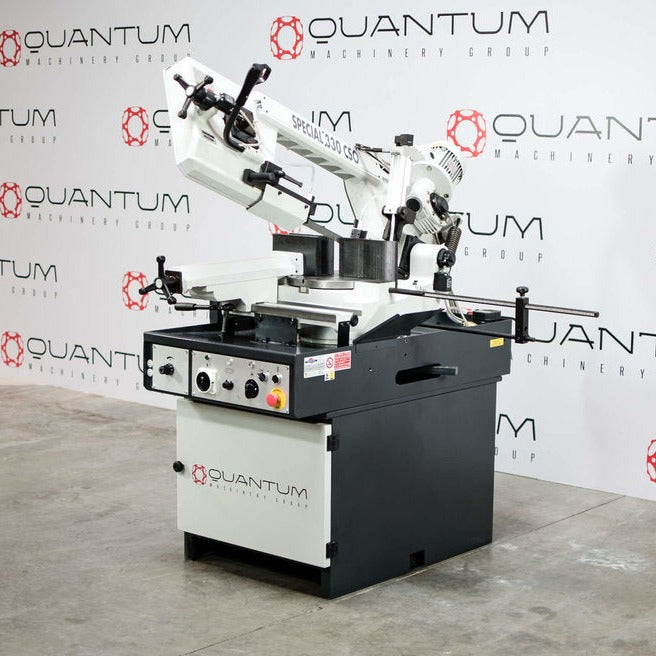

S 335 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter

Product SKU: S 335 CSO (220 Volt / 3 Phase / 60Hz)
Available:
Only 3 items in stock
3 items in stock
In stock
Out of stock
Back in stock
$10,390
$12,560
Voltage Options
  • Description

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 10.2"
  • 45° Right Cut: 8.5"
  • 45° Left Cut: 7"
  • 60° Right Cut: 5.1"

Square Tube

  • Straight Cut: 9.8"
  • 45° Right Cut: 7.9"
  • 45° Left Cut: 6.1"
  • 60° Right Cut: 5.1"

Rectangular Tube

  • Straight Cut: 8.5"H x 13"W
  • 45° Right Cut: 6.3"H x 8.3"W
  • 45° Left Cut: 2.4"H x 8.9"W
  • 60° Right Cut: 5.1"H x 5.5"W

TECHNICAL DATA & FEATURES:

  • Band Saw machine with Automatic Bow/Head-Descent, controlled by a hydraulic circuit upon cutting. The “Bar-Feeding”, Vice Closure and Head Return are manually operated.
  • Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
  • Vertical rotation on bolt with adjustable tapered bearings without backlash.
  • High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw.
  • Appropriately dimensioned flywheels.
  • Strong band guides with tight stress-raiser bearings and adjustable widia tips
  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch.

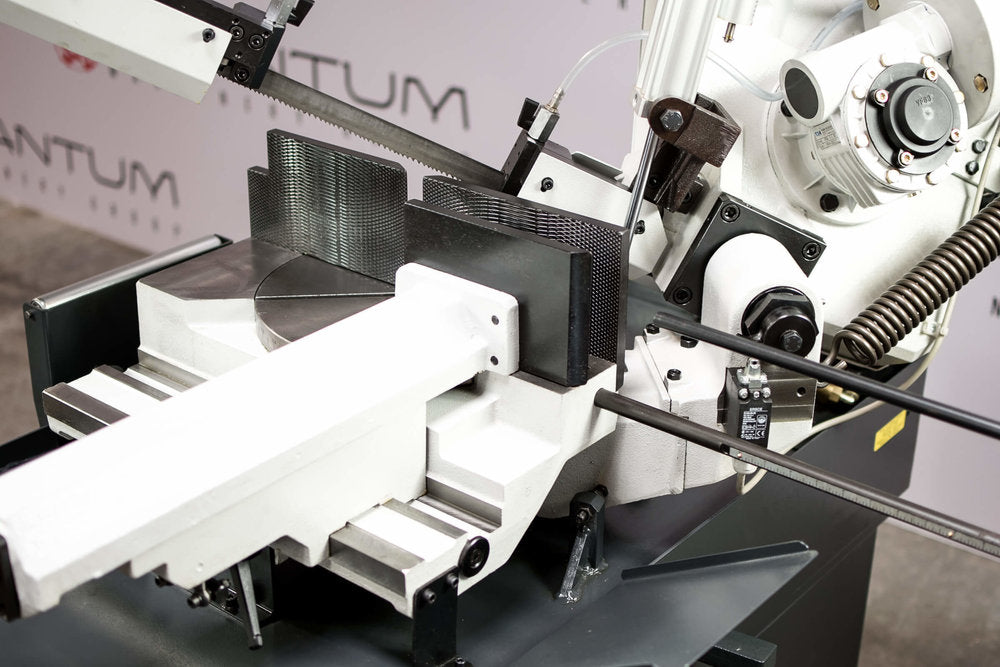

  • Vice with a device for quick approach.
  • Wide rotating material support table.
  • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
  • Hydraulic cylinder for controlled descent.
  • Removable chip collection tray.
  • Cutting range 45° left 60° right.
  • Adjustable stop for cuts of the same size.
  • 24 V low tension plant.
  • 0,06 kW power-driver pump for band cooling.
  • Cutting Thickness: .047" (1.2 mm)
  • Cutting Range: 45° left to 60° Right.
  • Blade Size: 3,010 x 27 x 0.9 mm
  • Maximum Vice Opening: 13" (330 mm)
  • Machine Weight: 915 lbs. (415 kg.)
  • Motor Power: 0.75 - 1.1 kW
  • This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
  • Alternate Electrical: 480V / 3 PH, instead of 220V / 3 PH
