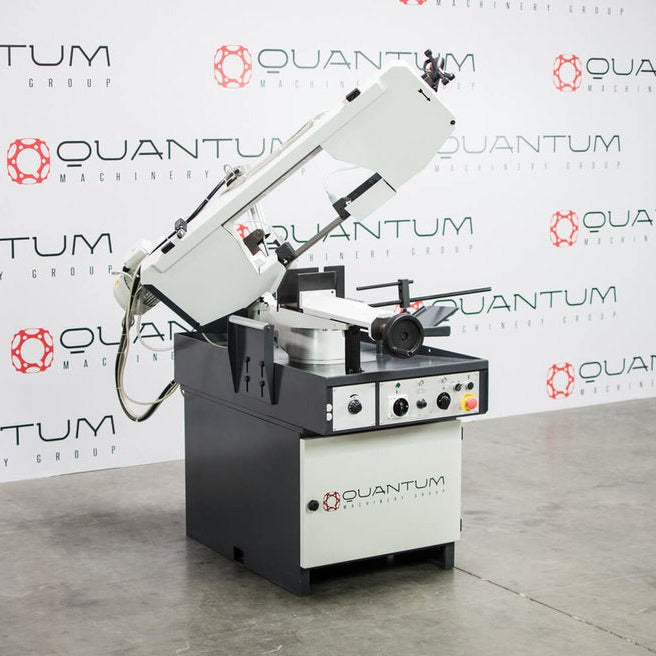

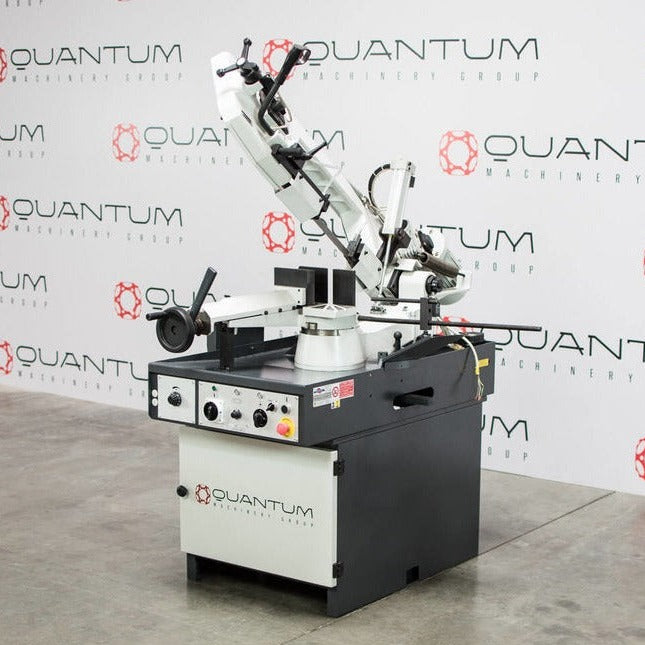

S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)

Part No. (SKU): S 320 CSO (220 Volt / 3 Phase / 60Hz)
Current Availability in the USA: 2 In Stock
Series: Band Saws
$9,240
$0
$9,240
Voltage Options: 220 Volt / 3 Phase / 60Hz
Subtotal: $9,240
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)

S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)

$0 $9,240

S 320 CSO: Manual Band Saw with Automatic Head Descent and Variable Speed Inverter (9" Round Tube Capacity)

$0 $9,240
Voltage Options: 220 Volt / 3 Phase / 60Hz

MAXIMUM CUTTING CAPACITIES:


Round Tube:

  • Straight Cut: 9"
  • 45° Right Cut: 7-1/4" or 7.25"
  • 60° Right Cut: 4-1/2" or 4.5"




Square Tube:

  • Straight Cut: 8-1/2" or 8.5"
  • 45° Right Cut: 7"
  • 60° Right Cut: 4-1/2" or 4.5"




Rectangular Tube:

  • Straight Cut: 6-1/2"H x 11-1/2"W or 6.5"H x 11.5"W
  • 45° Right Cut: 8-1/8"H x 7"W or 8.125"H x 7"W
  • 60° Right Cut: 4-1/2"H x 4-1/2"W or 4.5"H x 4.5"W




TECHNICAL DATA & FEATURES:

      • Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
      • Vertical rotation on bolt with adjustable tapered bearings without backlash.

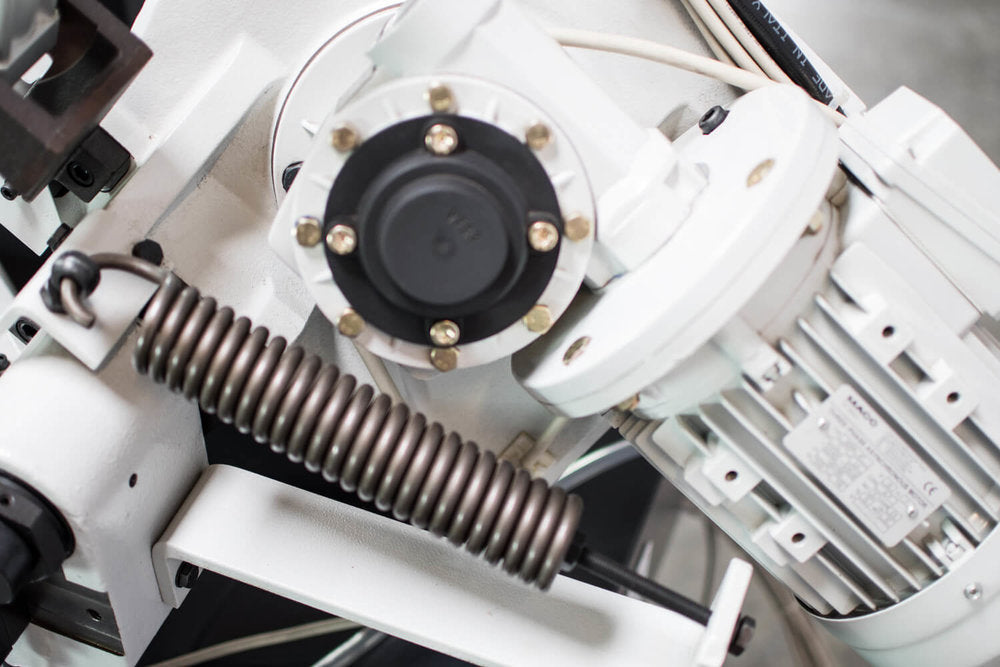

      • High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw.
      • Appropriately dimensioned flywheels.
      • Strong band guides with tight stress-raiser bearings and adjustable widia tips.

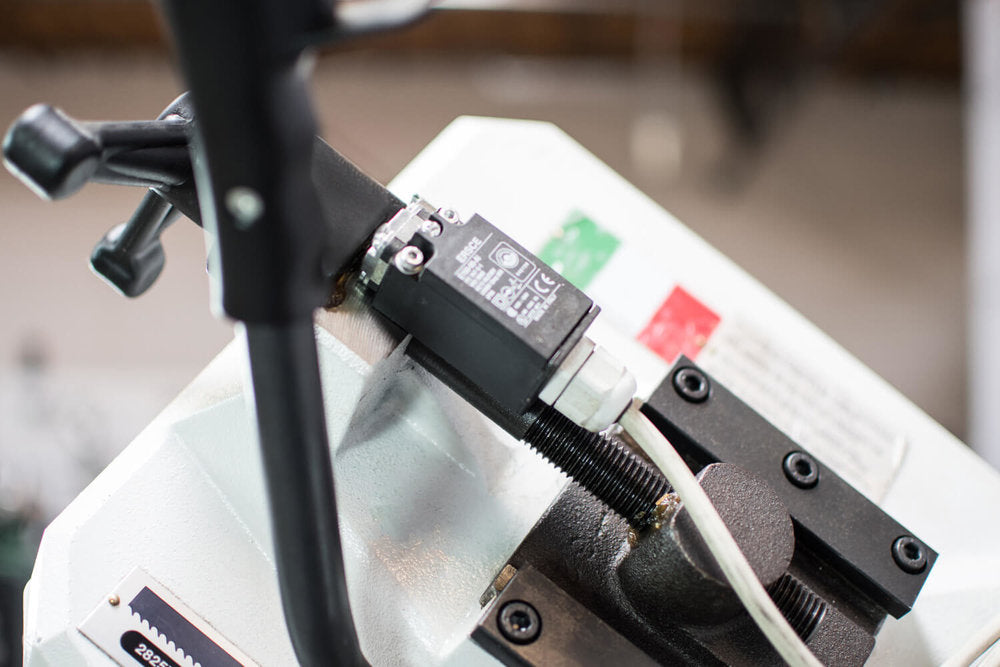

      • Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
      • Vice with a device for quick approach.
      • Wide rotating material support table.
      • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.

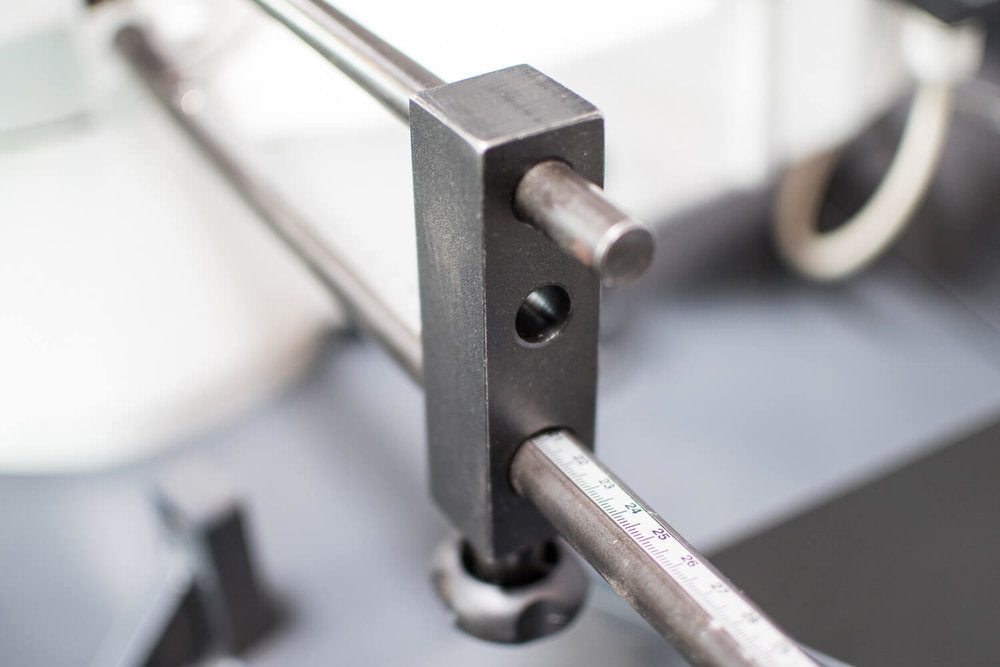

      • Adjustable stop for cuts of the same size.
      • 24 V low tension plant.
    • 0.06 kW power-driven pump for band cooling.
    • Cutting Thickness: 1.2mm
    • Cutting Range: 90° Straight up to 60° Right.
    • Blade Size: 2,825 x 27 x 0.9mm
    • Maximum Vice Opening: 12.4"
    • Machine Weight: 780 lbs.
    • 2 Speeds: 35 - 71
    • Overall Dimensions (without Bar Stop): 6'-3"H x 2'-7"W x 6'-1"L or 75”H x 31”W x 73”L or 1,900mm H x 795mm W x 1,870mm L
    • Overall Dimensions (with Bar Stop): 6'-3"H x 3'-9"W x 6'-1"L or 75”H x 45”W x 73”L or 1,900mm H x 1,130mm W x 1,870mm L
    • This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.
