S 280 CSO: Manual Band Saw with Automatic Head Descent (8-5/8
S 280 CSO: Manual Band Saw with Automatic Head Descent (8-5/8
Quantum Machinery Group (Made in Italy)

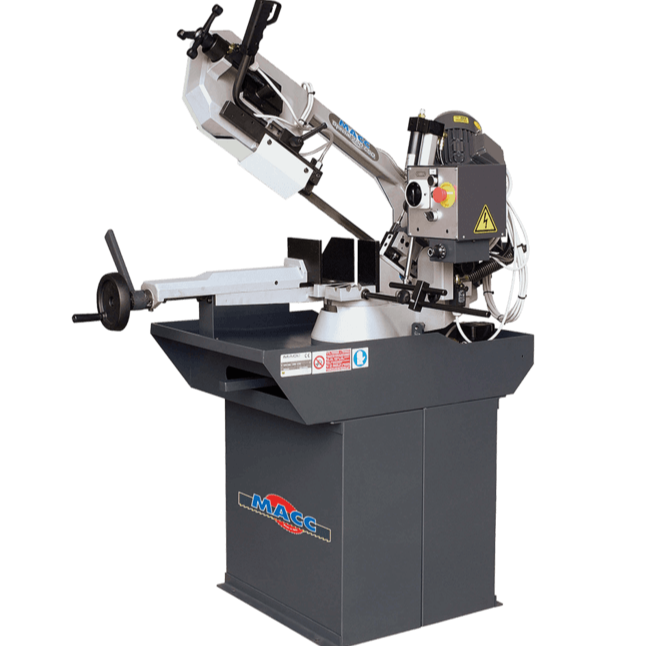

S 280 CSO: Manual Band Saw with Automatic Head Descent (8-5/8" Round Tube Capacity)

Product SKU: S 280 CSO (220 Volt / 1 Phase / 60Hz)
Available:
Only 2 items in stock
2 items in stock
In stock
Out of stock
Back in stock
$5,351
$6,470
Voltage Options
  • Description

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 8.6"
  • 45° Right Cut: 6.25"
  • 60° Right Cut: 4"

Square Tube

  • Straight Cut: 8.4"
  • 45° Right Cut: 5.9"
  • 60° Right Cut: 3.25"

Rectangular Tube

  • Straight Cut: 6"H x 9.75"W
  • 45° Right Cut: 4.25"H x 6.25"W
  • 60° Right Cut: 3.13"H x 3.6"W

TECHNICAL DATA & FEATURES:

  • Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
  • Vertical rotation on bolt with adjustable tapered bearings without backlash.
  • High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw.
  • Appropriately dimensioned flywheels.
  • Strong band guides with tight stress-raiser bearings and adjustable widia tips.
  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
  • Vice with a device for quick approach.
  • Wide rotating material support table.
  • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
  • Adjustable stop for cuts of the same size.
  • 24 V low tension plant.
  • 0.06 kW power-driven pump for band cooling.
  • Cutting Thickness: .047" (1.2 mm)
  • Cutting Range: 90° Straight up to 60° Right.
  • Blade Size: 2,450 x 27 x 0.9 mm
  • Maximum Vice Opening: 9.80" (250 mm)
  • Machine Weight: 485 lbs. (200 kg.)
  • 2 Speeds: 32-66 Feet per Minute
  • Overall Dimensions (without Bar Stop): 5'-3"H x 2'W x 5'-2"L or 68.7”H x 23.6”W x 61.8”L or 1,744mm H x 599mm W x 1,569 mm L
  • Overall Dimensions (with Bar Stop): 5'-3"H x 3'W x 5'-2"L or 68.7”H x 36.2”W x 61.8”L or 1,744mm H x 919 mm W x 1,569 mm L
  • This Saw Includes: Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 Band Saw Blade.

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
