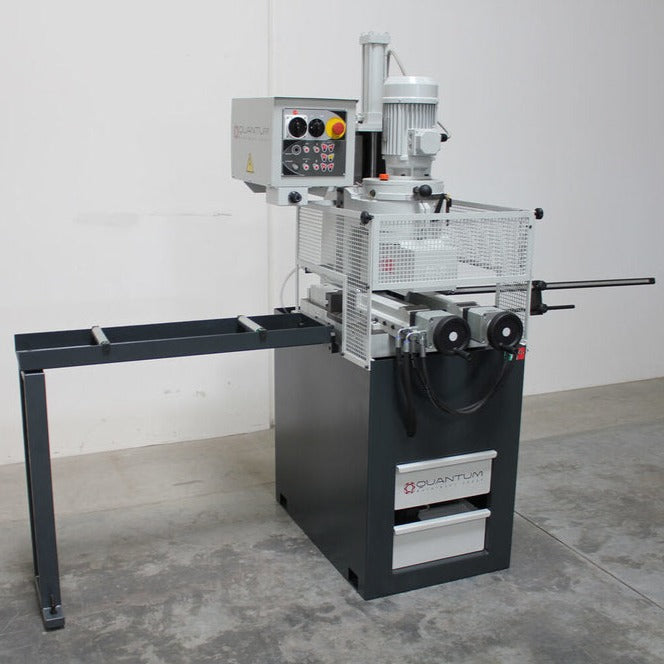

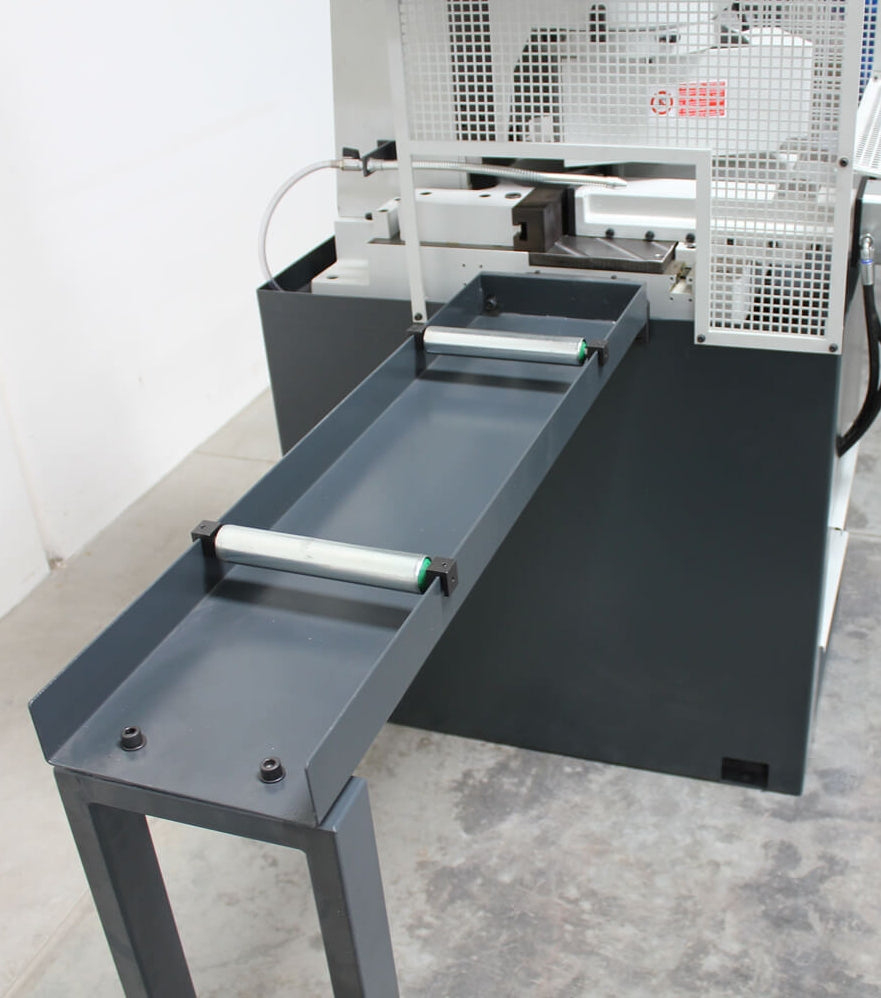

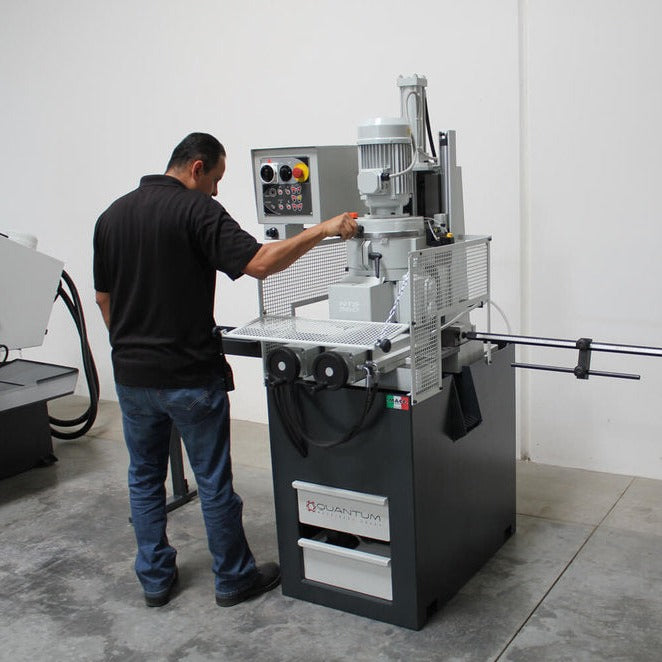

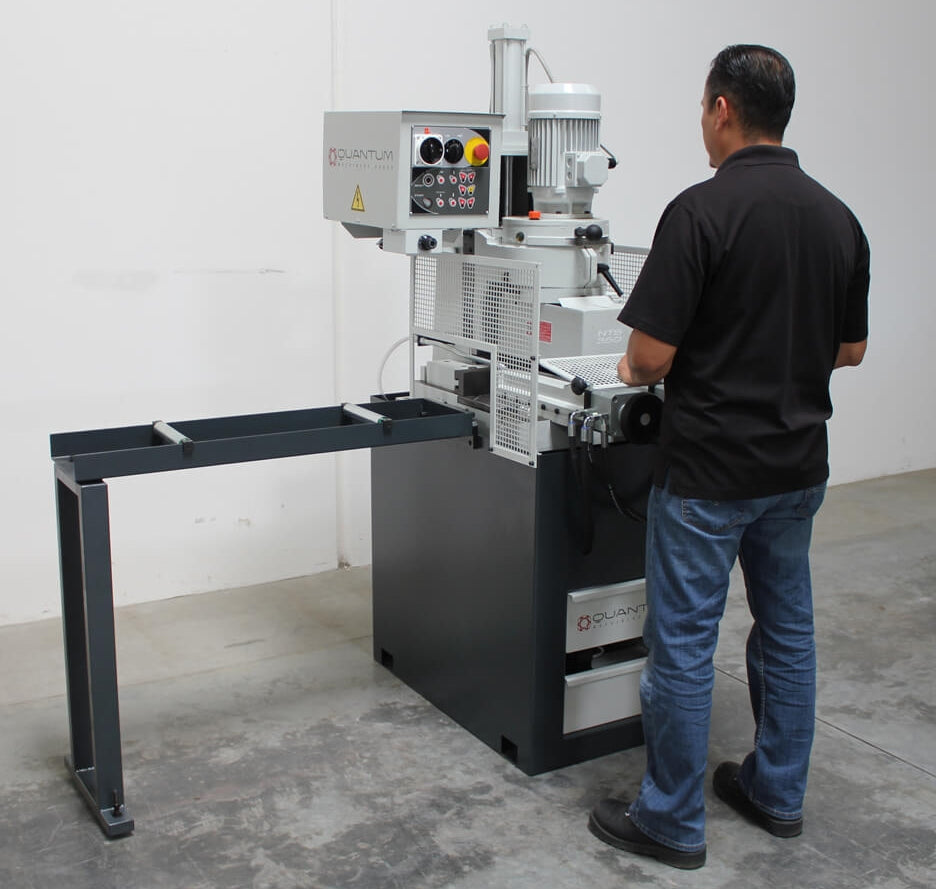

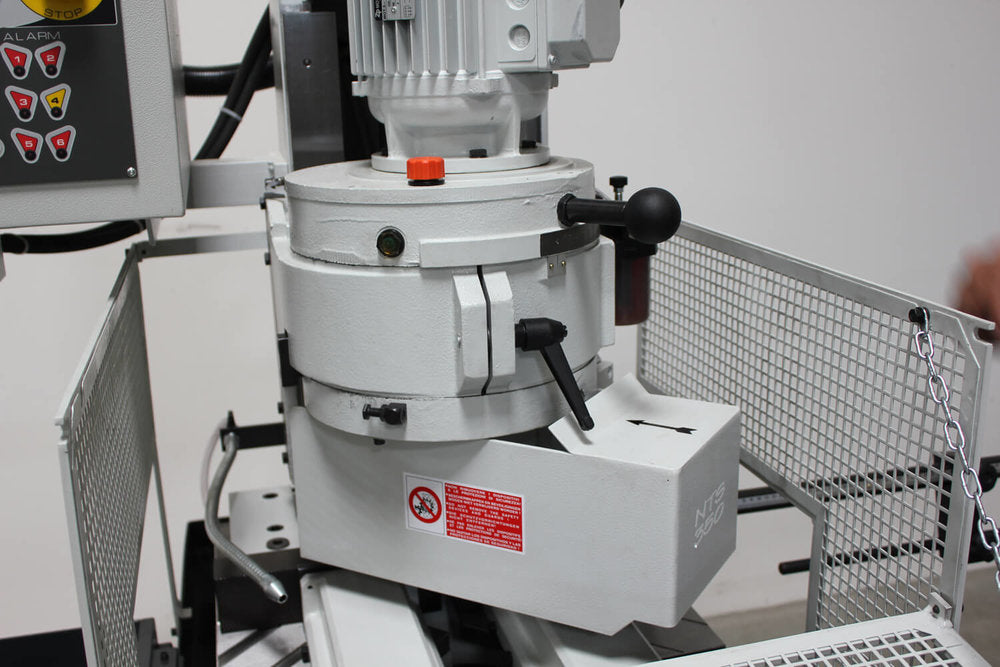

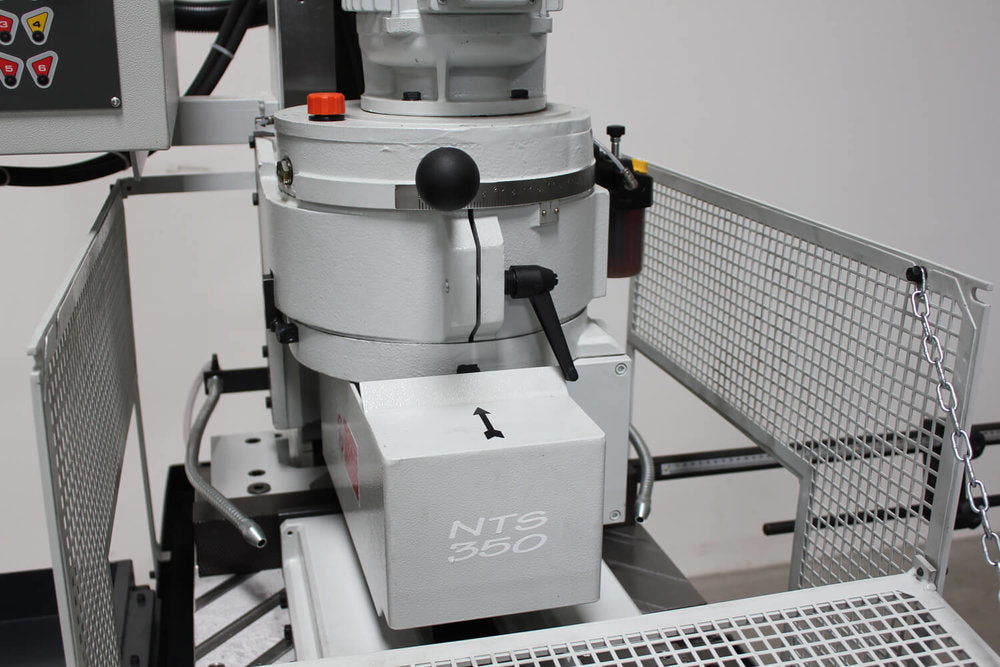

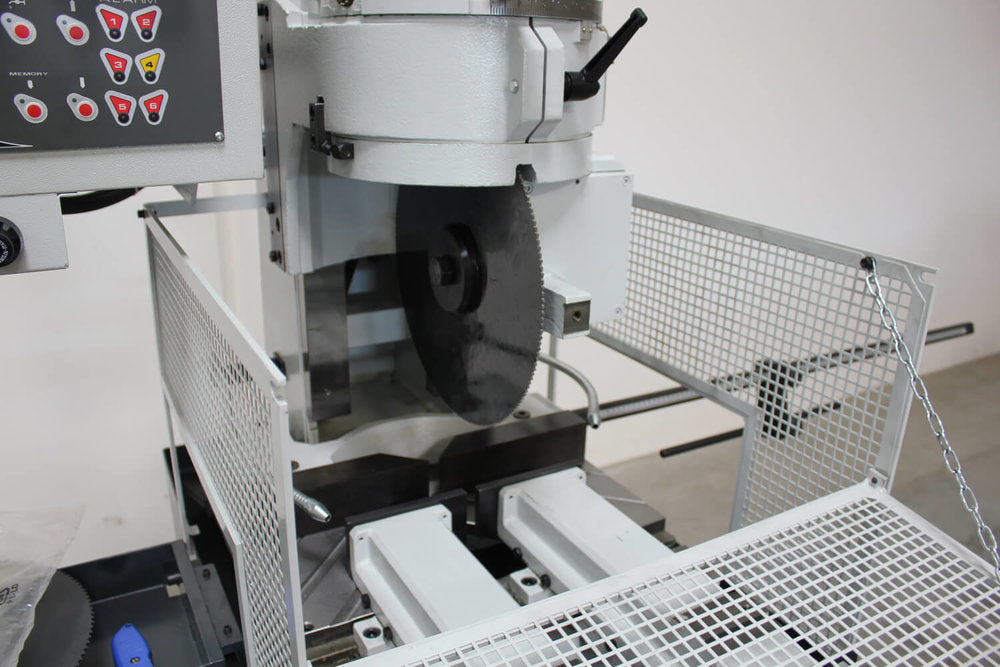

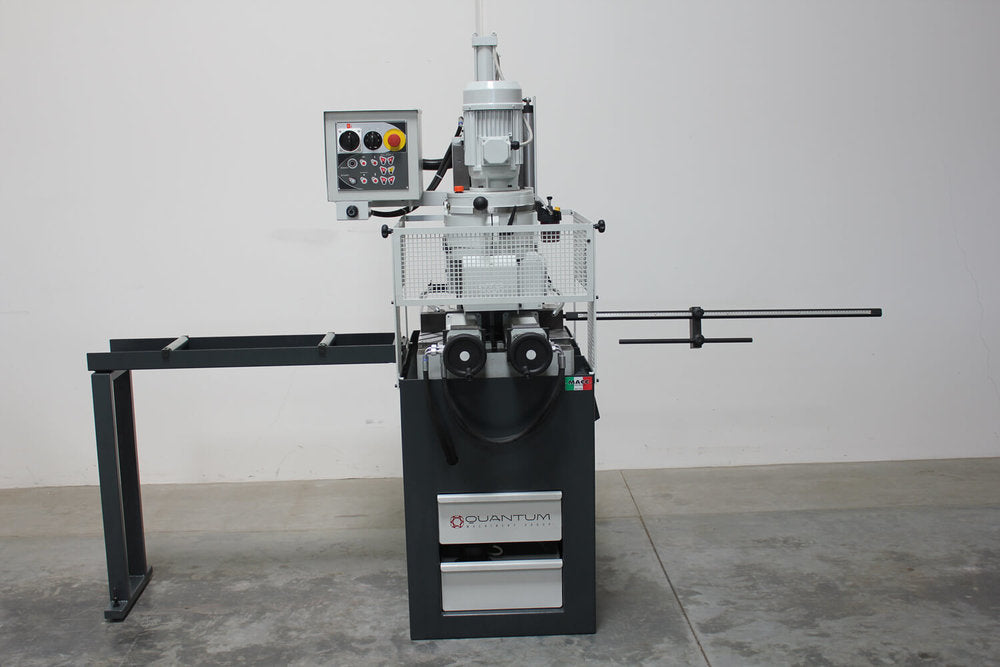

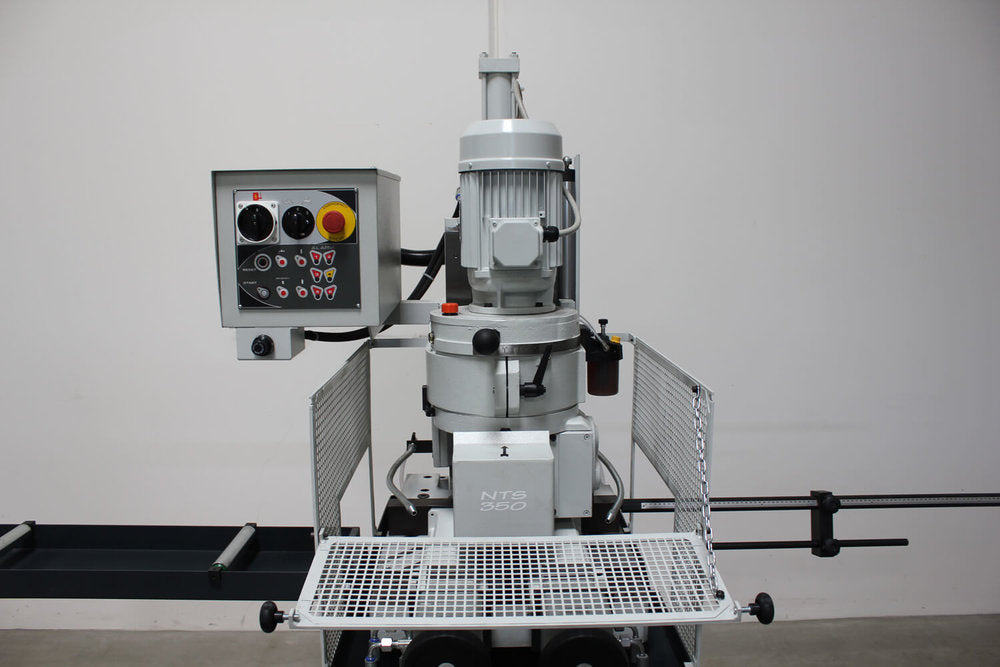

The Quantum Macc NTS 370 Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees right and left; and the head also has rotation stops at 45° - 0° - 45°. The NTS 370 has a vice that is complete with an anti-burr device, and a motor pump for blade lubrication. This unit is equipped with a bar stop, bar support arm, and service tools, as well as the machine's manual and steel pedestal. Electrical: The NTS-370 can be brought in at either 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.

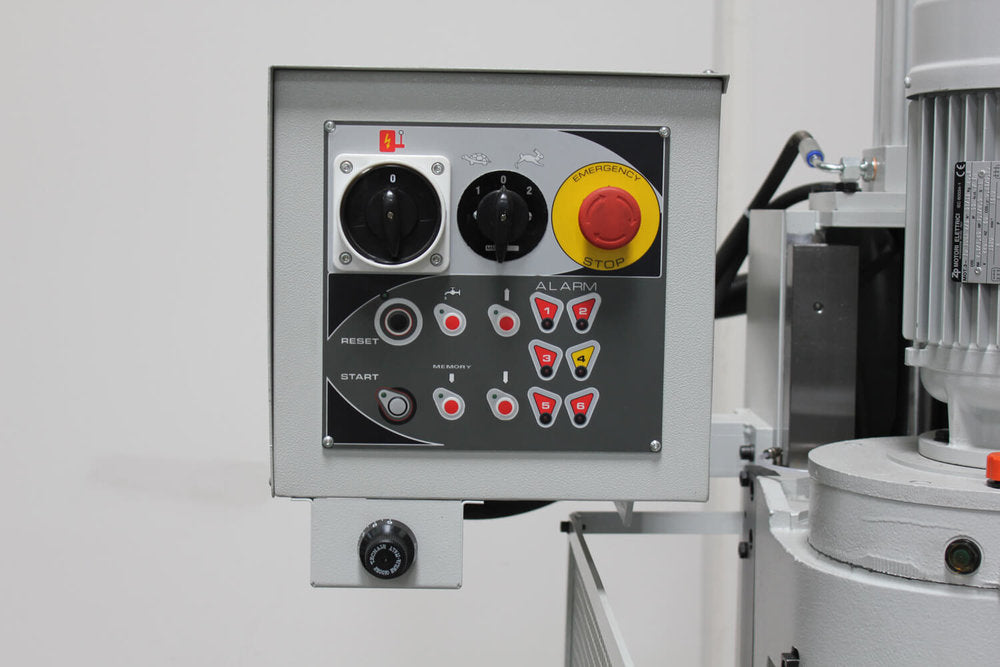

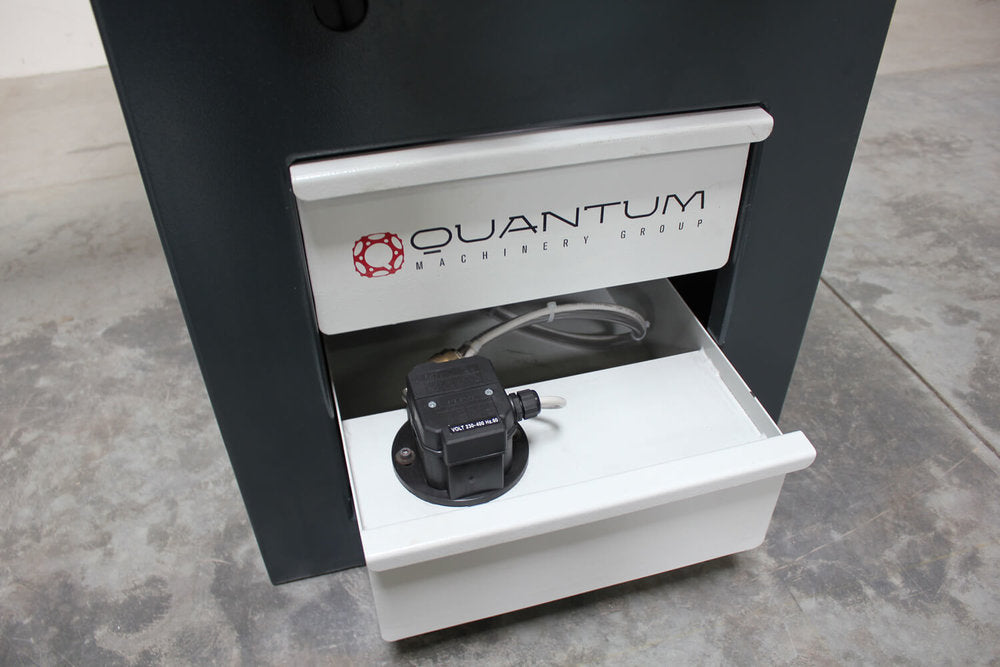

Cycle start is obtained by pressing the relevant start pedal.
The machine performs the following operations during the cutting cycle:

1.Closing of Vice & Activation of Blade Motor.
2.Cutting Head Begins Down-Stroke.
3.Completes Cut & Head Returns to Initial Position & Blade Motor Stops.
4.The Vice will then Open.
(REPEAT)

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 5"
  • 45° Left Cut: 5"
  • 45° Right Cut: 5"

Square Tube

  • Straight Cut: 4.6"
  • 45° Left Cut: 3.9"
  • 45° Right Cut: 3.9"

Solid Round Tube

  • Straight Cut: 3.9"
  • 45° Left Cut: 3.9"
  • 45° Right Cut: 3.9"

Rectangular Tube

  • Straight Cut: 3.9"H x 6.6"W
  • 45° Left Cut: 3.9"H x 5.5"W
  • 45° Right Cut: 3.9"H x 5.5"W

TECHNICAL DATA & FEATURES:

  • Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees left to right.

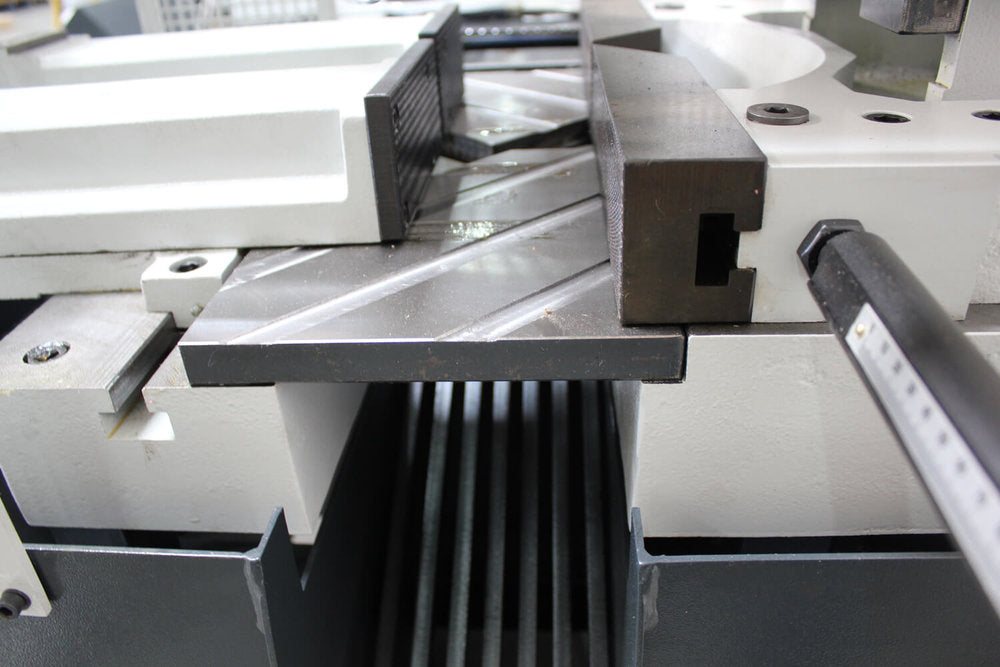

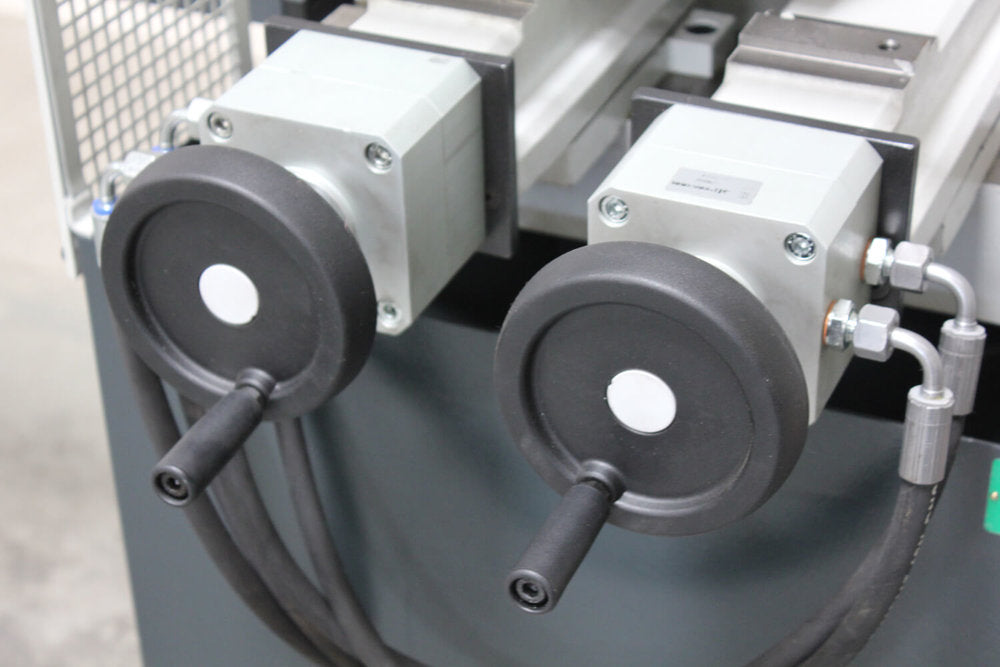

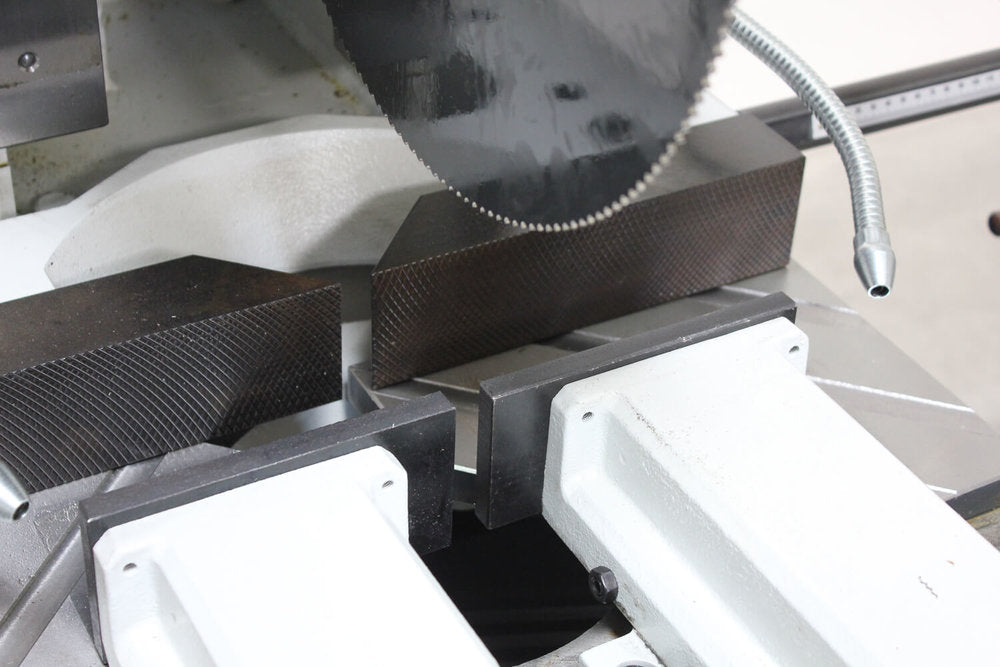

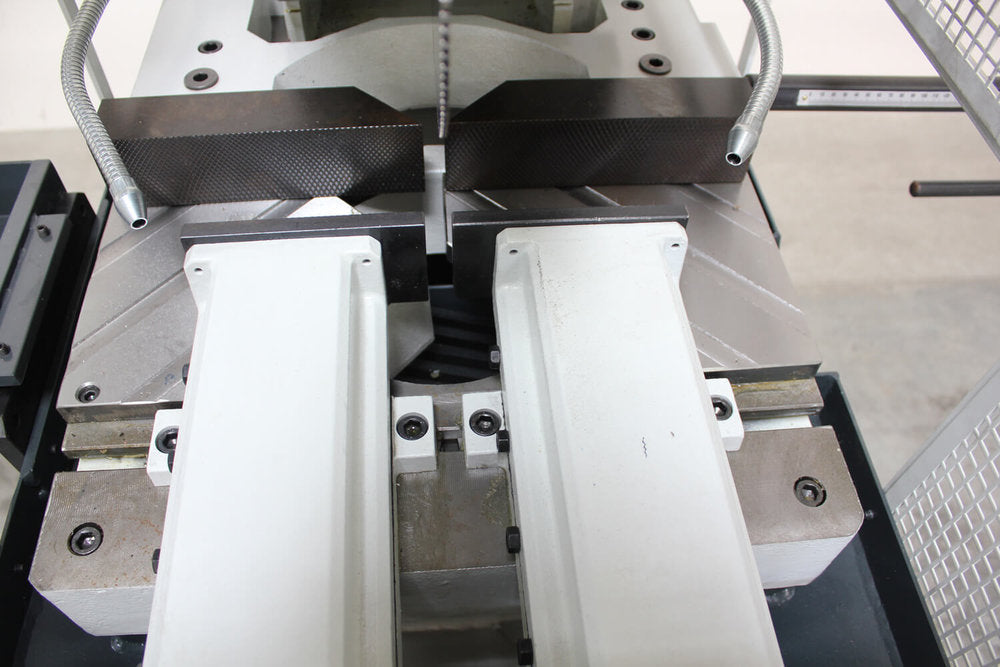

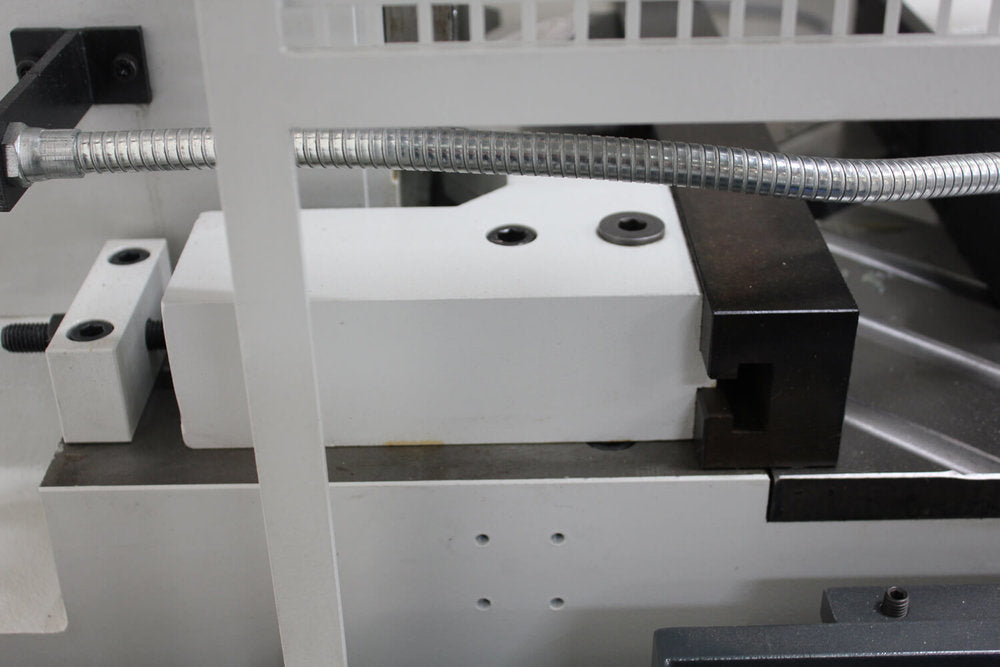

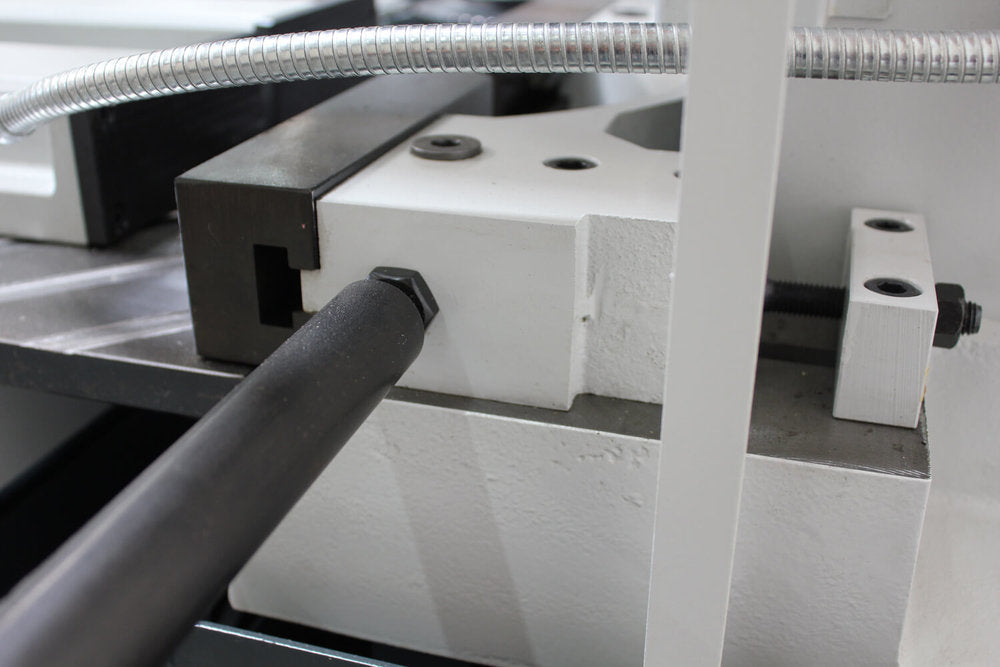

  • Vice complete with anti-burr device.

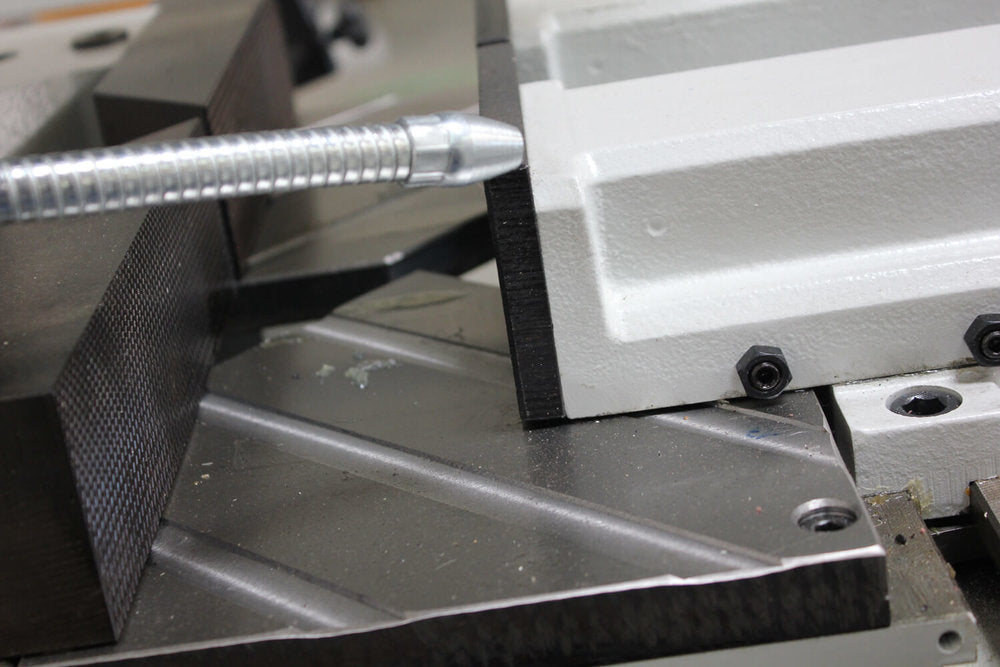

  • Motor pump.

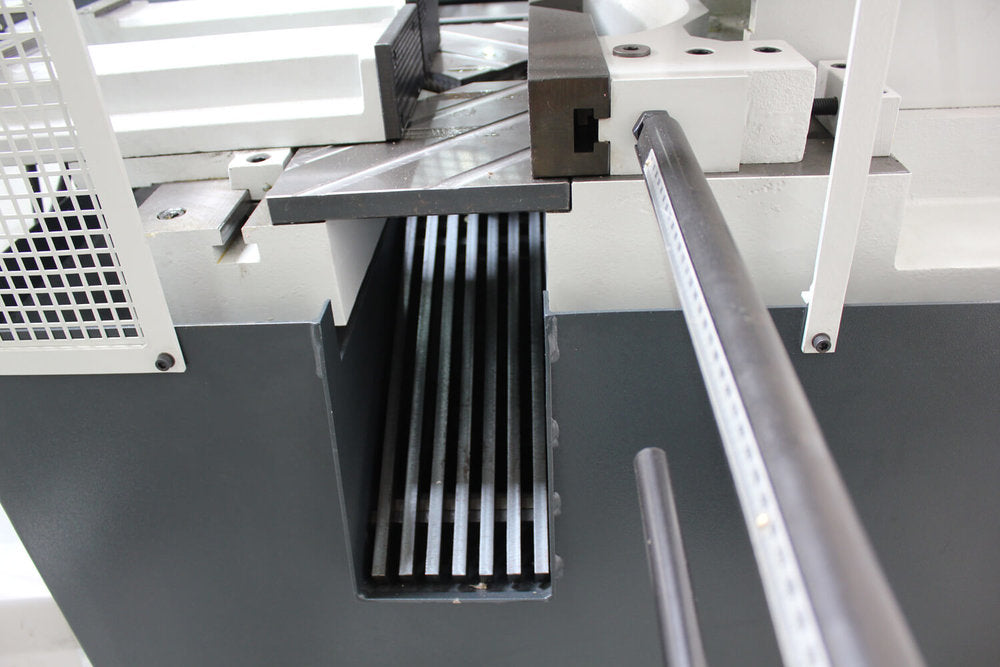

  • Chip breaker to keep the blade clean.

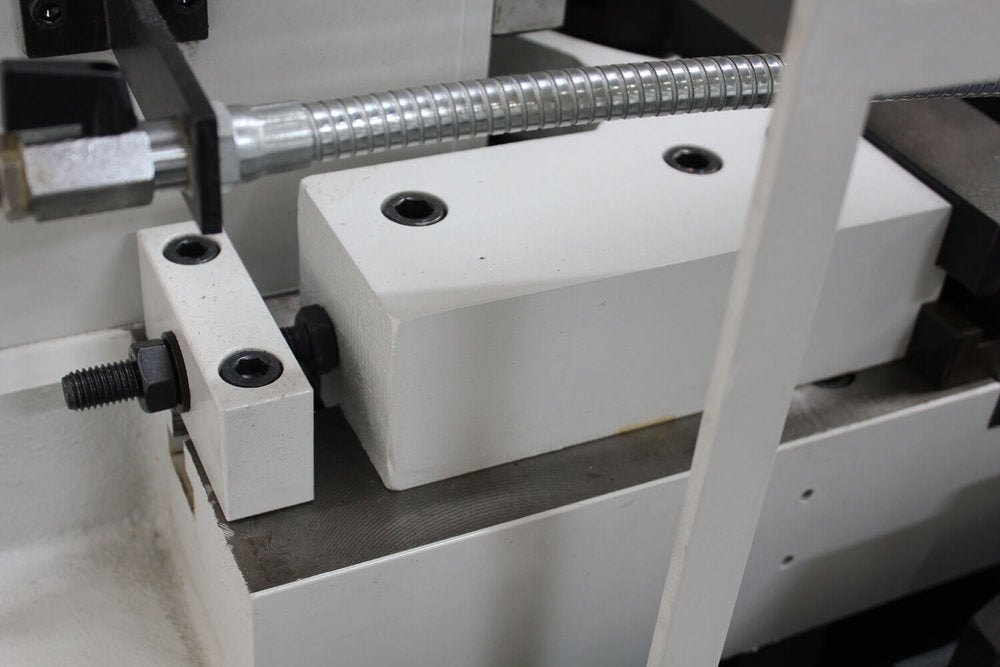

  • Adjustable stops for head vertical stroke.
  • Service tools.

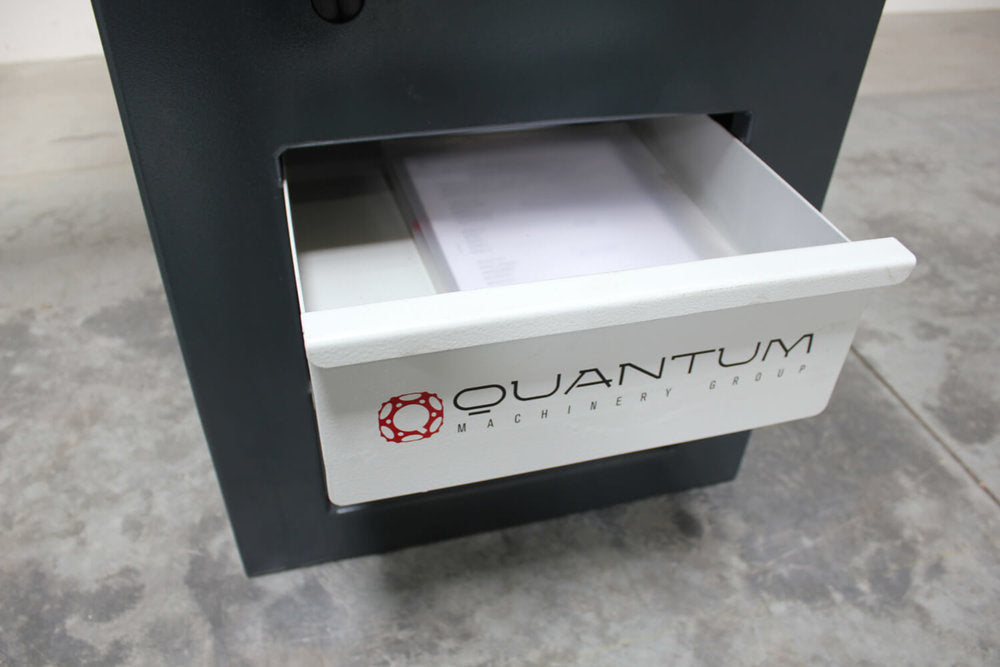

  • Instruction manual and exploded view of spare parts.

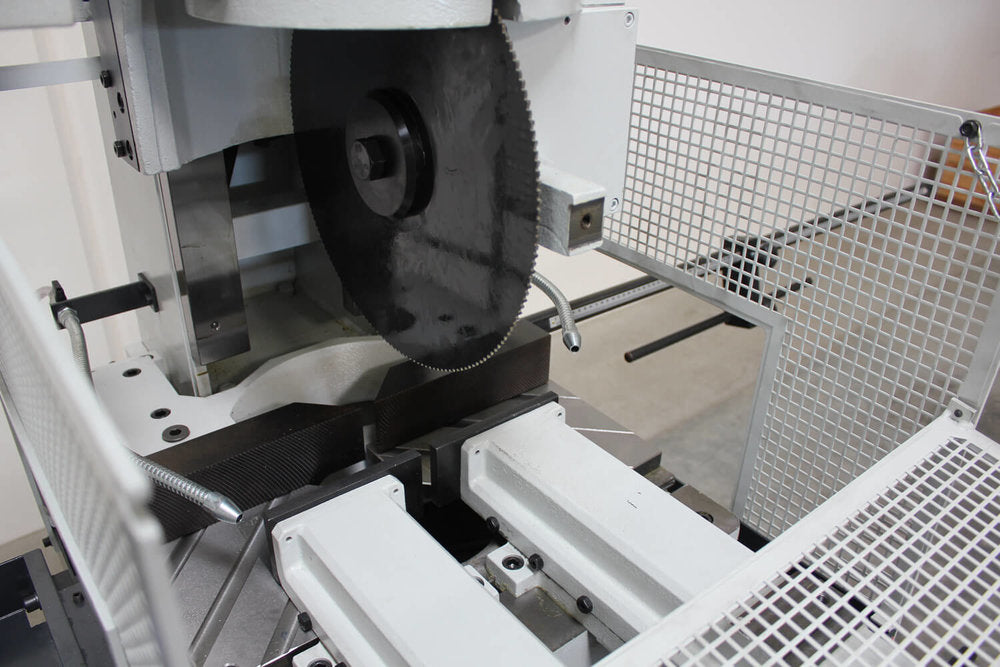

  • Blade Size: 370 x 2.5 x 32mm Bore HSS Blade
  • Maximum Vice Opening: 7.2” (185mm)
  • Machine Weight: 1,100 lbs. (500 kg.)
  • 2 Speeds: 25 & 50 R.P.M. (Saw can be equipped with Variable Speed Inverter)
  • Overall Dimensions: 6'-1” H x 8'-9” W x 4' L or 73” H x 104” W x 48” L or 1,854 mm x 2,640 mm x 1,200 mm
  • Additionally, this Saw Includes:  Instruction Manual, Service Tools & 1 HSS 370mm Cold Saw Blade.
