NTM 350-S: 14" Semi-Auto, Double-Column Cold Saw (4-5/8" Round Tube Capacity)

NTM 350-S: 14" Semi-Auto, Double-Column Cold Saw (4-5/8" Round Tube Capacity)

Name: NTM 350-S: 14" Semi-Auto, Double-Column Cold Saw (4-5/8" Round Tube Capacity)
Brand: Quantum Machinery Group (Made in Italy)
SKU: NTM 350-S (220 Volt / 3 Phase / 60Hz)
Price: 14,300 USD
Availability: InStock

Part No. (SKU): NTM 350-S (220 Volt / 3 Phase / 60Hz)

Current Availability in the USA: 1 In Stock

Series: Cold Saws

$14,300; $0; $14,300
Unit price: per

Voltage Options: 220 Volt / 3 Phase / 60Hz 220 Volt / 3 Phase / 60Hz 480 Volt / 3 Phase / 60Hz

Product variants

Subtotal: $14,300

Quantity:

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

NTM 350-S: 14" Semi-Auto, Double-Column Cold Saw (4-5/8" Round Tube Capacity)

$0 $14,300

Select Options

Quantity:

NTM 350-S: 14" Semi-Auto, Double-Column Cold Saw (4-5/8" Round Tube Capacity)

$0 $14,300

Voltage Options: 220 Volt / 3 Phase / 60Hz 220 Volt / 3 Phase / 60Hz 480 Volt / 3 Phase / 60Hz

Product variants

Description

Description

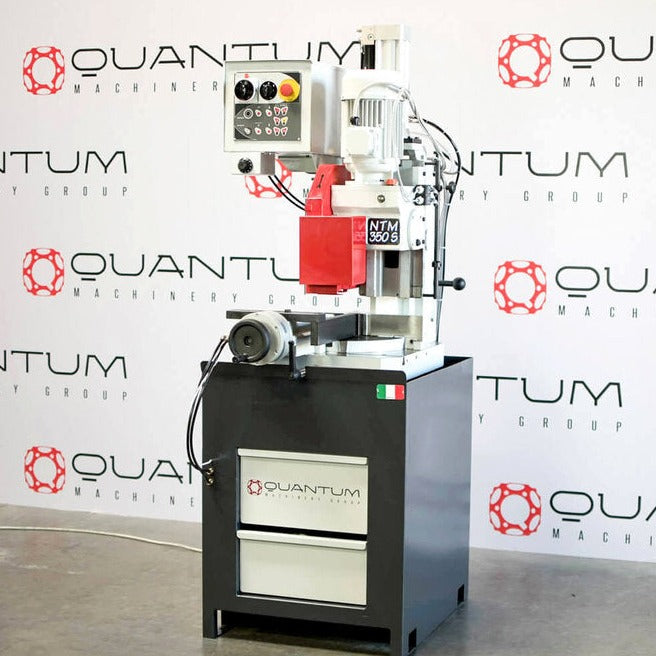

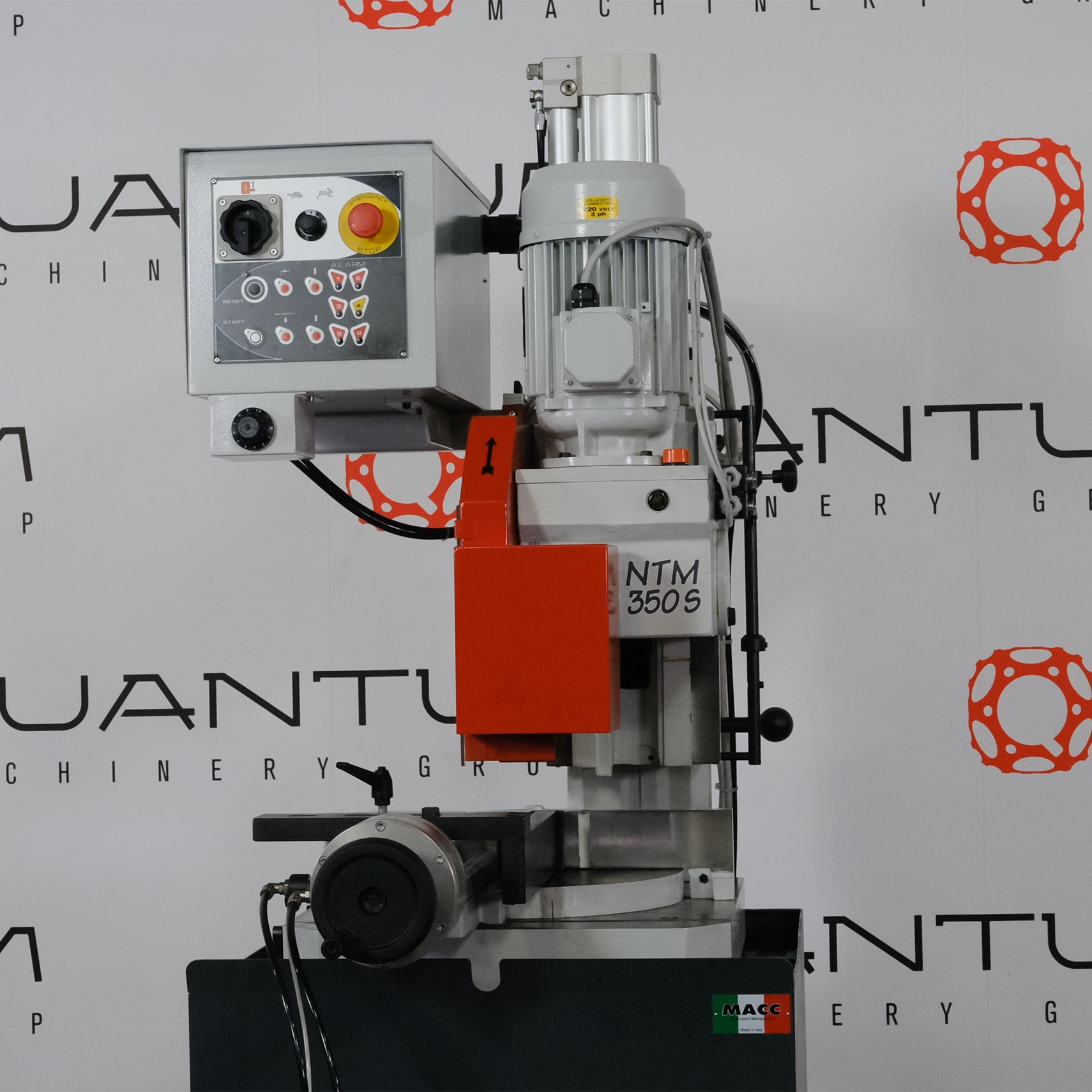

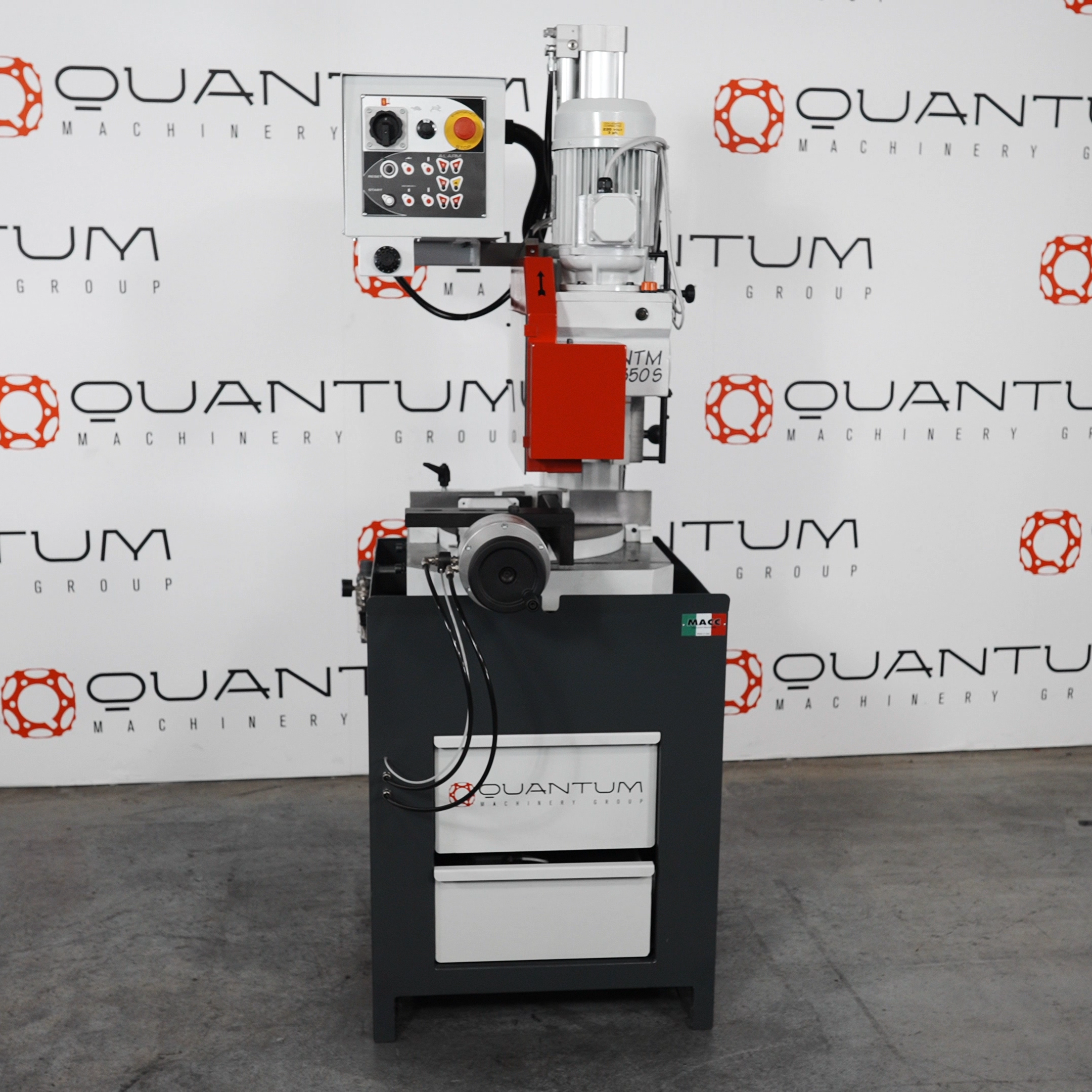

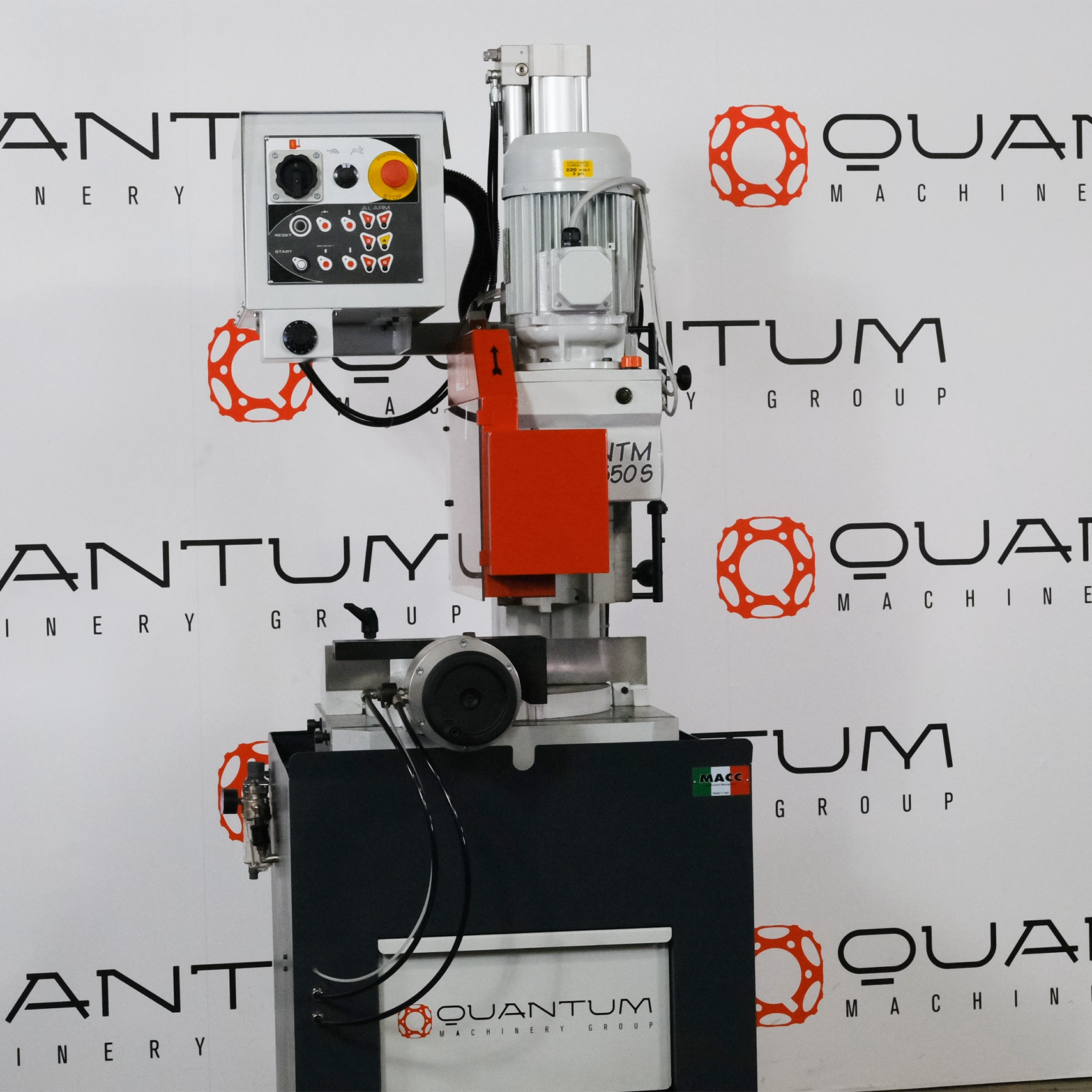

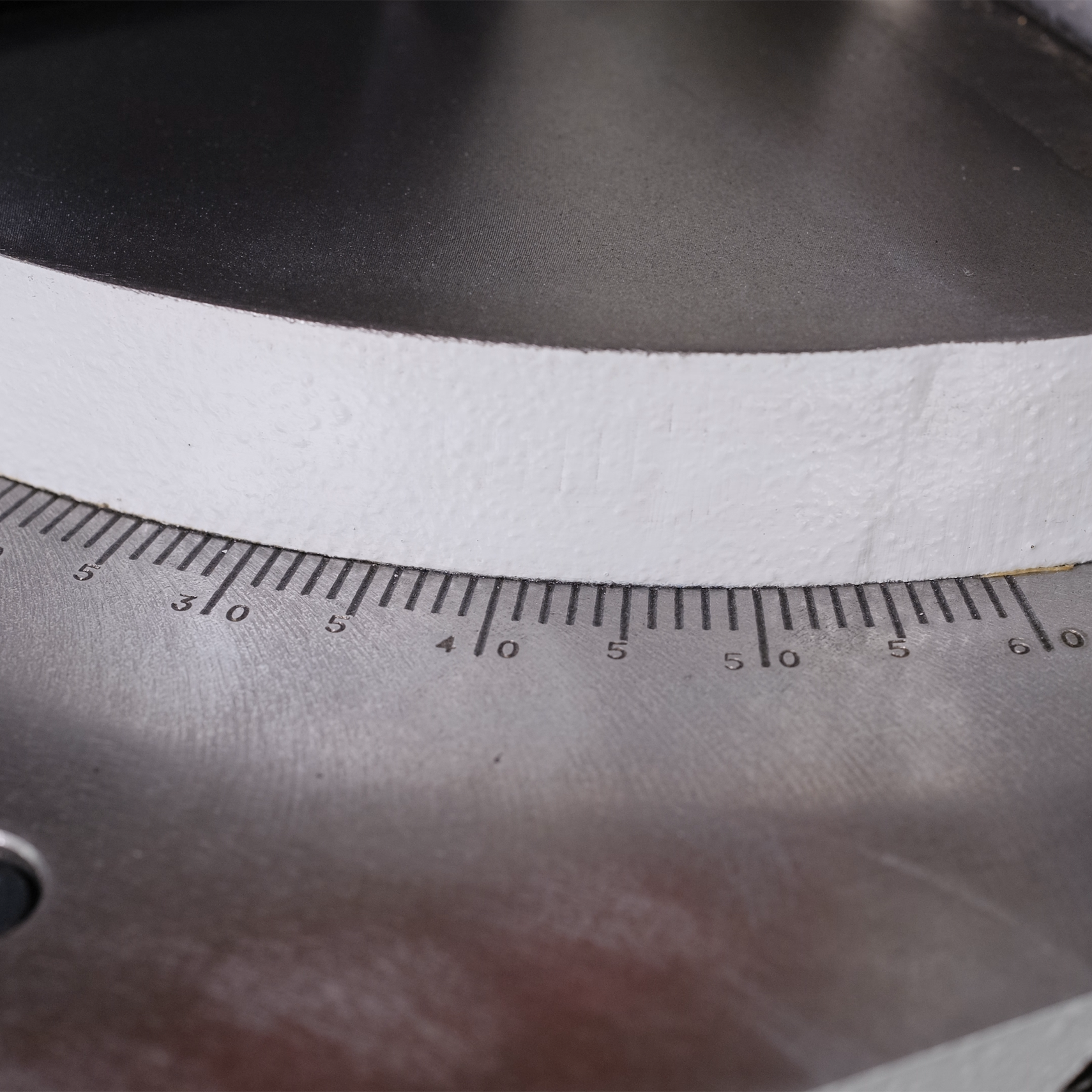

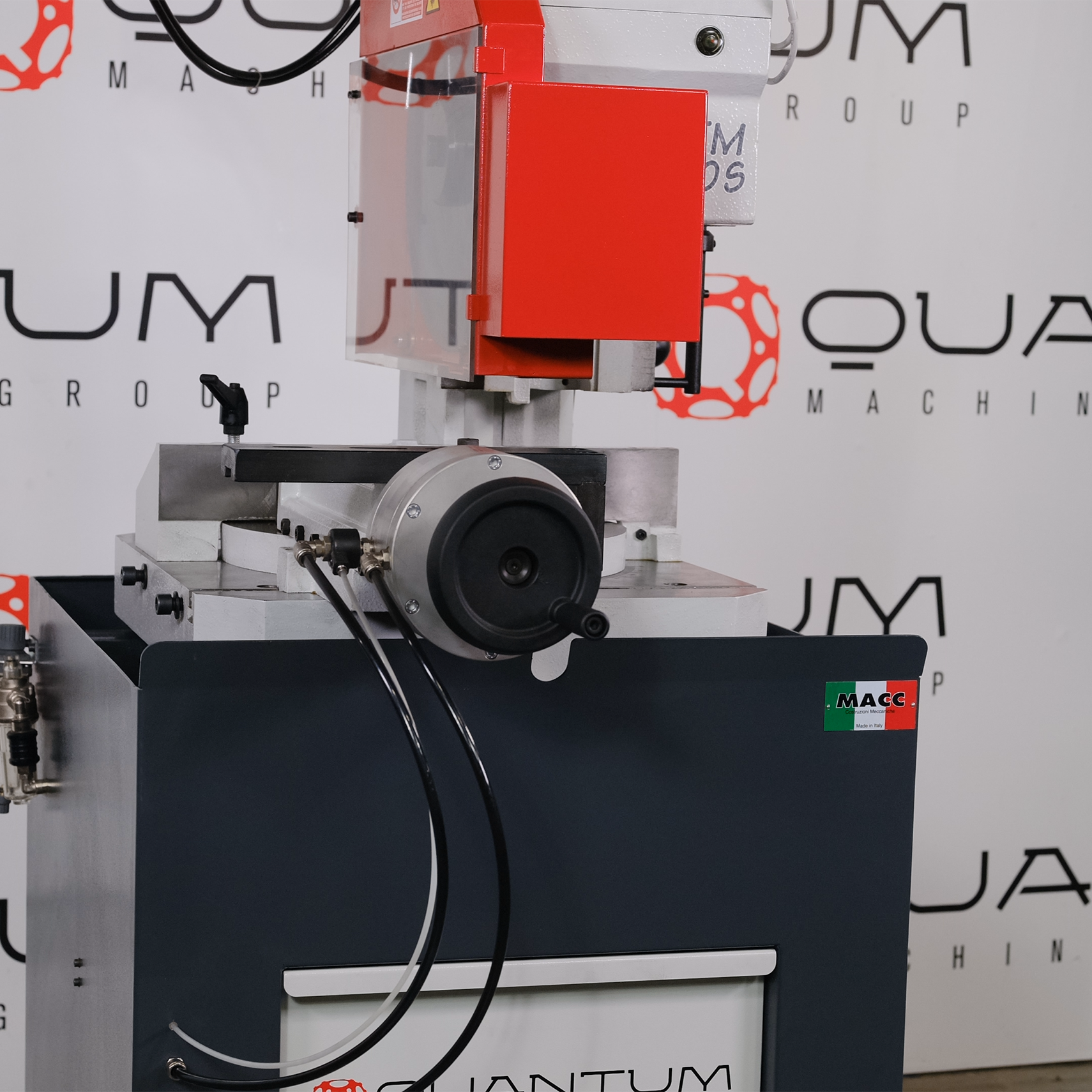

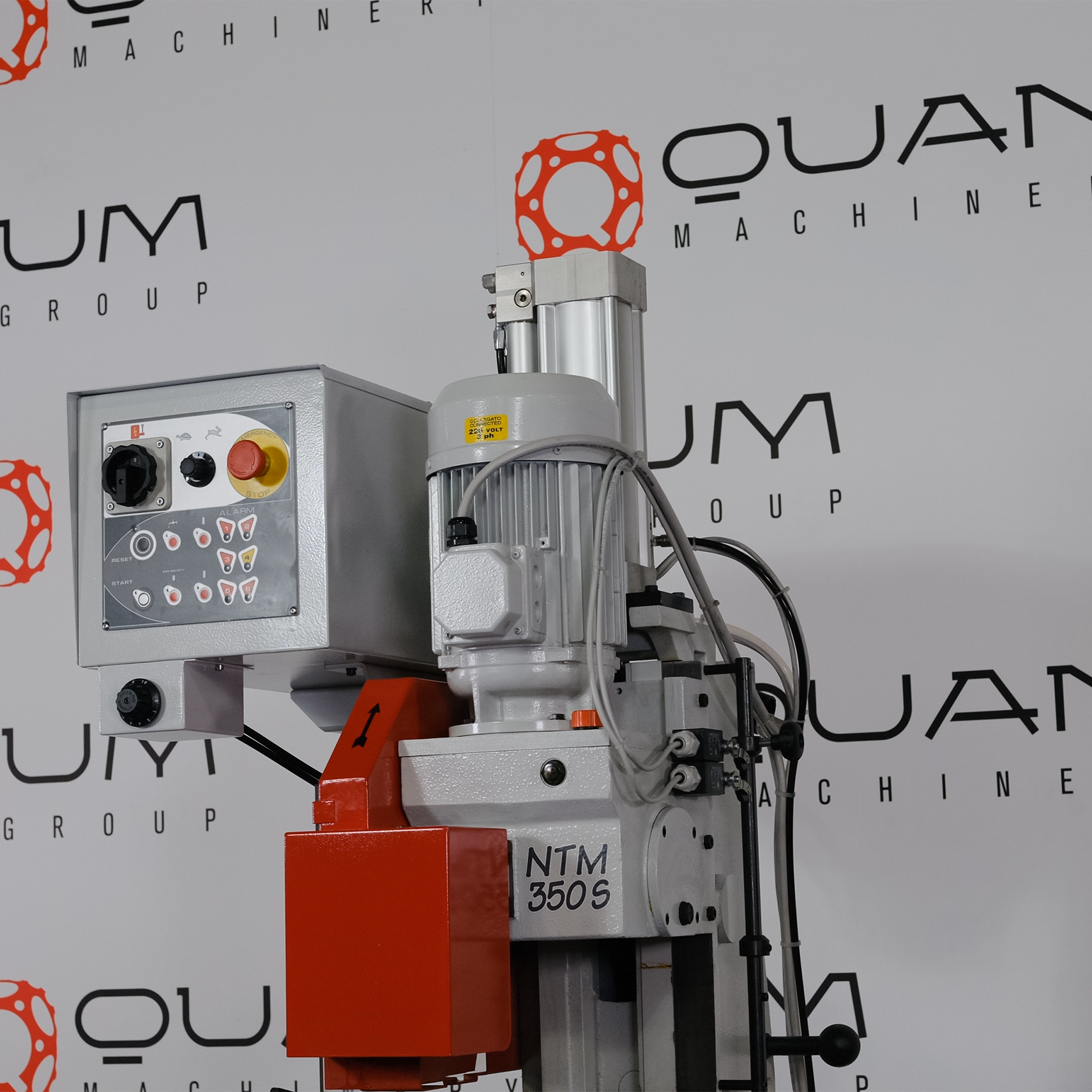

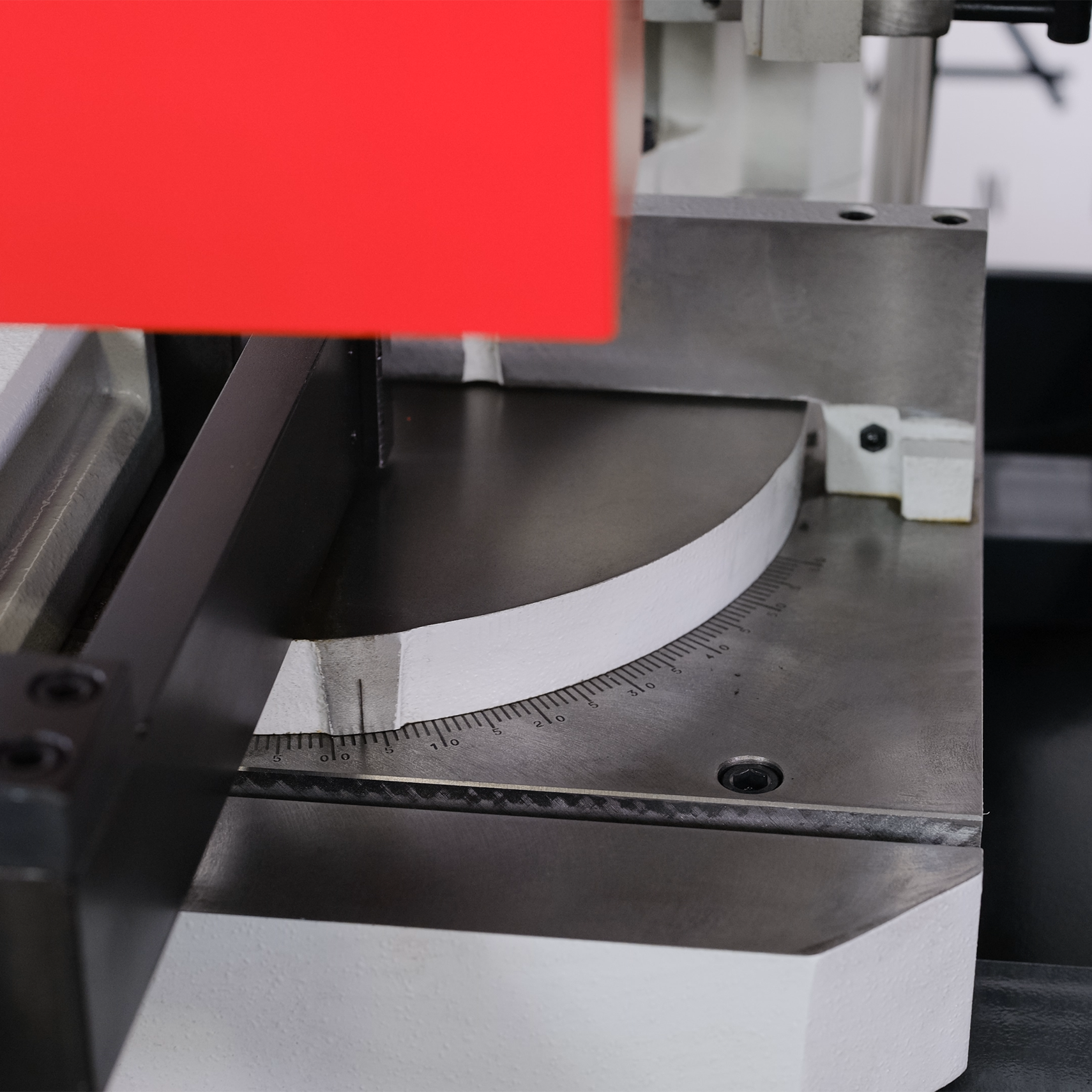

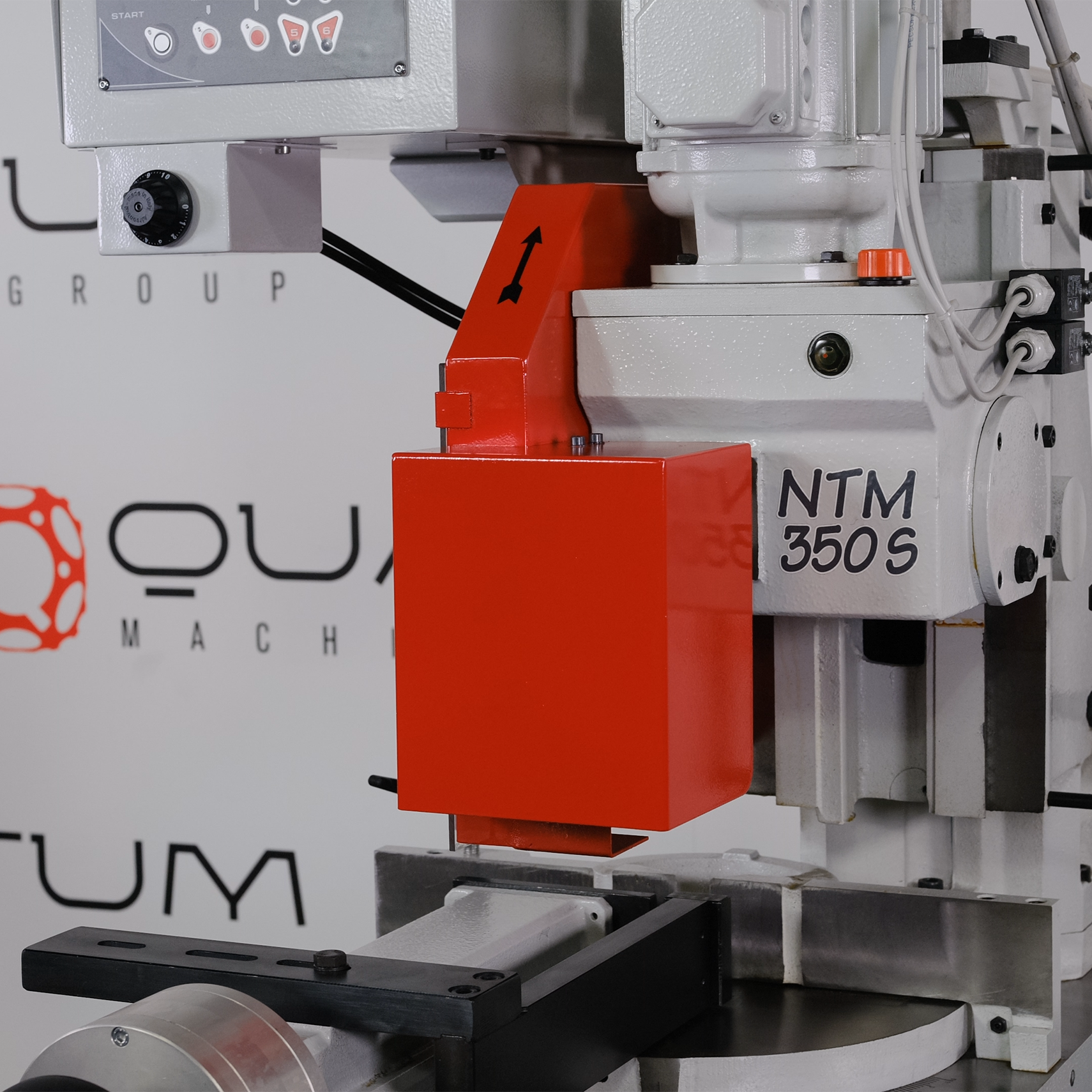

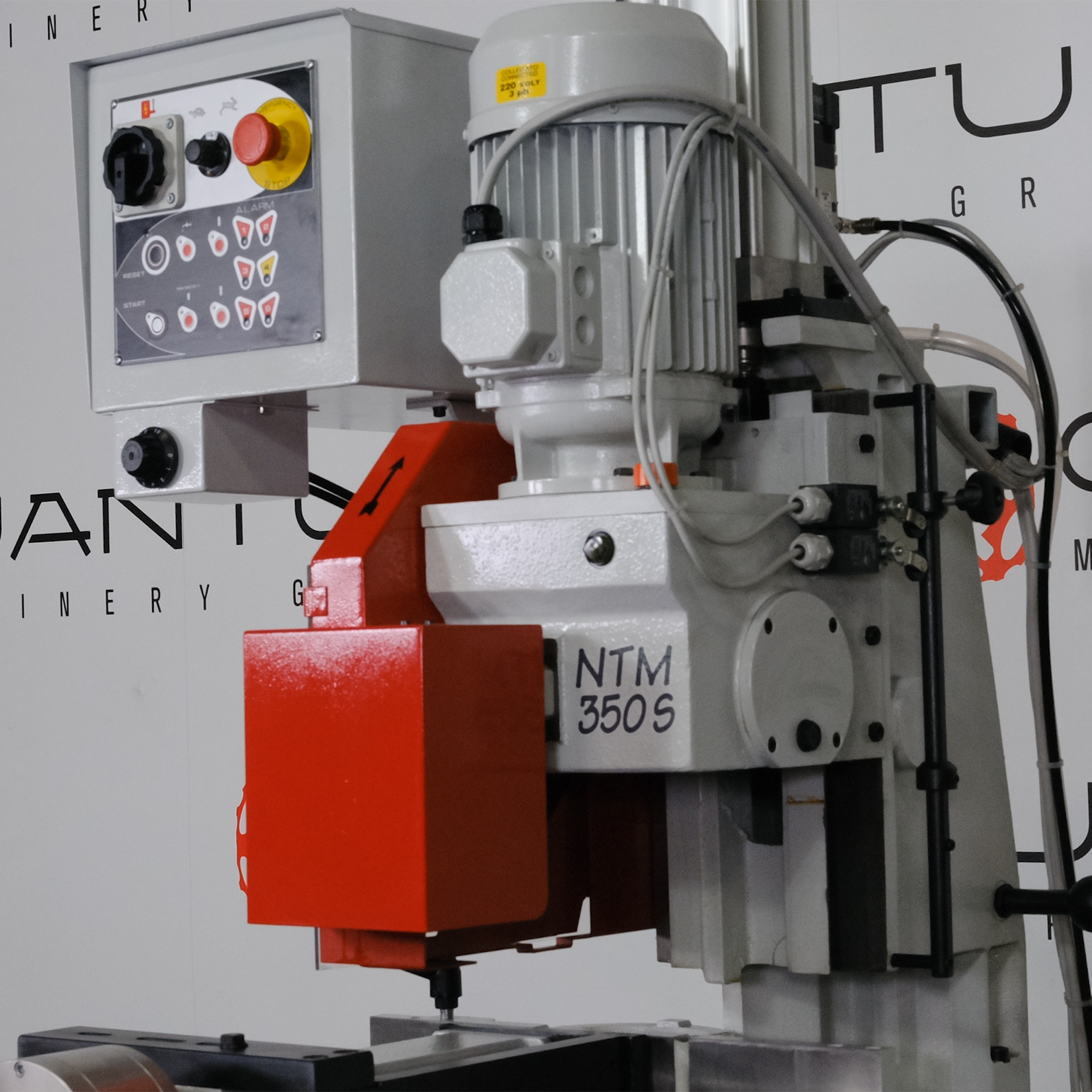

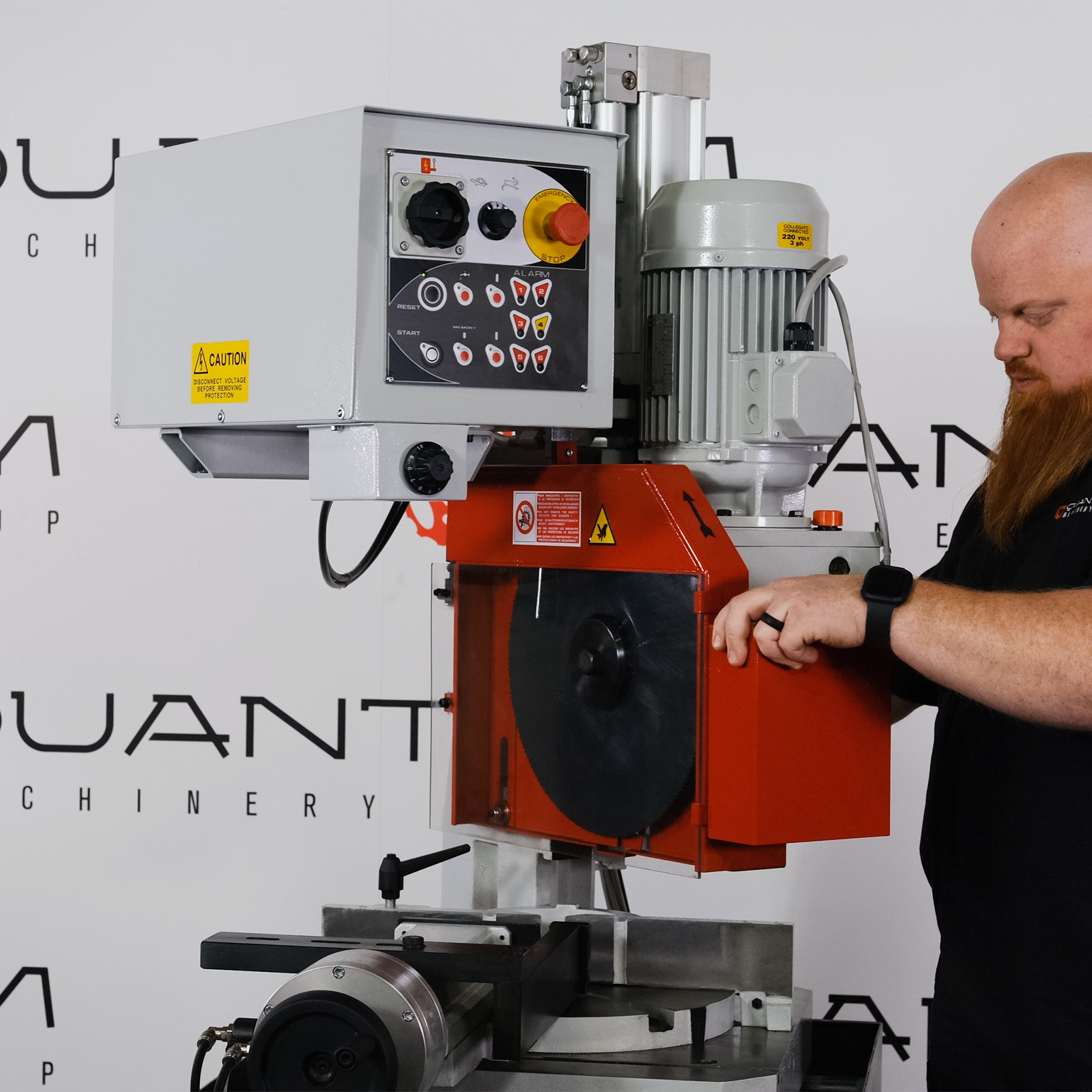

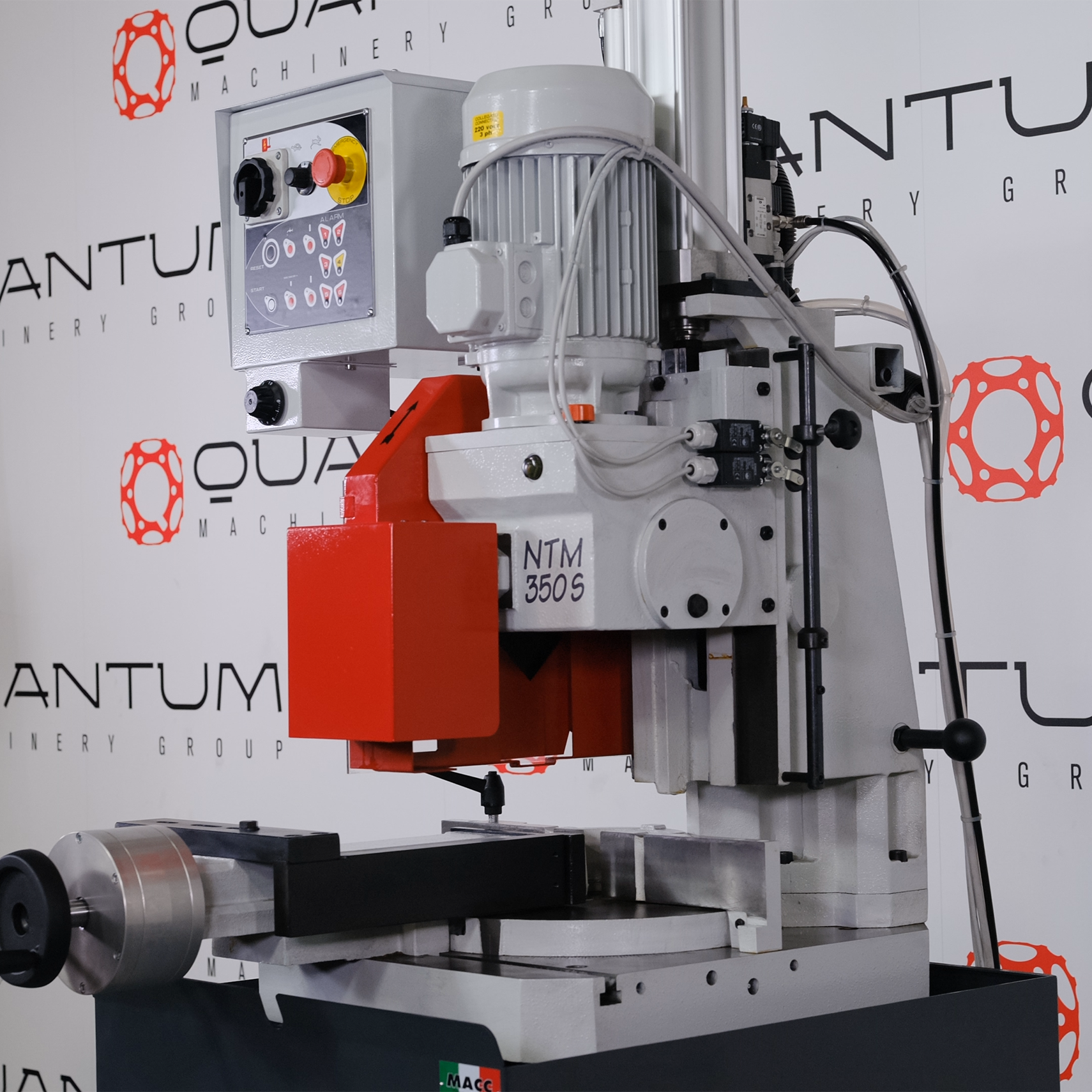

The Quantum Macc NTM 350-S Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees left and 60 degrees right; and the head also has rotation stops at 45° - 0° - 45° - 60°. The NTM 350-S has a vice that is complete with an anti-burr device, motor pump for blade lubrication, shave breaker to keep the blade clean. This unit is equipped with a a 1 meter long bar stop, 1 meter long bar support arm, and service tools, as well as the machine's manual and steel pedestal. Electrical: The NTM 350-S can be brought in at either 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.

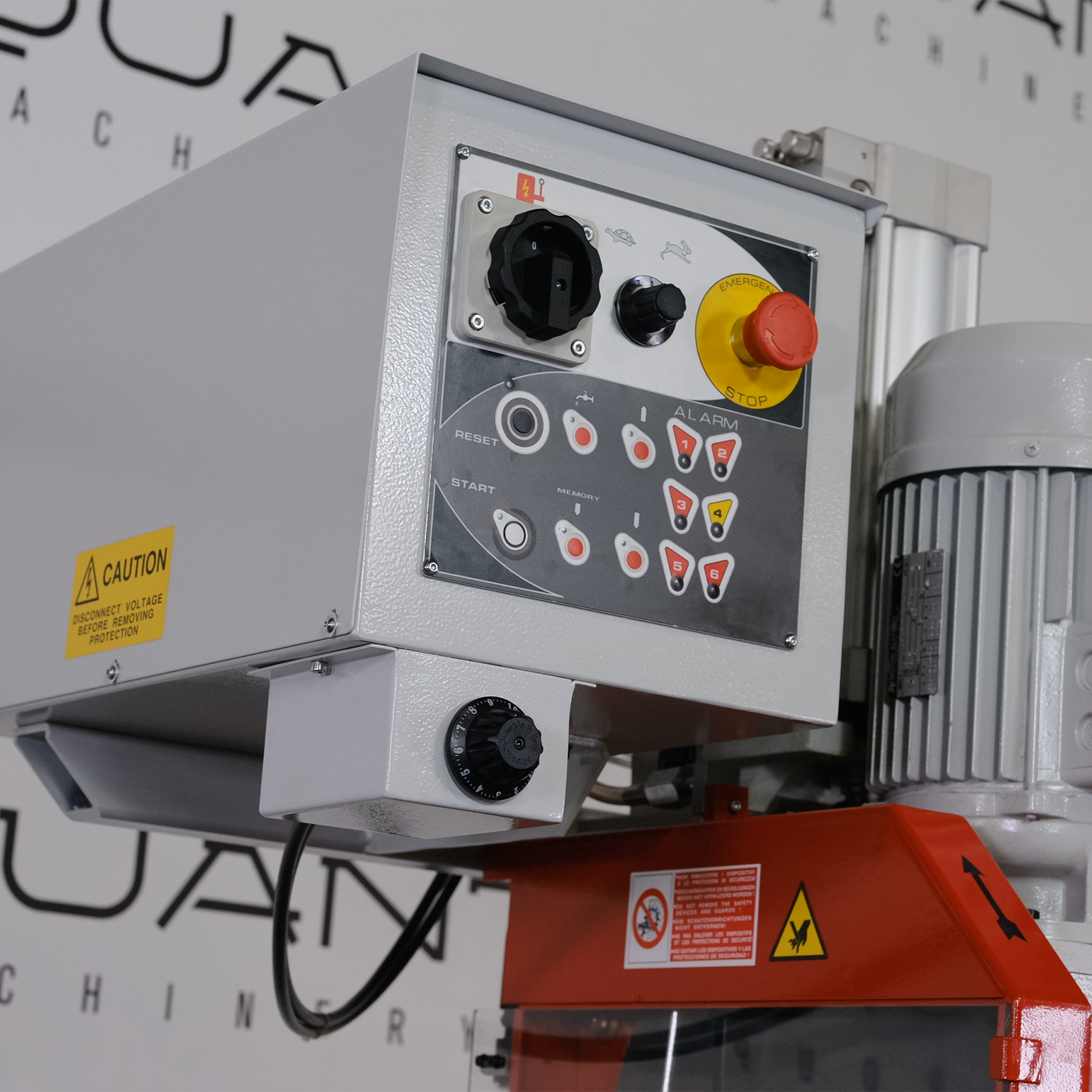

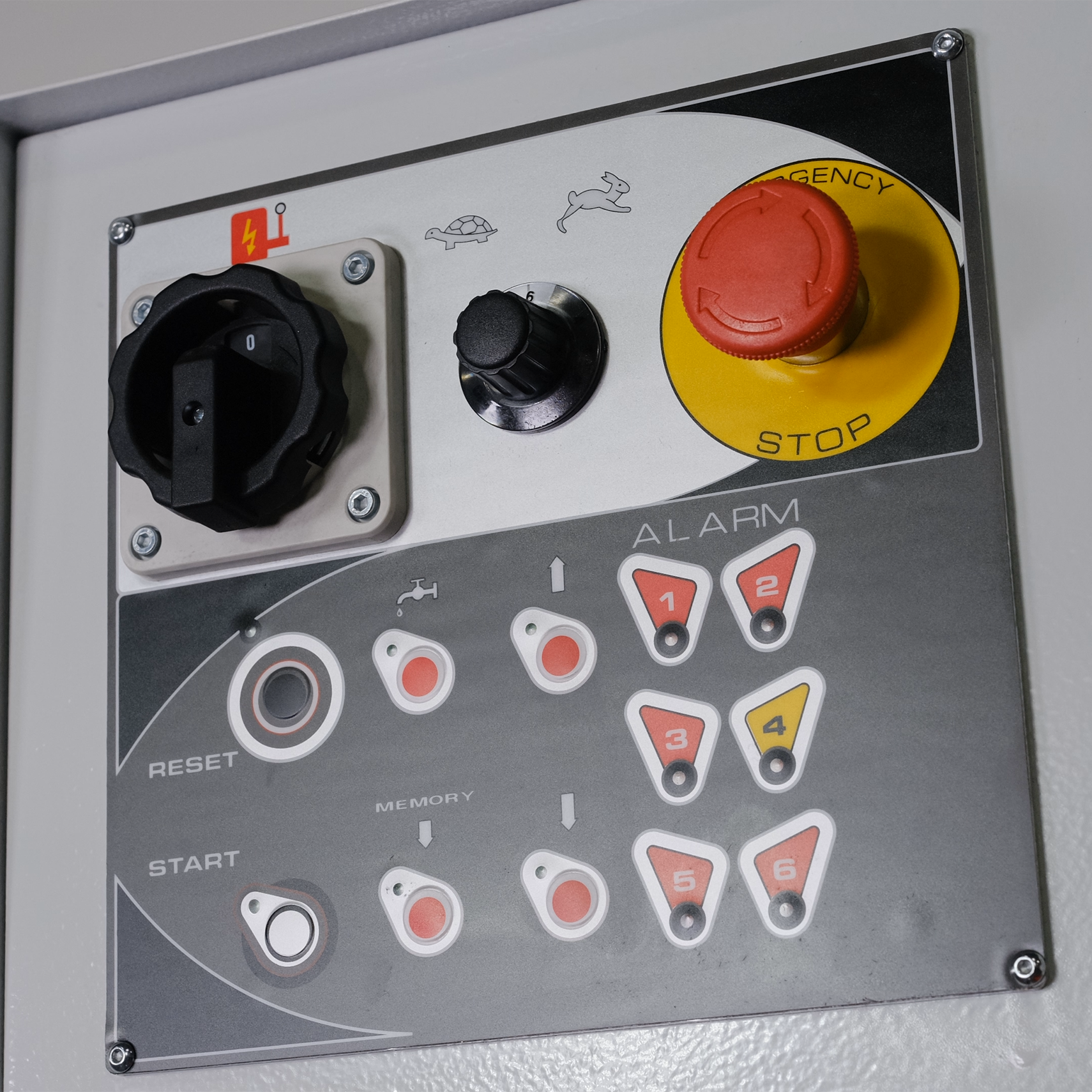

Cycle start is obtained by pressing the relevant start pedal.
The machine performs the following operations during the cutting cycle:

1.Closing of Vice & Activation of Blade Motor.
2.Cutting Head Begins Down-Stroke.
3.Completes Cut & Head Returns to Initial Position & Blade Motor Stops.
4.The Vice will then Open.
(REPEAT)

MAXIMUM CUTTING CAPACITIES:

Round Tube:

Straight Cut: 4-1/2" or 4.5"
45° Left Cut: 4-1/2" or 4.5"
45° Right Cut: 4-1/2" or 4.5"
60° Right Cut: 3-1/4" or 3.25"

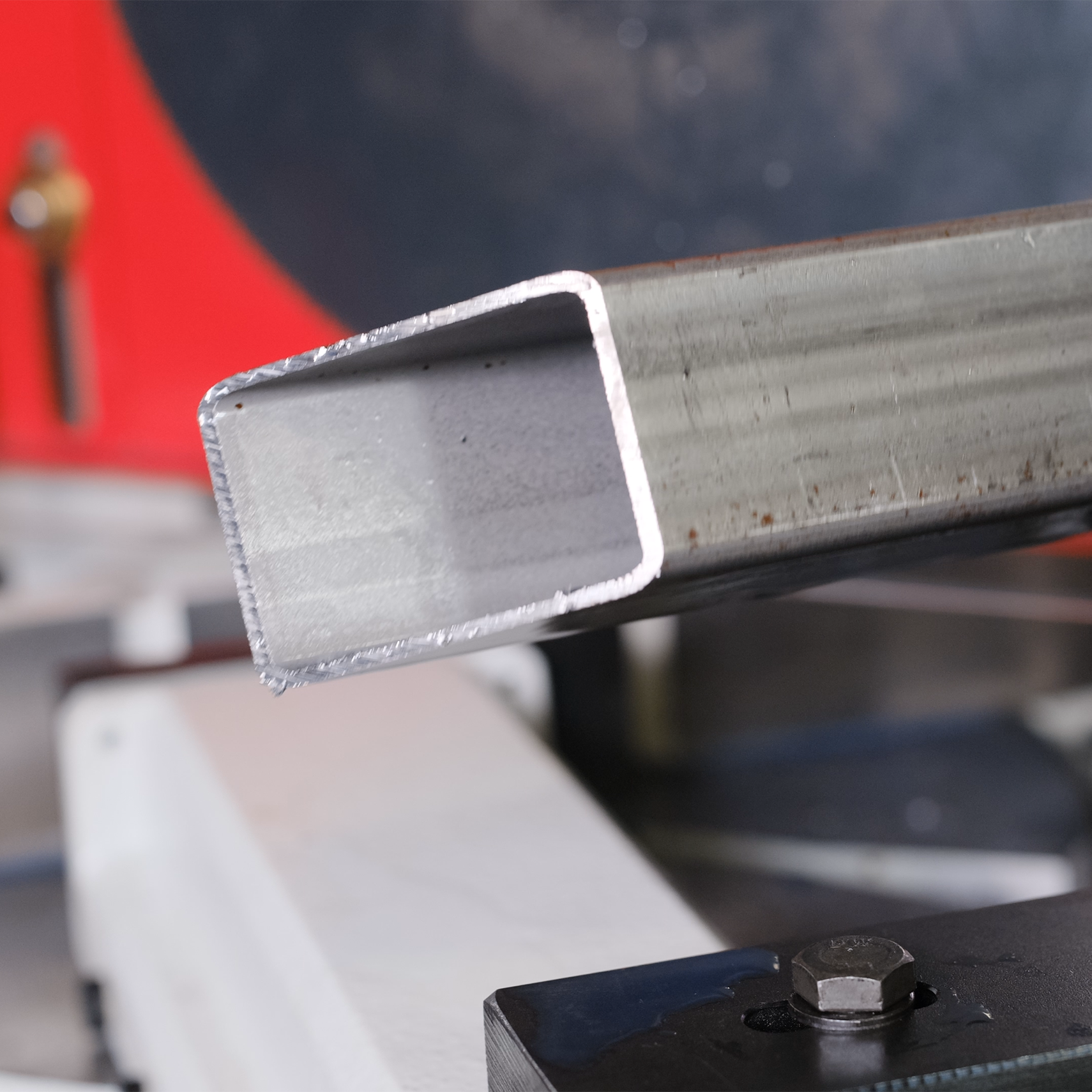

Square Tube:

Straight Cut: 3-3/4" or 3.75"
45° Left Cut: 3-1/4" or 3.25"
45° Right Cut: 3-1/4" or 3.25"
60° Right Cut: 3-1/4" or 3.25"

Solid Round:

Straight Cut: 3-3/4" or 3.75"
45° Left Cut: 3-3/4" or 3.75"
45° Right Cut: 3-3/4" or 3.75"
60° Right Cut: 3-1/4" or 3.25"

Rectangular Tube:

Straight Cut: 3-1/4"H x 6-1/2"W or 3.25"H x 6.5"W
45° Left Cut: 3-1/4"H x 4-3/4"W or 3.25"H x 4.75"W
45° Right Cut: 3-1/4"H x 4-3/4"W or 3.25"H x 4.75"W
60° Right Cut: 3-1/4"H x 3-1/4"W or 3.25"H x 3.25"W

TECHNICAL DATA & FEATURES:

Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees left to right and 60 degrees right

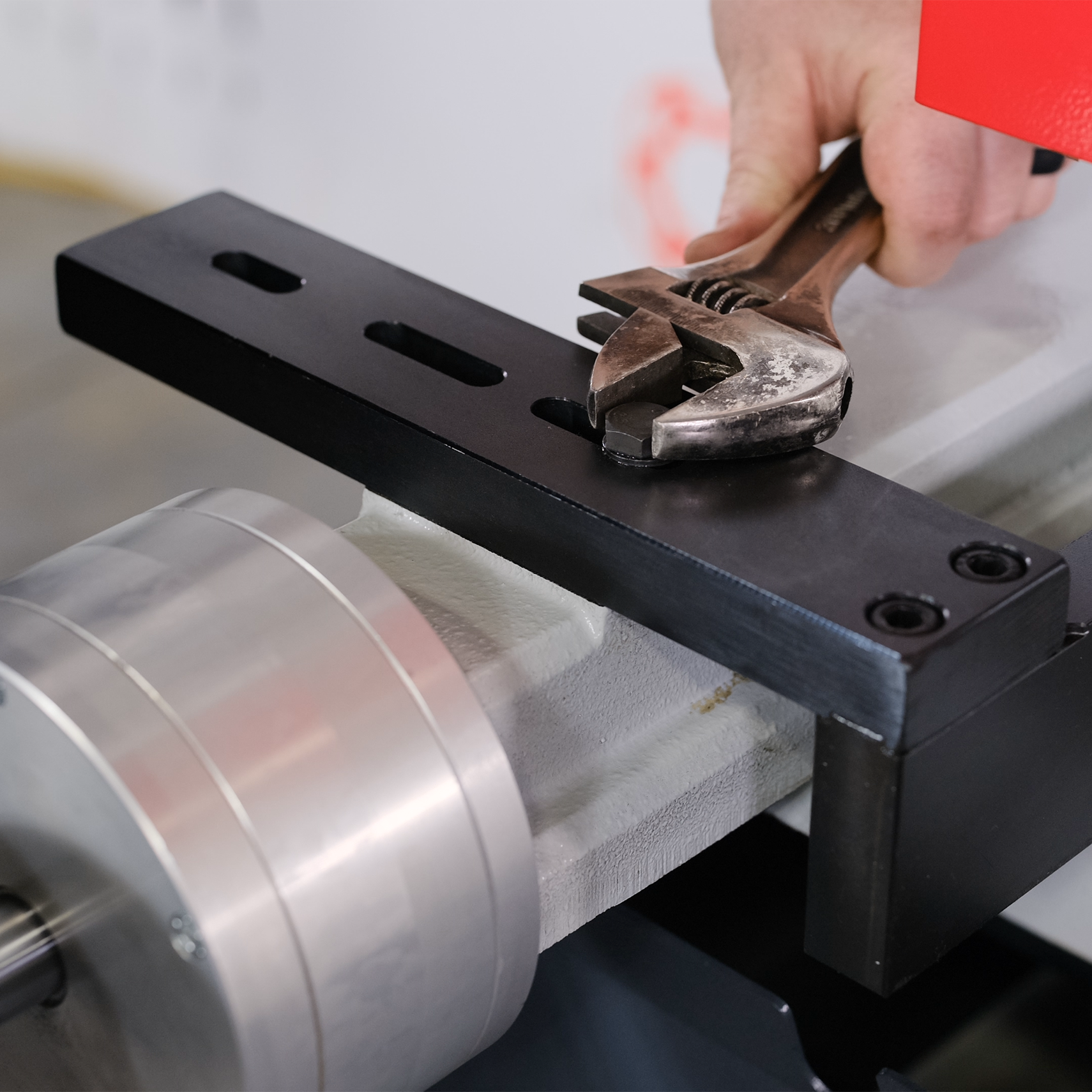

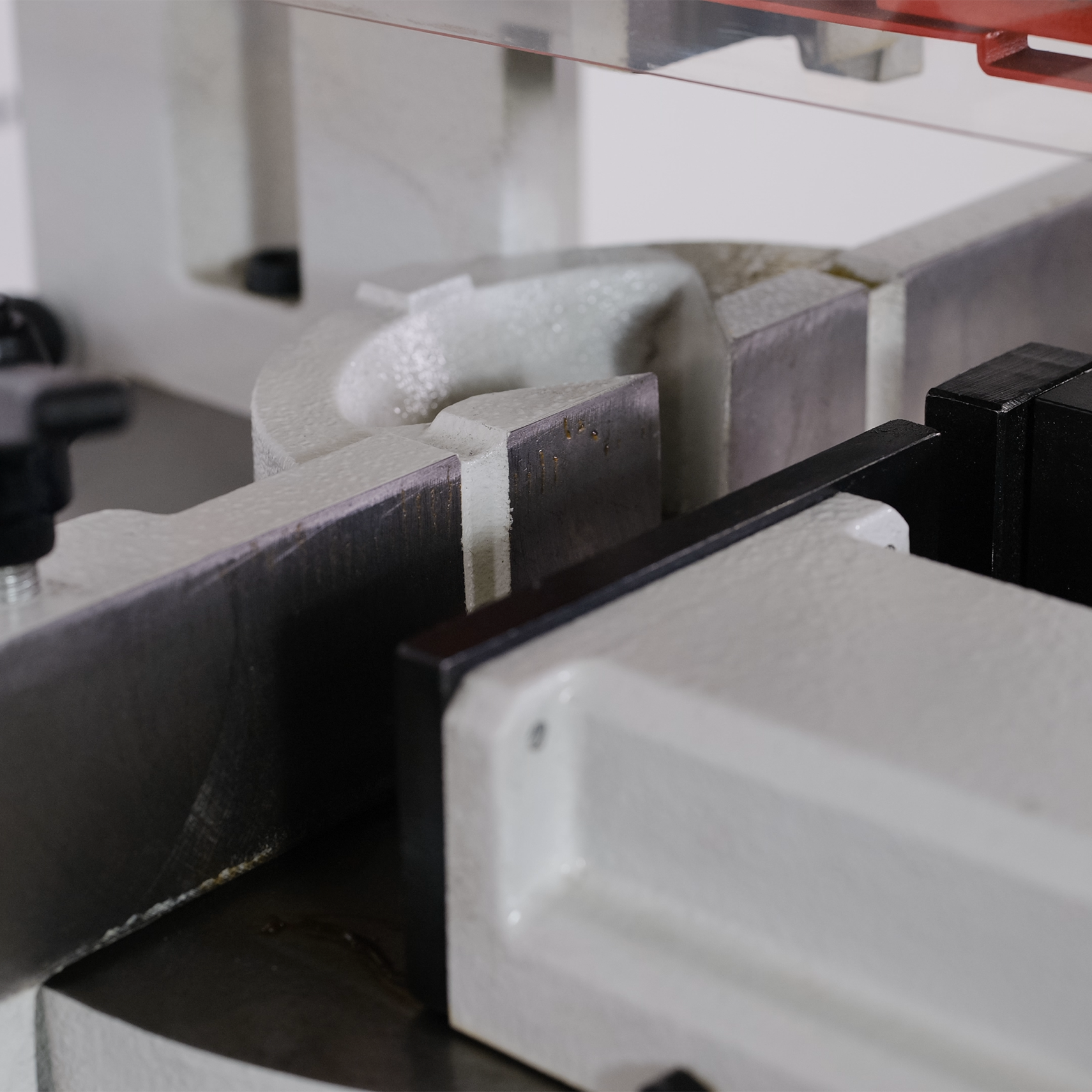

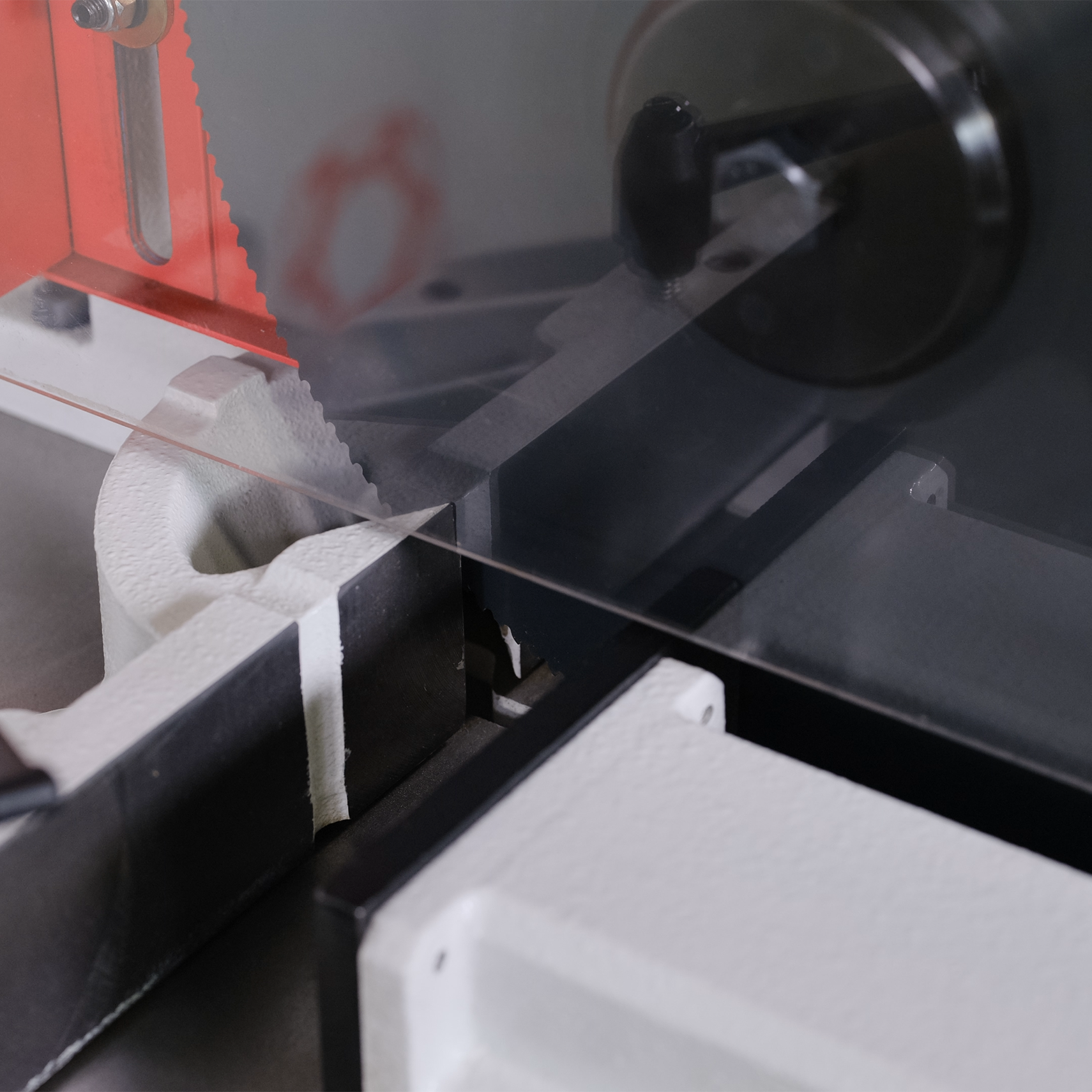

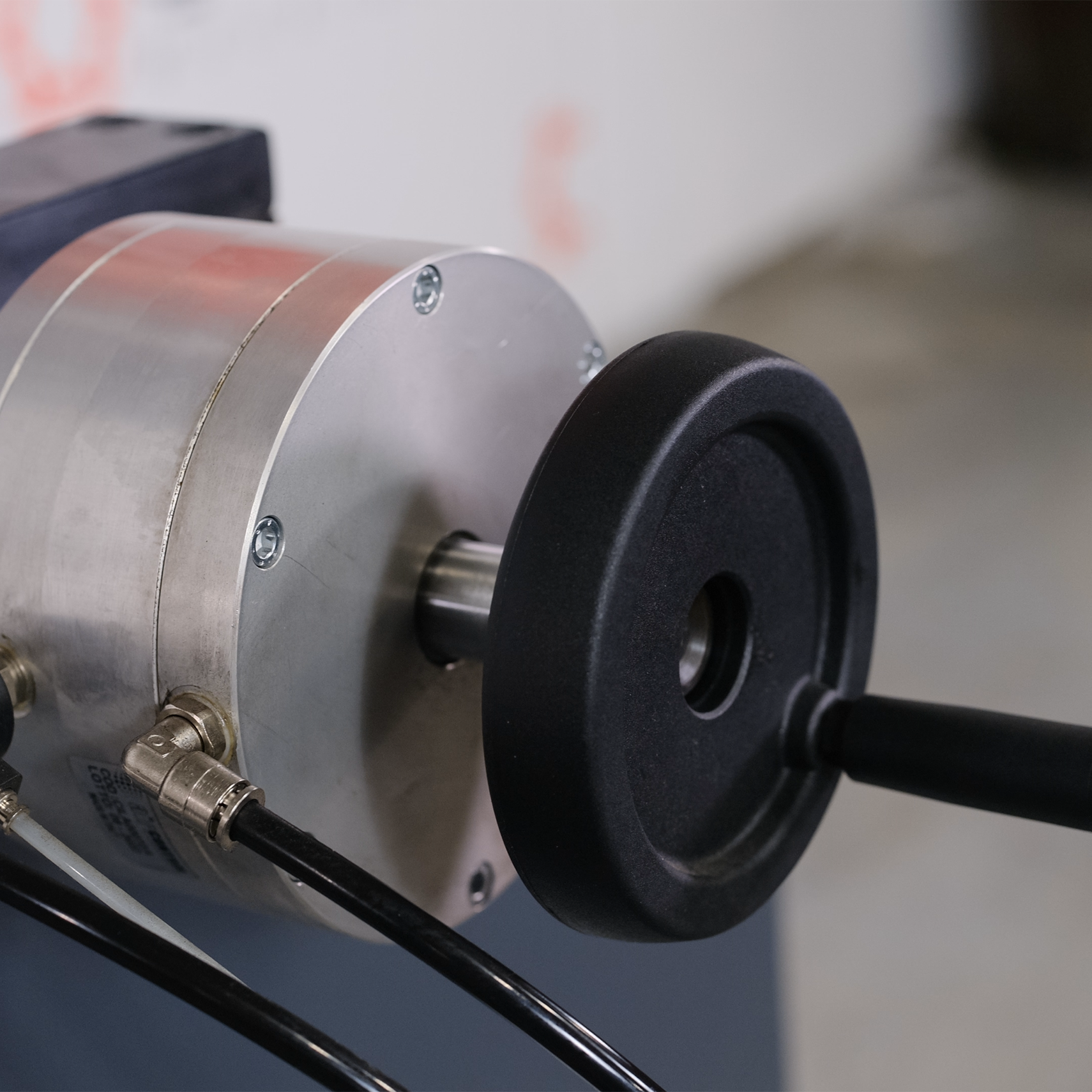

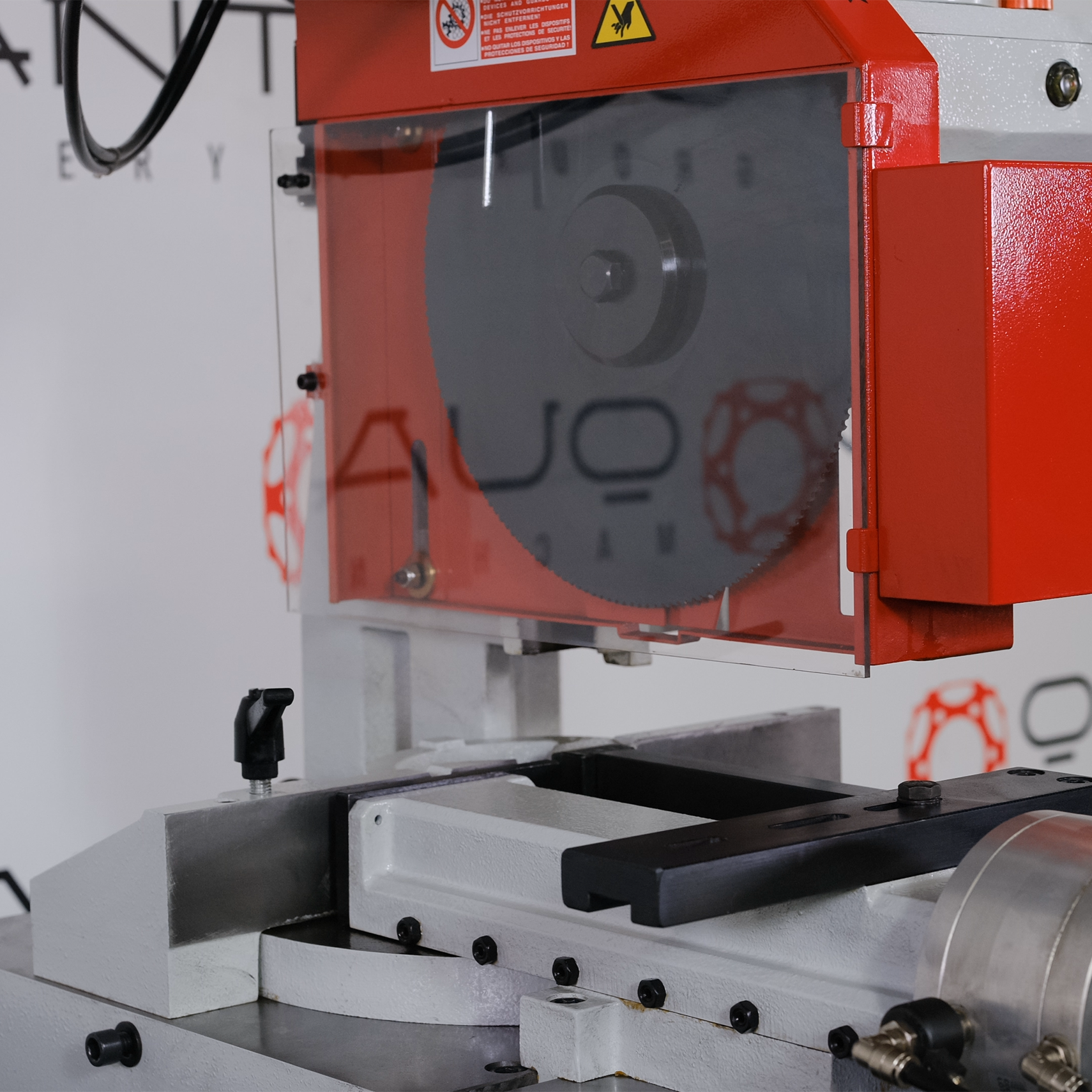

Vice complete with anti-burr device.

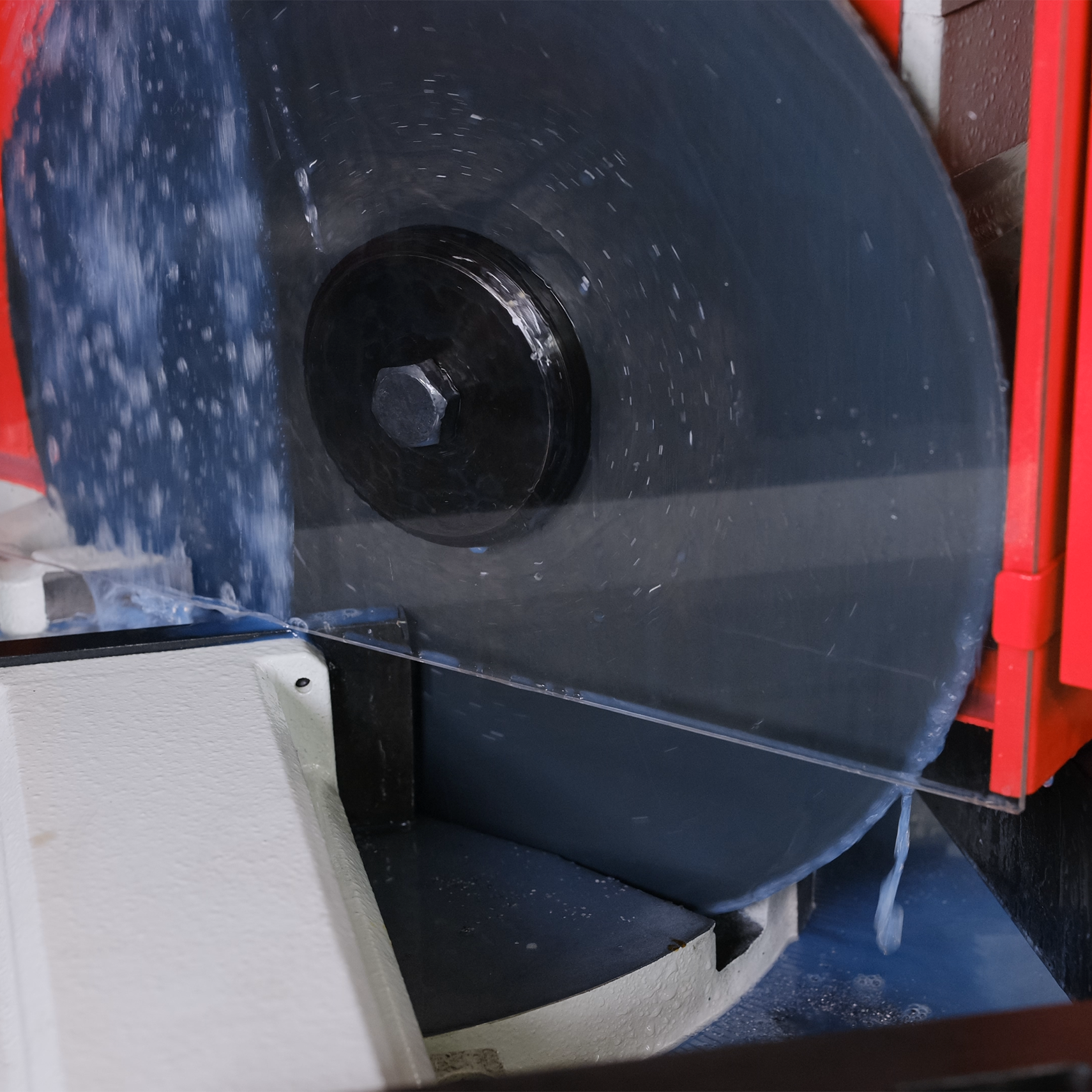

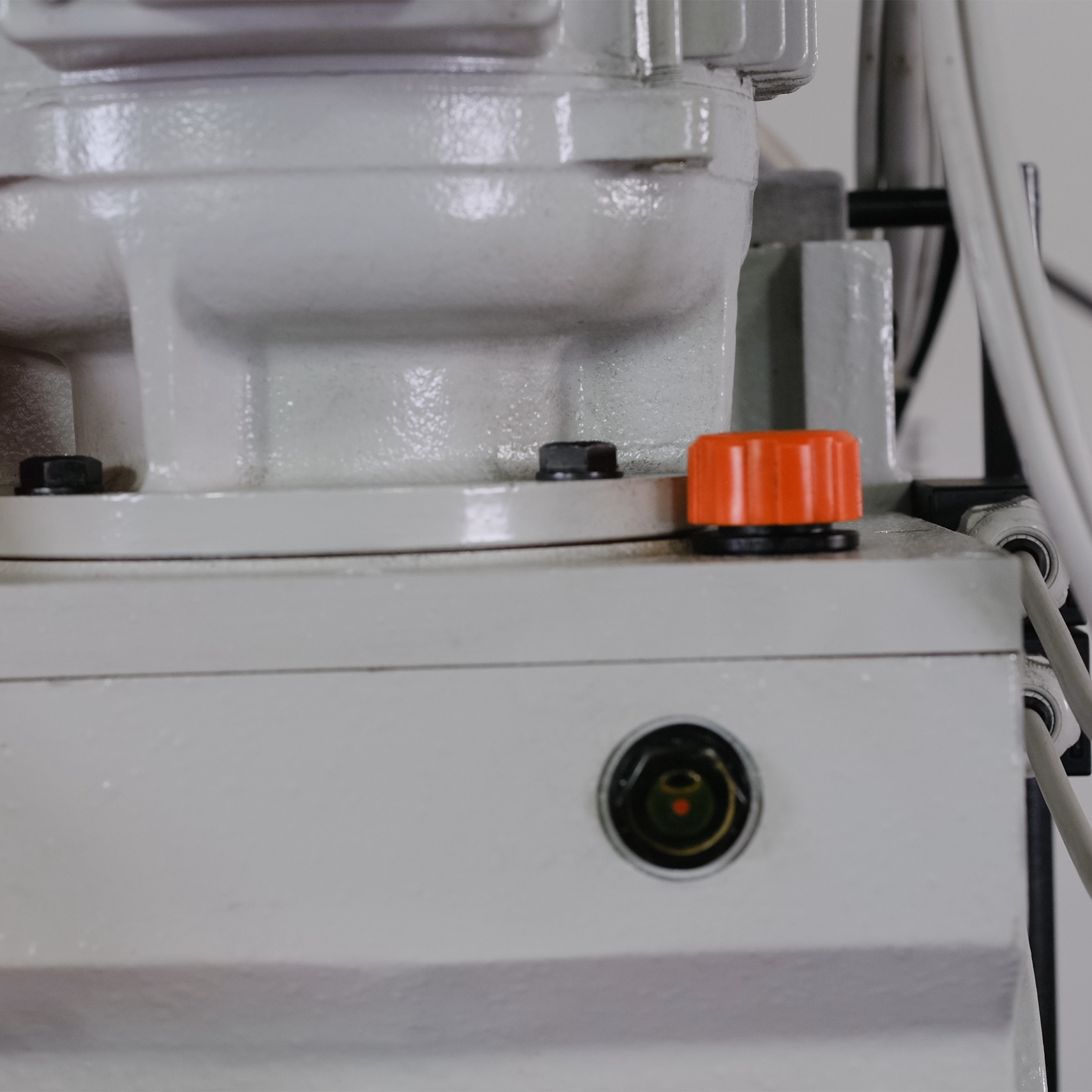

Motor pump.

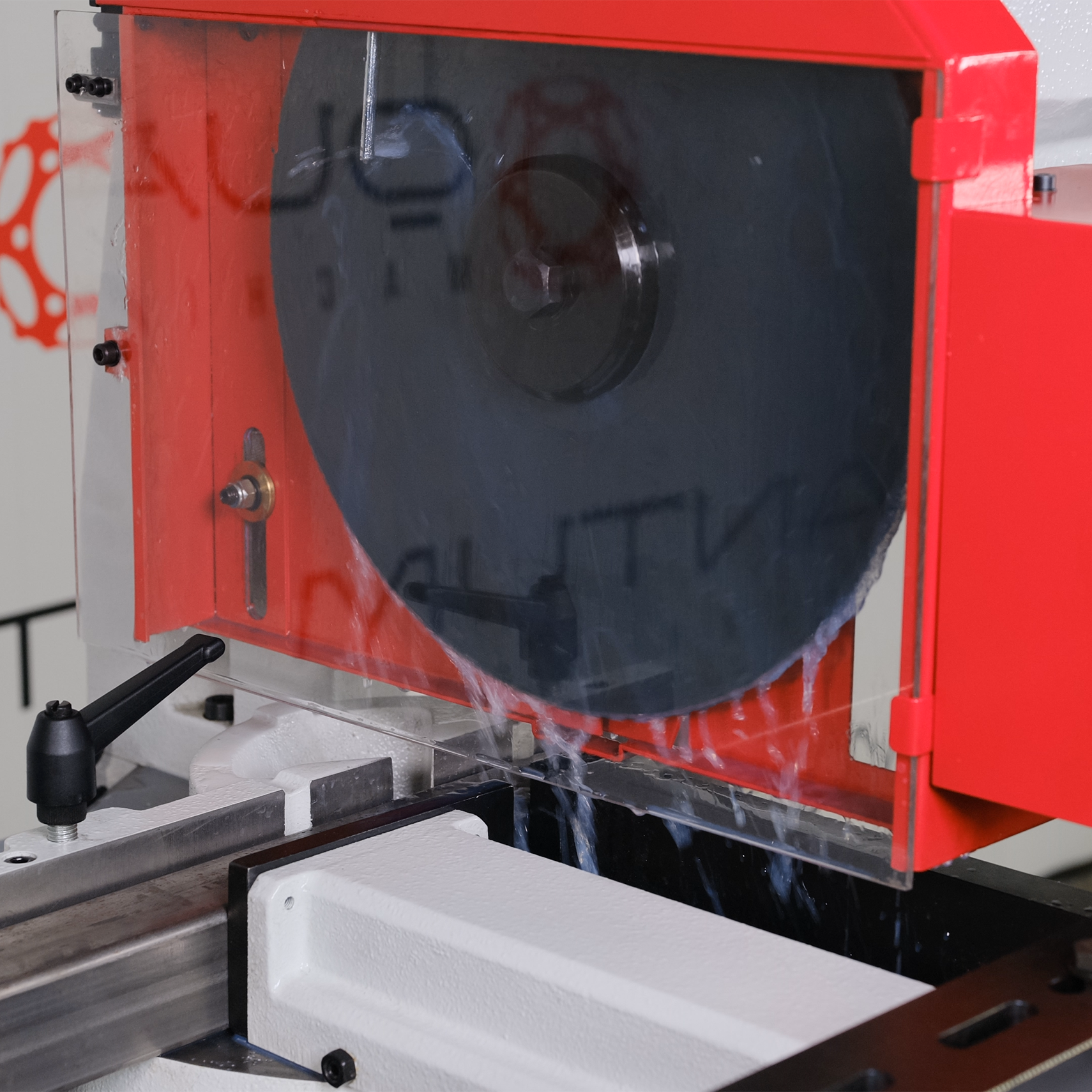

Chip breaker to keep the blade clean.

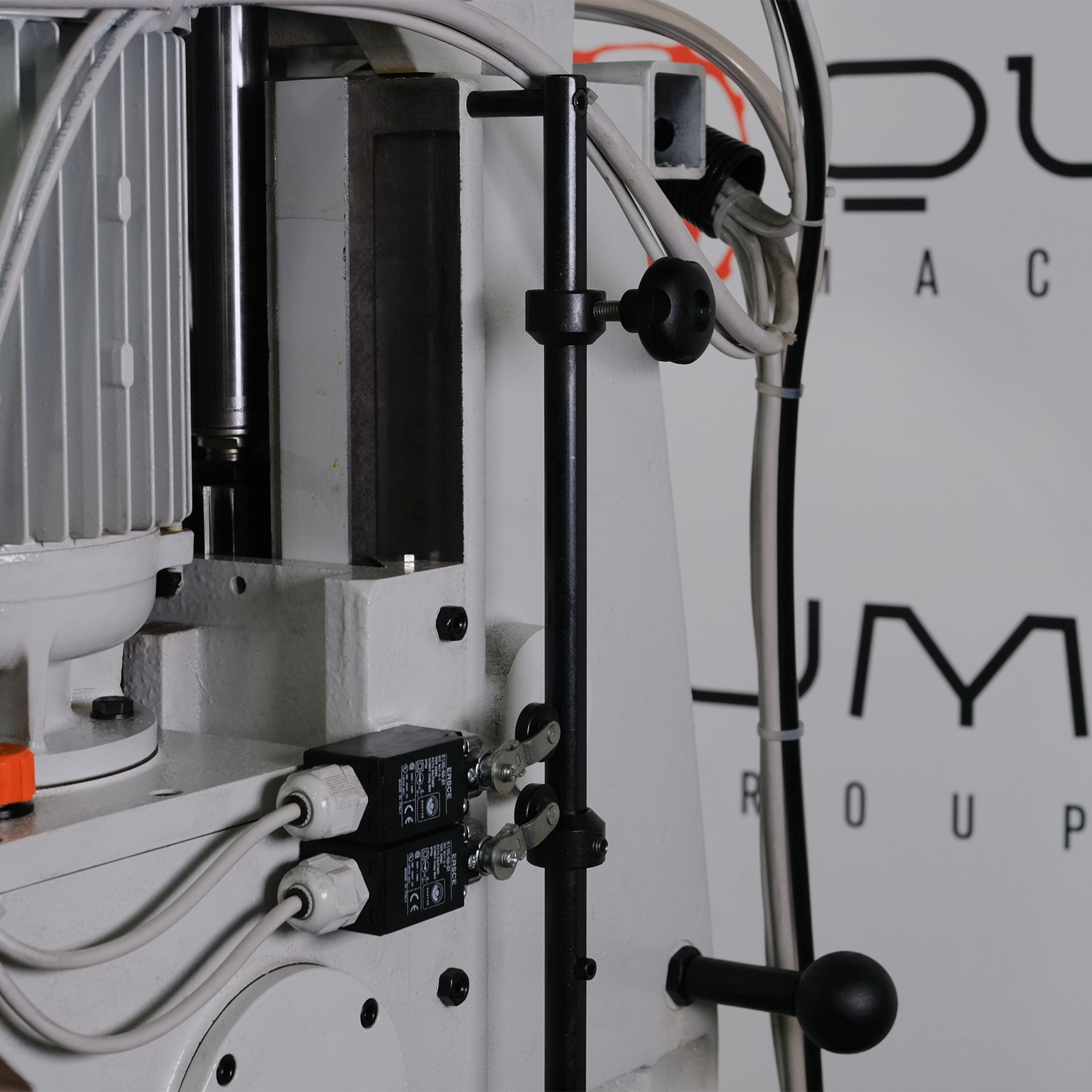

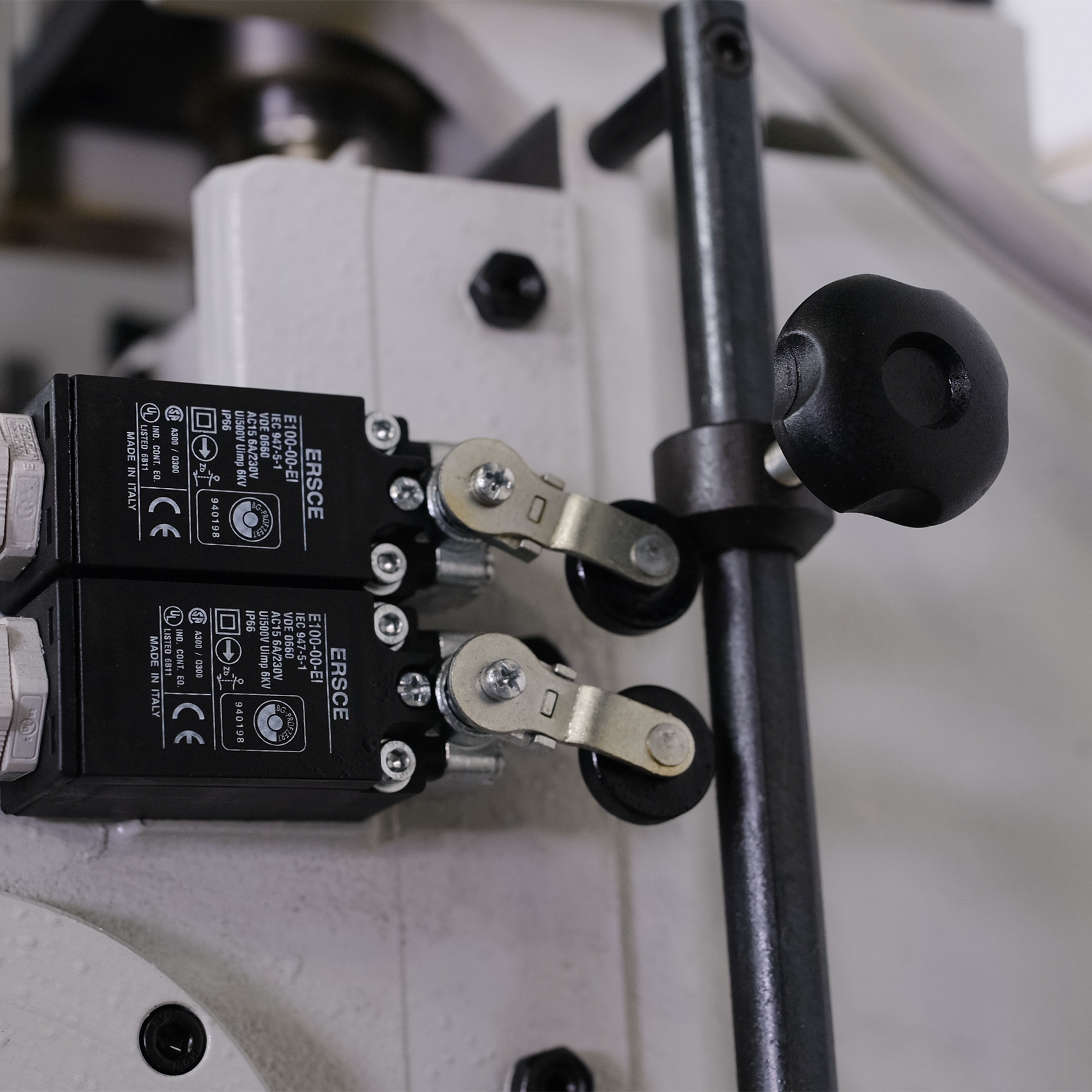

Adjustable stops for head vertical stroke.
Service tools.
Instruction manual and exploded view of spare parts.

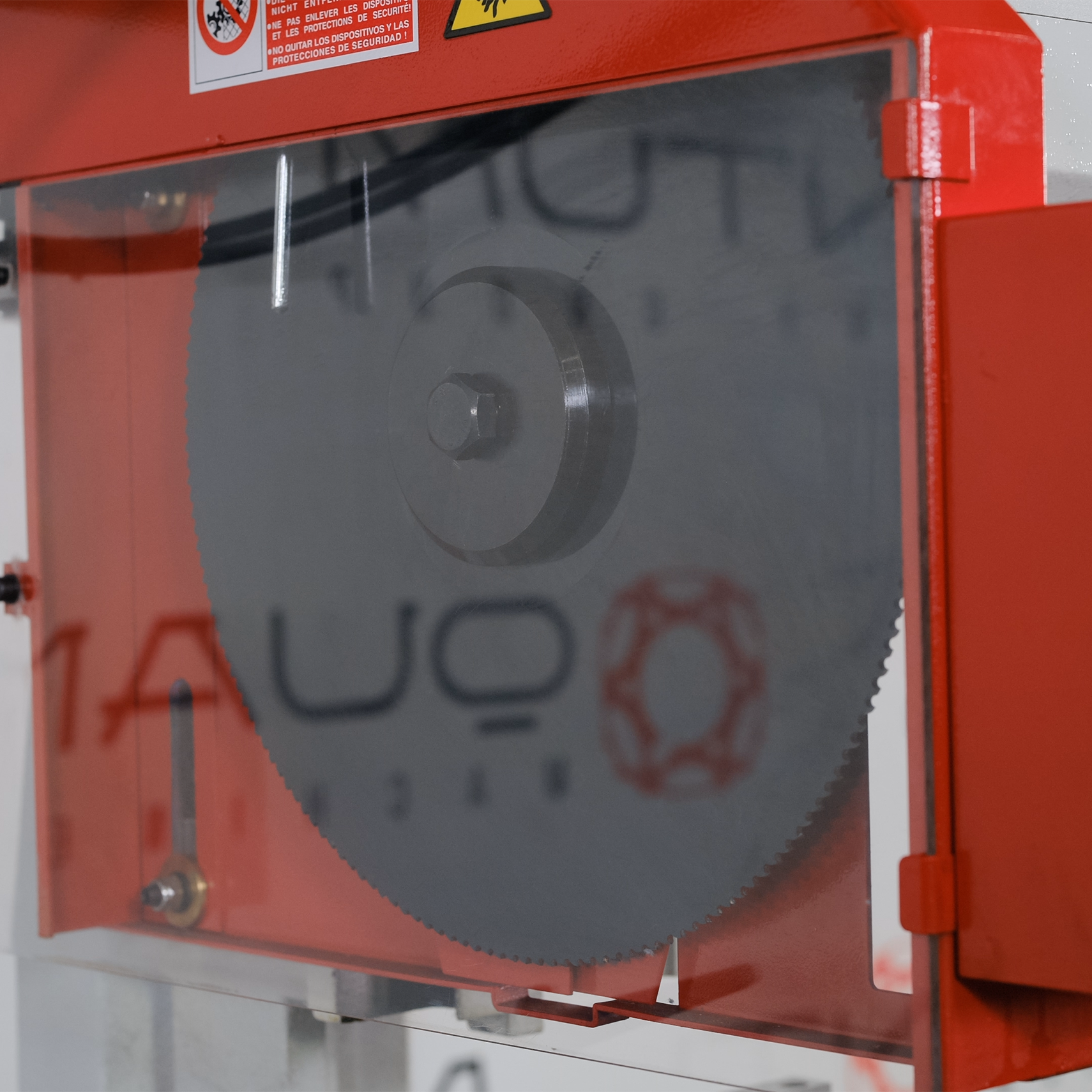

Blade Size: 370 x 2.5 x 32mm Bore HSS Blade
Maximum Vice Opening: 7” (180mm)
Machine Weight: 1,059 lbs. (480 kg.)

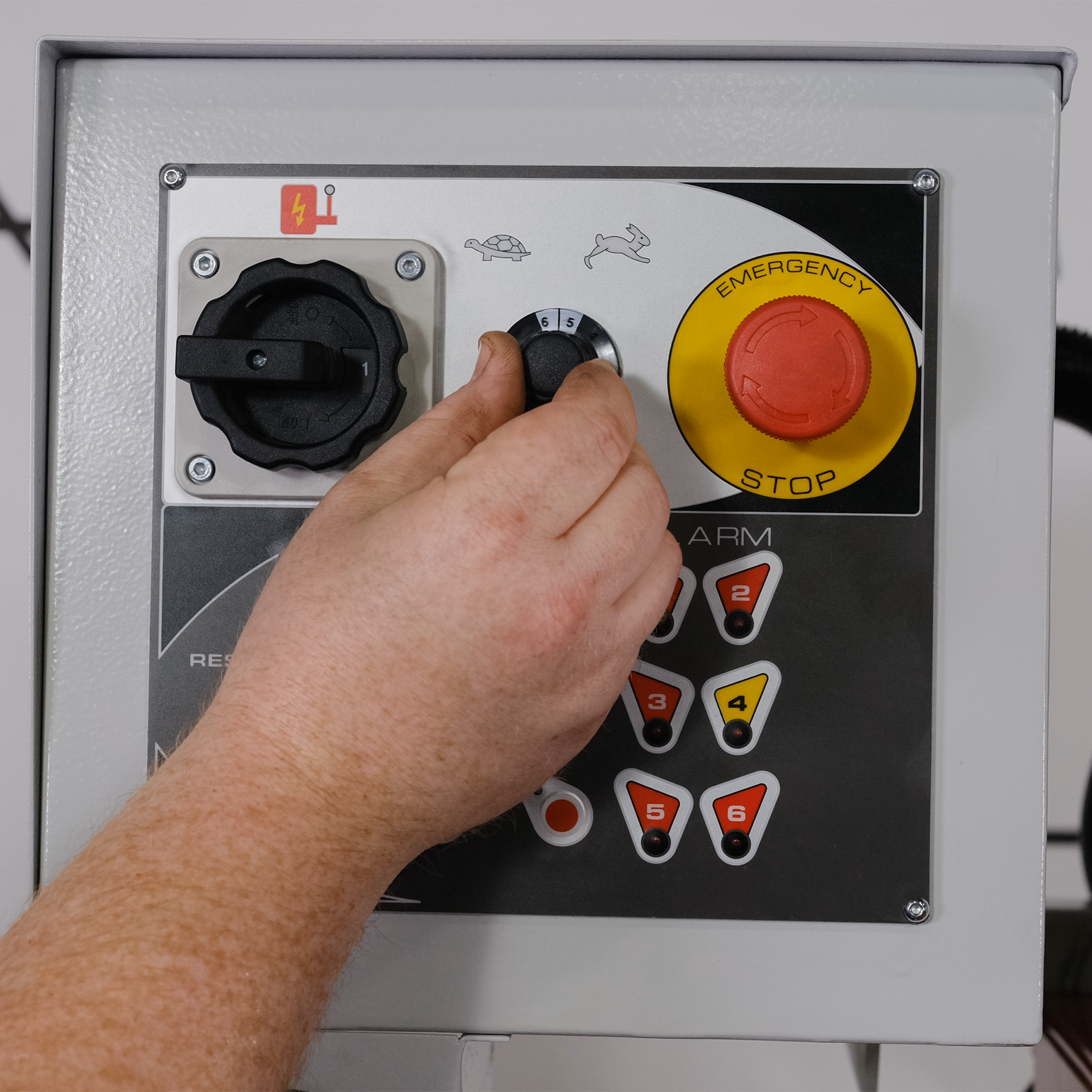

Variable Speed Inverter: 36-72 R.P.M.
Overall Dimensions: 6'-6” H x 8'-9” W x 4' L or 79” H x 104” W x 48” L or 2,000 mm x 2,640 mm x 1,200 mm
Additionally, this Saw Includes: Instruction Manual, Service Tools & 1 HSS 370mm Cold Saw Blade

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
