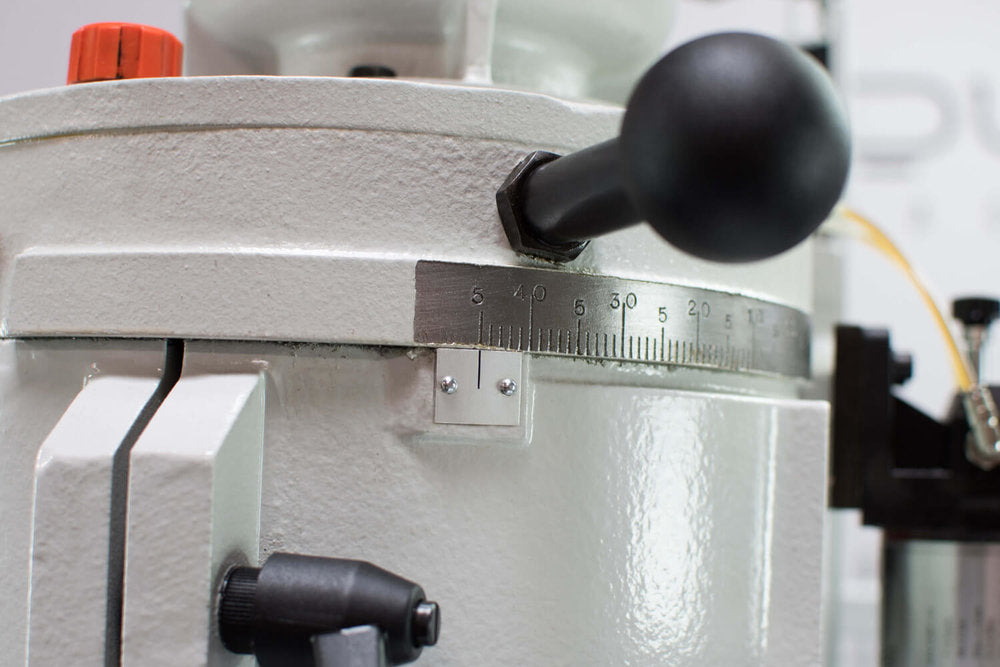

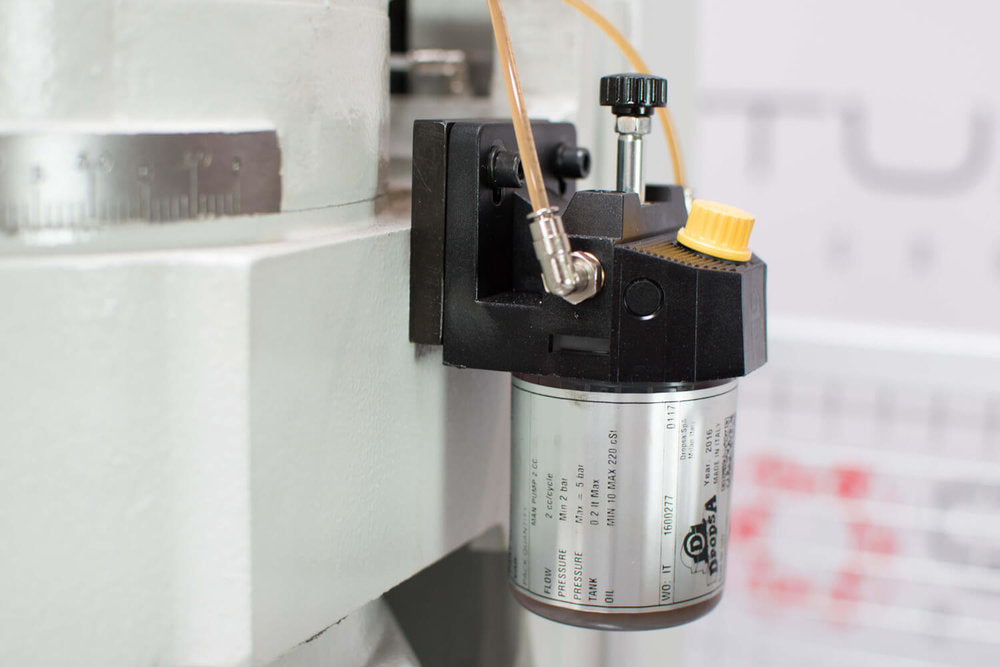

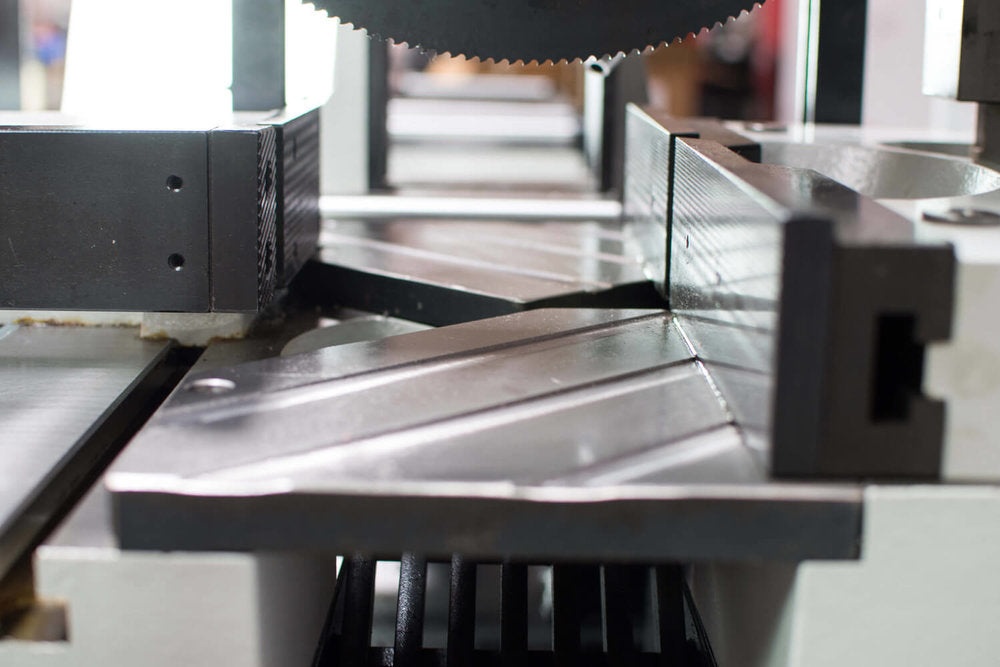

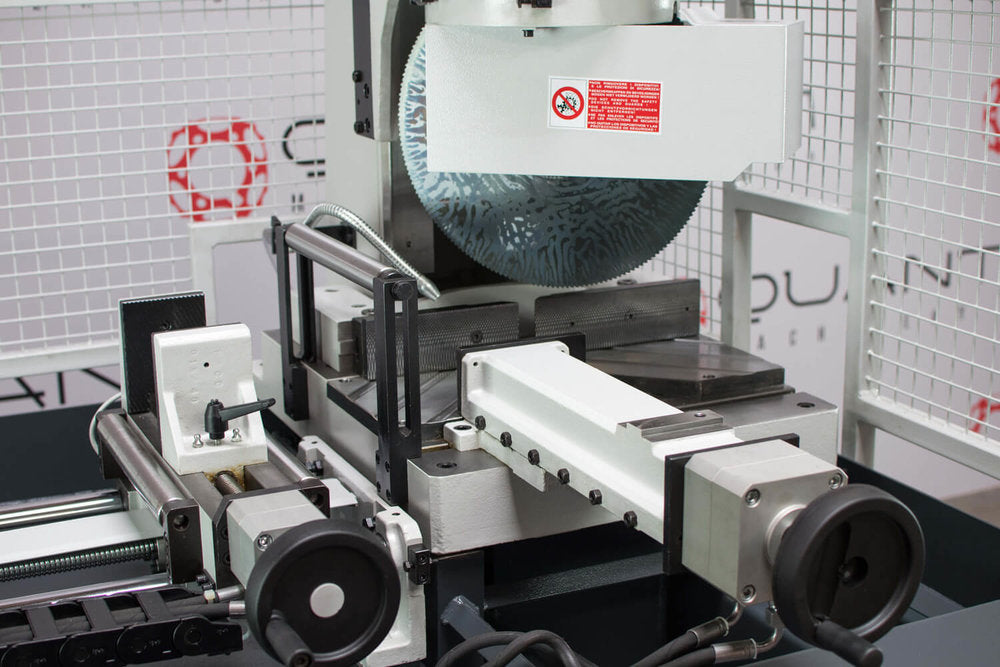

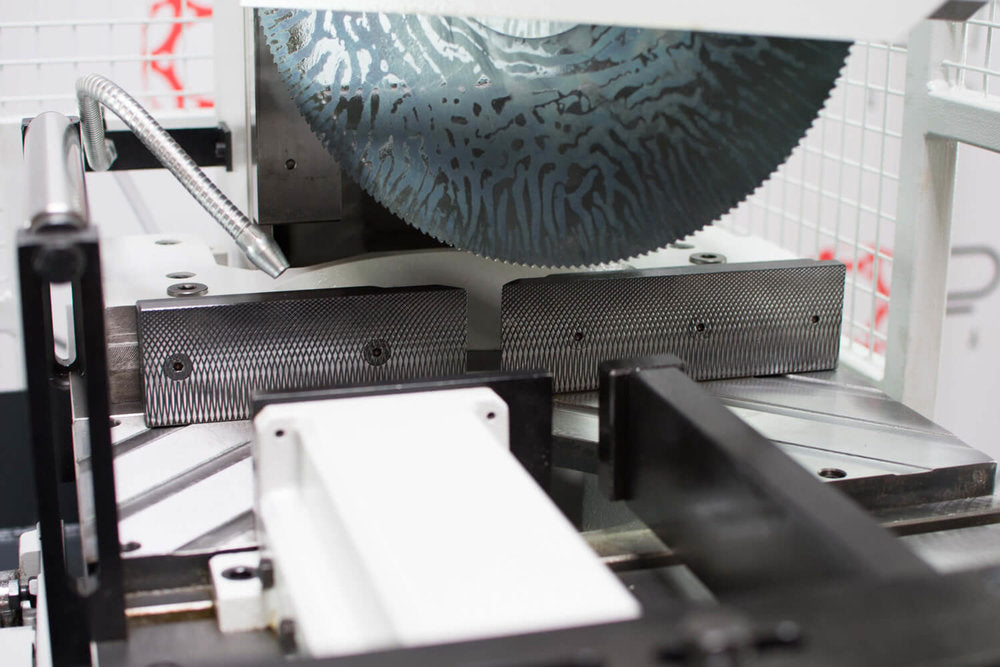

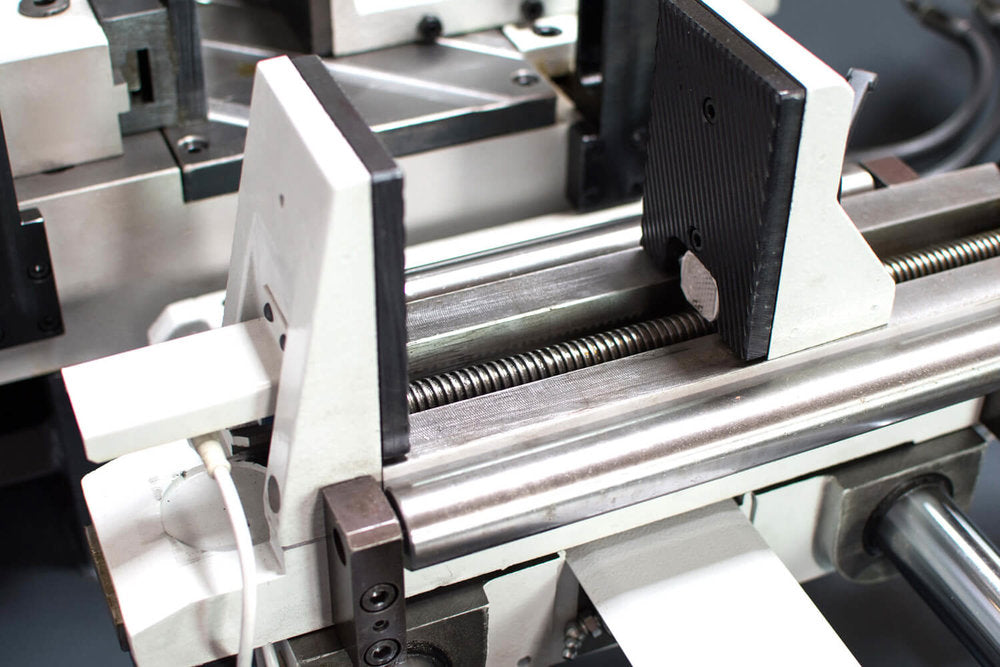

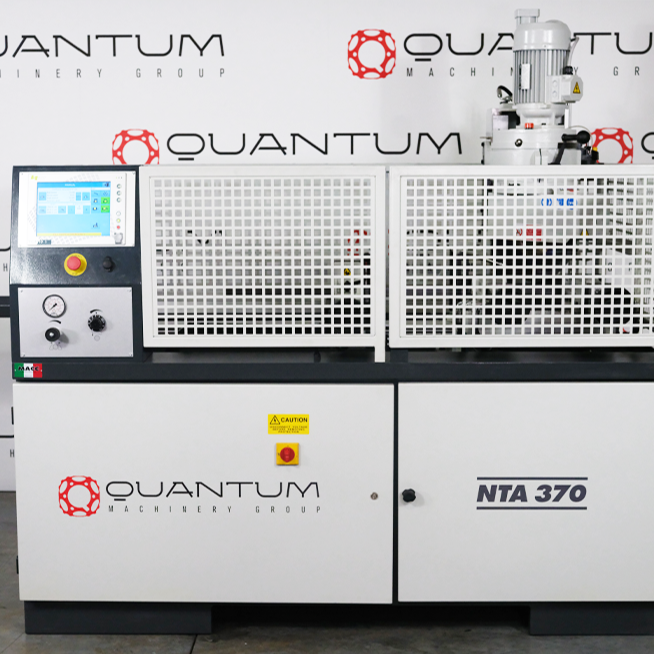

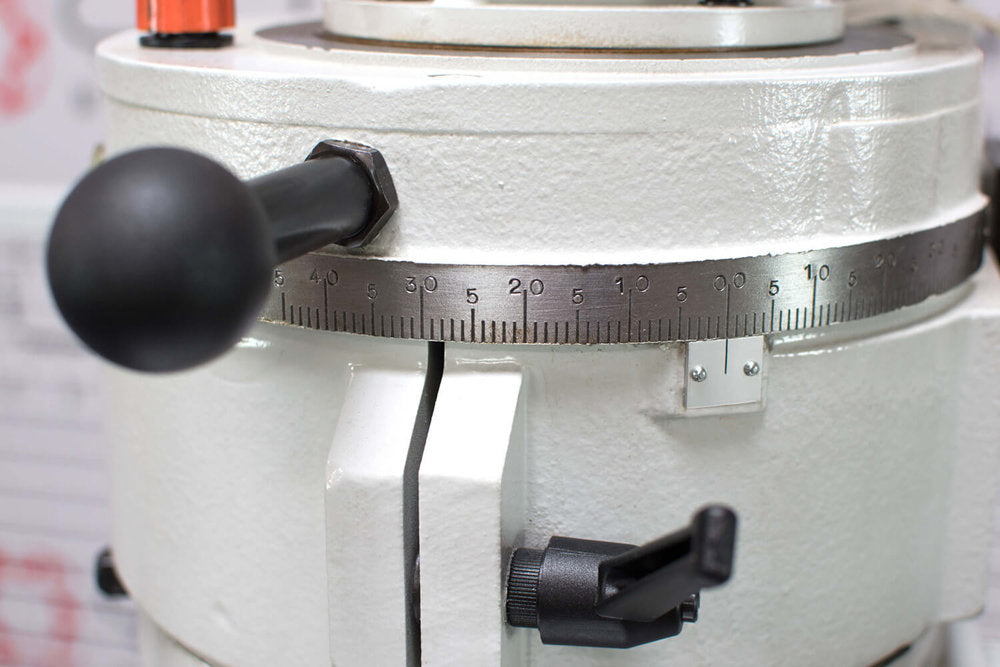

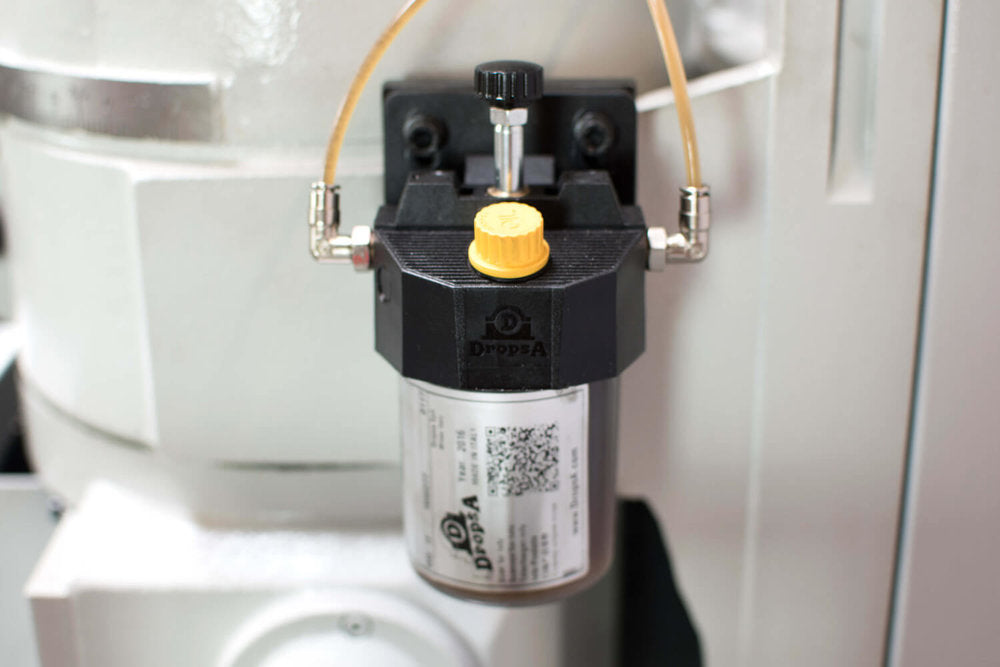

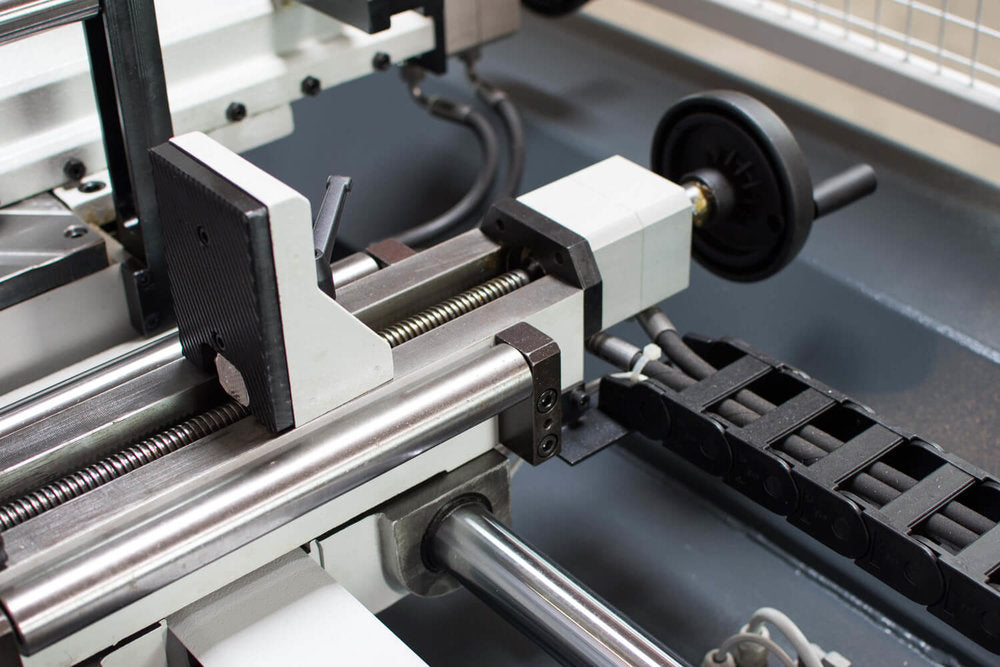

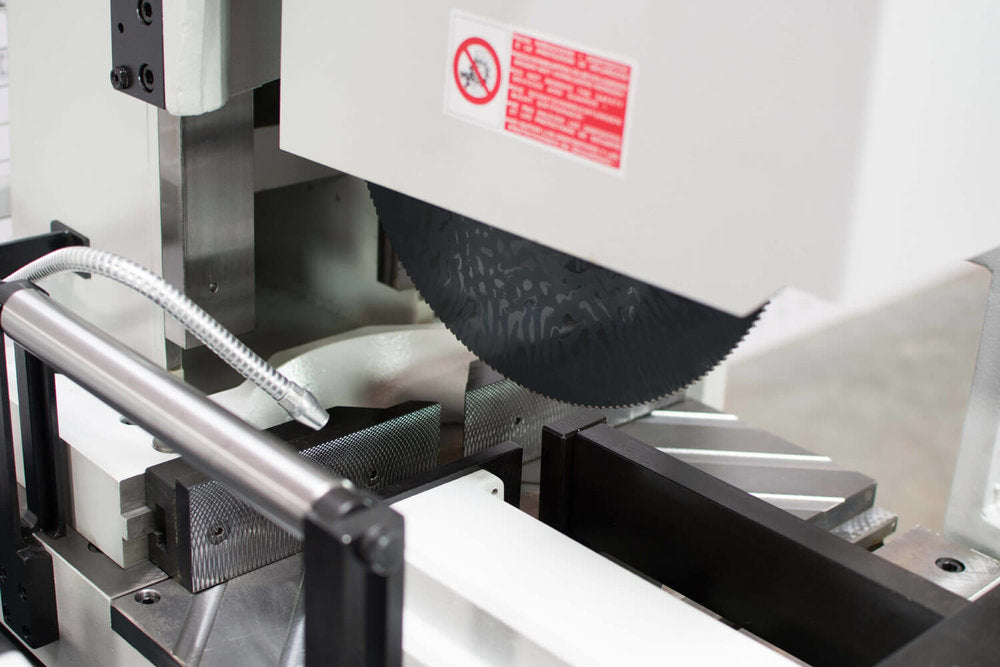

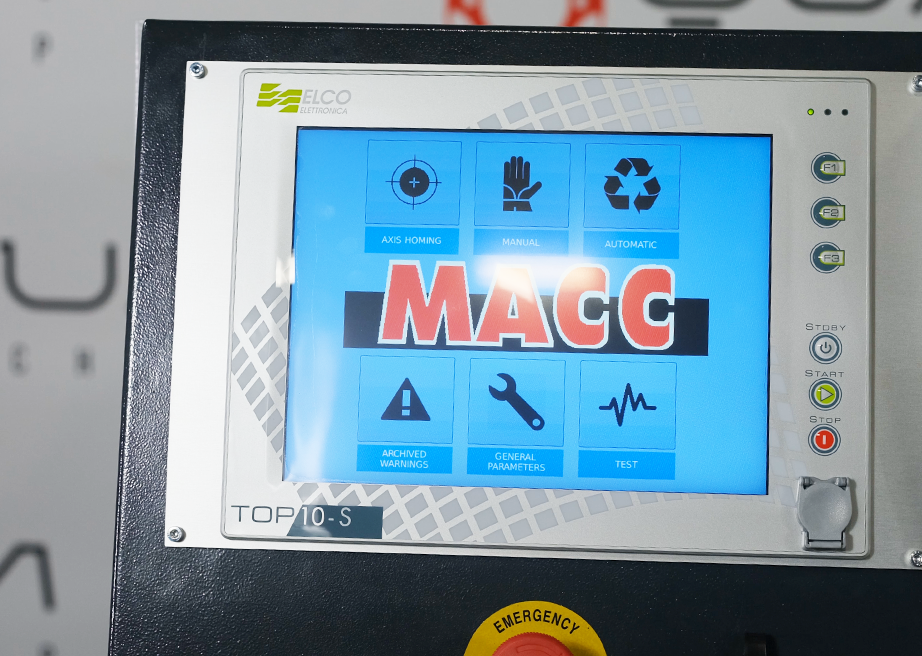

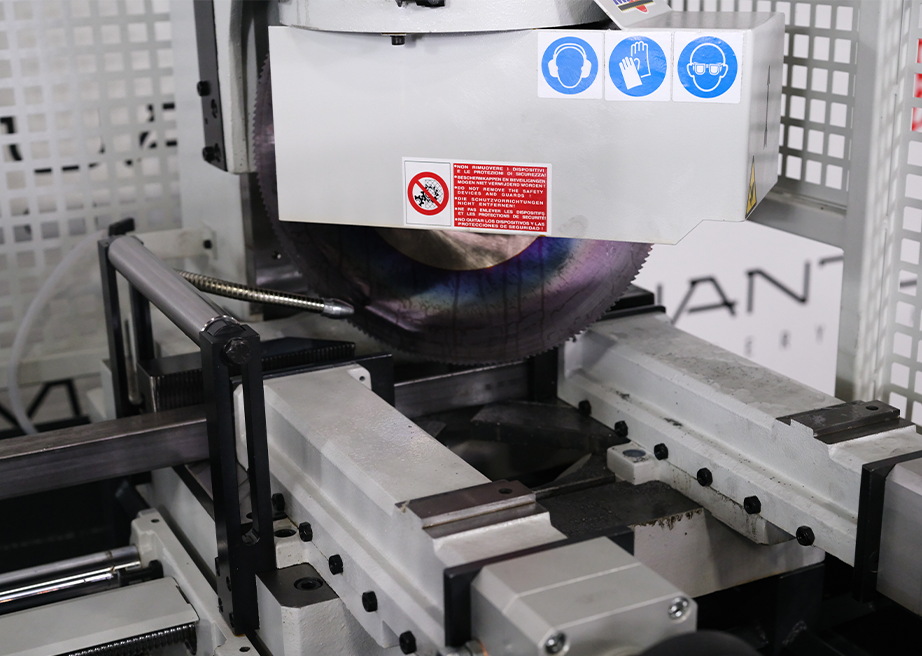

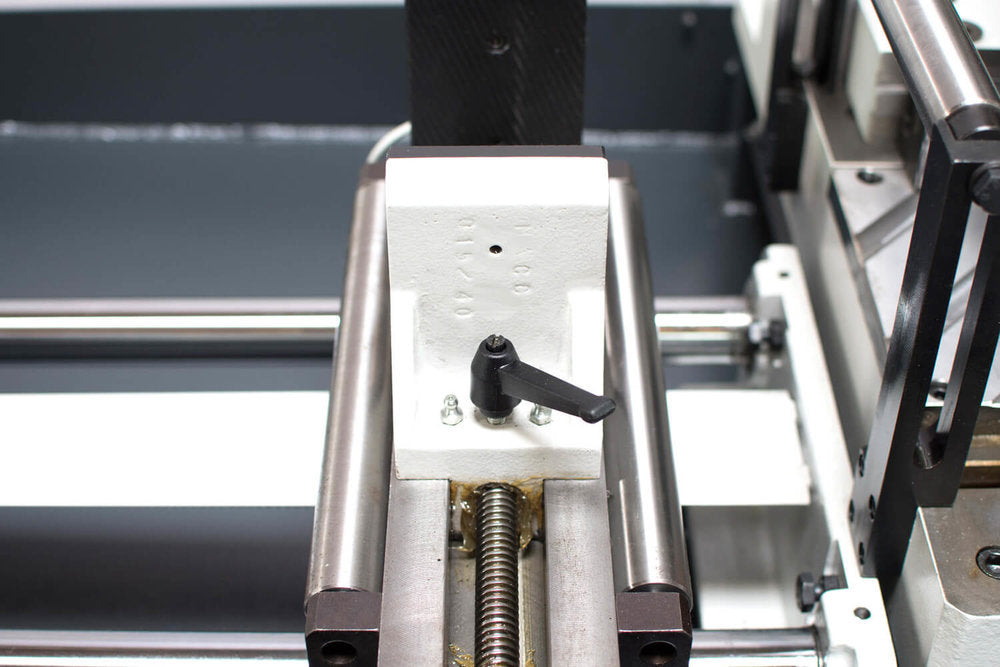

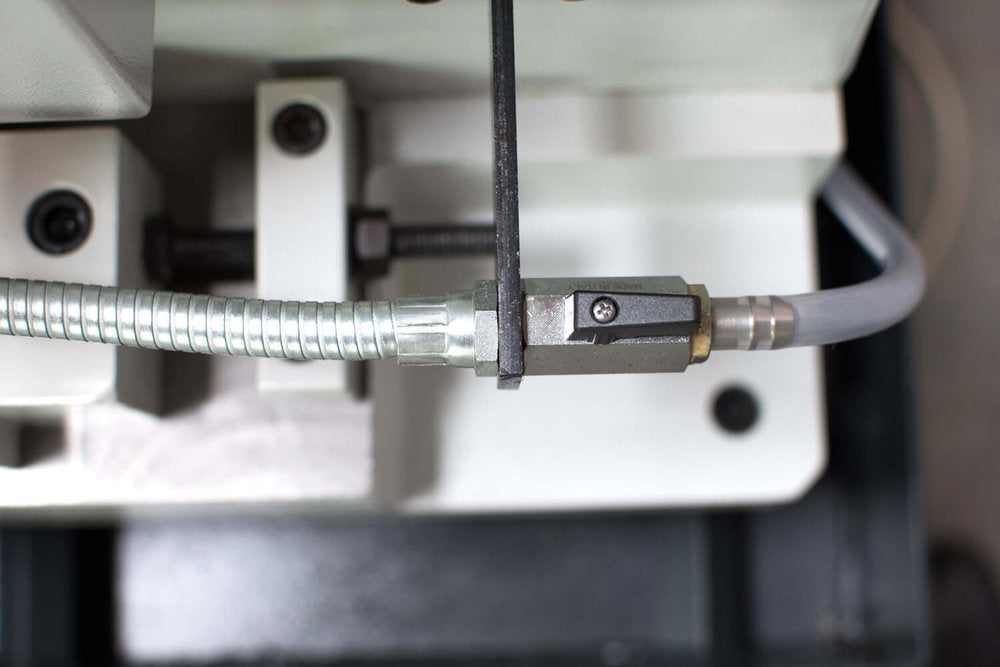

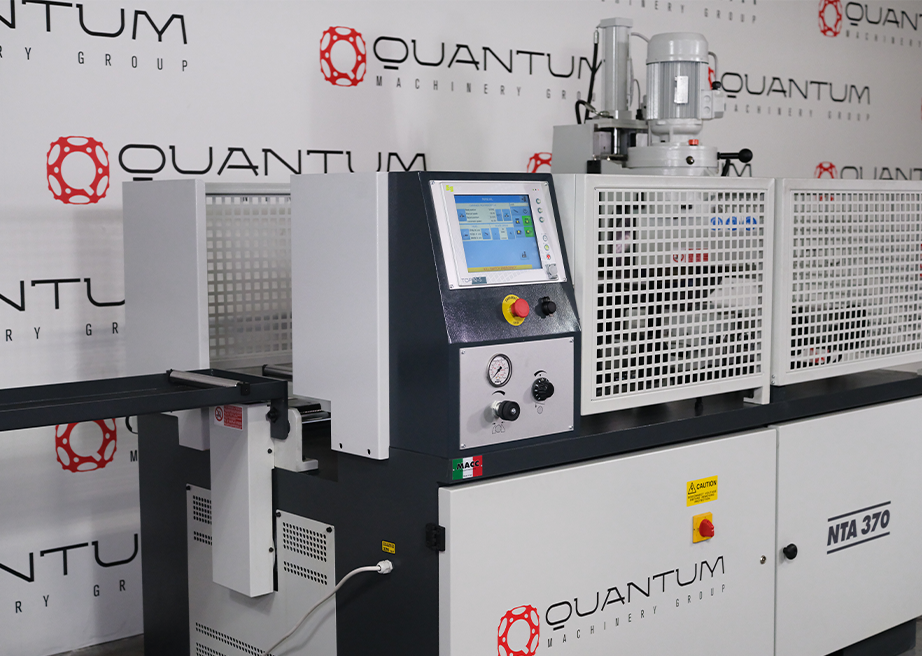

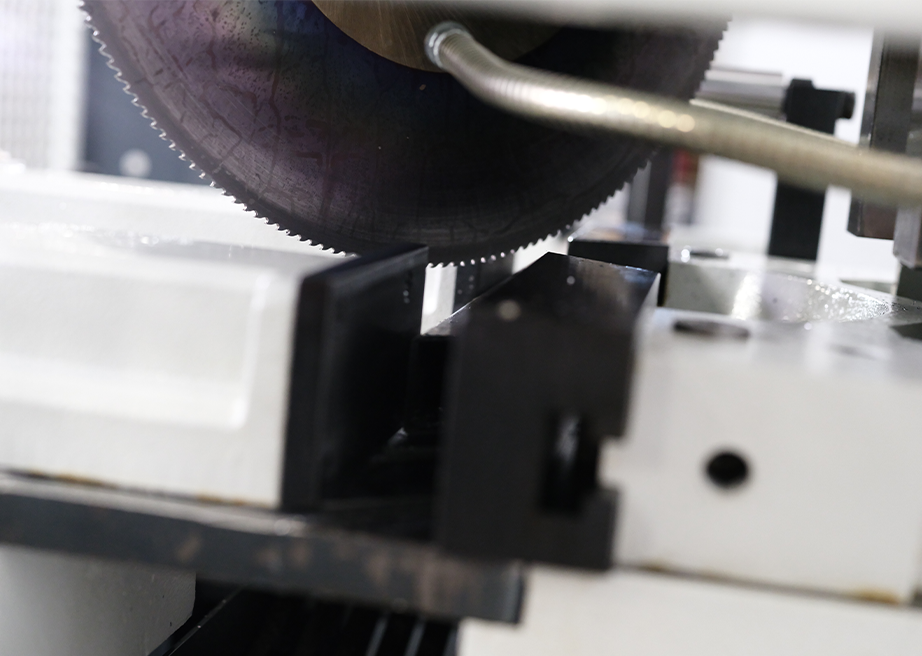

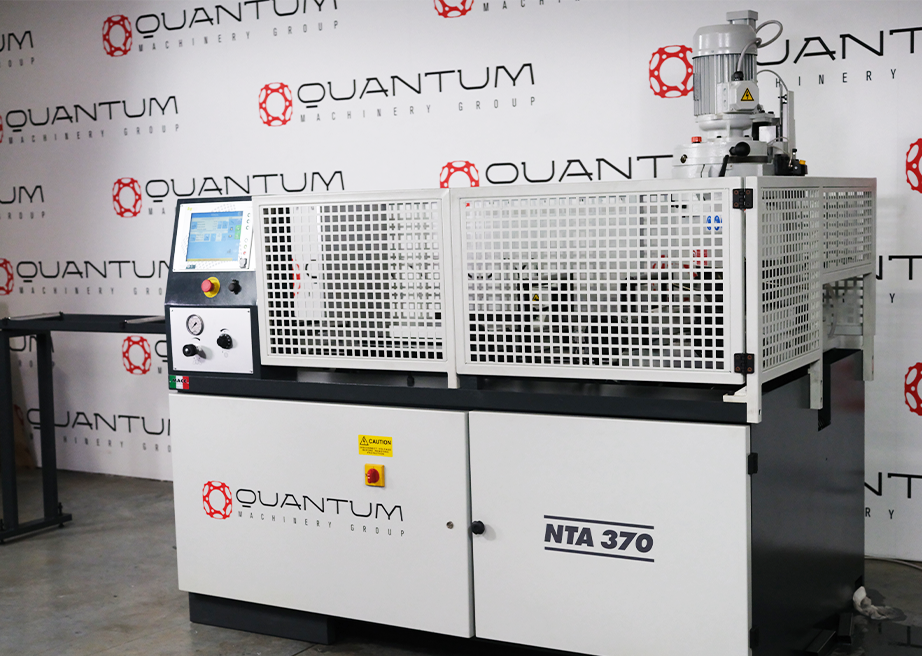

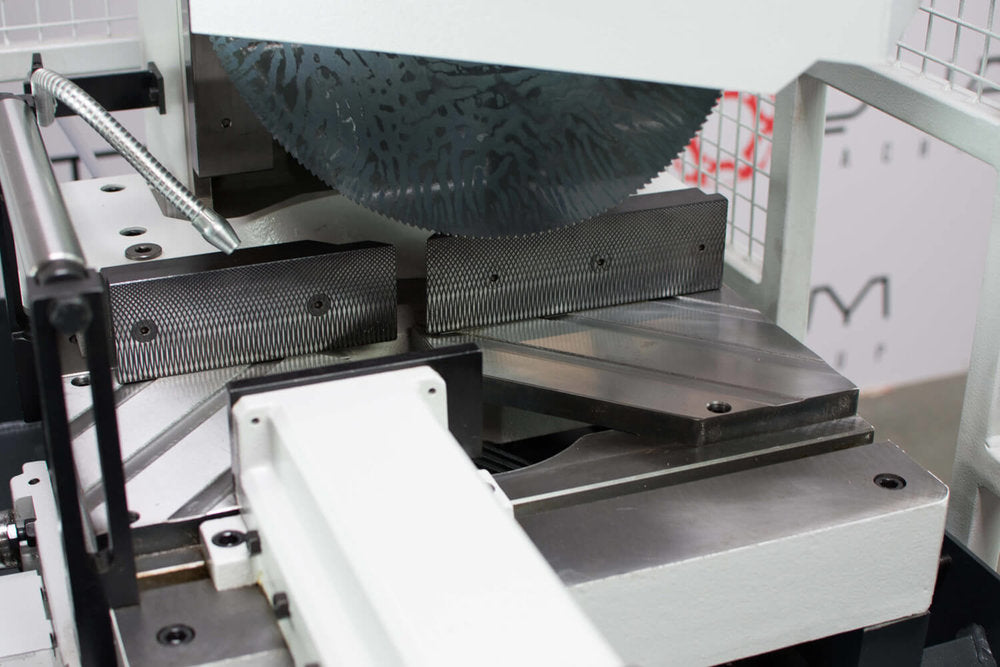

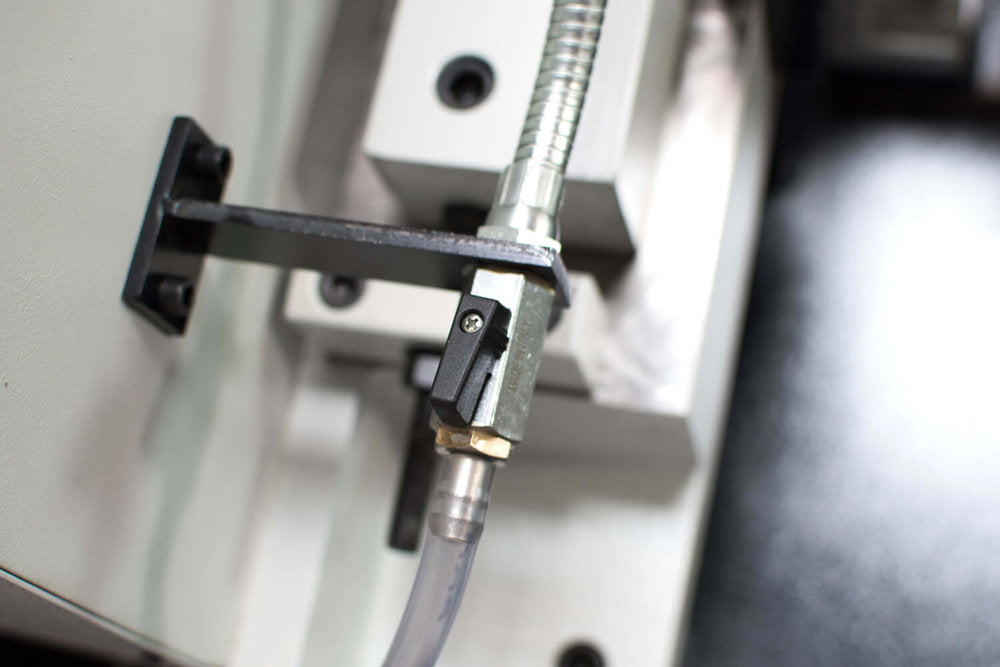

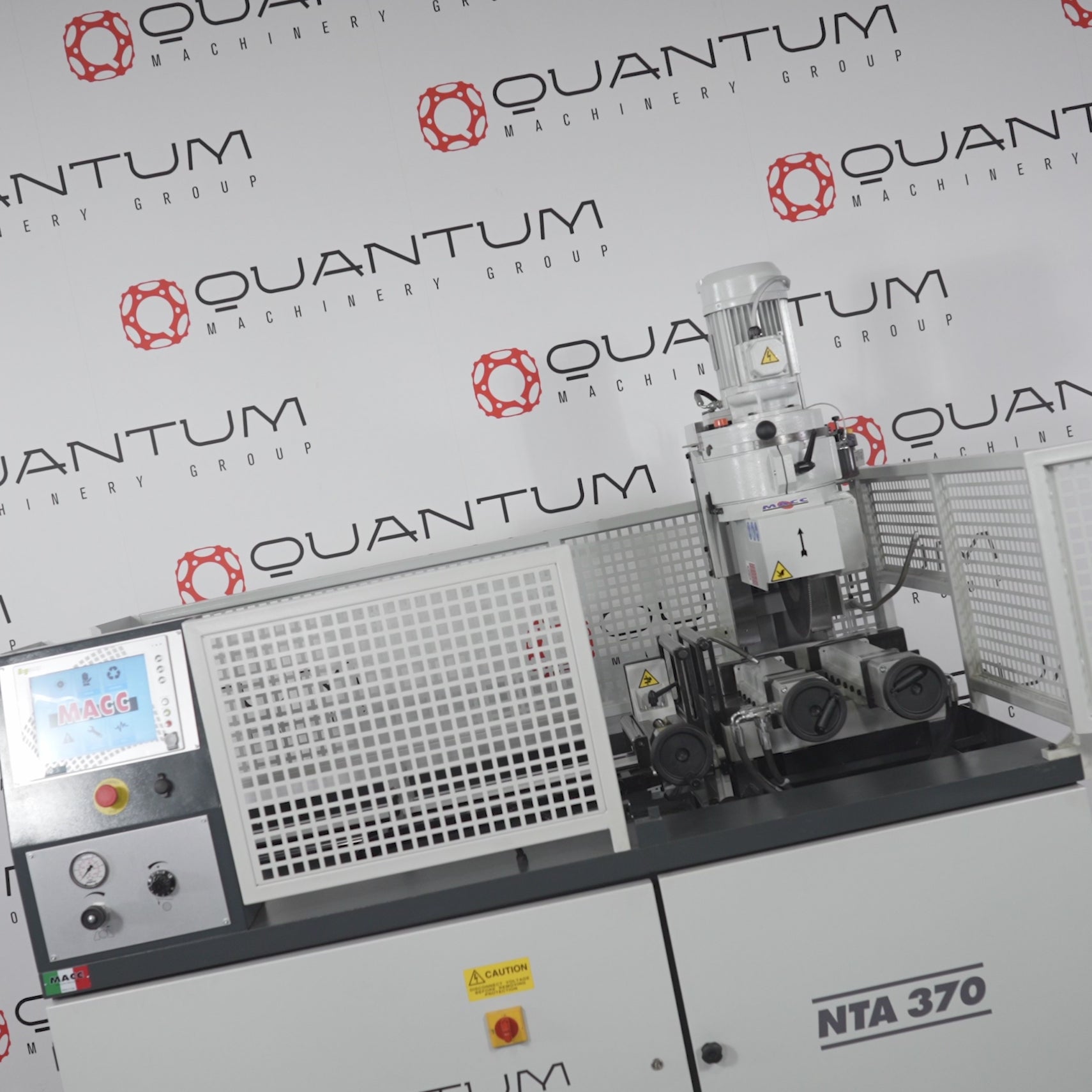

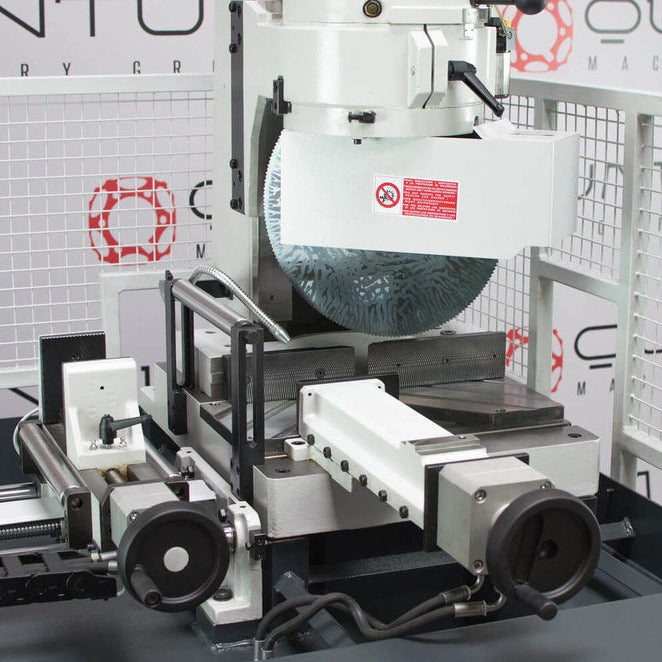

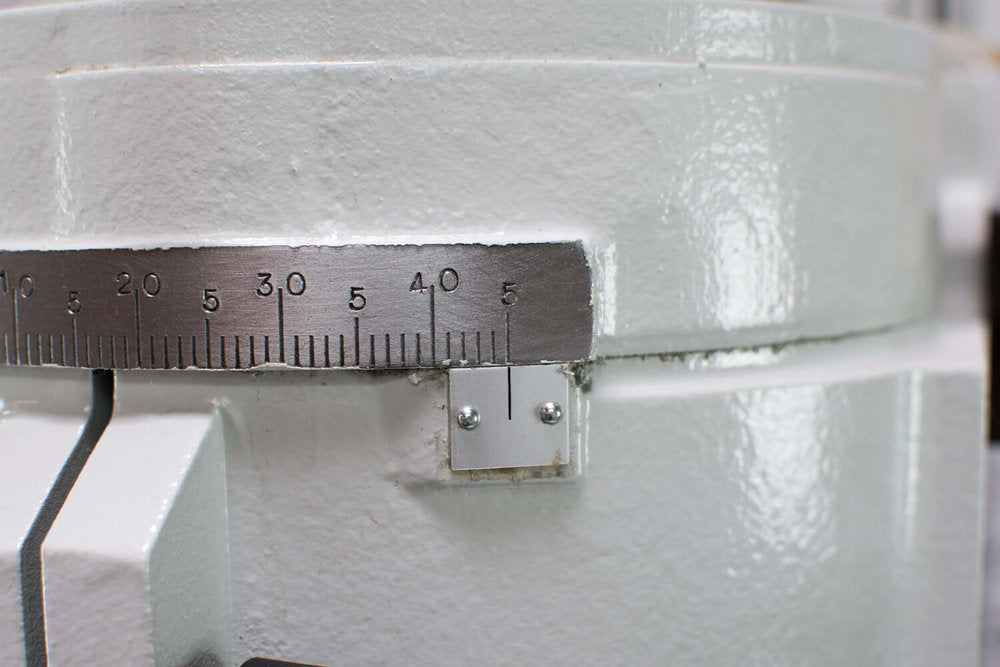

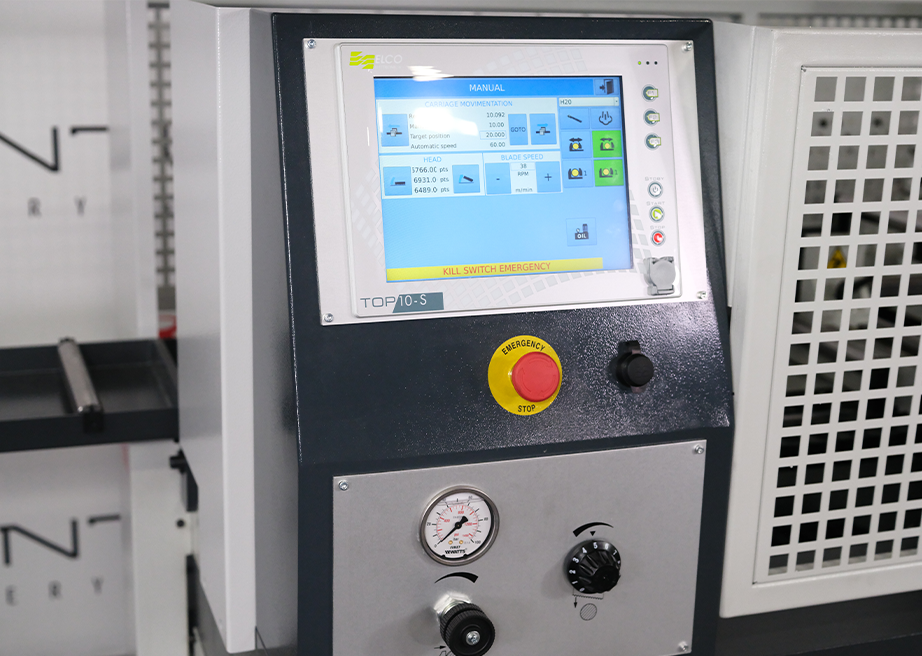

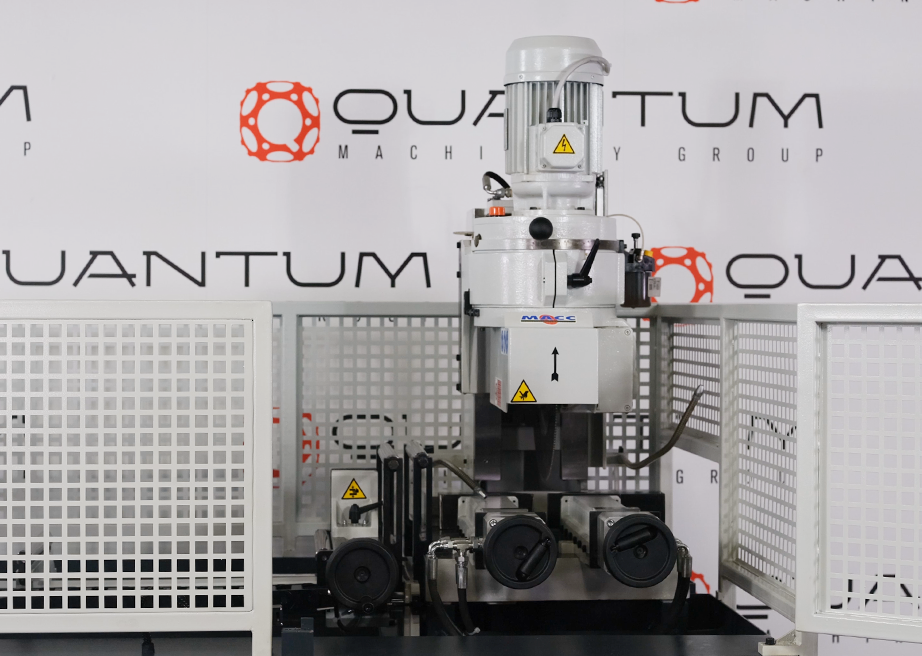

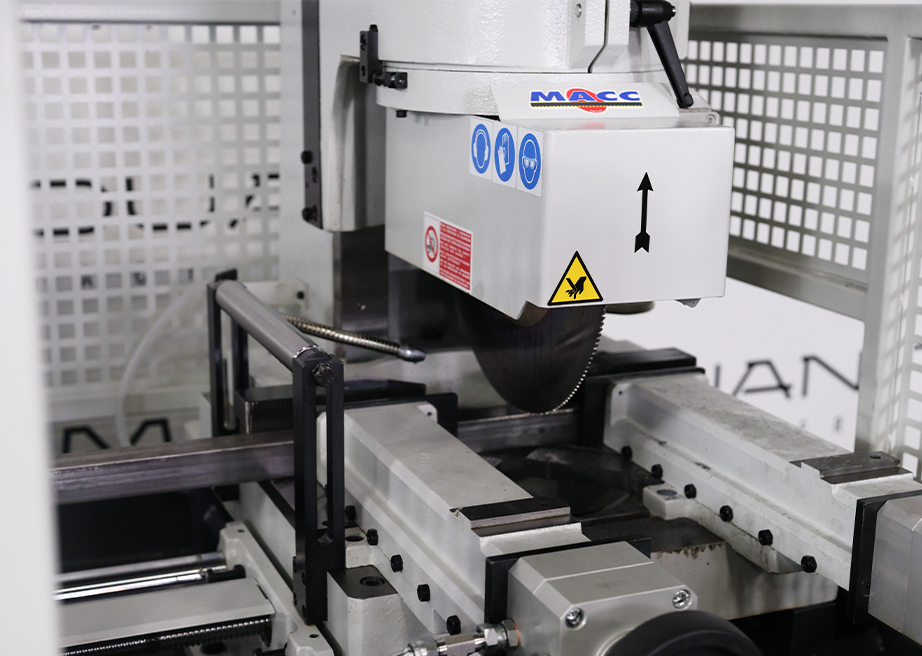

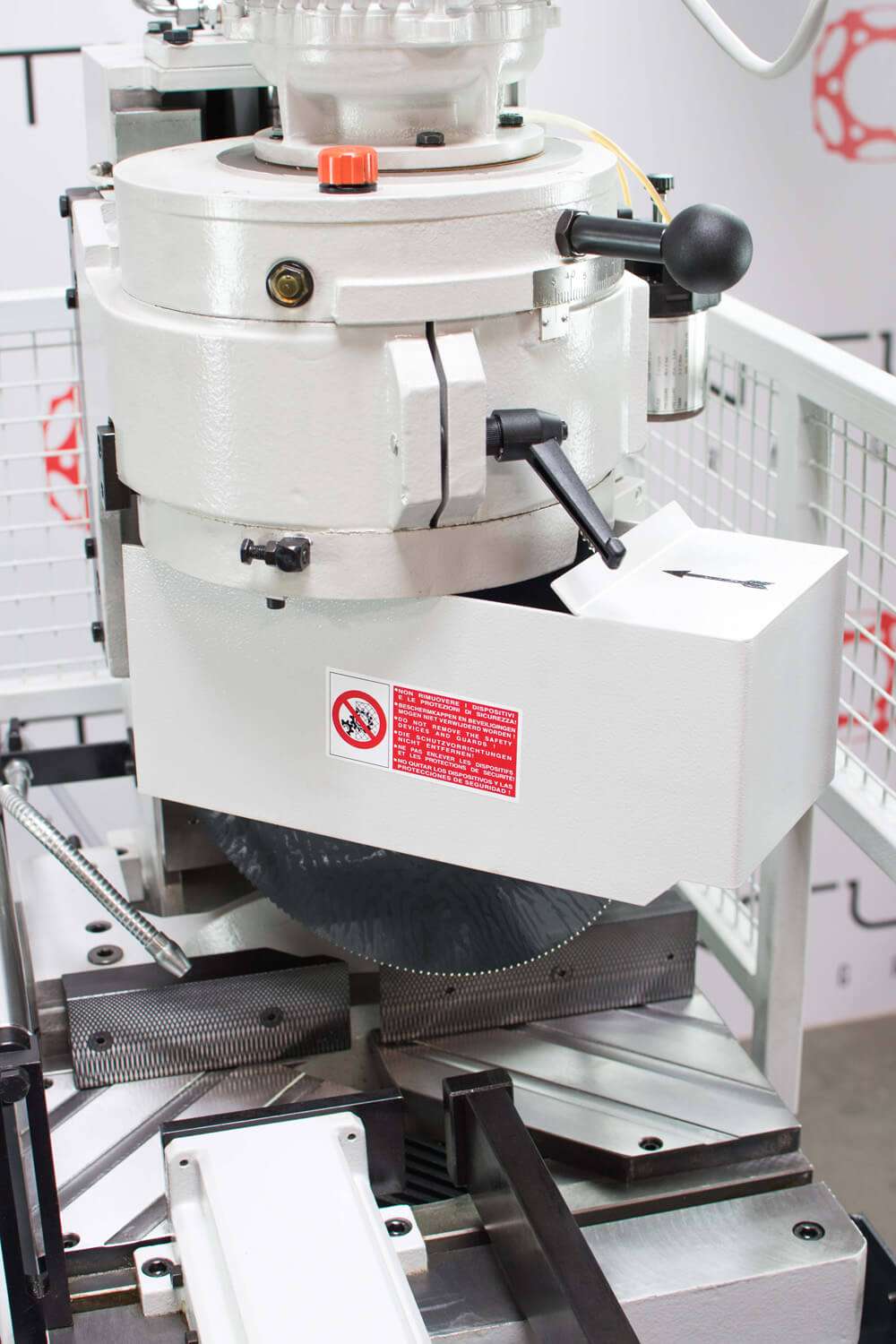

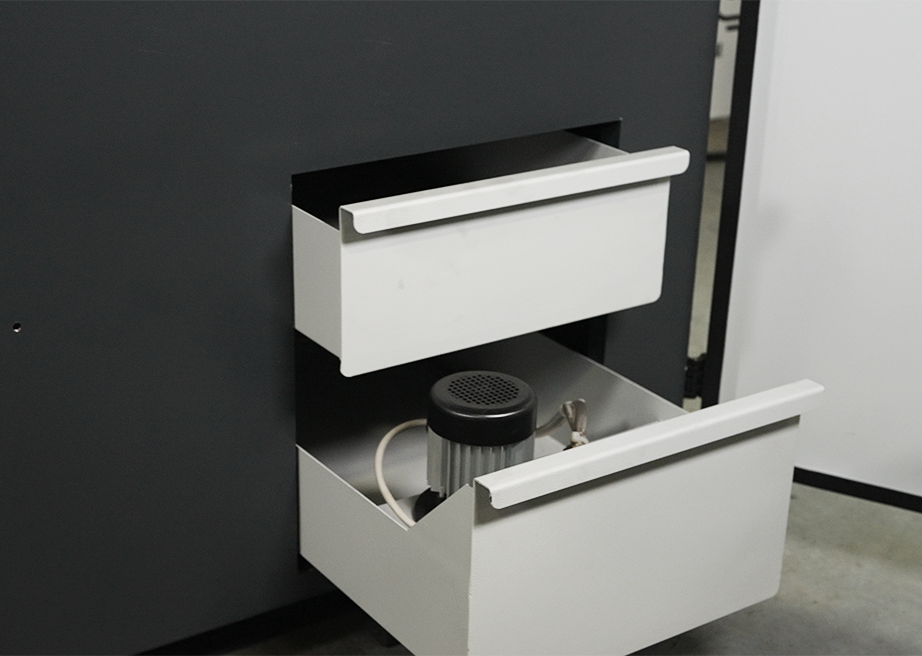

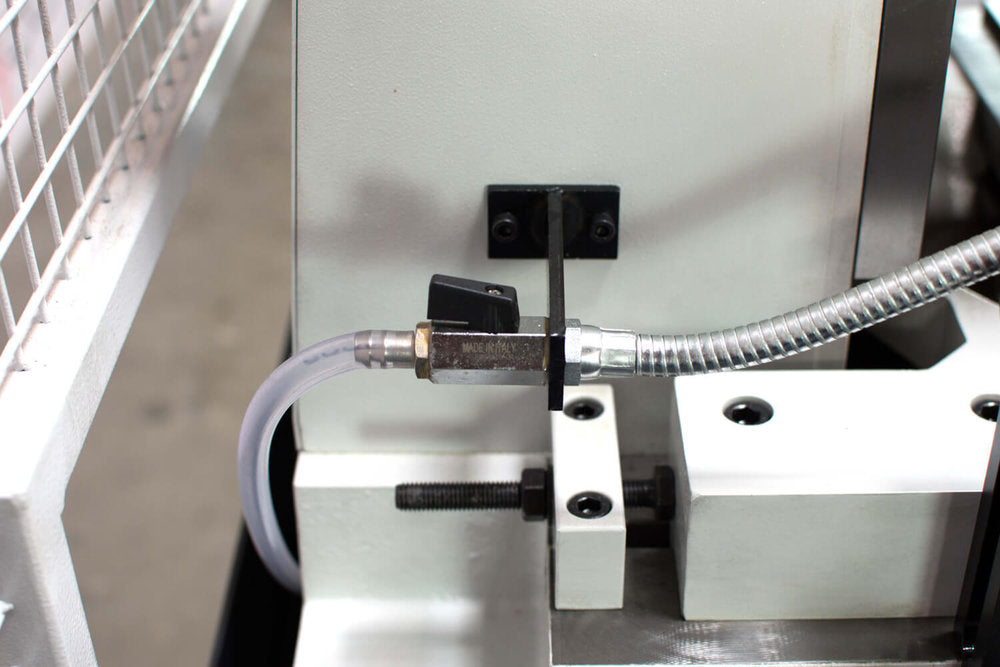

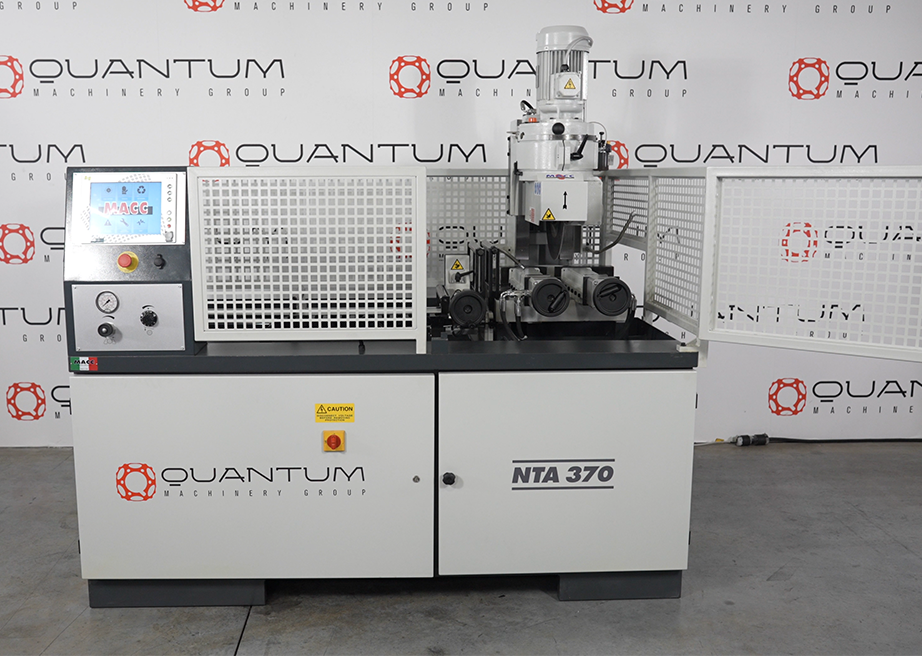

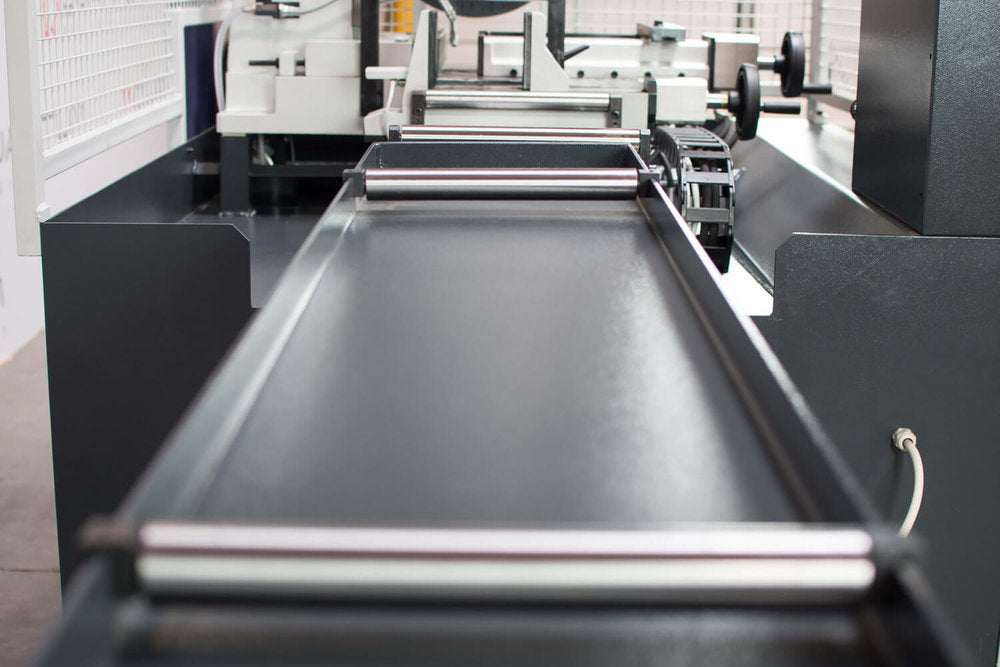

The Quantum Macc NTA 370 Vertical Double-Column Fully-Automatic Cold Saw has a moveable head that can move up to 45 degrees right and left; and the head also has rotation stops at 45° - 0° - 45°. The NTA 370 has a vice that is complete with an anti-burr device, and a motor pump for blade lubrication. This unit is equipped with a bar stop, bar support arm, and service tools, as well as the machine's manual. The NTA 370 can store up to 9 programs, each of them with 99 steps for a total of about 890 cutting positions with relevant piece-counter.
Cycle start is obtained by pressing the relevant start pedal.
The machine performs the following operations during the cutting cycle:
1. Feeding of Material.
2. Closing of Vice and Fixed Vice will Lock.
3. Activation of Blade Motor, Rotation of the Blade and Delivery of Coolant.

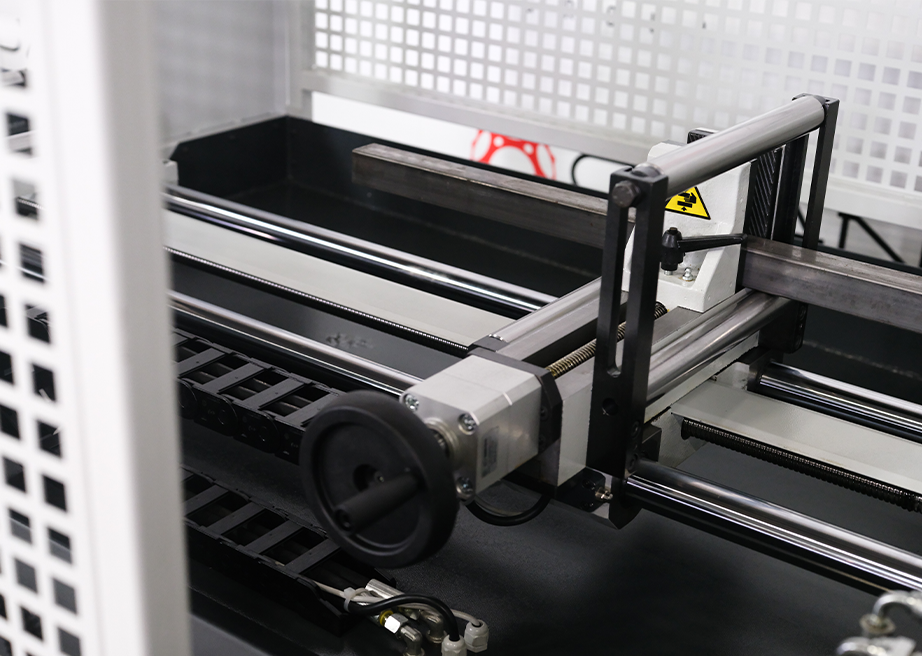

4. Cutting Head Begins Down-Stroke. (While the head is descending to make the cut, the Feeding Carriage will return to the fixed measure - preparing itself for the next step of feeding the material).
5. Completes Cut & Head Returns to Initial Position as Blade Motor and Coolant Stops.
6. The Vice will then Open (if there is another step, the step feeder will then begin to feed).
(REPEAT)
