Quantum Machinery Group (Made in Italy)

NEW LINE 350 Cutting Line with Bundle Loader

Product SKU: NEW LINE 350 w/ Bundle Loader (220 Volt / 3 Phase / 60Hz)
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$109,000
$129,000
Voltage Options
  • Description

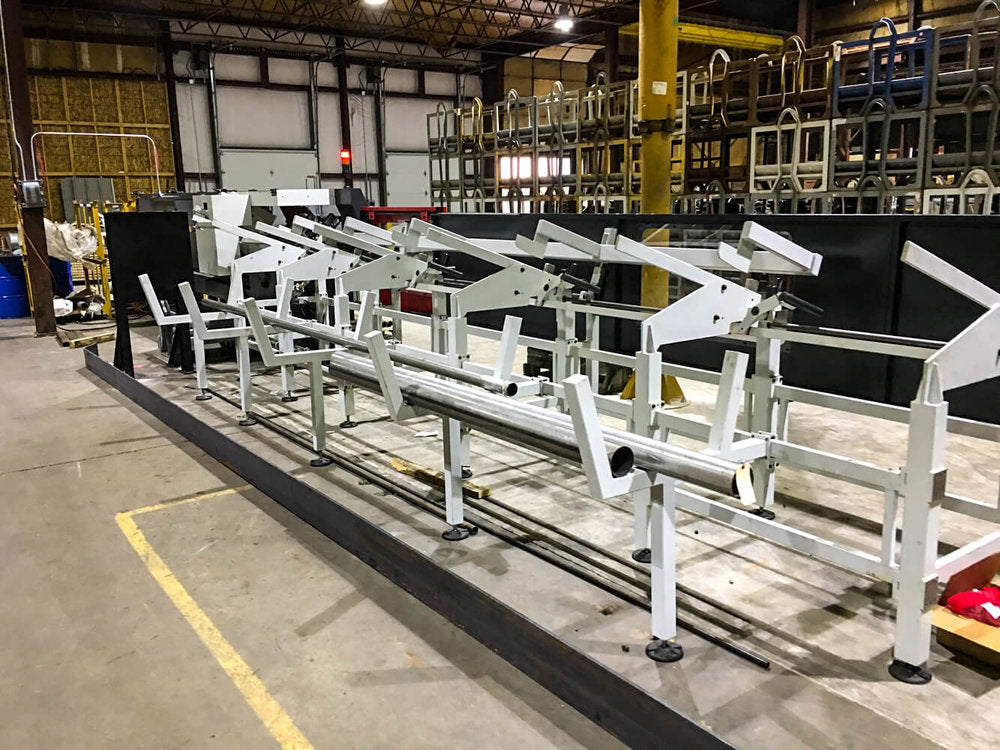

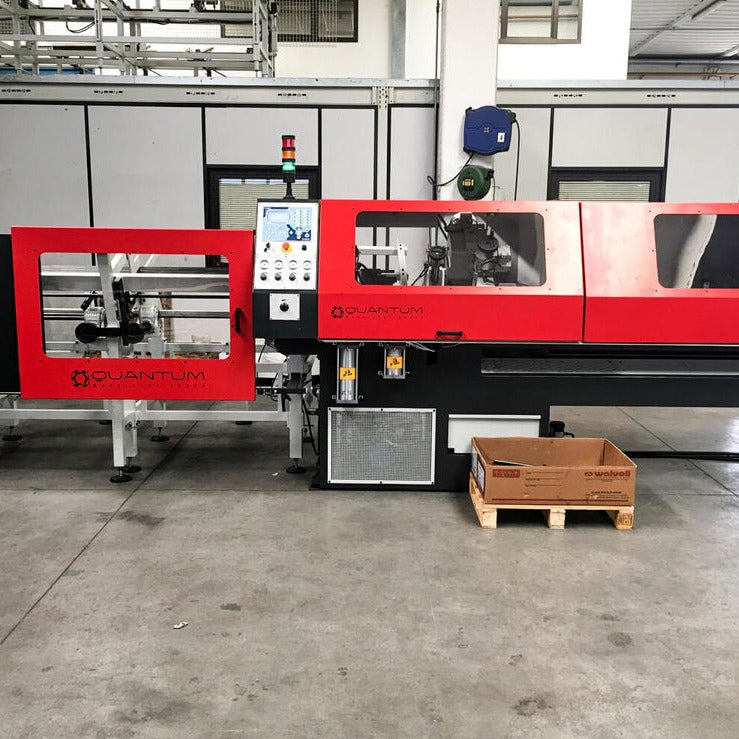

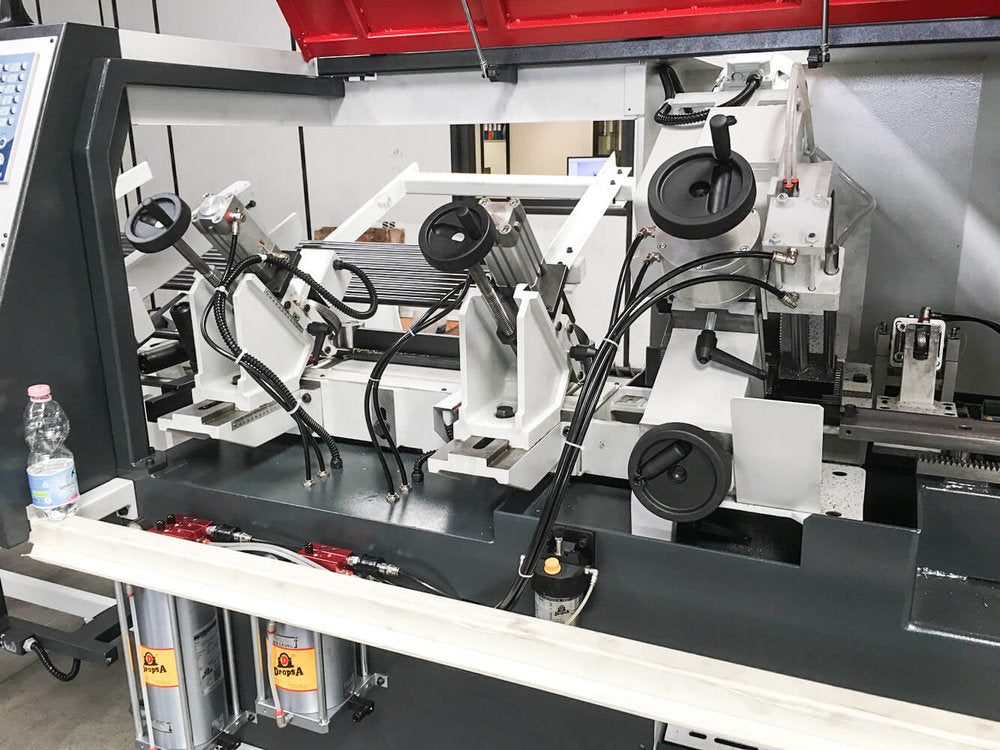

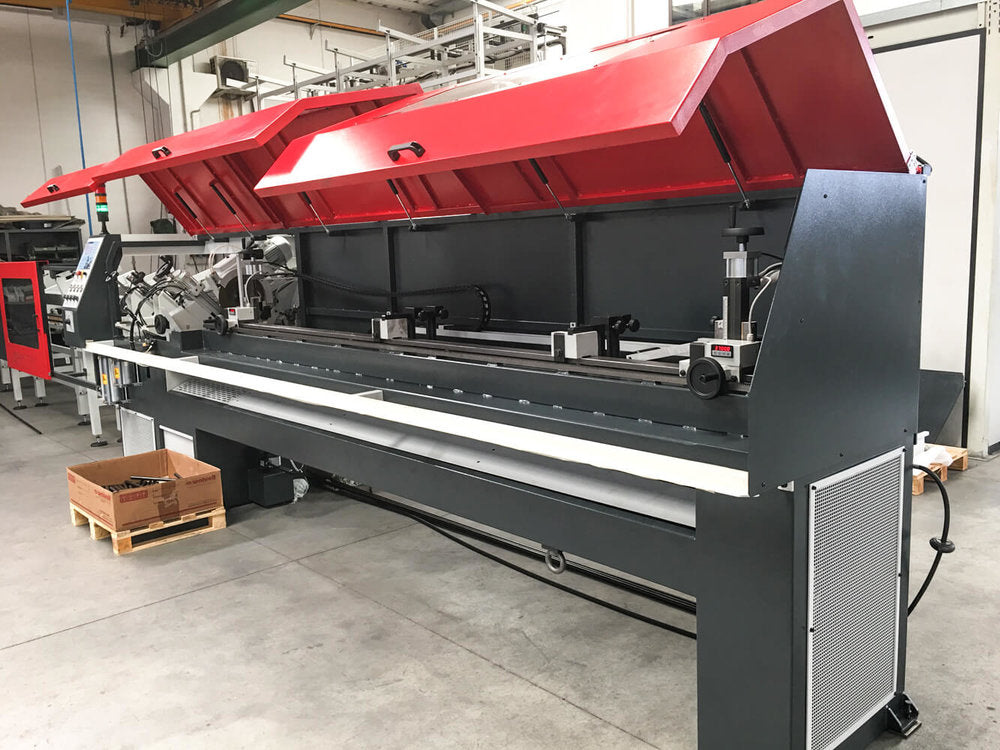

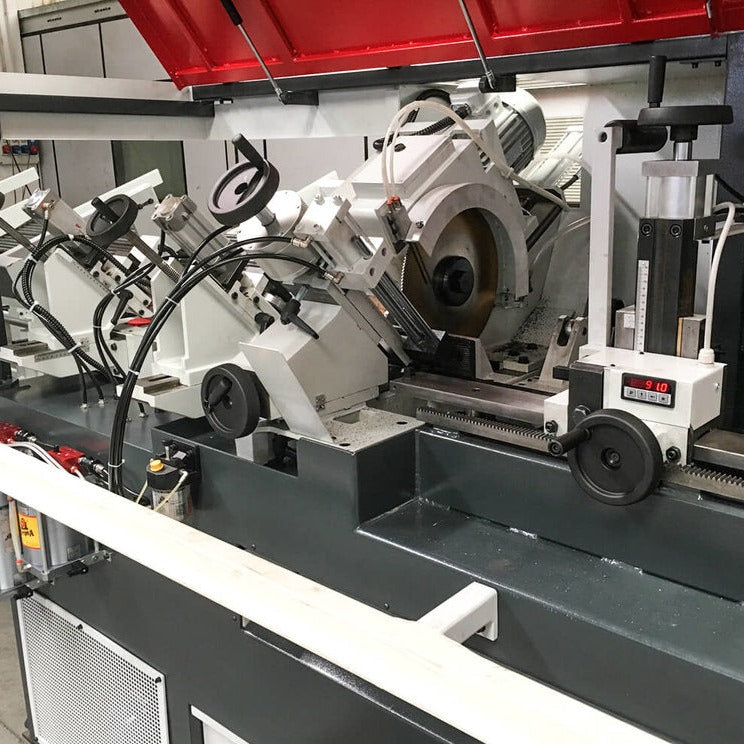

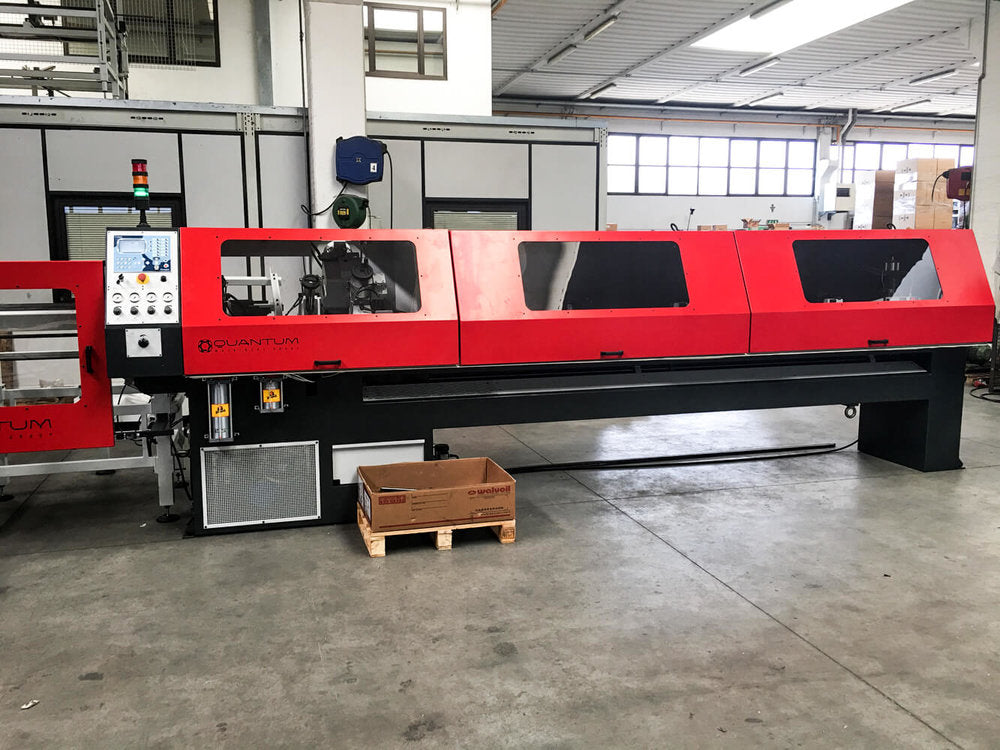

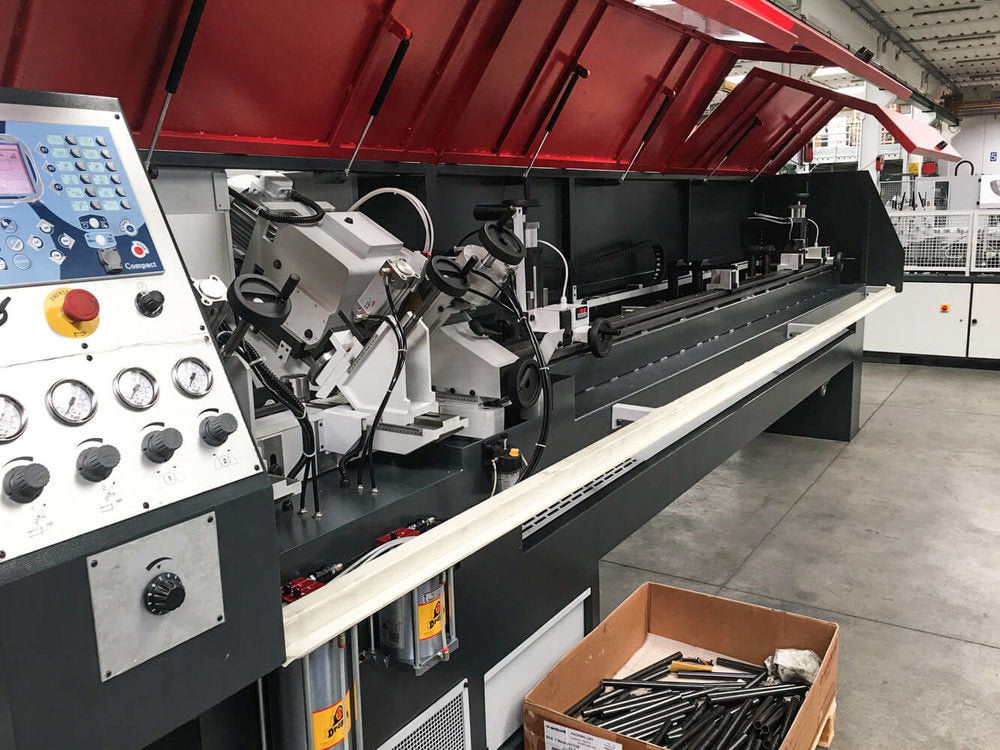

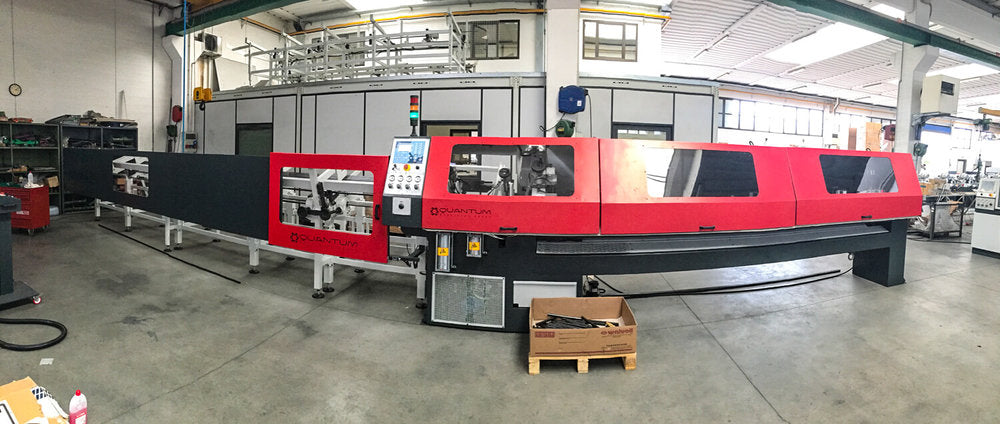

New automatic CNC cutting Line Mod. NEW LINE 350 for 90° cuts, suitable for cutting hollow or solid bars with round, square or rectangular section featuring automatic loading and unloading of pieces. The “CF” type or automatic bundle loader cutting line has a anti-overlapping device for hollow bar loading with round, square or rectangular section; rapid centralised adjustment of bar dimensions by means of just two handwheels.

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 4" O.D.

Square Tube

  • Straight Cut: 3.125" Square

Rectangular Tube

  • Straight Cut: 2.25"H x 3.125"W

TECHNICAL DATA & FEATURES:

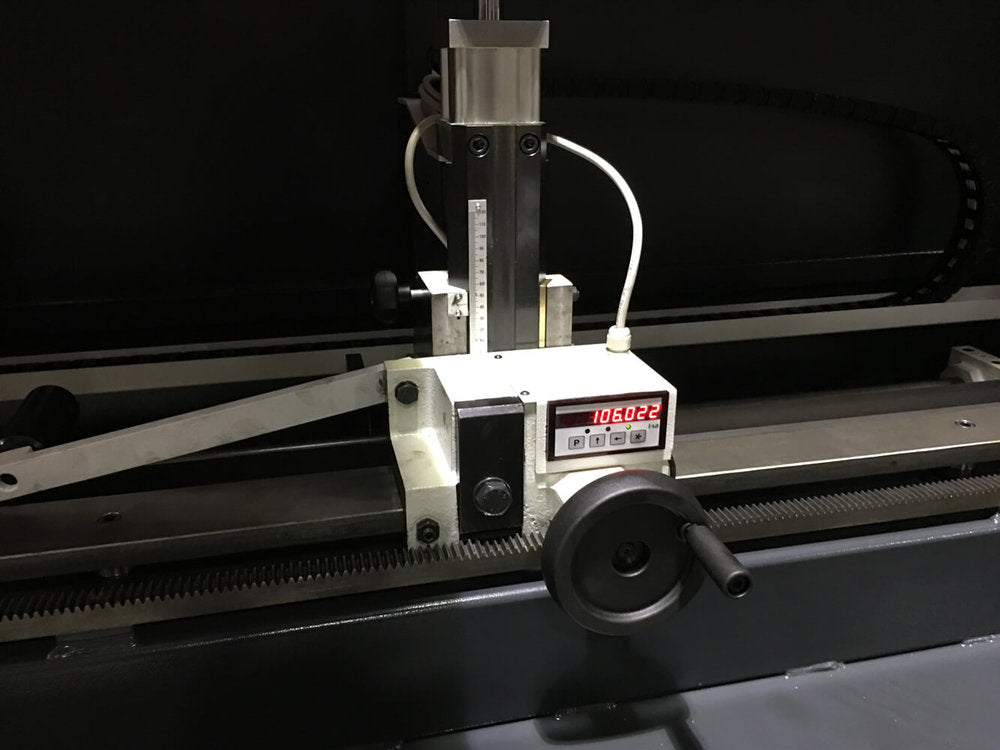

  • Bar Stop with Digital Instrument Displaying Bar Cutting Measurements.
  • Cutting Head with 2-speed Electric Motor.
  • Motor Amperometric Absorption Control.
  • Tempered and Ground Oil-Bathed Reducing Gears.
  • Cutting Head Downstroke Speed Adjustment.
  • Blade Double Lubrication System.

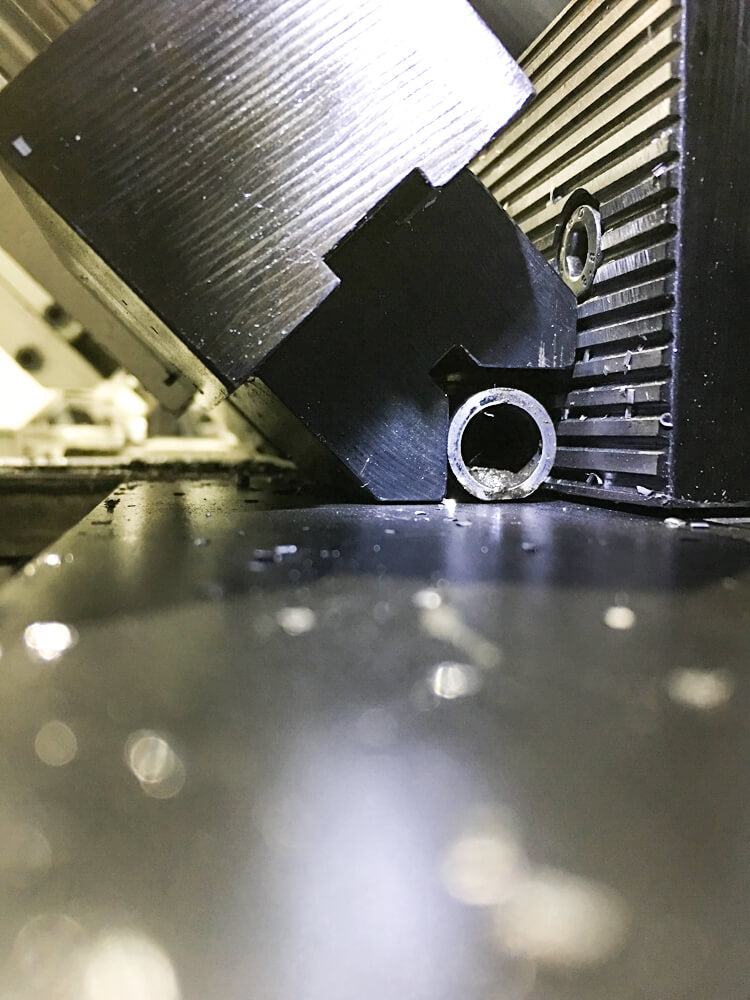

  • Bar Locking with Double Vice.

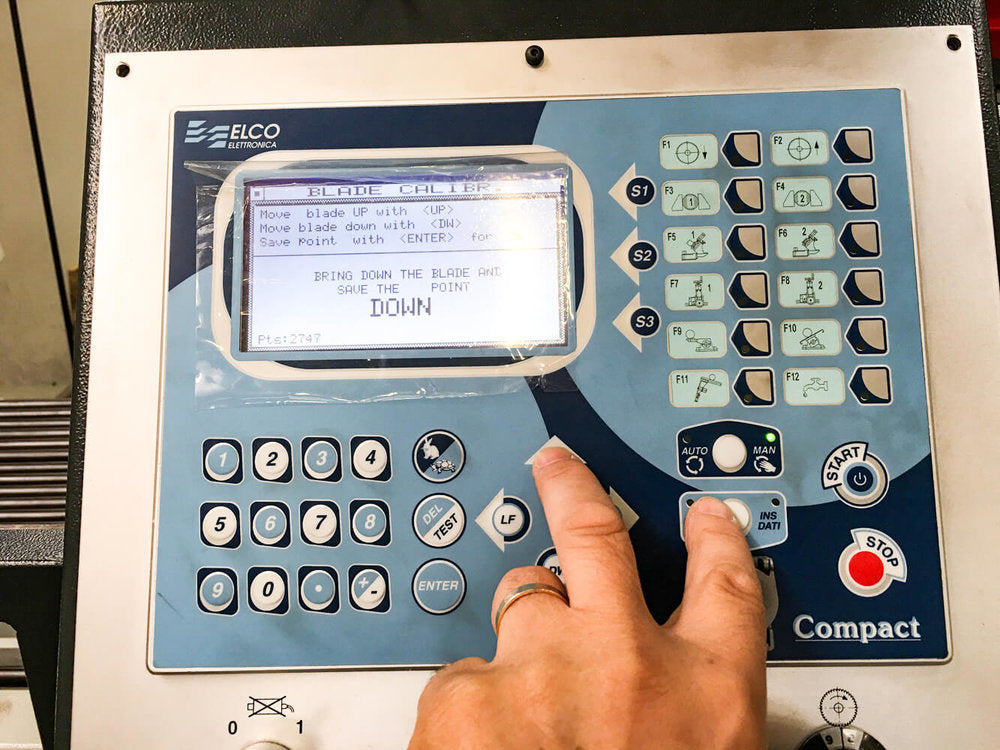

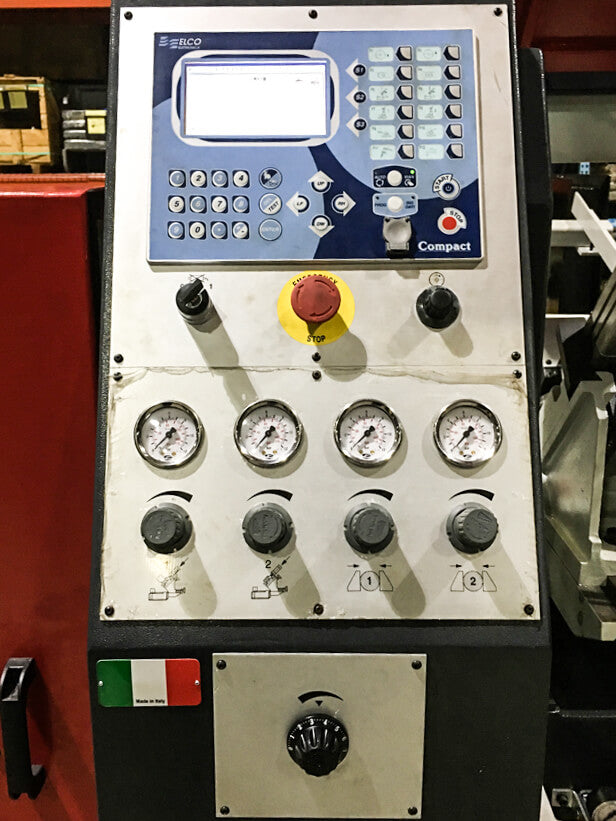

  • New Programming Instrument with 5” Backlit Graphic Display.
  • Instruction Manual and Exploded view of spare parts.
  • Blade Size: 350 x 2.5 x 32mm Bore HSS Blade
  • Minimum Cutting Capacity: 0.63"ø / 0.63" x 0.63" (16mm ø / 16mm x 16mm)
  • Minimum Cutting Length: 0.80" (20.3mm)
  • Maximum Cutting Length: 118" (2,997mm)
  • Maximum Vice Opening: 4.4” (112mm)
  • Worktable Height: 43.7" (1,110mm)
  • Unloading Height (Front / Rear): 27.5"(700mm)
  • Vice Jaw Height: 2.75" (70mm)
  • Machine Weight: 4,410 lbs. (2,000 kg.)
  • Blade Rotation: 50 - 100 R.P.M.
  • Bar Feed Speed: 32'- 295' per Minute (10 - 90 Meters per Minute)

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
