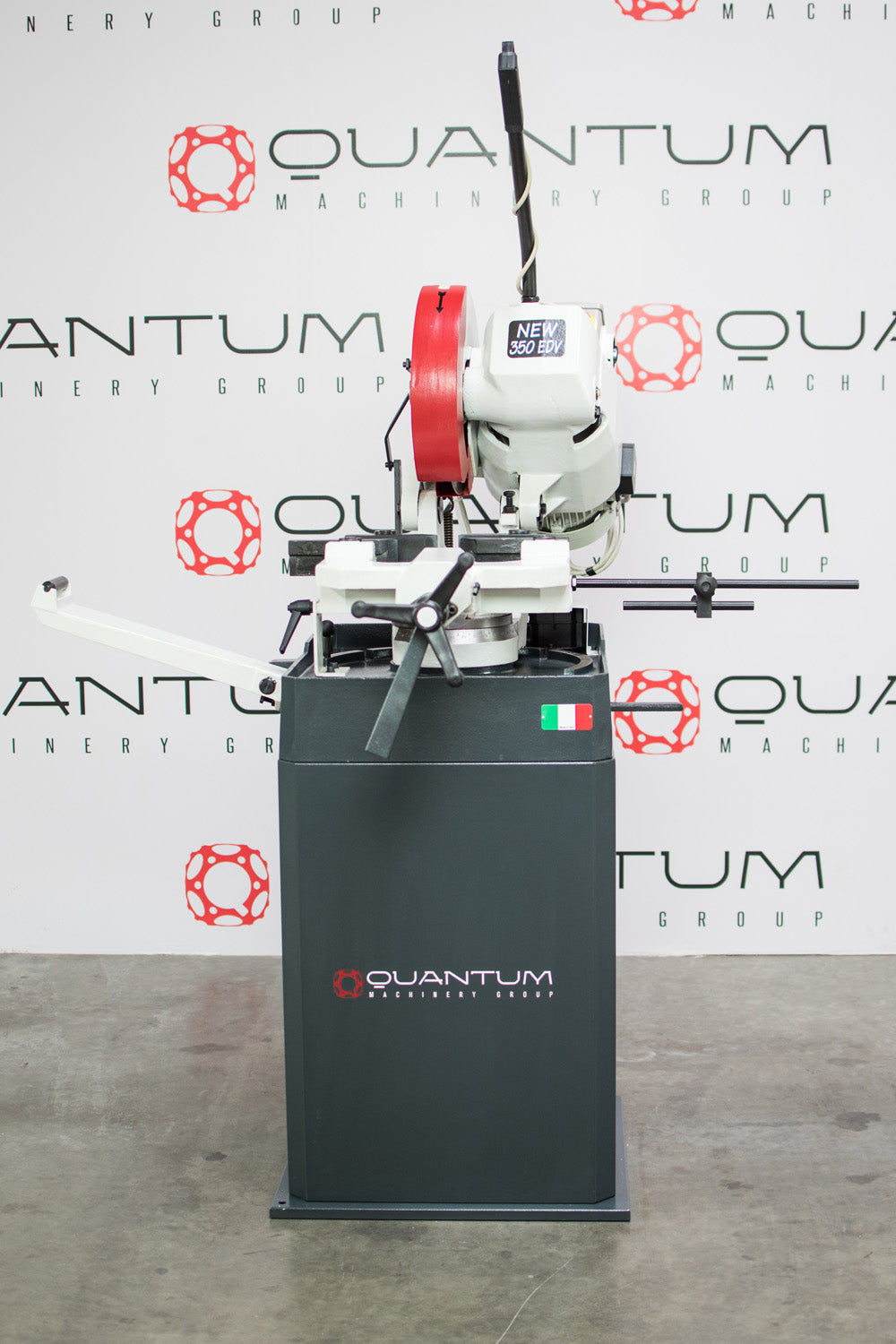

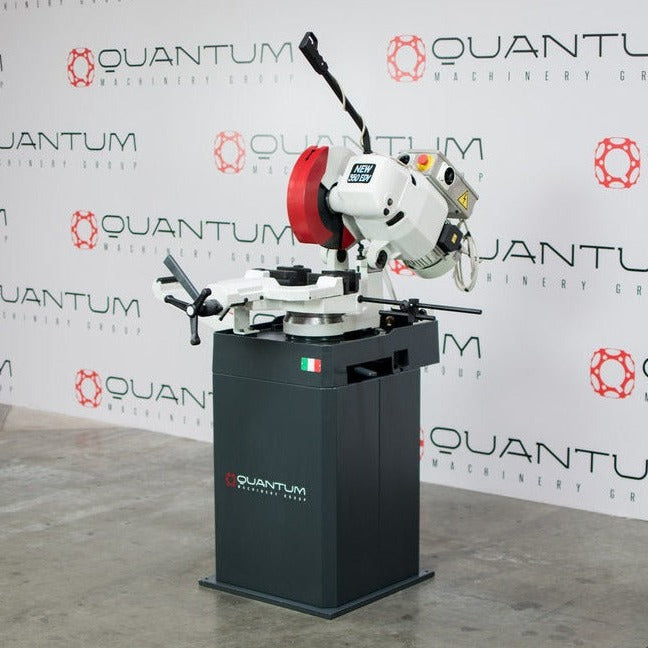

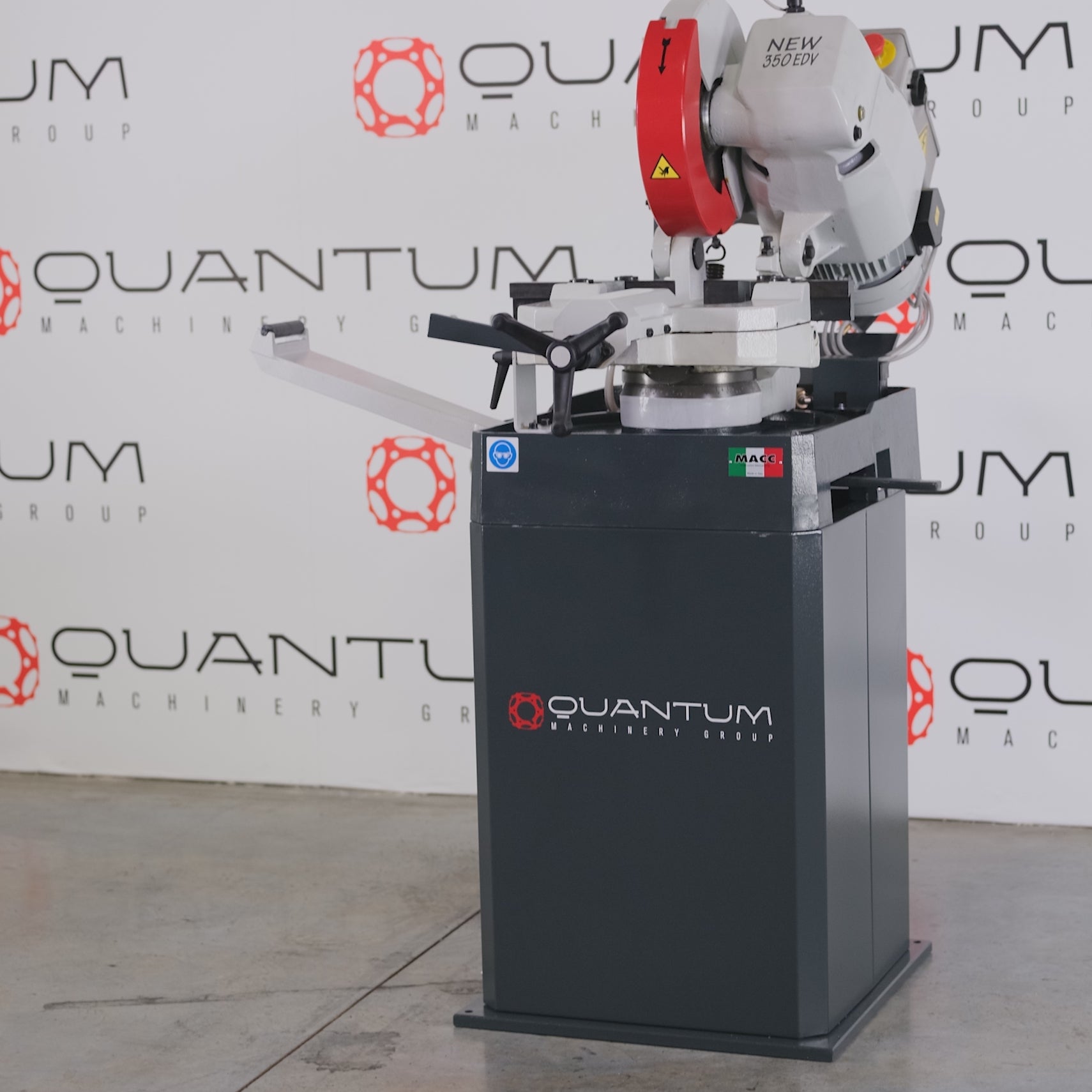

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)
">

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)

Part No. (SKU): NEW 350 EDV (220 Volt / 3 Phase / 60Hz)
Current Availability in the USA: 9 In Stock
Series: Cold Saws
$5,918
$7,895
$5,918
Voltage Options: 220 Volt / 3 Phase / 60Hz
Subtotal: $5,918
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)

$7,895 $5,918

NEW 350 EDV: 14" Manual, Pivot-Style Cold Saw (4-1/4" Round Tube Capacity)

$7,895 $5,918
Voltage Options: 220 Volt / 3 Phase / 60Hz

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 4.3"
  • 45° Left Cut: 3.15"45
  • 45° Right Cut: 3.15"

Square Tube

  • Straight Cut: 4"
  • 45° Left Cut: 3.15"
  • 45° Right Cut: 3.15"

Solid Round

  • Straight Cut: 2.3"
  • 45° Left Cut: 2.15"
  • 45° Right Cut: 2.15"

Rectangular Tube

  • Straight Cut: 3.15"H x 4.7"W
  • 45° Left Cut: 3.15"H x 3.15"W
  • 45° Right Cut: 3.15"H x 3.15"W

TECHNICAL DATA & FEATURES:

  • Movable Cutting Head: From 45° Left up to 45° Right.
  • Double-Hinged Pin with Eccentric Bush.
  • Reduction Unit in Oil Bath.

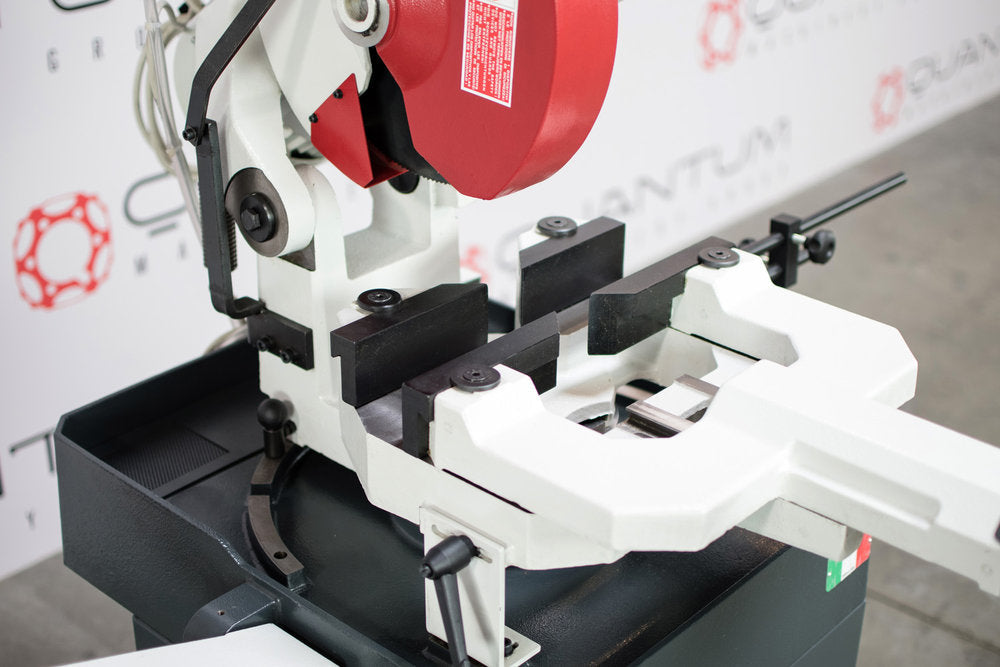

  • Double-Quick Locking Vice.

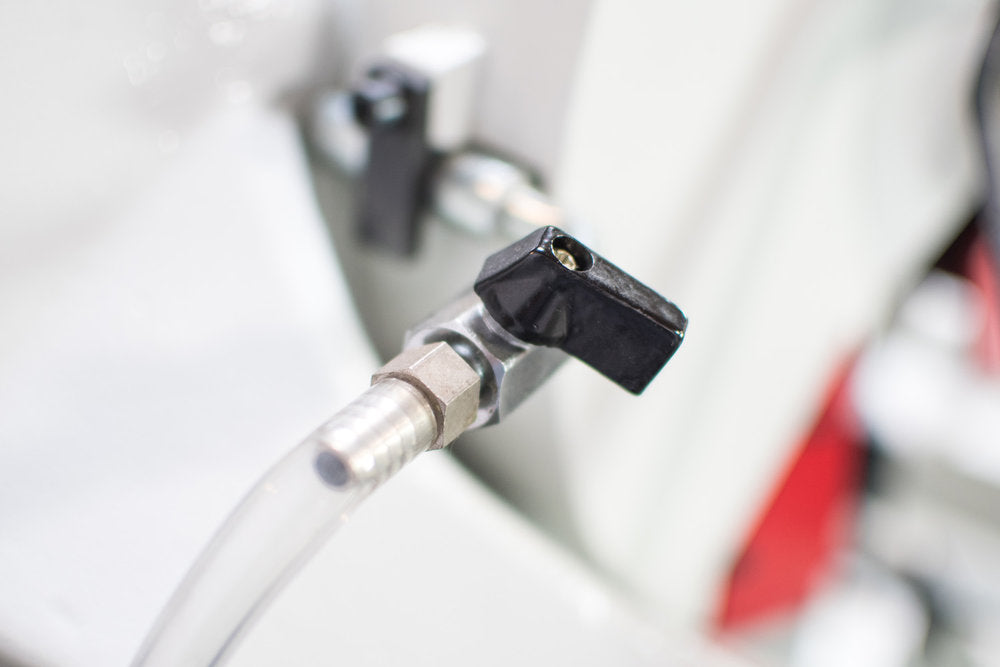

  • Coolant Filter.
  • Jet Separation System to keep the Blade Oiled.
  • Sliding Counter-Vice for Longitudinal Cutting.
  • 24V Low Voltage Installation withhold-to-run Head Control Knob.
  • 0.09 kW Power-Driven Pump for Band Cooling.

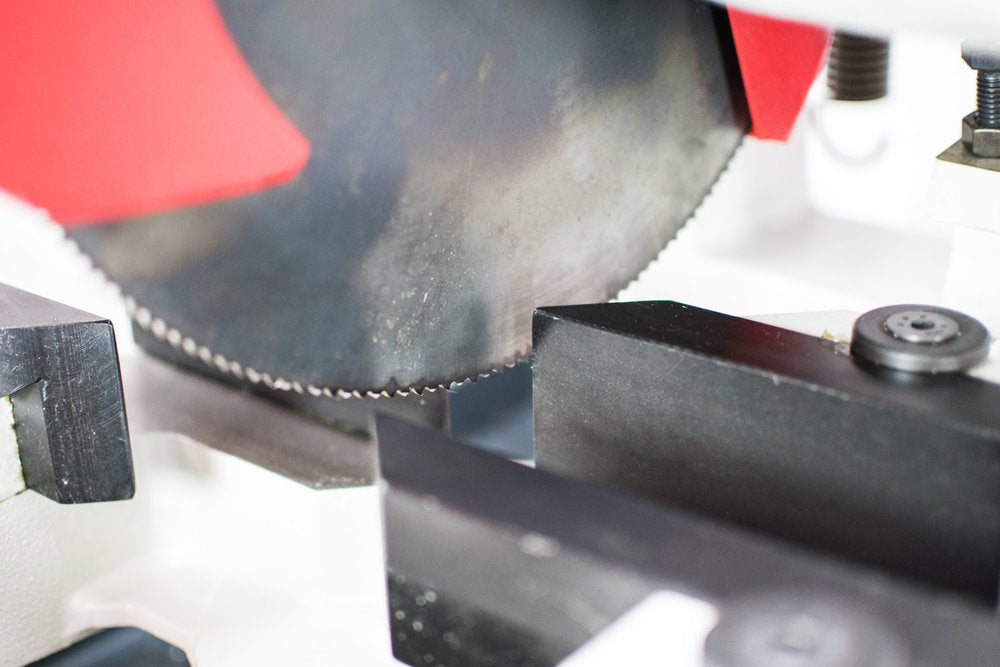

  • Blade Size: 350 x 2.5 x 32mm Bore HSS Blade
  • Maximum Vice Opening: 4.7” (120mm)
  • Machine Weight: 510 lbs. (231 kg.)
  • 2 Speeds: 40 - 80 R.P.M. (Saw can be equipped with Variable Speed Inverter)
  • Overall Dimensions: 4'-10"H x 3'-4"W x 3'-11"L or 58”H x 40”W x 47”L or 1,475mm H x 1,000mm W x 1,200mm L
  • This Saw Includes: the Pedestal/Stand, Bar Stop, Bar Support Arm, Instruction Manual, Service Tools & 1 HSS Cold Saw Blade.

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
