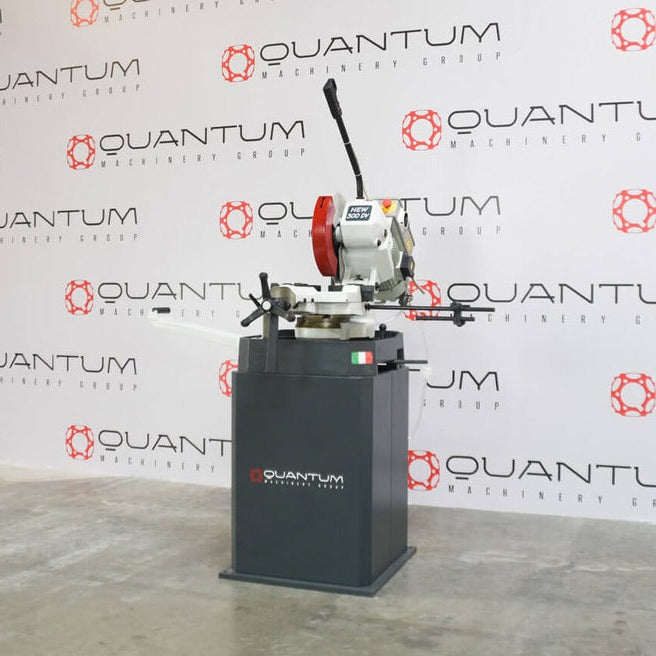

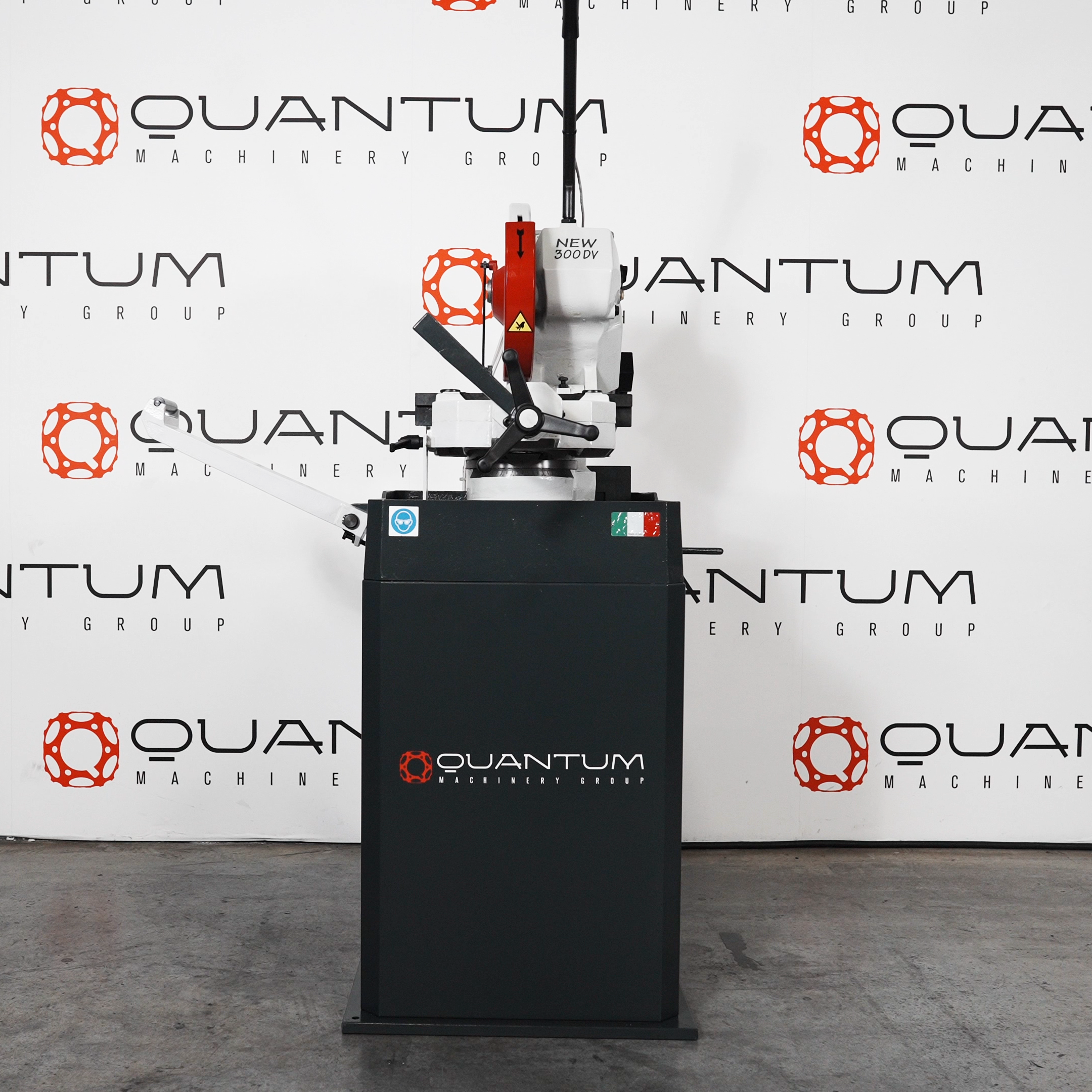

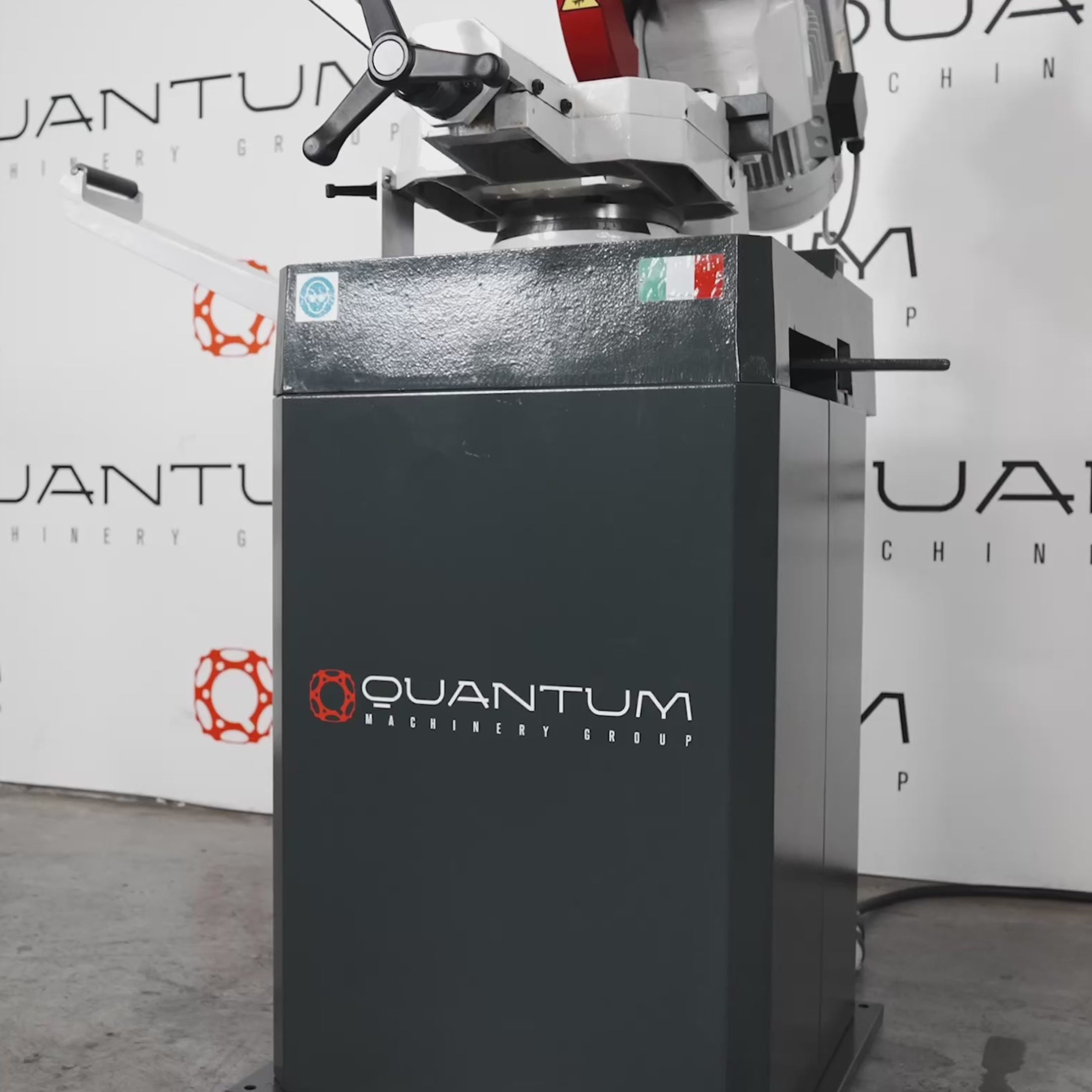

NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)
">

NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)

Part No. (SKU): NEW 300 EDV (220 Volt / 3 Phase / 60Hz)
Current Availability in the USA: 3 In Stock
Series: Cold Saws
$4,892
$5,871
$4,892
Voltage Options: 220 Volt / 3 Phase / 60Hz
Subtotal: $4,892
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)

NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)

$5,871 $4,892

NEW 300 EDV: 12" Manual, Pivot-Style Cold Saw (3-1/2" Round Tube Capacity)

$5,871 $4,892
Voltage Options: 220 Volt / 3 Phase / 60Hz

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 3.5"
  • 45° Left Cut: 3.1
  • 45° Right Cut: 3.1"

Square Tube

  • Straight Cut: 3.1"
  • 45° Left Cut: 2.75"
  • 45° Right Cut: 2.75"

Solid Round

  • Straight Cut: 2.1"
  • 45° Left Cut: 2.9"
  • 45° Right Cut: 2.9"

Rectangular Tube

  • Straight Cut: 2.75"H x 4.5"W
  • 45° Left Cut: 2.75"H x 2.75"W
  • 45° Right Cut: 2.75"H x 2.75"W

TECHNICAL DATA & FEATURES:

  • Movable Cutting Head: From 45° Left up to 45° Right.
  • Double-Hinged Pin with Eccentric Bush.
  • Reduction Unit in Oil Bath.
  • Double-Quick Locking Vice.
  • Coolant Filter.
  • Jet Separation System to keep the Blade Oiled.
  • Sliding Counter-Vice for Longitudinal Cutting.
  • 24V Low Voltage Installation withhold-to-run Head Control Knob.
  • 0.09 kW Power-Driven Pump for Band Cooling.
  • Blade Size: 300 x 2.5 x 32mm Bore HSS Blade
  • Maximum Vice Opening: 4.7” (120mm)
  • Machine Weight: 364 lbs. (165 kg.)
  • 2 Speeds: 40 - 80 R.P.M.
  • Overall Dimensions: 4'-8” W x 3'-3” L x 3'-8” H or 58” W x 40” L x 46” H or 1,475 mm L x 1,000 mm W x 1,150 mm H.
  • Additionally, this Saw Includes:  Instruction Manual, Service Tools & 1 HSS 300mm Cold Saw Blade.

Ready to Place an Order or Do You Have Any Questions? Give Our Team a Call at (704)703-9400
