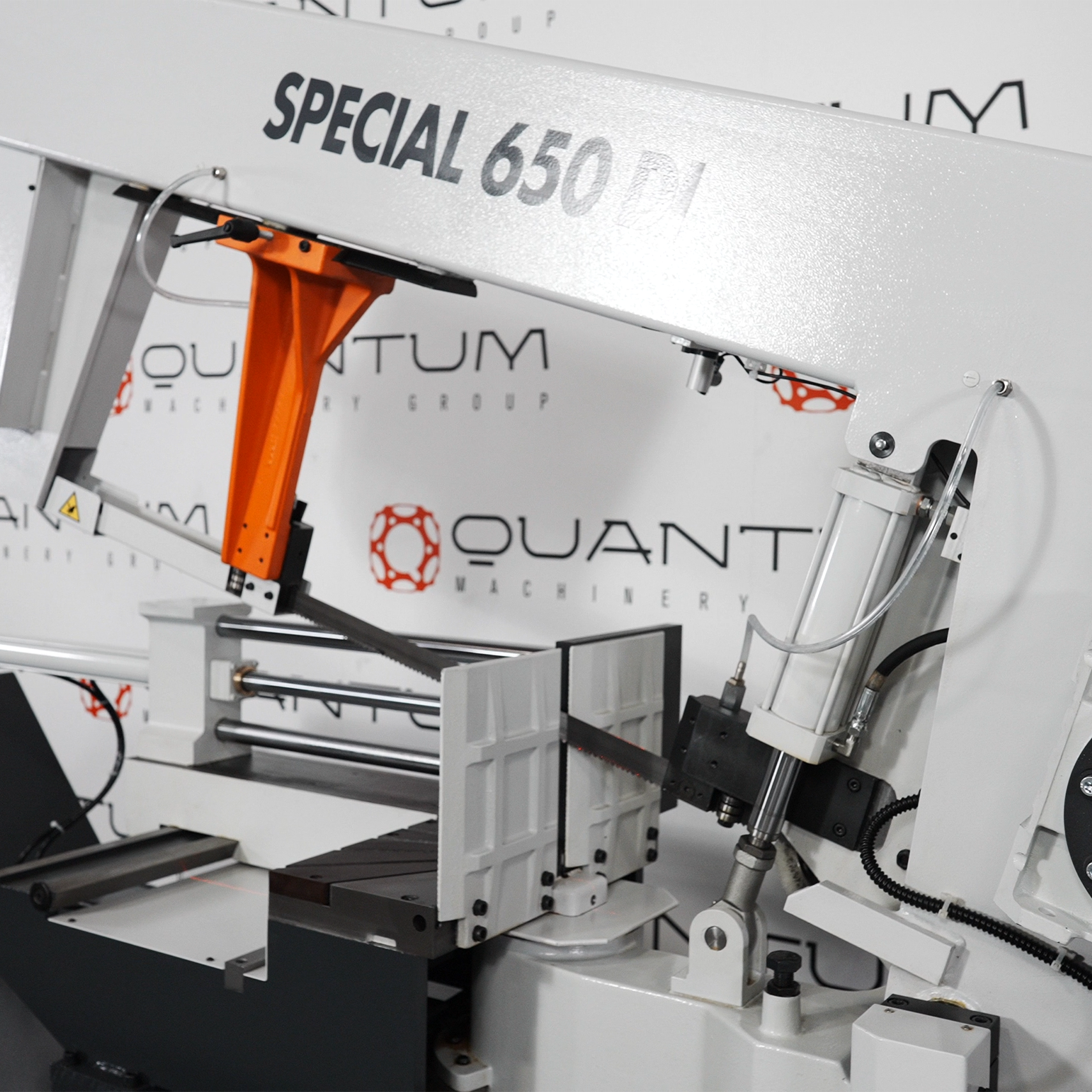

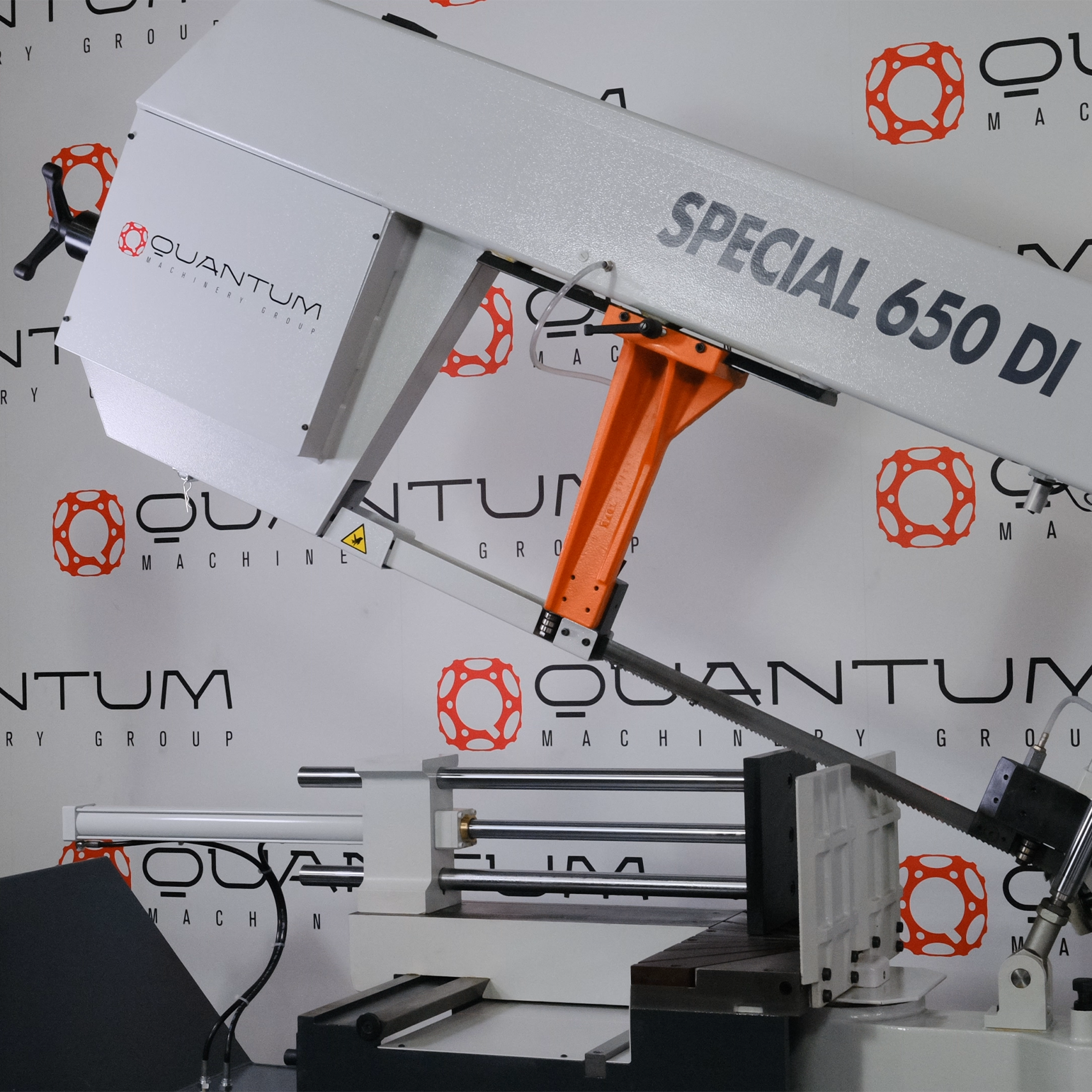

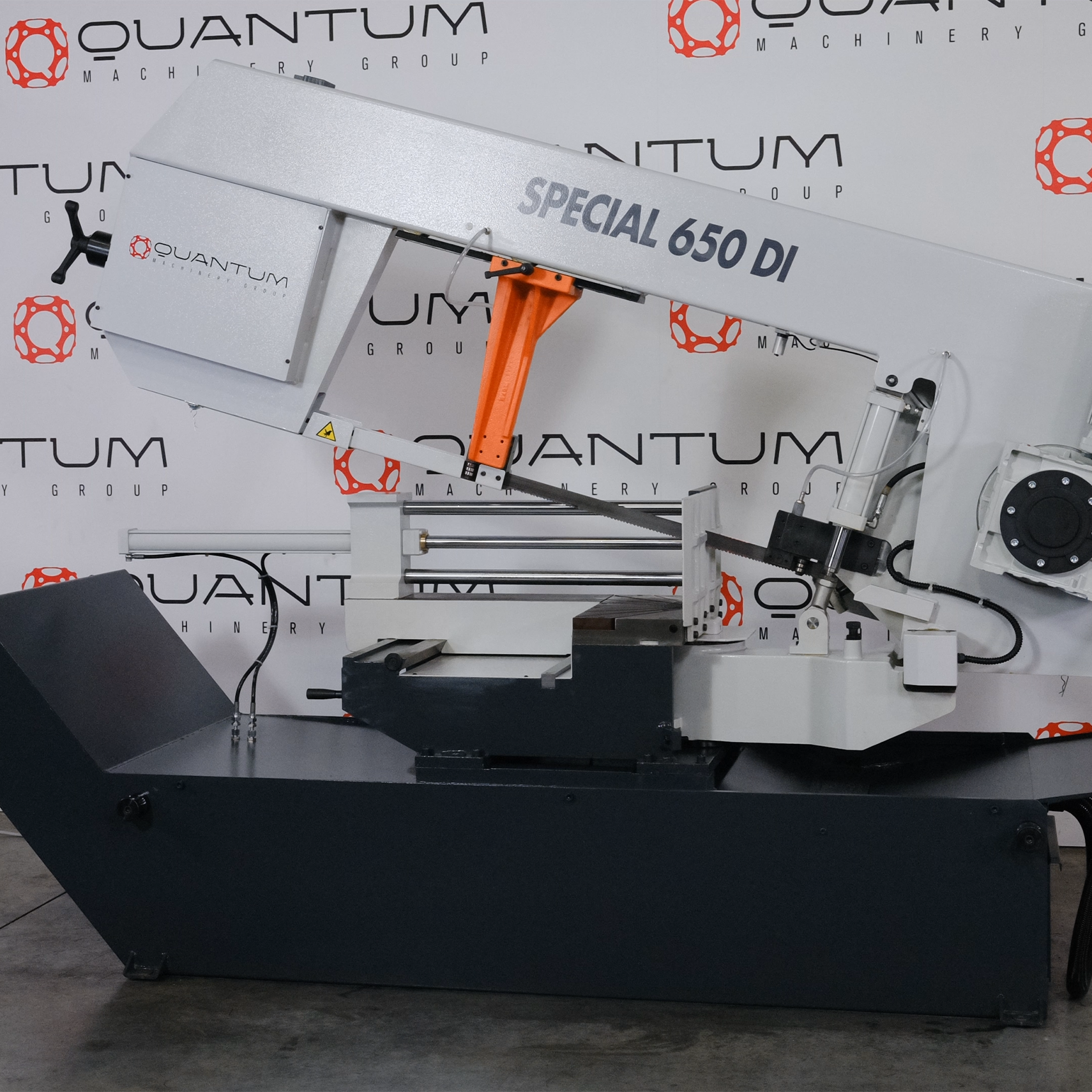

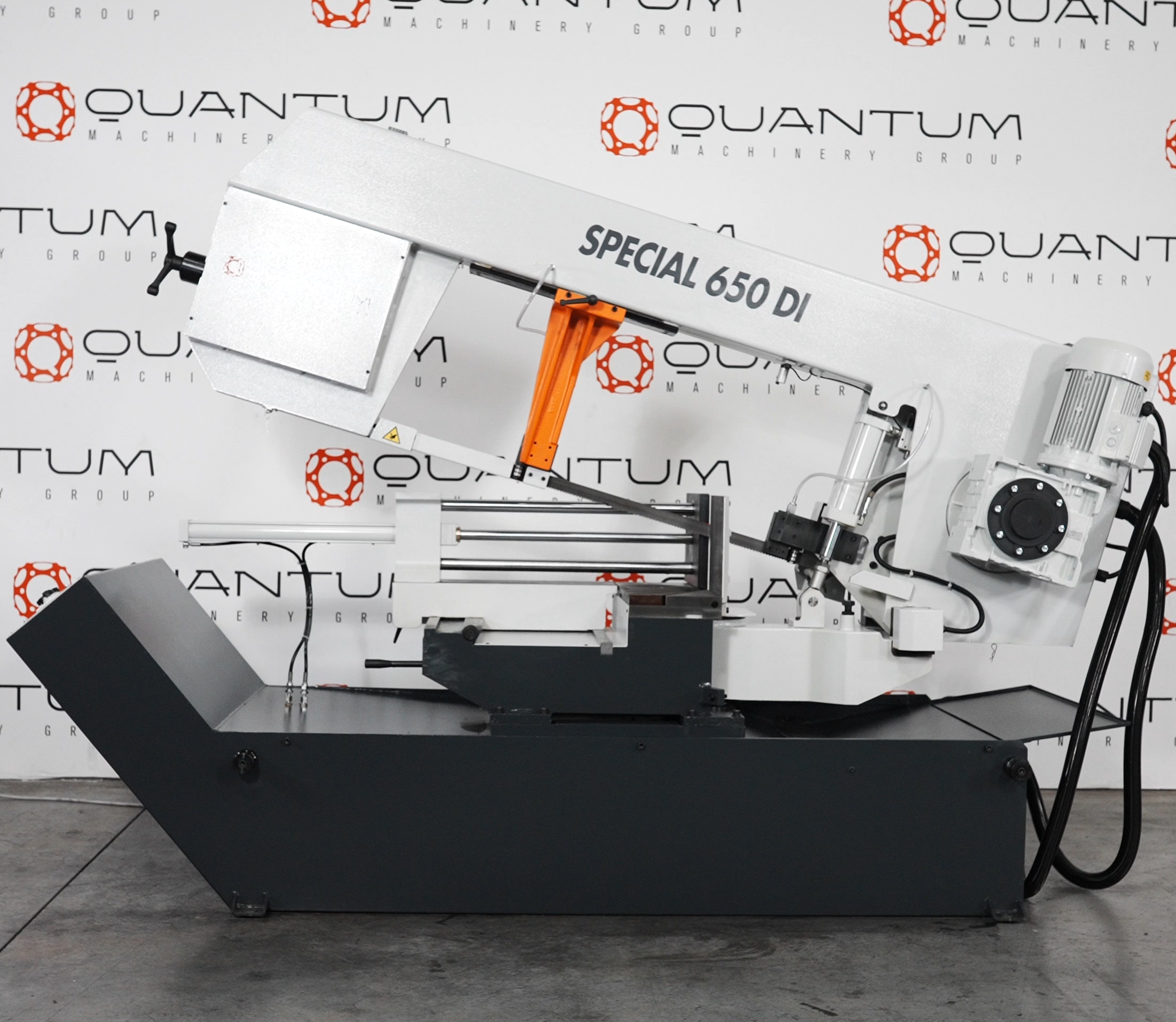

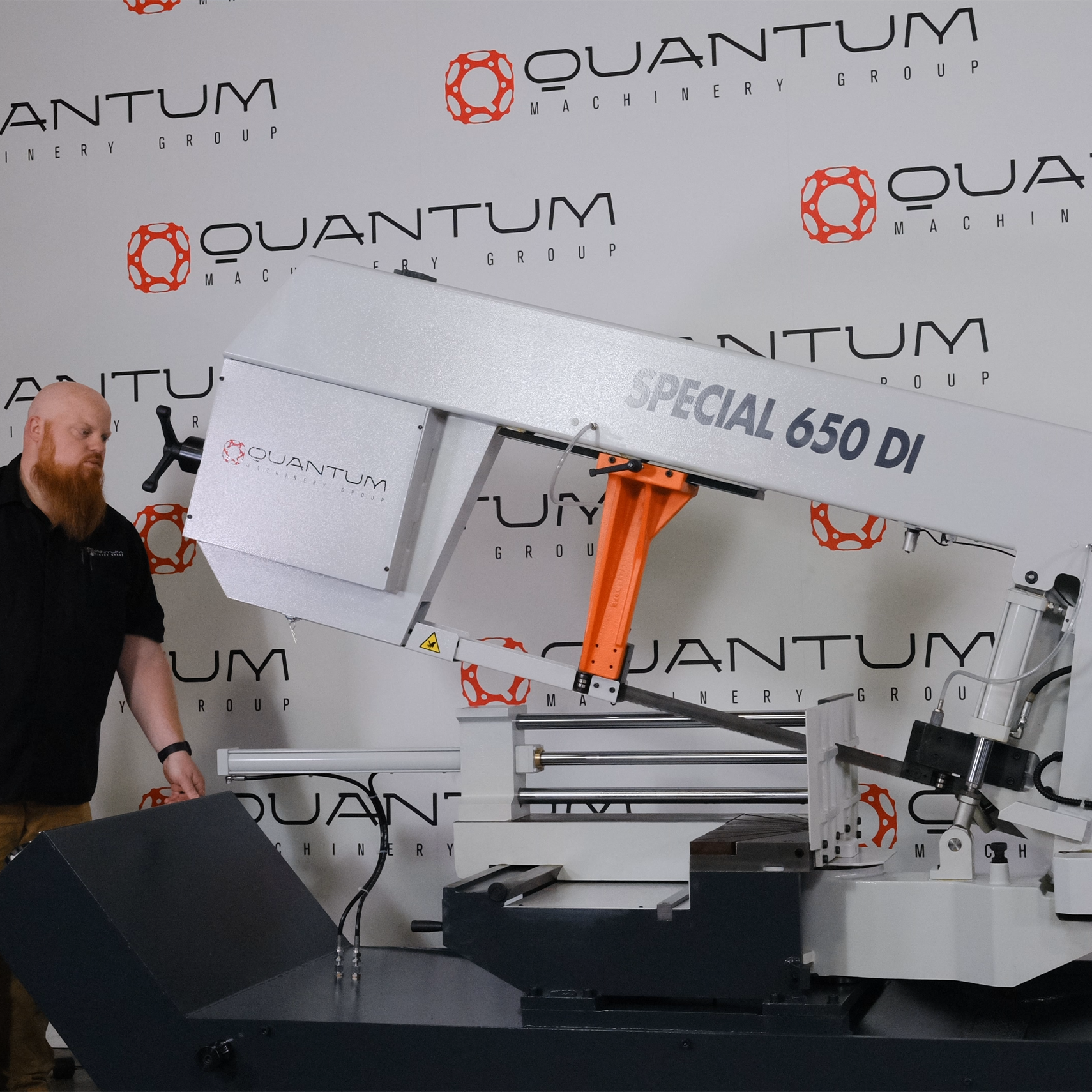

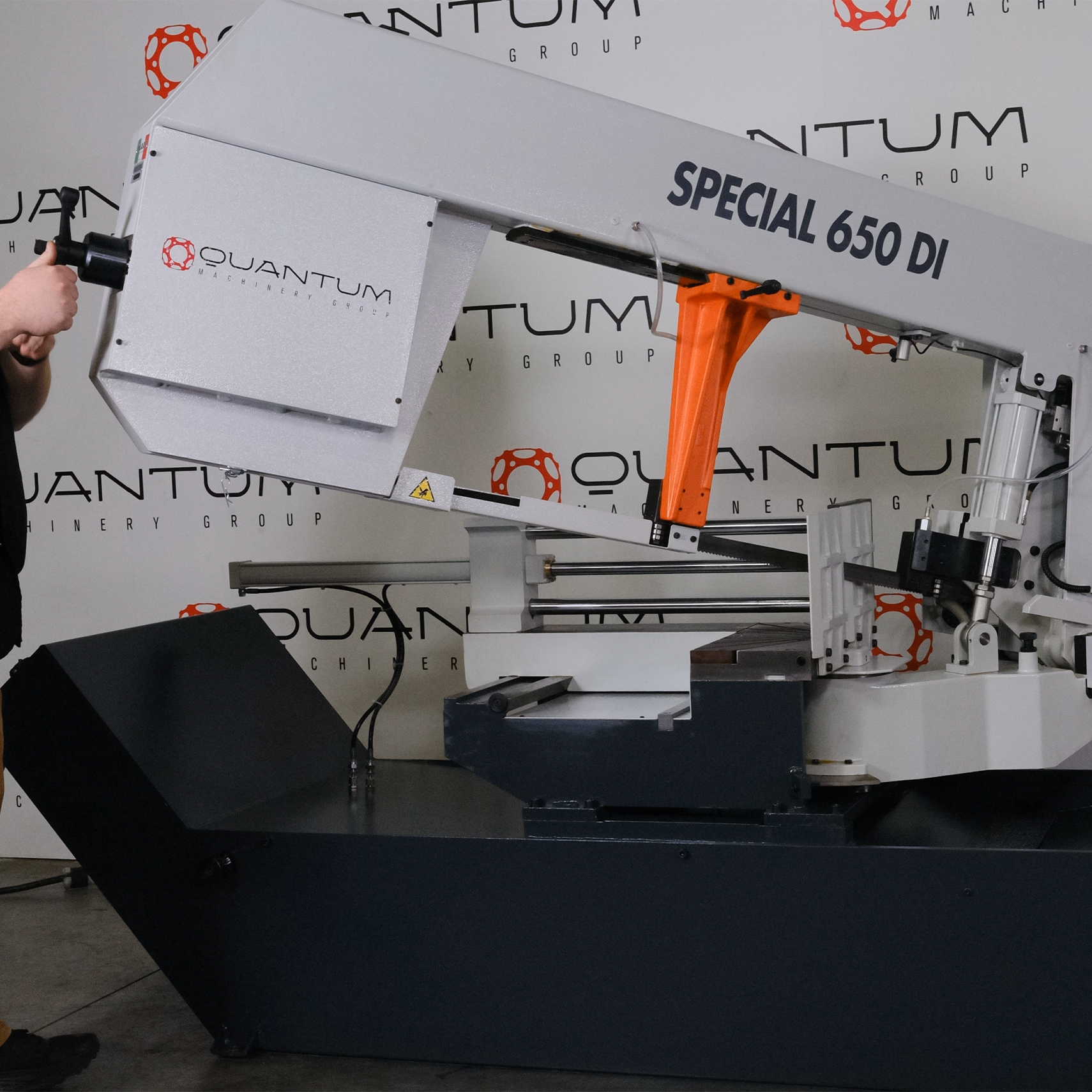

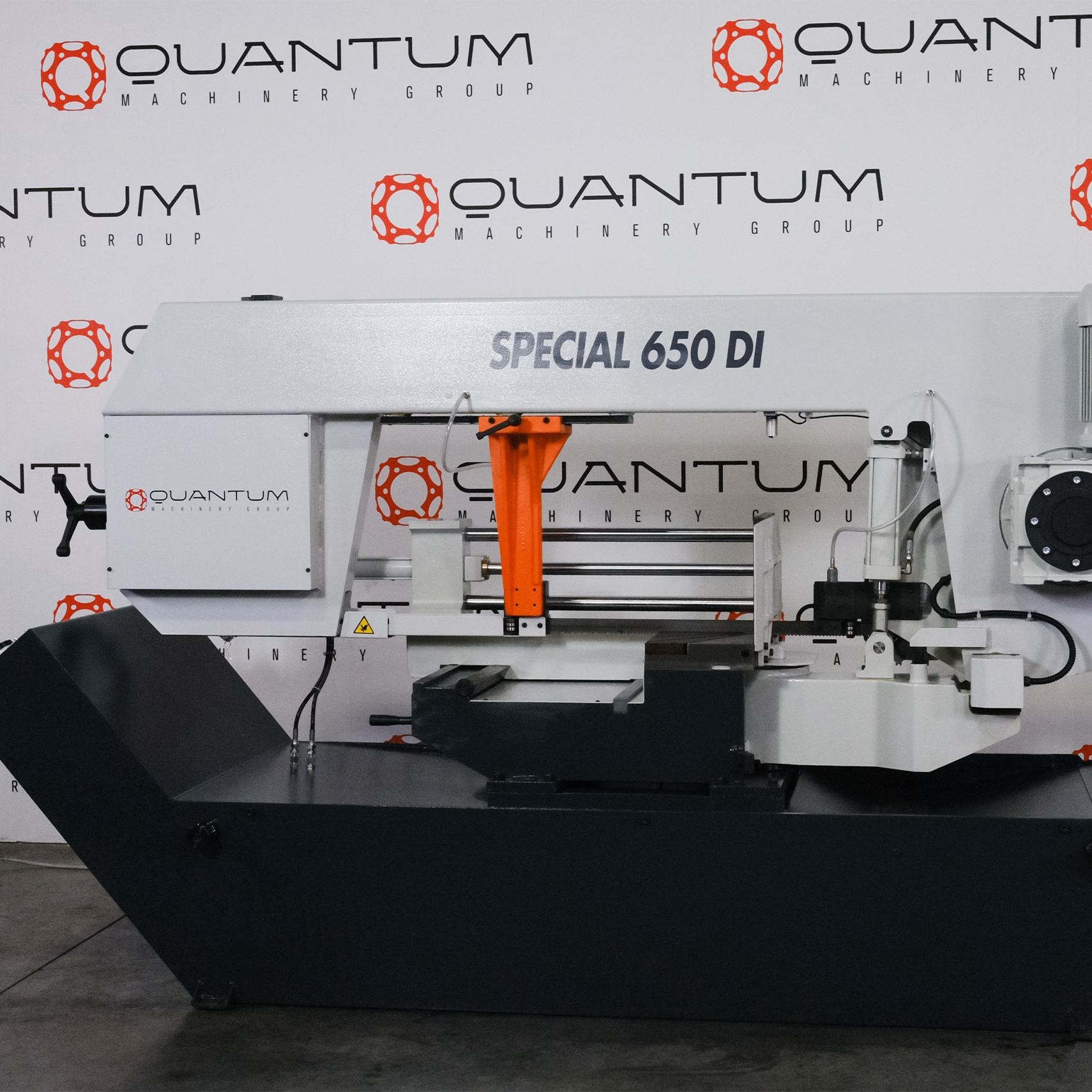

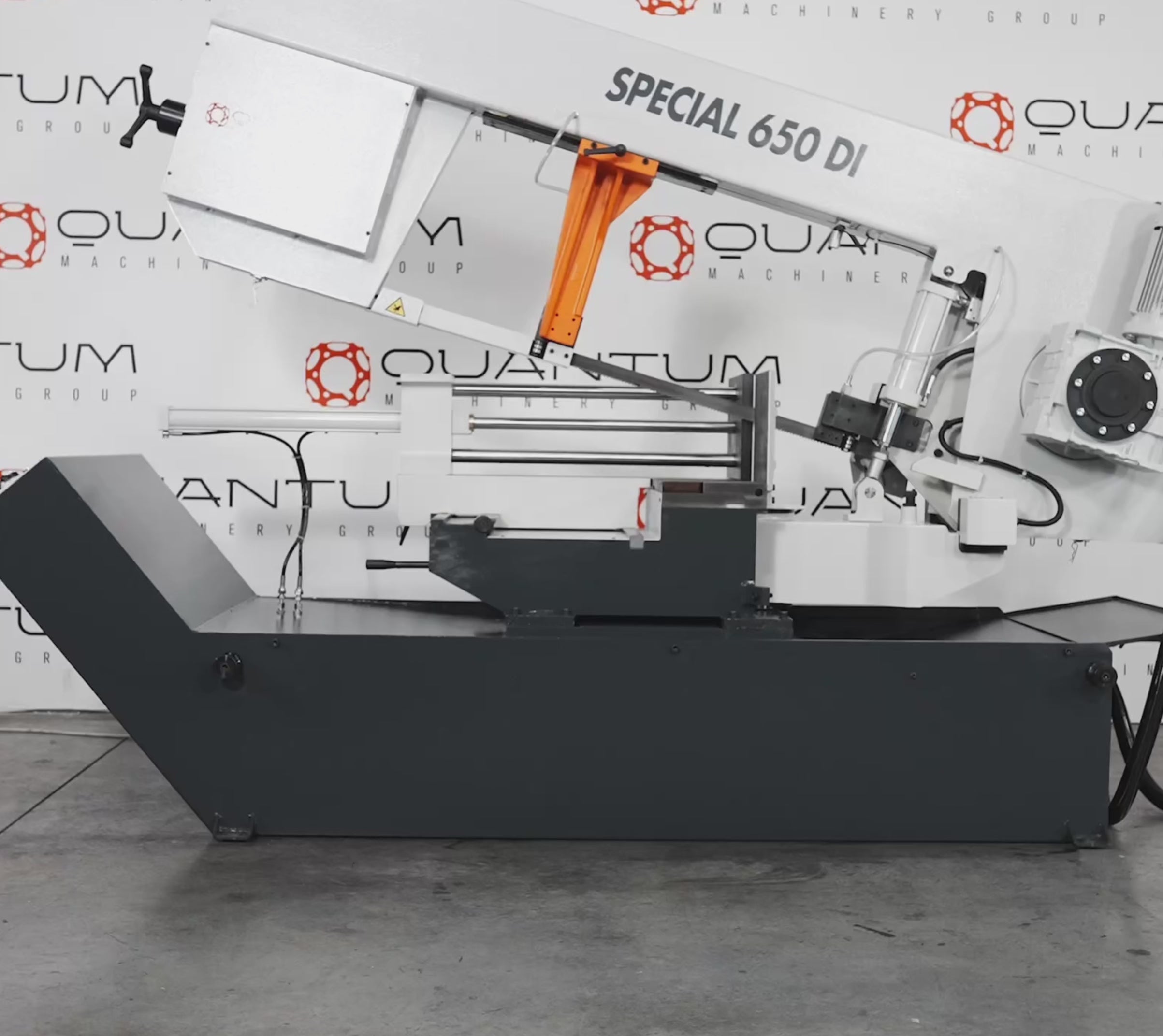

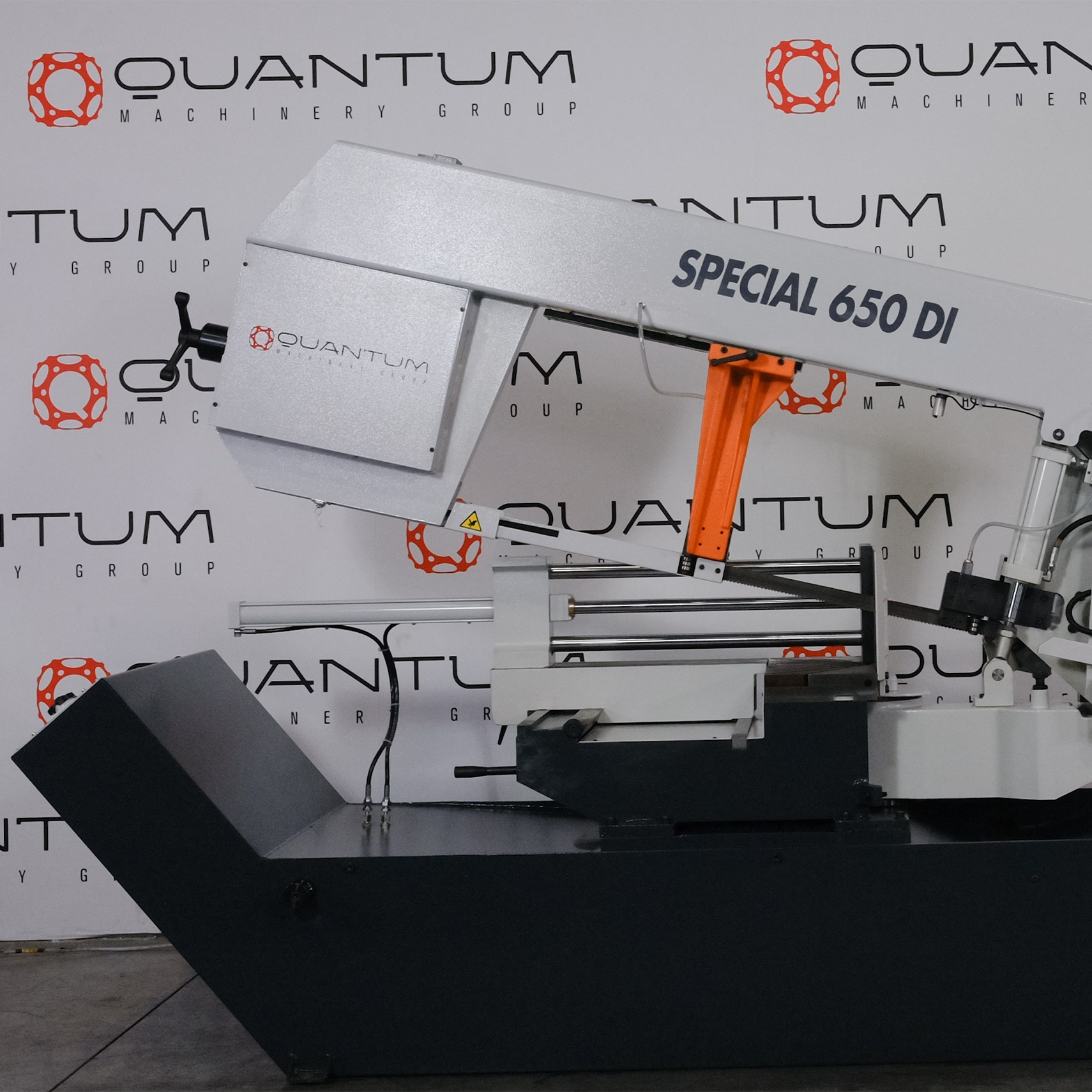

S 650 DI: Semi-Automatic Band Saw with Variable Speed Inverter (18" Round Tube Capacity)
">

S 650 DI: Semi-Automatic Band Saw with Variable Speed Inverter (18" Round Tube Capacity)

Part No. (SKU): S 650 DI (220 Volt / 3 Phase / 60Hz)
Current Availability in the USA: 2 In Stock
Series: Band Saws
$29,903
$35,884
$29,903
Voltage Options: 220 Volt / 3 Phase / 60Hz
Subtotal: $29,903
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

S 650 DI: Semi-Automatic Band Saw with Variable Speed Inverter (18" Round Tube Capacity)

S 650 DI: Semi-Automatic Band Saw with Variable Speed Inverter (18" Round Tube Capacity)

$35,884 $29,903

S 650 DI: Semi-Automatic Band Saw with Variable Speed Inverter (18" Round Tube Capacity)

$35,884 $29,903
Voltage Options: 220 Volt / 3 Phase / 60Hz

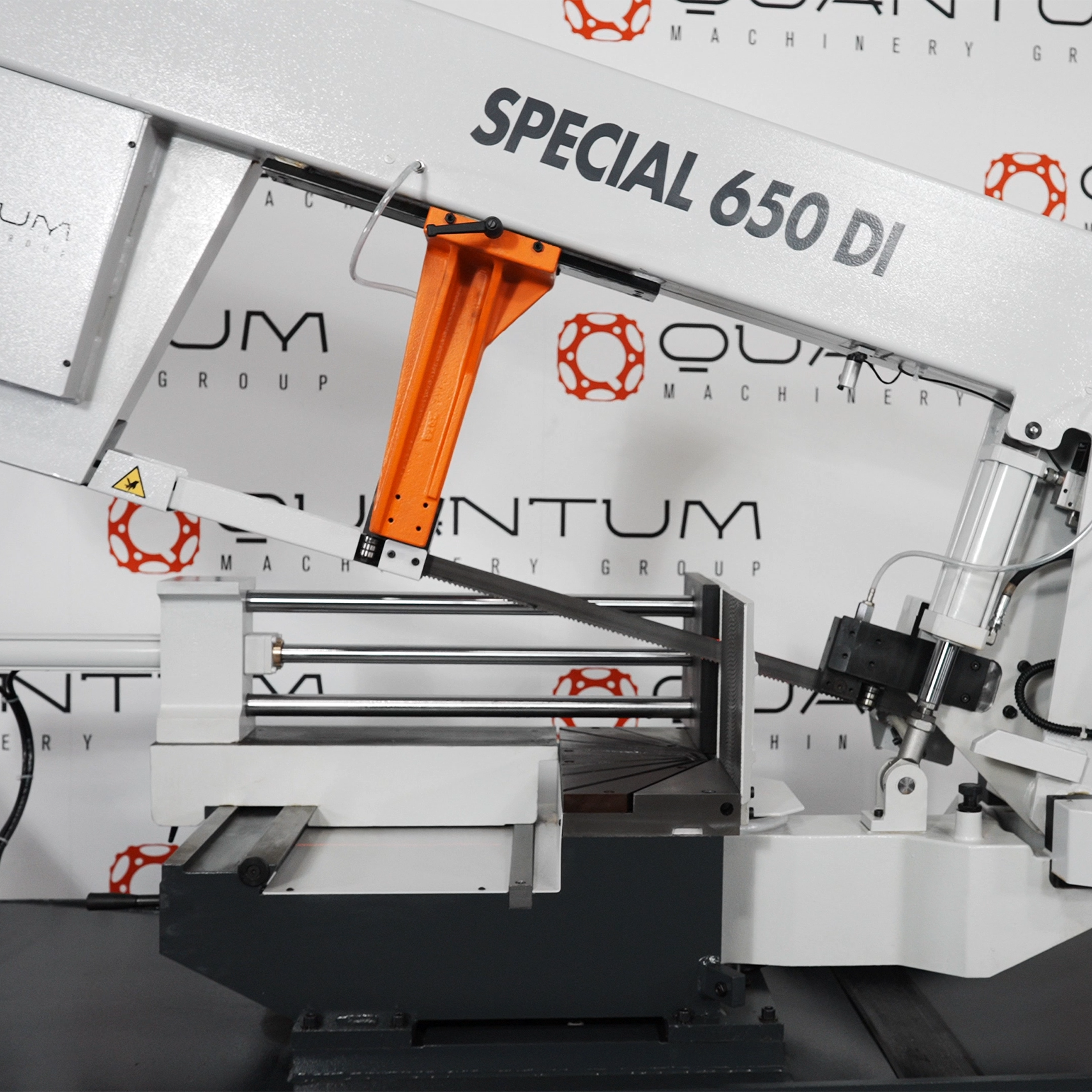

Includes 1 Blade, Variable Speed Inverter, Vertical Hydraulic Clamp and Laser for Saw Cut.

Ready to place an order, or do you have any questions? Call us at (704)703-9400

SEMI-AUTOMATIC OPERATION:

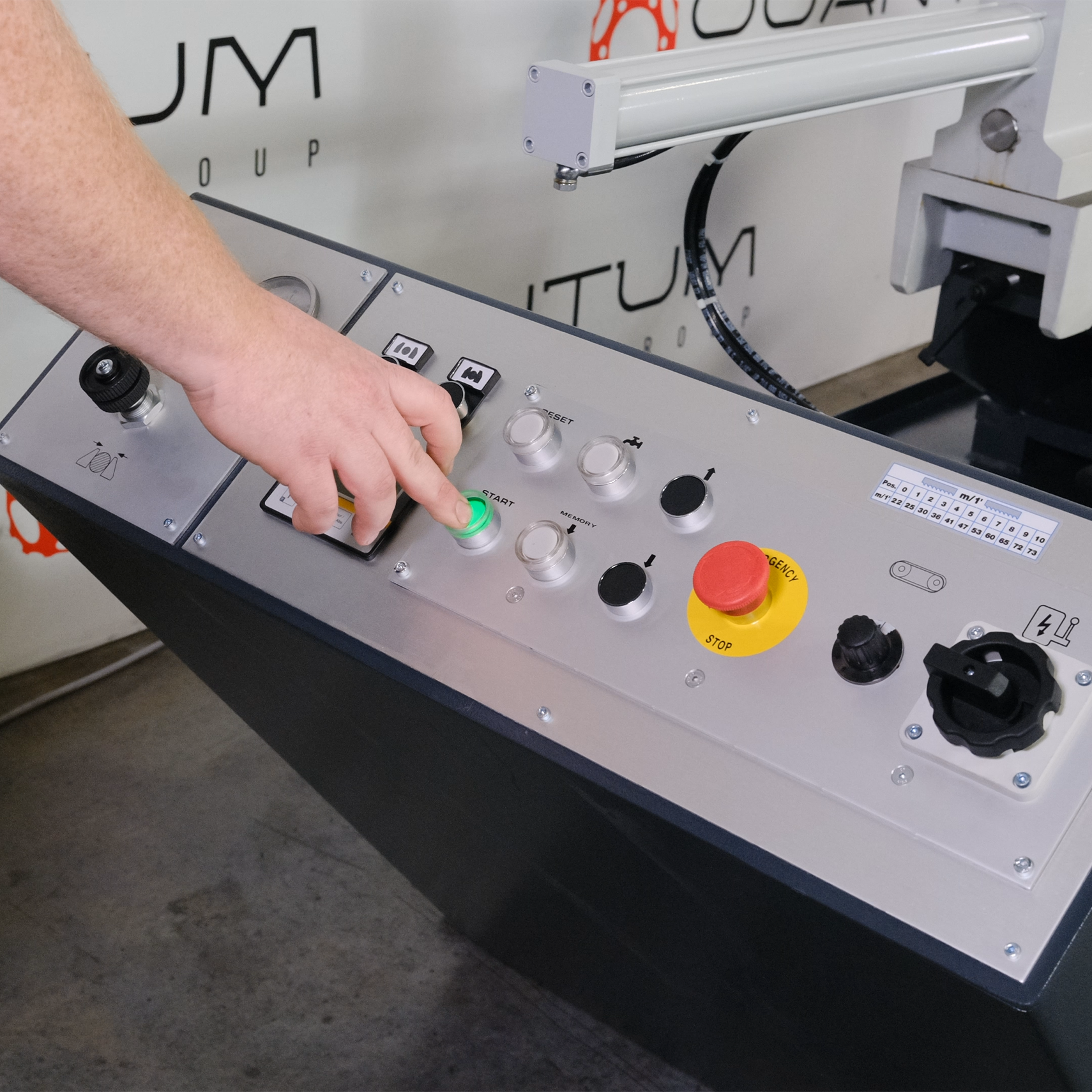

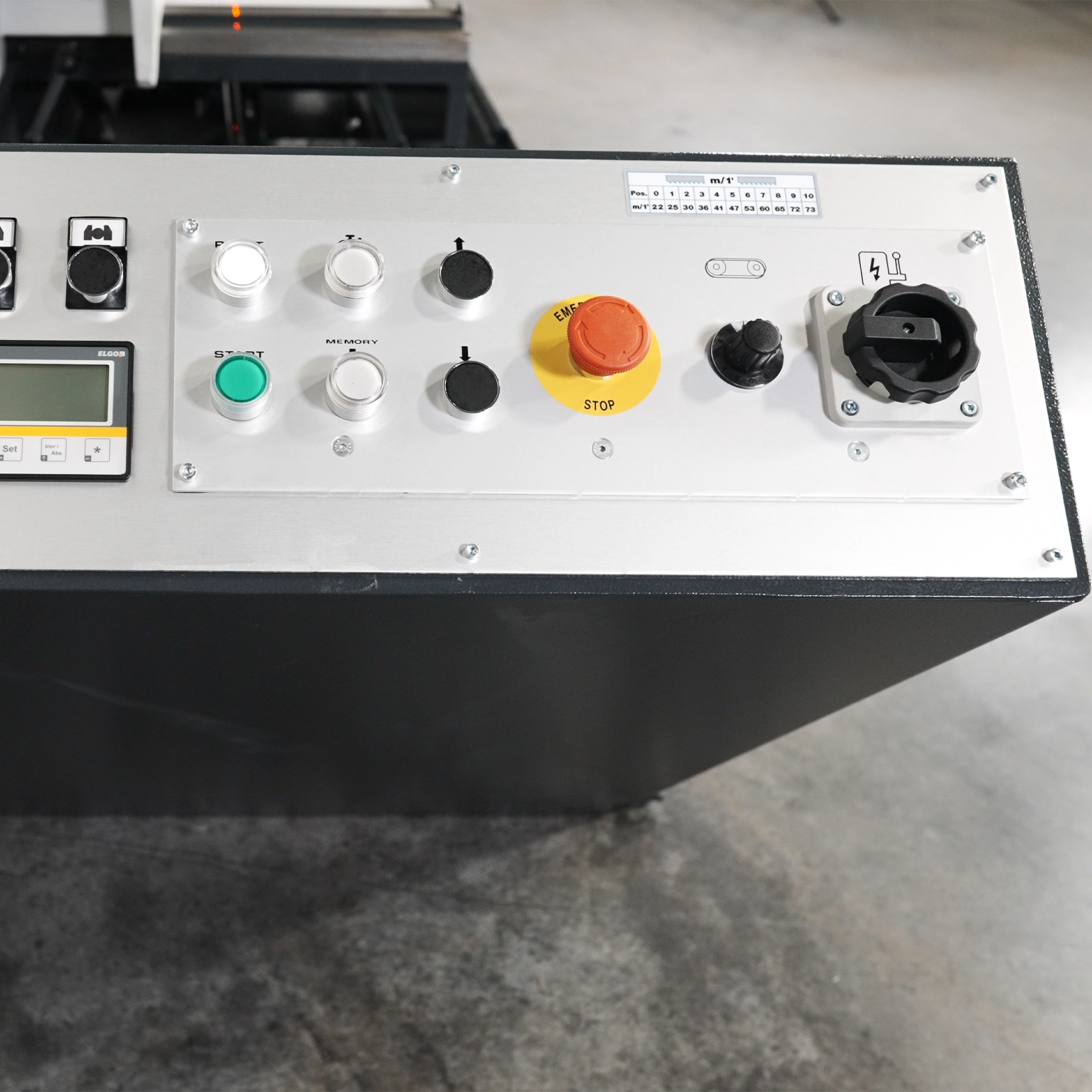

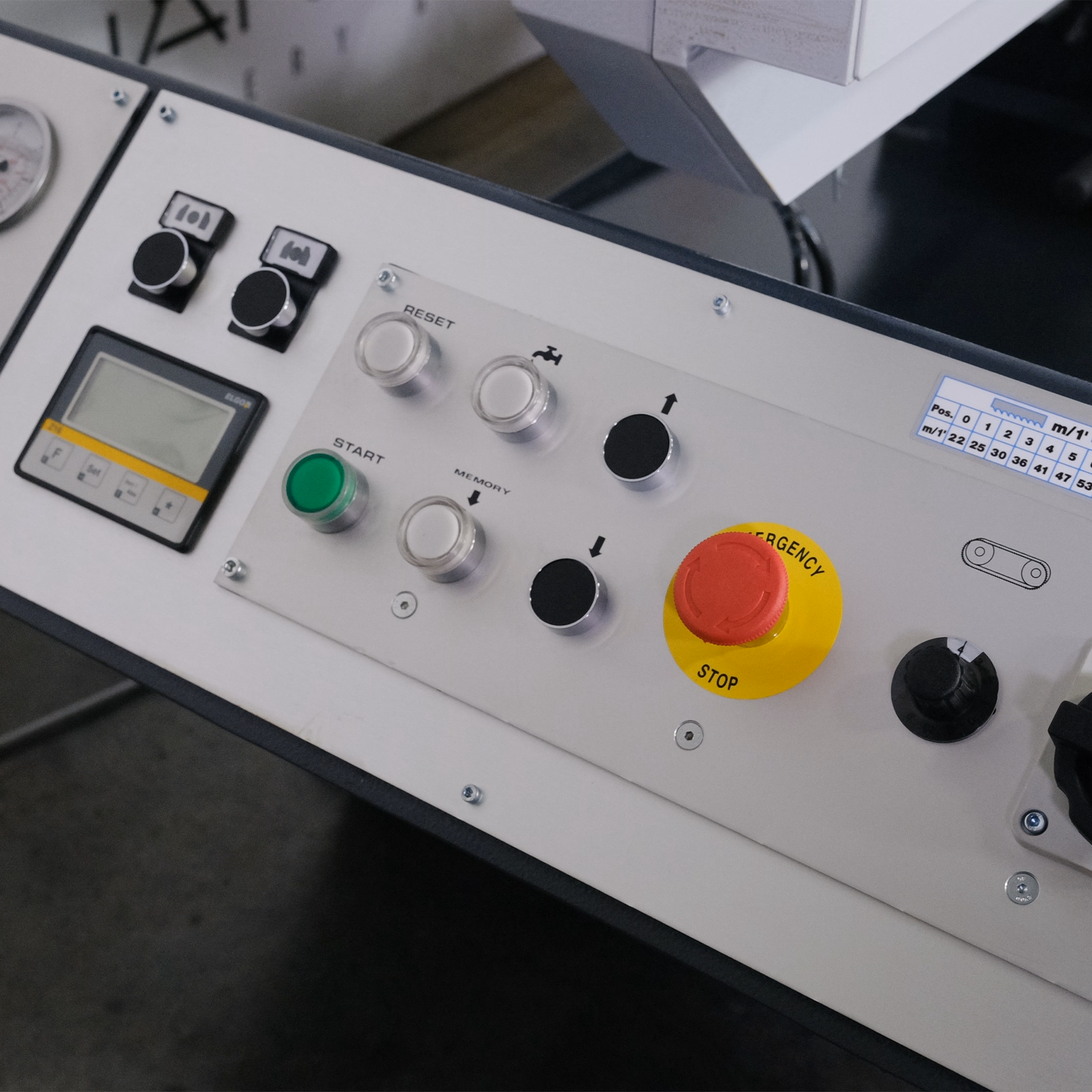

Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.

MAXIMUM CUTTING CAPACITIES:

Round Tube

  • Straight Cut: 18"
  • 45° Left Cut: 17.6"
  • 60° Left Cut: 9.4"
  • 45° Right Cut: 17-.6"
  • 60° Right Cut: 11.75"

Square Tube

  • Straight Cut: 7.75"
  • 45° Left Cut: 7.75"
  • 60° Left Cut: 7.75"
  • 45° Right Cut: 7.75"
  • 60° Right Cut: 7.75"


Solid Round

  • Straight Cut: 17.6"
  • 45° Left Cut: 16.9"
  • 60° Left Cut: 11.75"
  • 45° Right Cut: 16.1"
  • 60° Right Cut: 11.75"

Rectangular Tube

  • Straight Cut: 17.6"H x 24.4"W
  • 45° Left Cut: 15.6"H x 17.6"W
  • 60° Left Cut: 8.5"H x 12.5"W
  • 45° Right Cut: 13.4"H x 17.6"W
  • 60° Right Cut: 10.6"H x 16.5"W

TECHNICAL DATA & FEATURES:

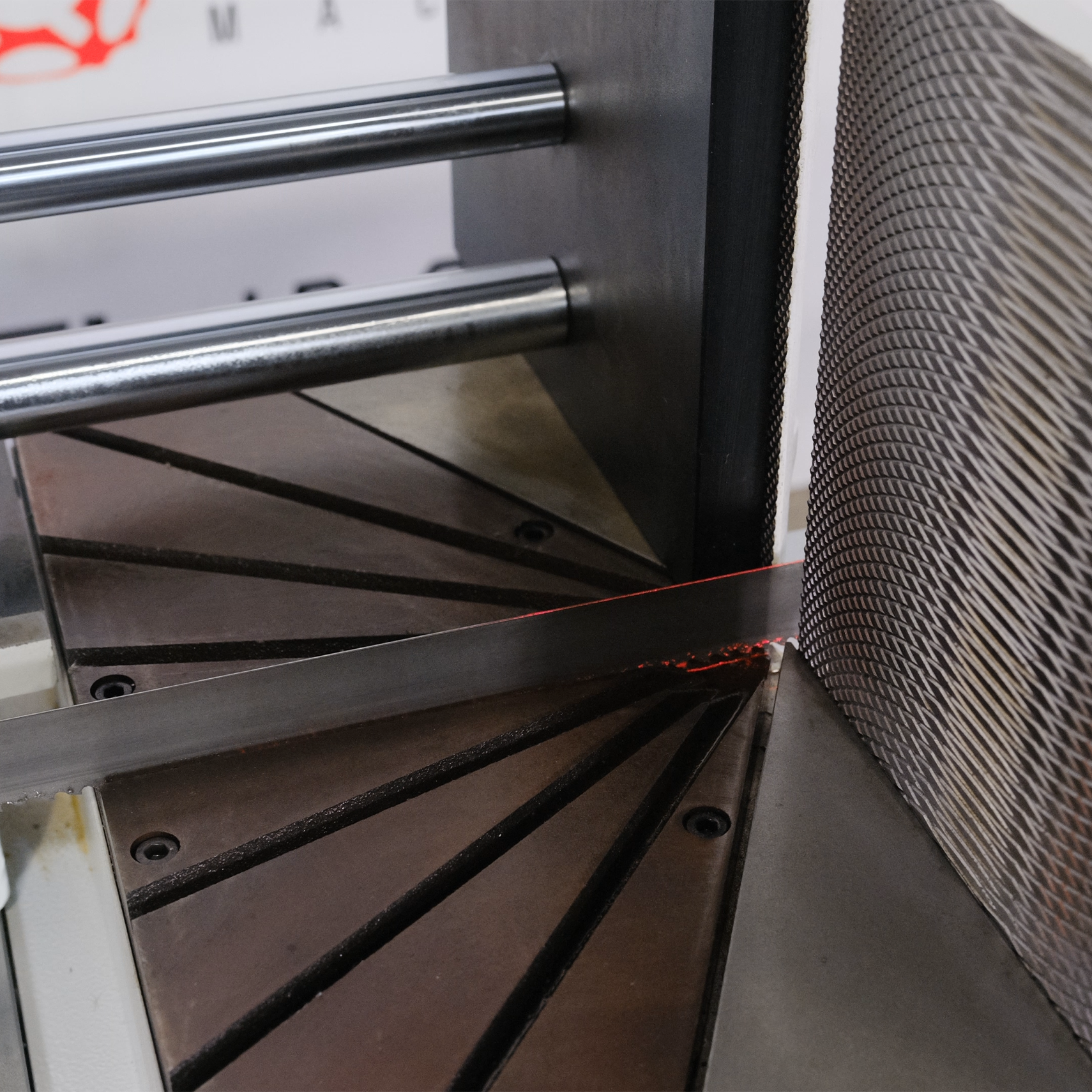

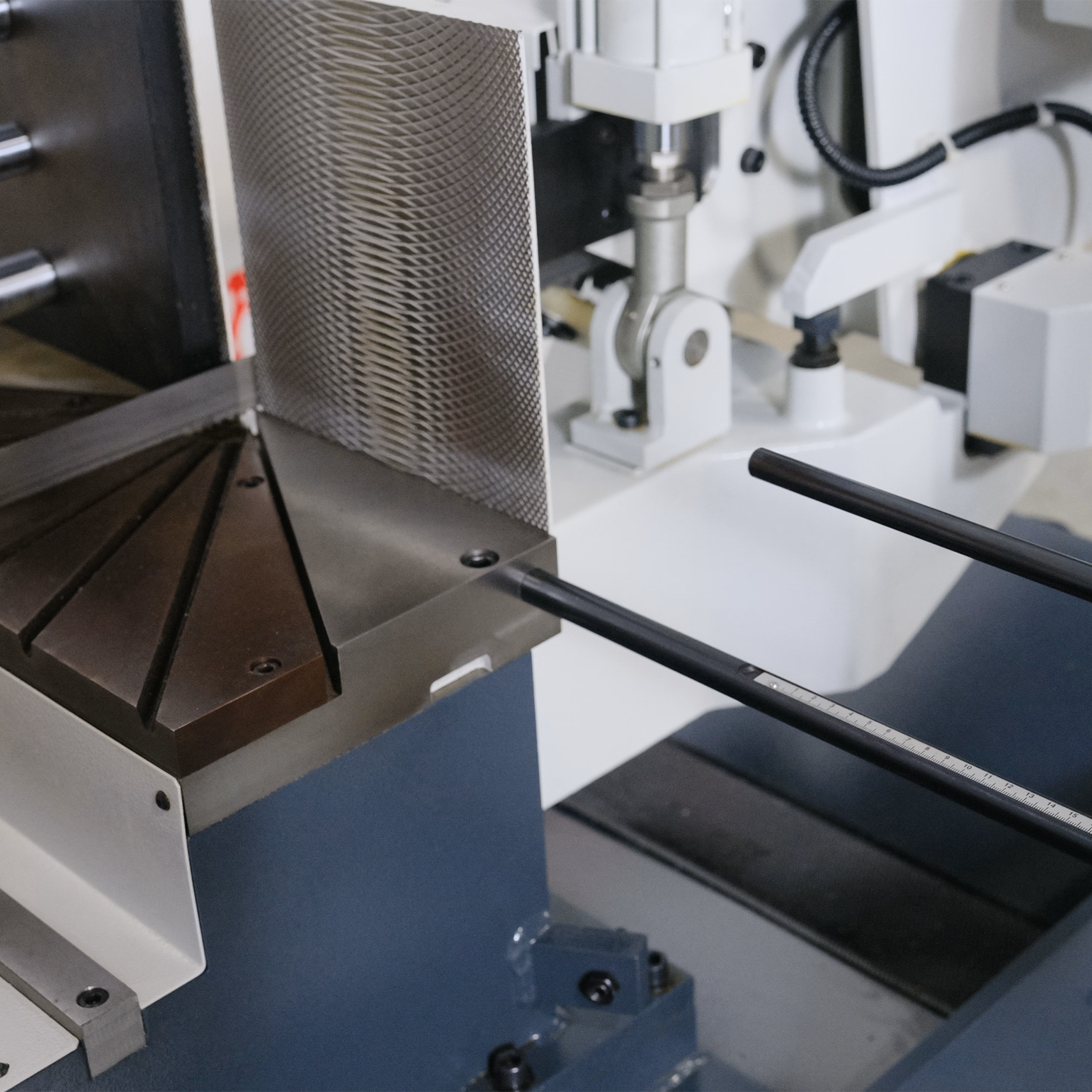

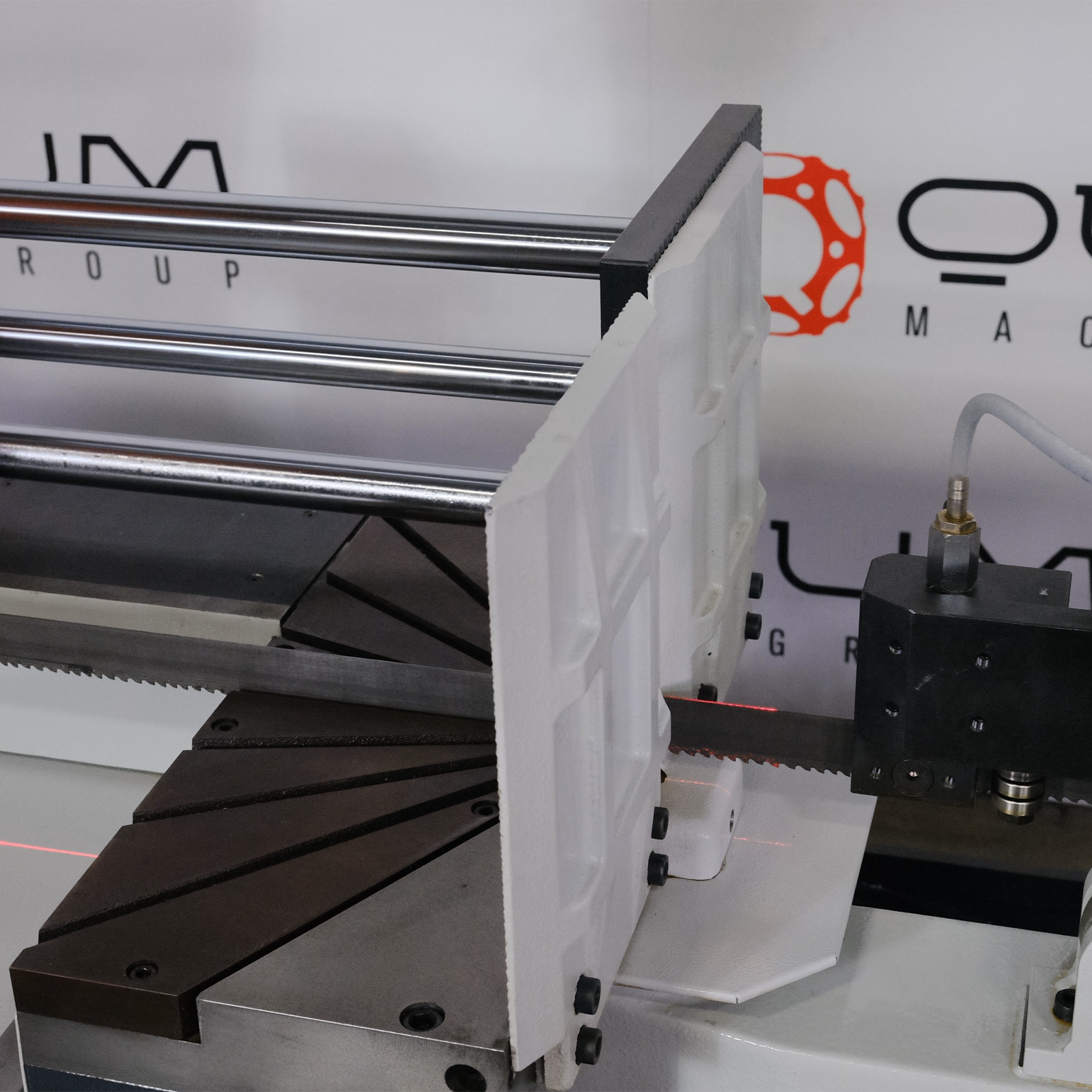

  • Includes: Variable Speed Inverter, Vertical Hydraulic Clamp and Laser for Saw Cut.

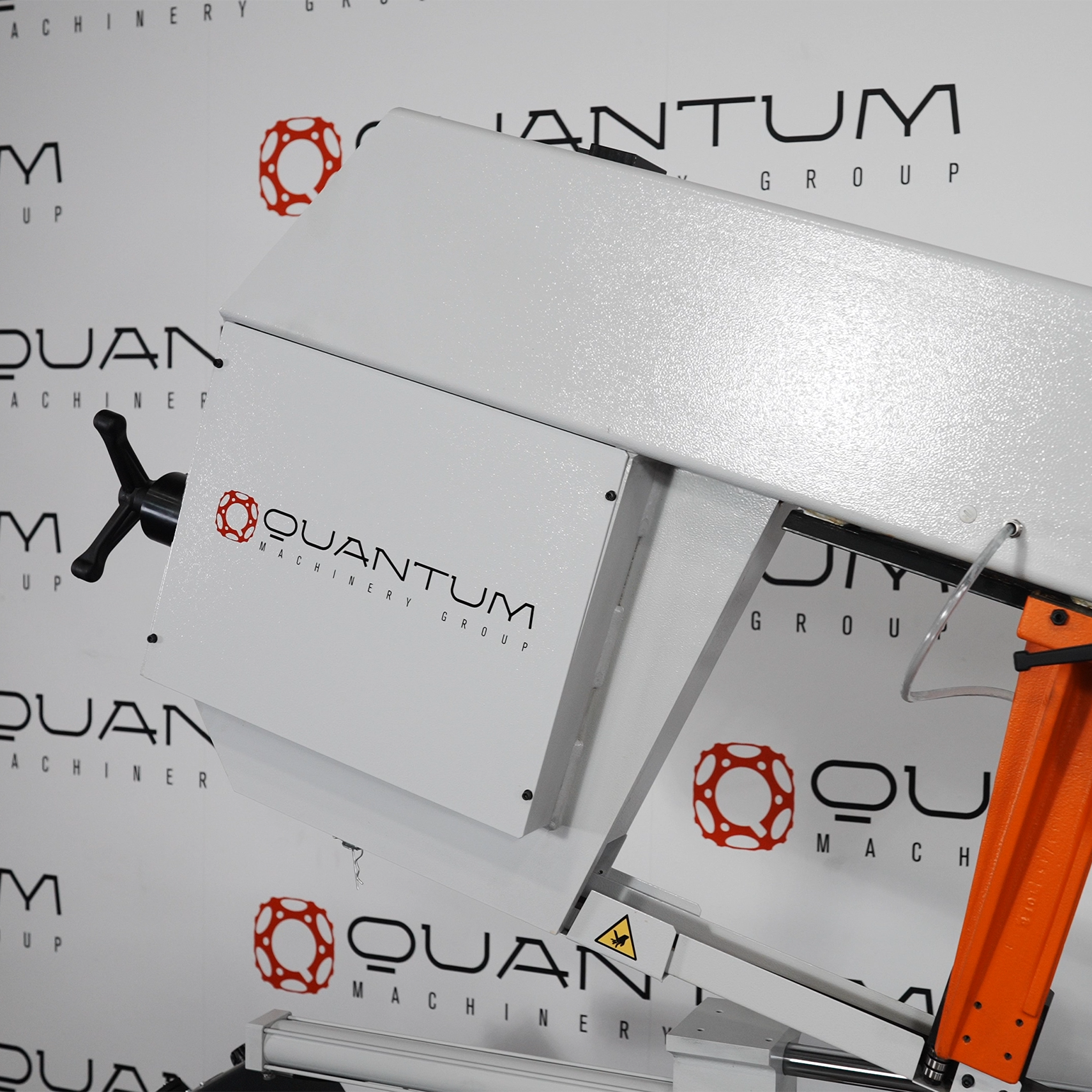

  • Appropriately dimensioned flywheels.

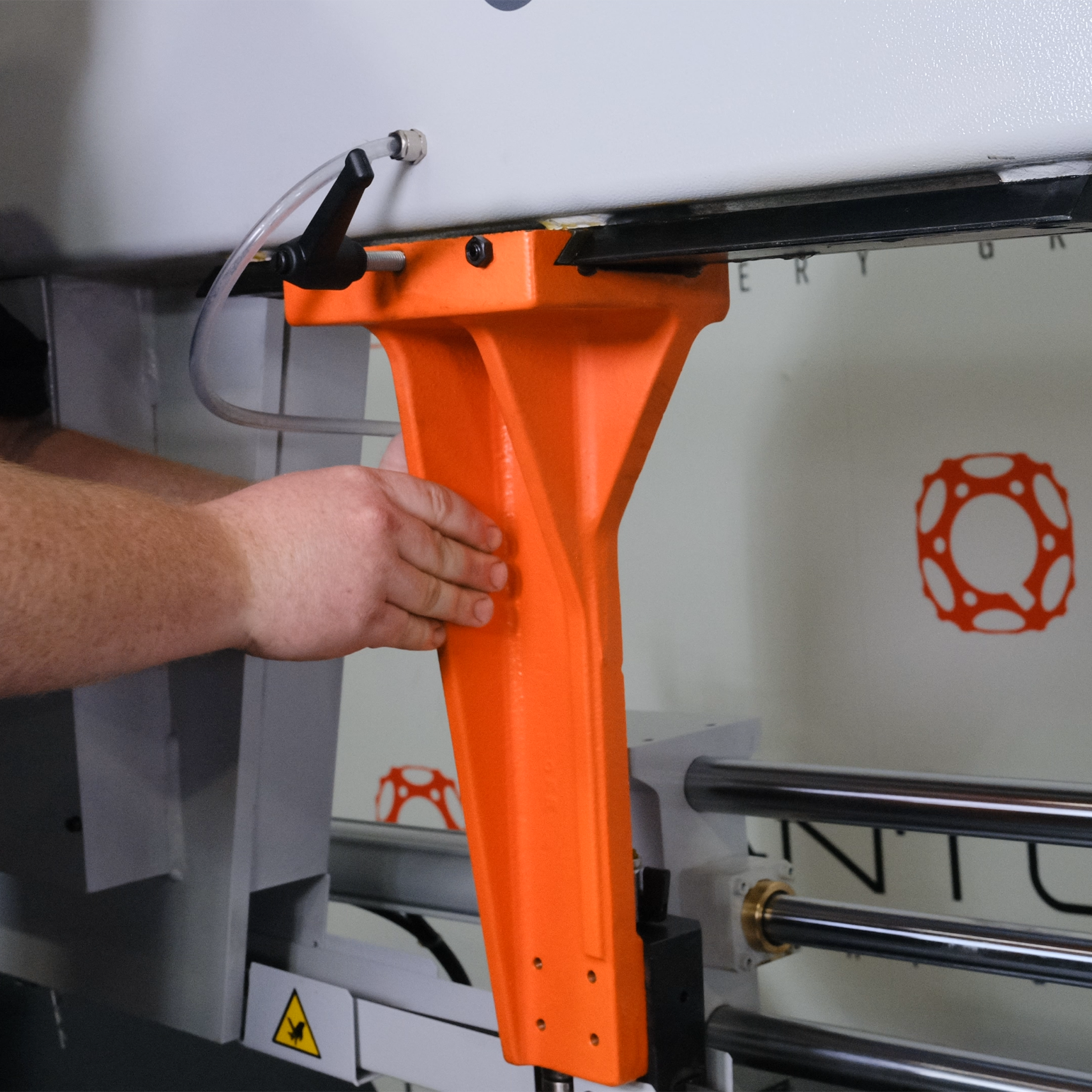

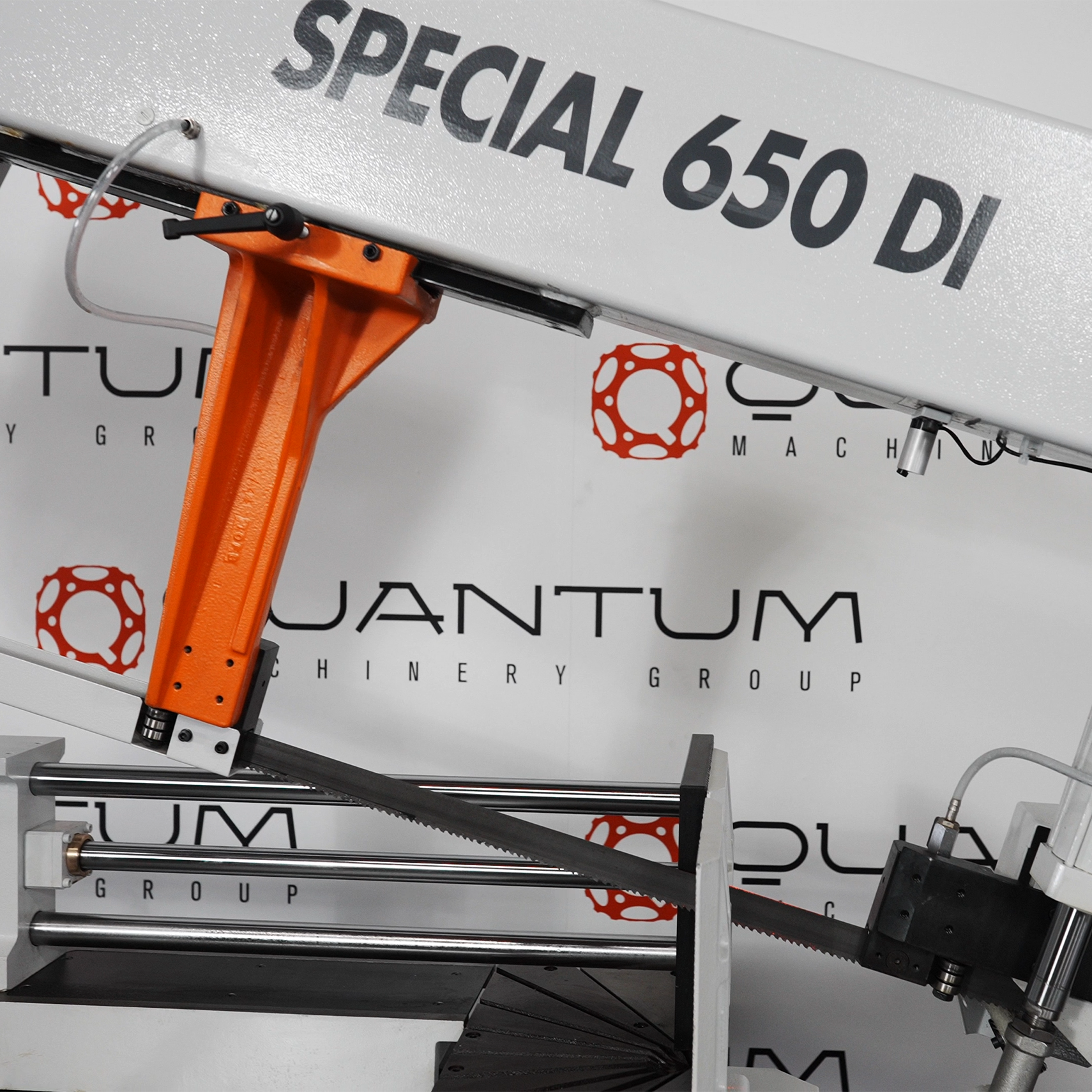

  • Strong blade guides with tight stress-raiser bearings and adjustable widia tips.
  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation.
  • Safety device on the flywheel casing and on the blade.
  • Adjustable stop for cuts of the same size.
  • Blade cleaning device with brush.

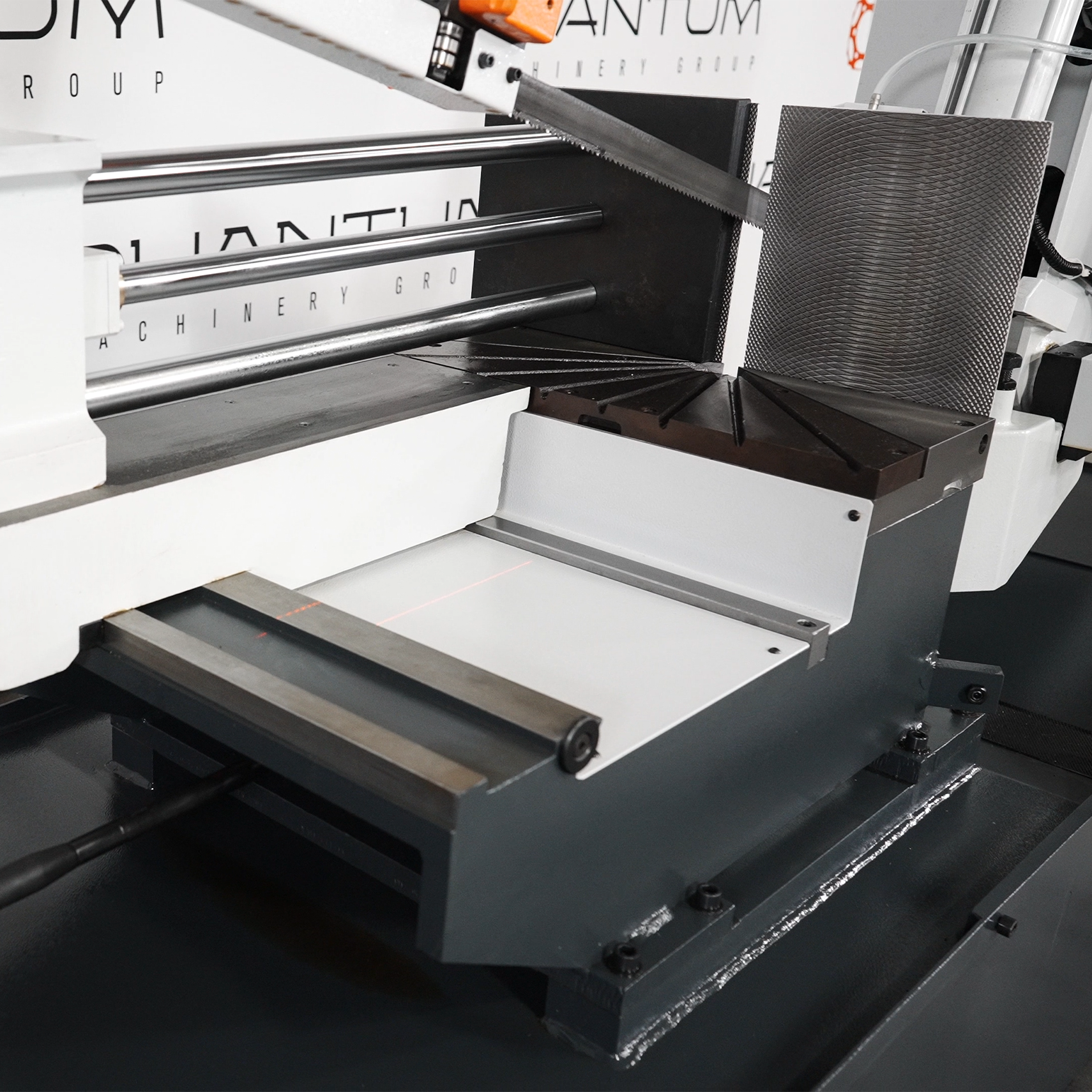

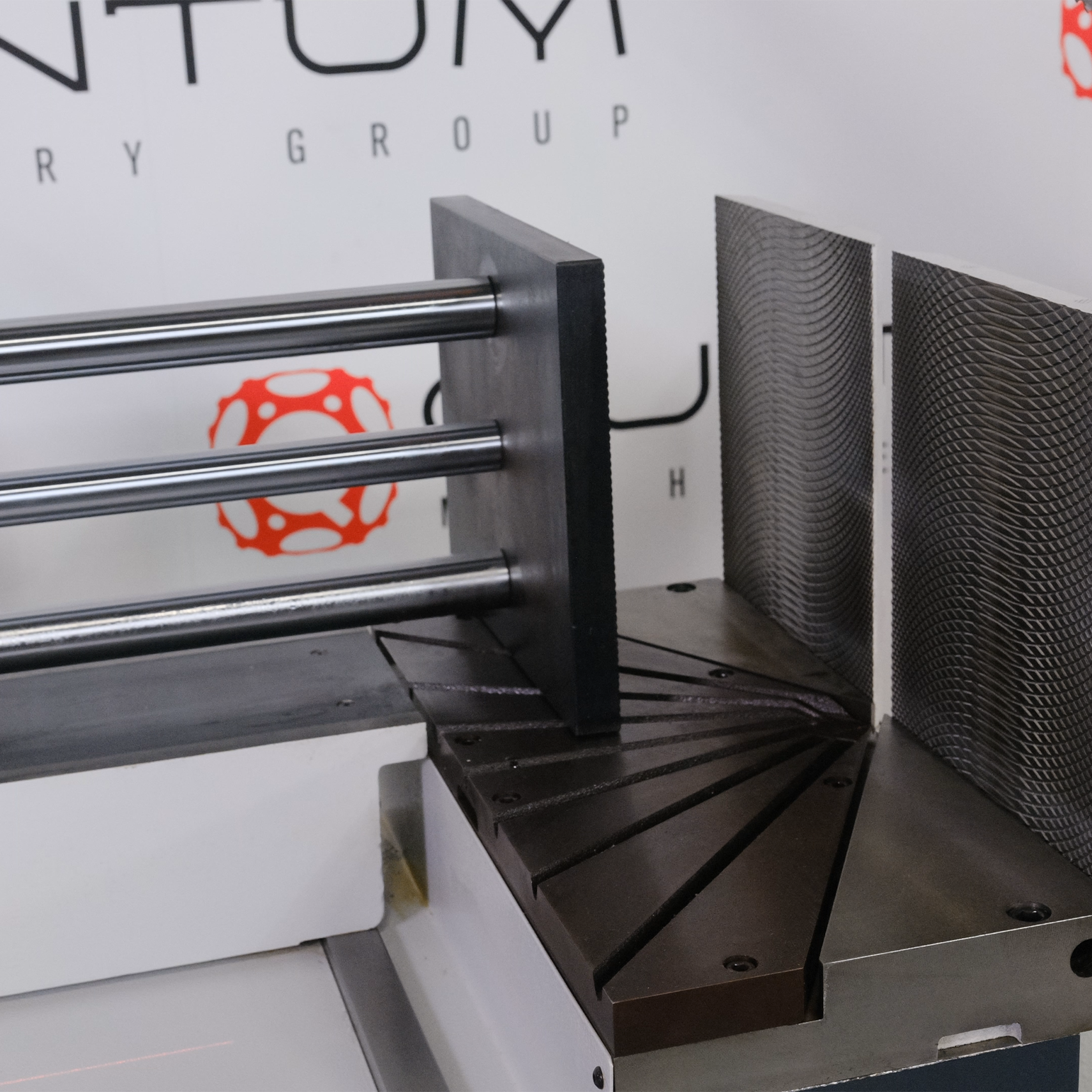

  • Vice Jaws Height: 9.84" (250 mm)
  • Vice Jaws Length: 7.87" (200 mm)
  • Bed Height: 30" (760 mm)
  • Cutting Thickness: .059" (1.5mm)
  • Cutting Range: 60° Left up to 60° Right.

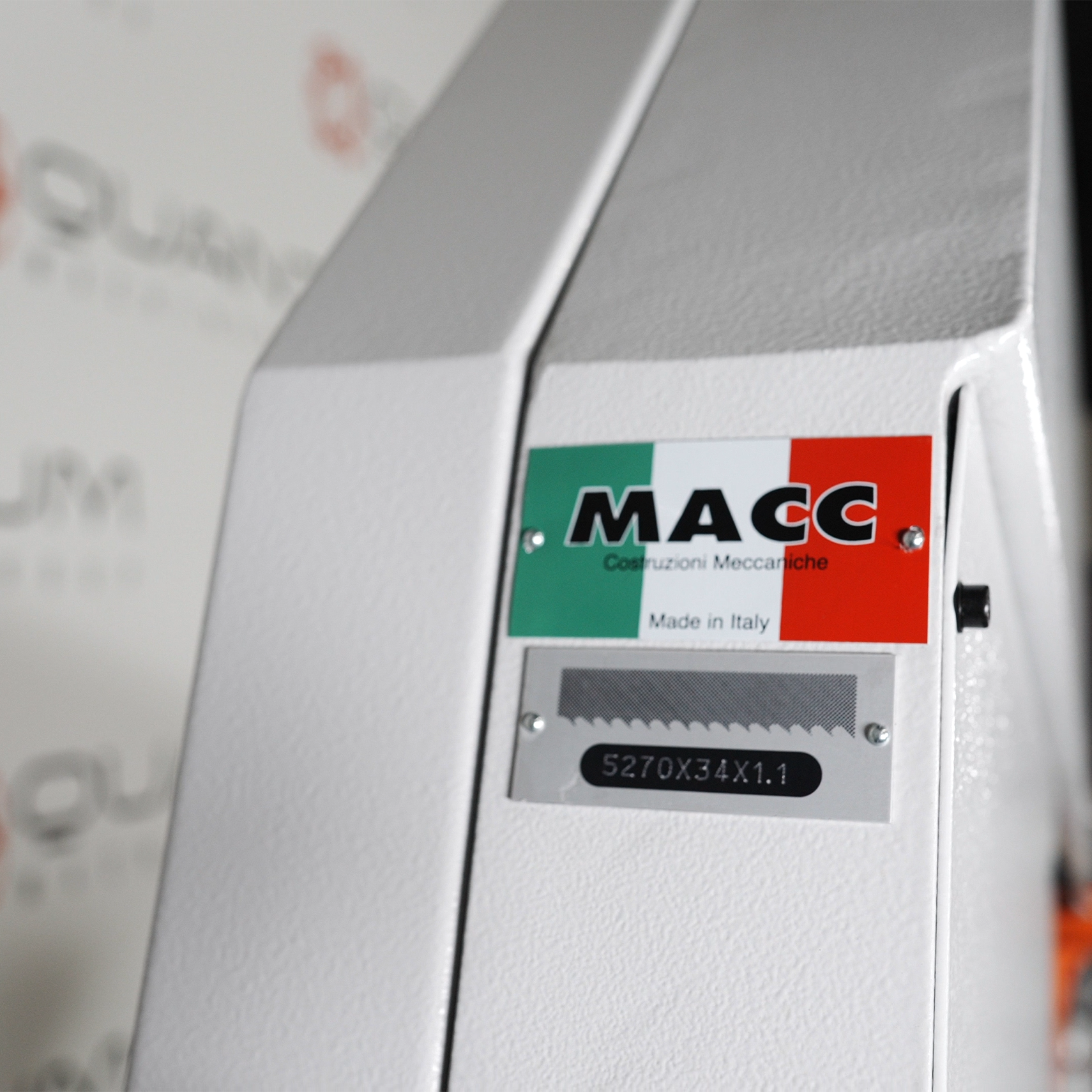

  • Blade Size: 5,270 x 34 x 1.1 mm
  • Maximum Vice Opening: 24.4" (620 mm)
  • Machine Weight: 2,760 lbs. (1,250 kg.)
  • 2 Speeds: 23-95 Feet per Minute
  • Motor Hydraulic Gearcase: 0.55 kW
  • Electropump for Band Cooling: 0.09 kW
  • Overall Dimensions (without Bar Stop): 8'-3”H x 2'-3”W x 10'-1”L or 90”H x 28”W x 112”L or 2,286 mm H x 711 mm W x 3,073 mm L
  • Overall Dimensions (with Bar Stop): 8'-3”H x 6'-3”W x 10'-1”L or 90”H x 75”W x 112”L or 2,286 mm H x 1,905 mm W x 3,073 mm L
  • This Saw also Includes: Instruction Manual, Service Tools & 1 Band Saw Blade.
